Toro OEM 138-6006 Mower Deck Adjustable Lift Links Fits Late Timeutter 54" Battery and My-Ride Models (Models Cast Aluminum Axle's).

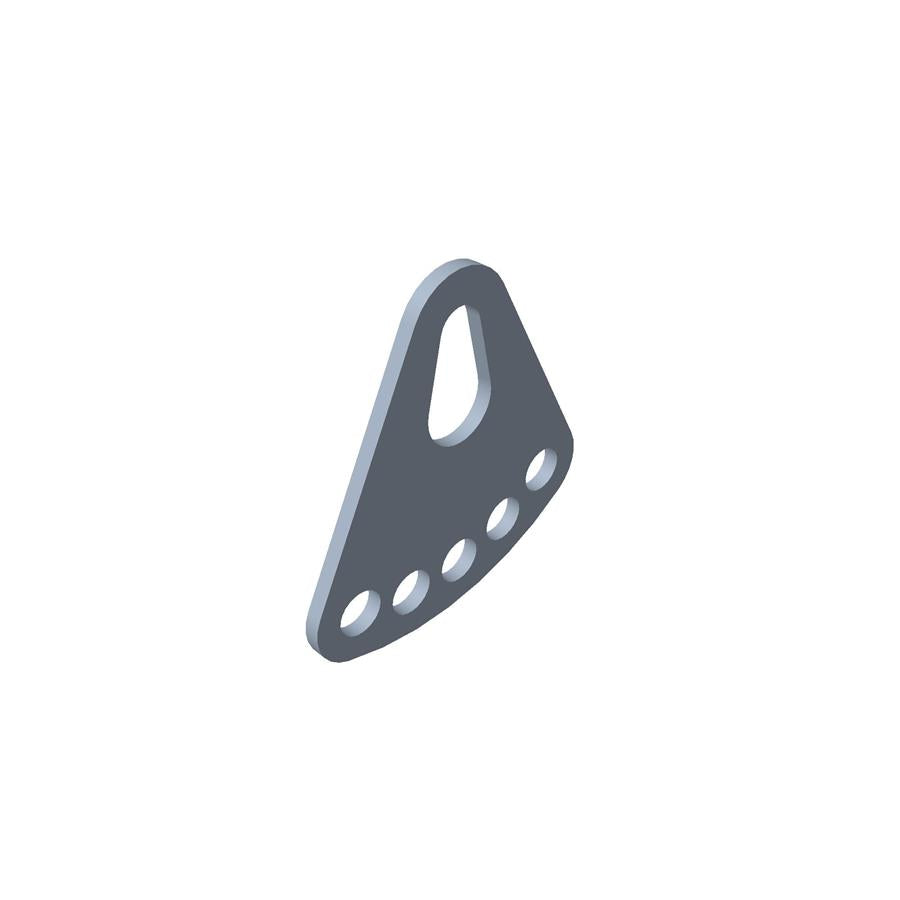

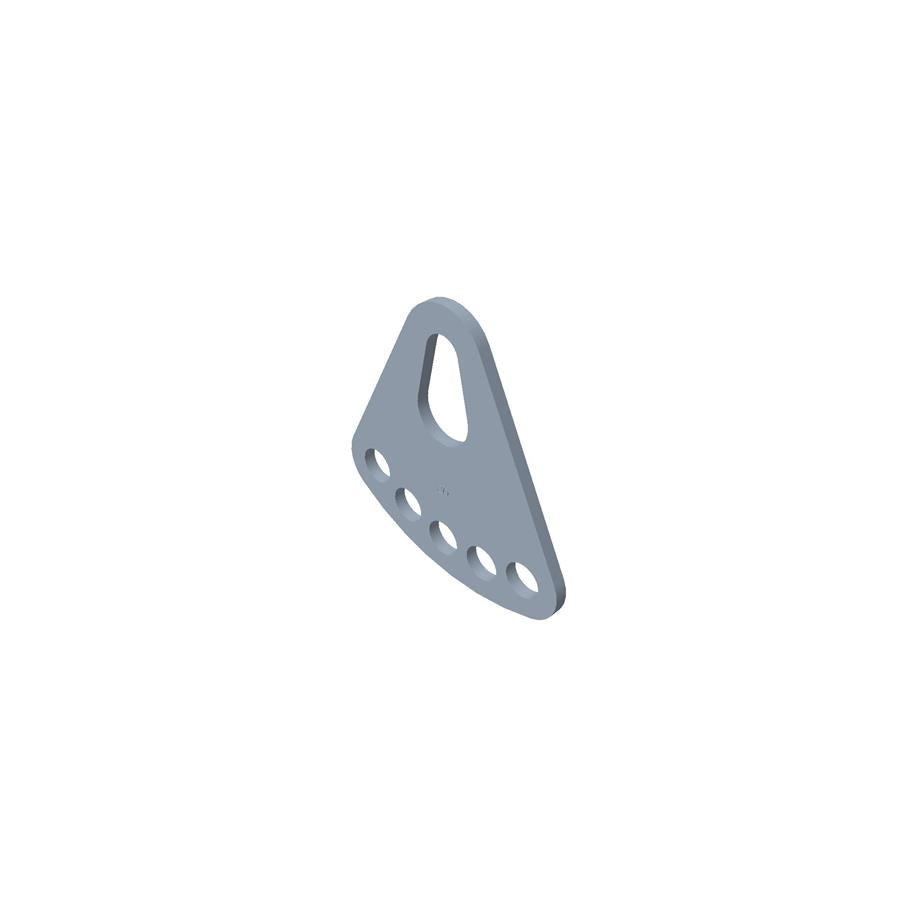

Toro OEM 138 6006 Mower Deck Adjustable Lift Link/Height of Cut Link Connects the Mower Deck Pivot Lift/Leverage Arm and the Mower Deck Sway Bars/Arms. Toro OEM 138 6006 Adjustable Height of Cut Lift Link have Multiple Wholes for Adjustment Purposes and is Designed to be used on 54" Timecutter My-Ride & Battery Models (Models with Cast Aluminum Axles). Please refer to the Images above; Product Specifications, Special Notes, and the Model Fit guide below to ensure proper fit. For Additional Part Number References Refer to the Associate Parts References Chart Below.

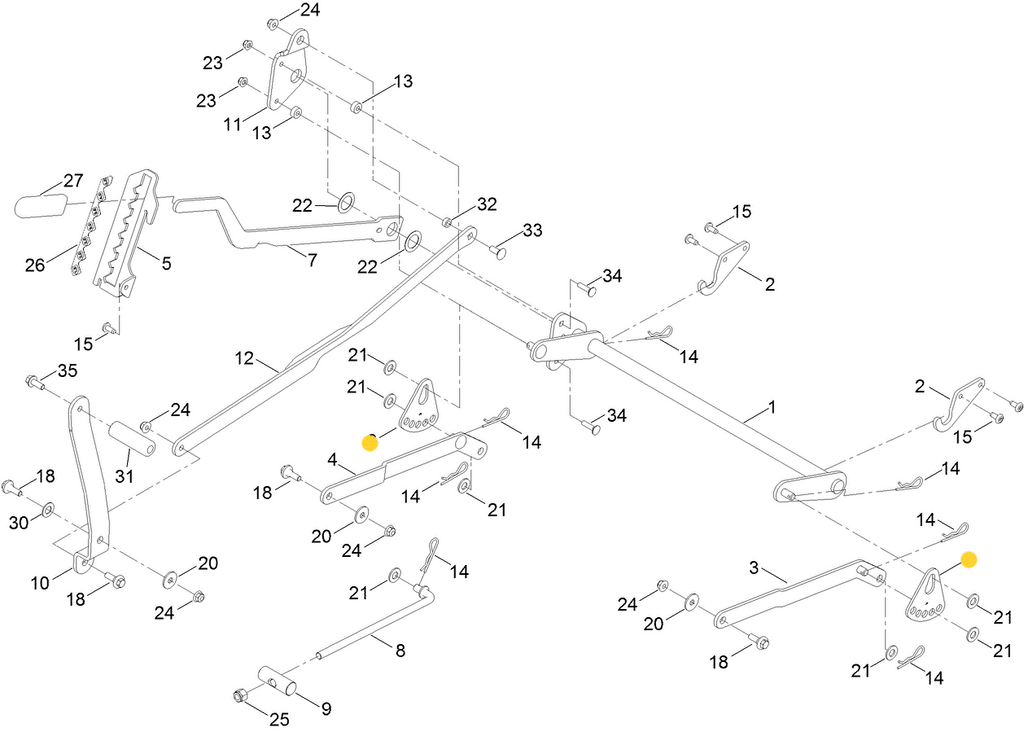

ASSOCIATED PARTS REFERENCES FOR 54" TIMECUTTER MODELS

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 137-7093-03 - MOWER DECK PIVOT LIFT/LEVARGE ARM - (Attaches to The Frame and Travels Between/Across the Frame of the Mower and assist with lifting the Mower Deck by Leveraging the weight of Mower Deck into a Rotational Pivot Point - Attaches to the Lift Linkage Lift Link Handle and Foot Lift Link) x1 Per Mower Deck or Unit
2. 138-6006 - LIFT LINK/HEIGHT OF CUT LINK - (Connects Mower Deck Pivot Lift/Leverage Arm and the Mower Deck Sway Bars/Arms - Slotted Brackets Enable the Mower Deck Free Float) x2 Per Mower Deck Pivot Lift/Leverage Arm
3. 139-2611 - FLAT WASHER - (Supports Retaining Clip Pins for Retaining Slotted Lift Link to Pivot Arm - Lift Link to Sway Bars/Arms - Sway Bars/Arms to Mower Deck and Mower Deck Front Pivot Rods or Pivot Pans to Mower Deck) x7 Per Mower with Front Pivot Rod - x8 Per Mower with Front Pivot Pan
4. 139-2562 - CLIP/COTTER PIN - (Retains Slotted Lift Link to Pivot Arm - Lift Link to Sway Bars/Arms - Sway Bars/Arms to Mower Deck and Mower Deck Front Pivot Rods or Pivot Pans to Mower Deck) x7 Per Mower with Front Pivot Rod - x8 Per Mower with Front Pivot Pan
5. 137-9846 - MOWER DECK SWAY BAR/ARM (Right Side as You Sit on the Operator Seat) - (Attaches to the mower Frame and Connects to the Mower Deck Lift Link and Mower Deck) x1 Per Unit
6. 137-9844 - MOWER DECK SWAY BAR/ARM (Left Side as You Sit on the Operator Seat) - (Attaches to the mower Frame and Connects to the Mower Deck Lift Link and Mower Deck) x1 Per Unit







Specification

Product Number:	1386006
Brand:	Toro
Length:	4.000 IN (10.160 CM)
Width:	3.750 IN (9.525 CM)
Height:	0.250 IN (0.635 CM)
Weight:	0.404 LB (0.183 KG)





Model Fit:



54” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75754, 75756, 75757)

54” TIMECUTTER (My-Ride - Battery) Series – Model Numbers – (* Model Numbers 75851)
