Description
Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
Model Number 37798, 37799, 38814 & 38819 Does Contain a Serial Number Break in Requiring Correct Part Number Usage - Review the Model Fit Chart to Ensure Correct Part Number. if it is the Incorrect Part Number Refer to Part Number 144-1237
- PRODUCT NUMBER AND VARIATIONS: 138-3673, 138 3673, 1383673

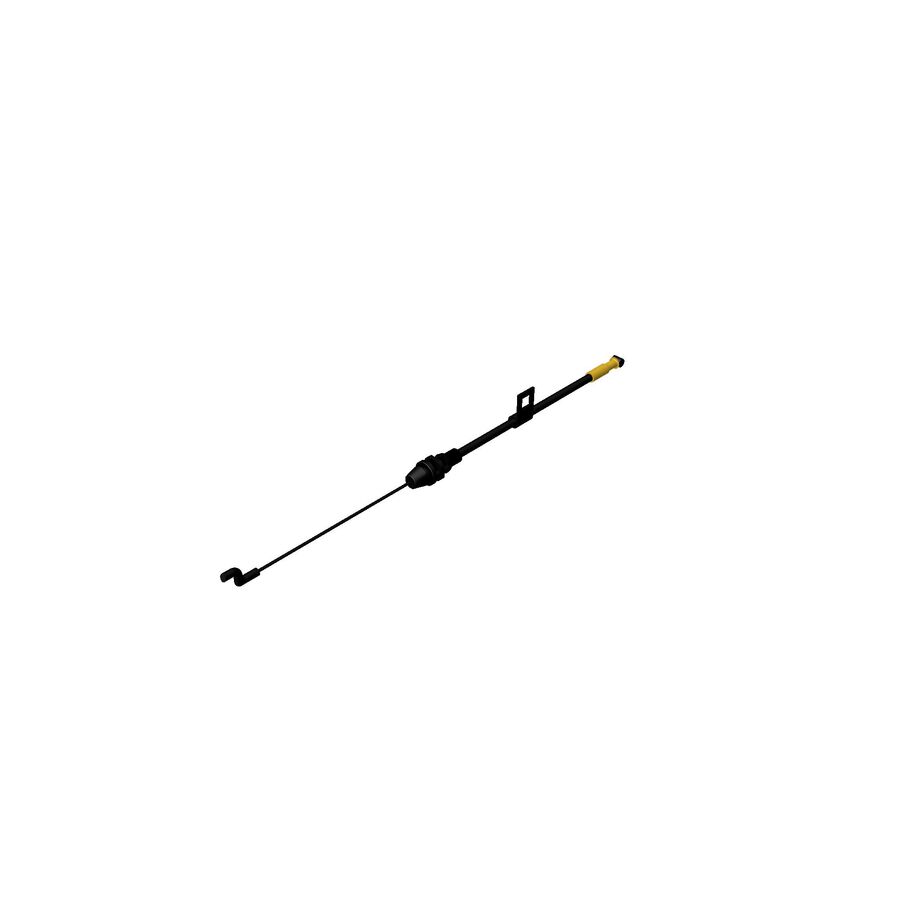

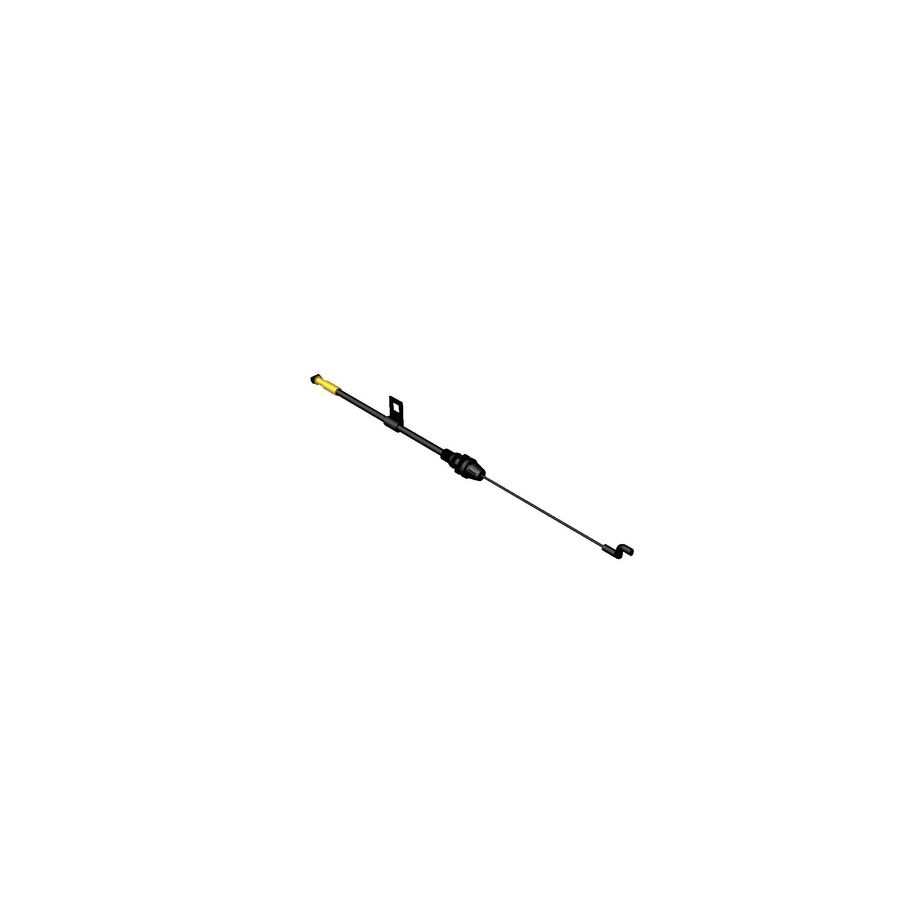

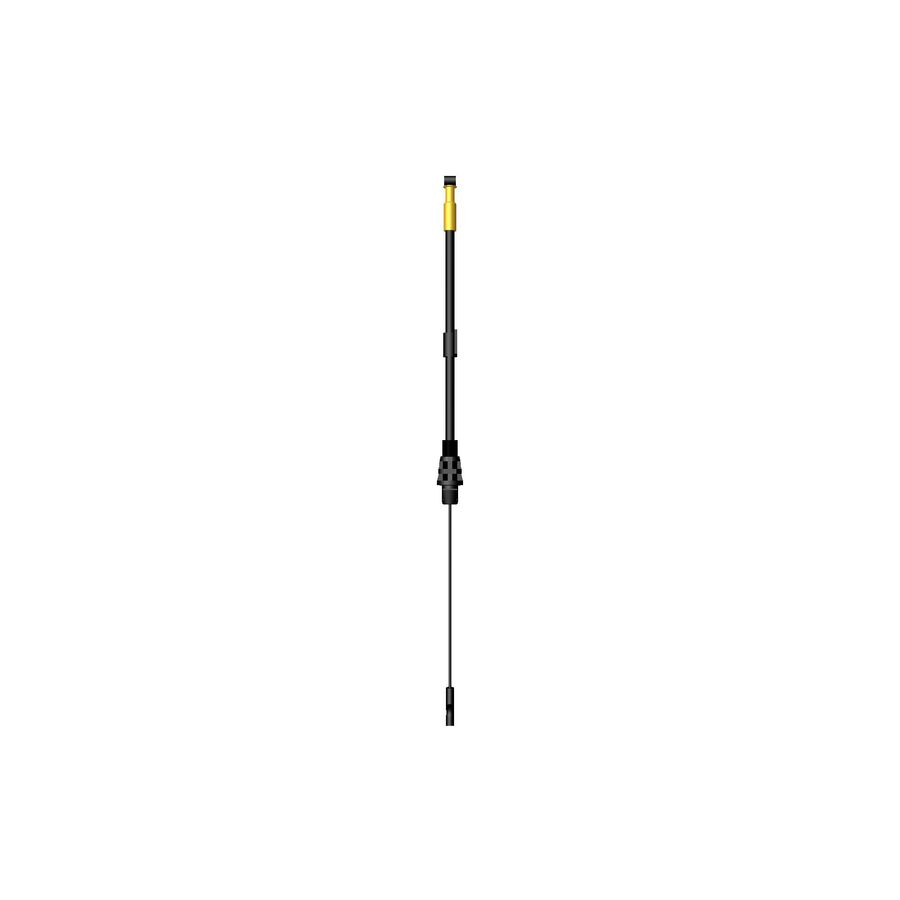

- PRODUCT TYPE: Discharge Chute Latch Release Cable
- SIZE: Length N/A - Width N/A - Height N/A - Weight 0.200 lbs.

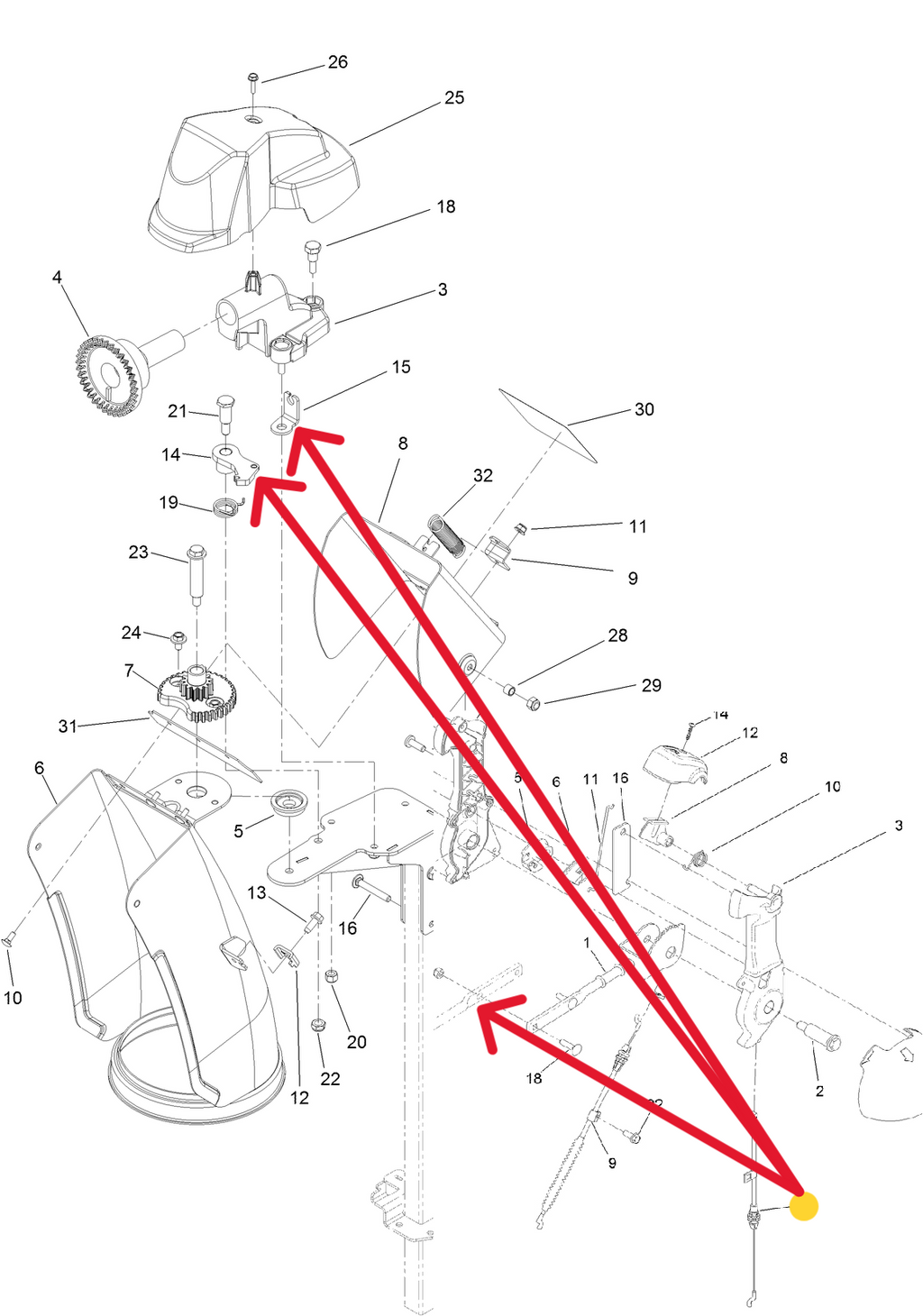

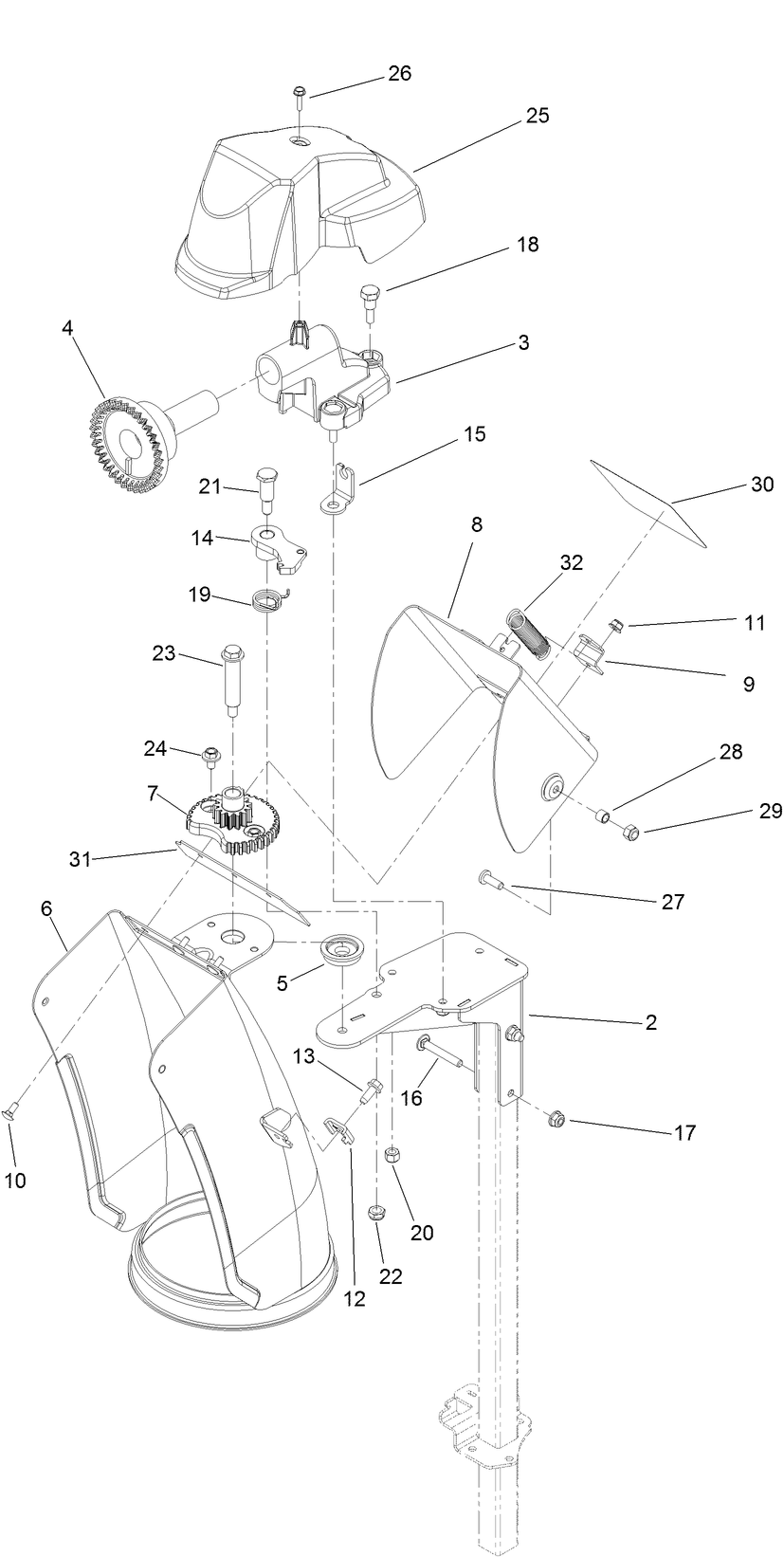

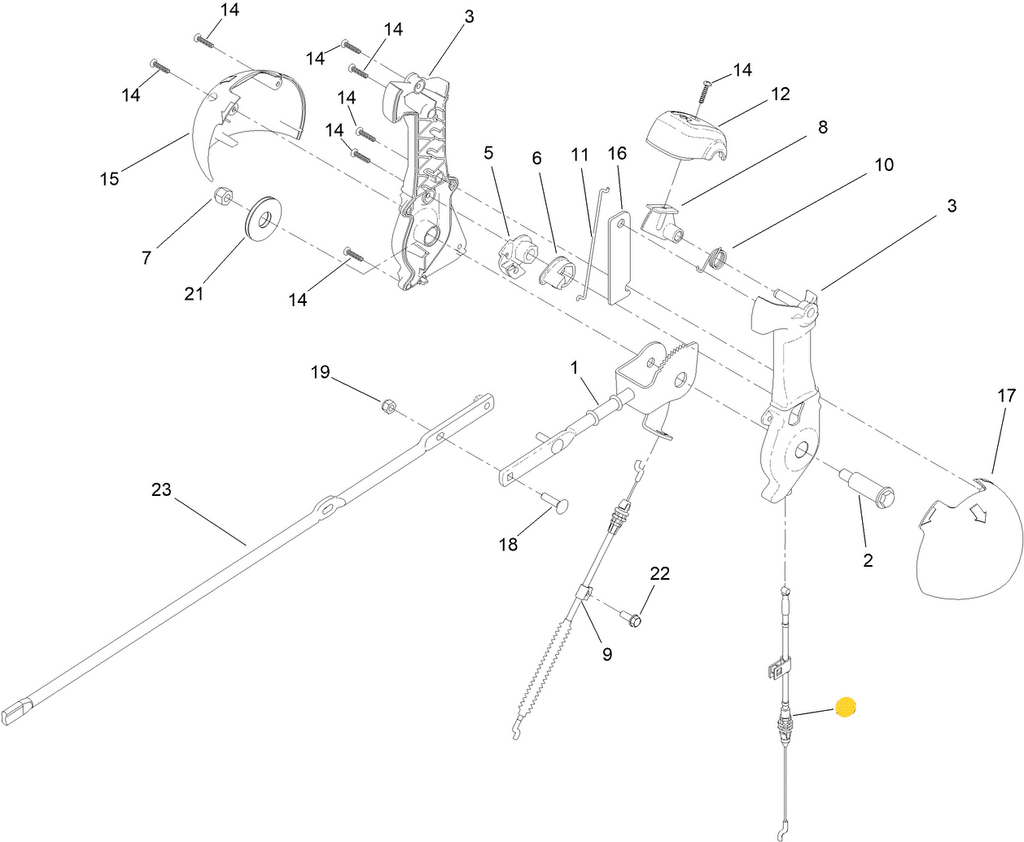

- NOTES & DETAILS: Toro OEM 138-3673 IS COMMINLY USED - 138-3673 Cable Ends - 138-3673 Chute Release Cable Attaches to the Chute Release Cable's QuickStick or Latch Lever 105-9988 that is Assembled inside the Handle or Quickstick assembly. The Lower End of the Chute Release Cable (With the Plastic Insert Clips) Attaches to the Quickstick Chute Latch 106-4476 (Latch is Responsible from Disabling the Discharge Chute to Rotation). - 138-3673 The Cable Itself - 138-3673 Chute Release Cable is Routed from the Chute Control Lever or Quistick Assembly Across the Discharge Chute Rod 144-1236 and Fastened to the Chute Control Rod with the Factory Installed Cable Clamp By Using the Spare Bolt Whole on the Chute Control Rod and Carriage Bolt 137-3056 and Nylon Lock Nut 137-3094 - Next the Cable Continues Its Route Directly to and Insert Into the Cable Anchor 138-3607 that Is installed on the Chute Gear Mount 138-3606 Using The Factory Molded Retaining Tabs on the Chute Release Cable. - 138-3673 Deflector Cable Assembly - Enable the Operator to Push on the Blue Lever/Button on the Control Handle or Quick stick, By Pushing the Button/Lever the Cable Pulls the Toothed Latch Away from the Discharge Chute Gear Allowing the Discharge Chute to Rotate Left to Right as the Operator Rotate the Quickstick Left to Right. Click on the Associated Part Numbers to Be Redirected.
- COMMON SERIES APPLICATIONS: Toro Standard Power MAX Snow Blower Models.
- MODEL FIT CHART:
SNOWBLOWER’S
POWER MAX Series – Model Numbers – (* Model Numbers 37798 Serial Number 406699999 and Lower, 37799 Serial Number 406499999 and Lower, 38814 Serial Number 406319999 and Lower, 38819 Serial Number 406319999 and Lower)
