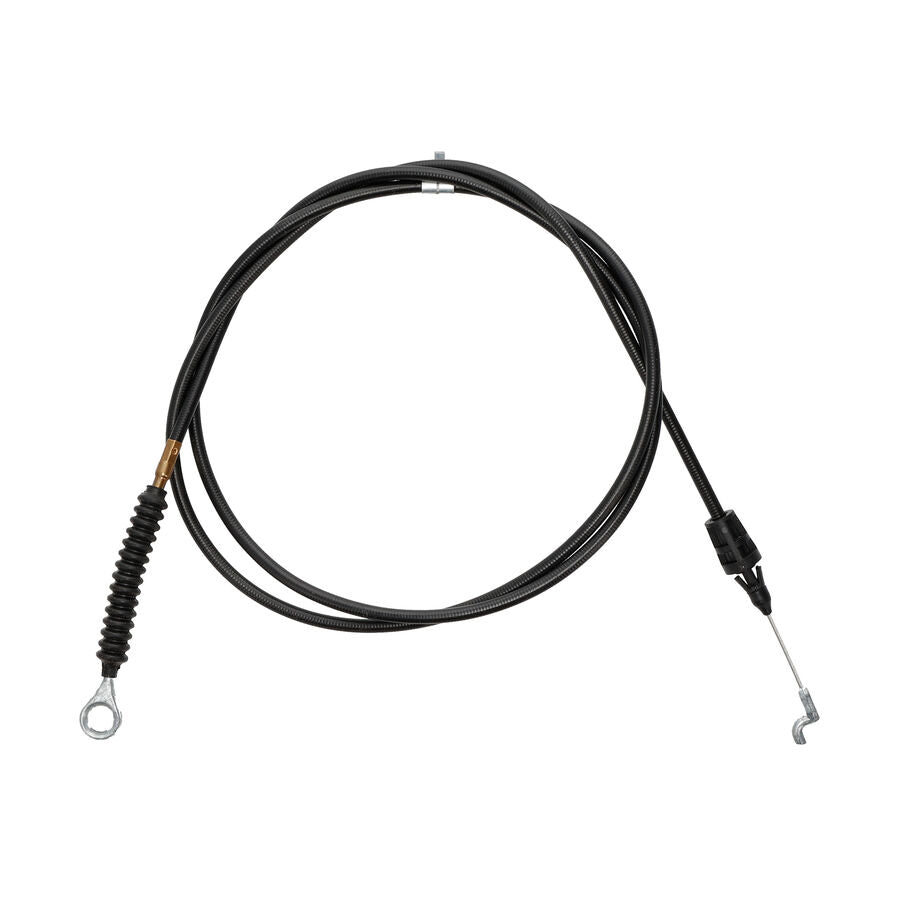

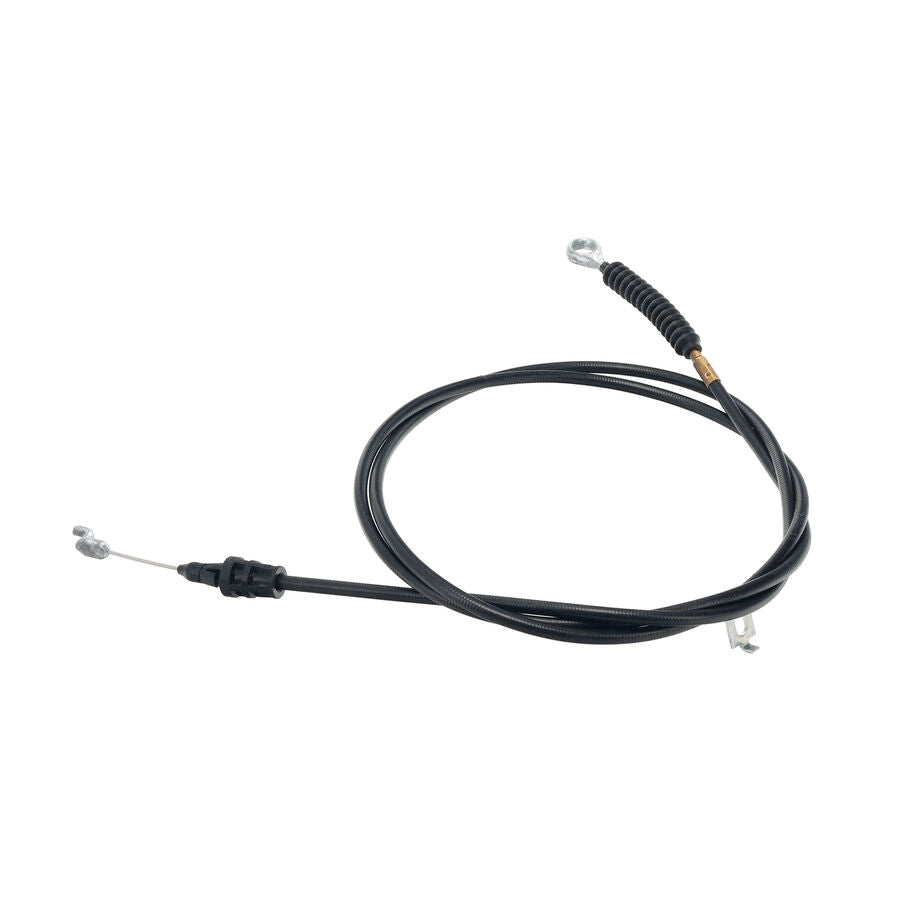

Toro OEM 138-3672 Snowblower Chute Deflector Cable Fits Select E- Power MAX and Standard Power MAX Models (Metal Chute).

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.





• PRODUCT NUMBER AND VARIATIONS: 138-3672, 138 3672, 1383672
• PRODUCT TYPE: Chute Deflector Control Cable
• SIZE: Length N/A - Width N/A - Height N/A - Weight 0.200 lbs.
• NOTES & DETAILS: Toro OEM  138-3672 IS COMMINLY USED - 138-3672 Cable Ends - Hook or Shoe End Inserts into the Control Rod/Bracket that Mounts to the Chute Control Handle the Eyelet End Fastens to the Chute Deflector. - 138-9613 The Cable Itself - Fastens through a Series of Fasteners and Clamps that retain it to the Snowblower Assembly. Cable is routed around the Engine Erea and Retained to the Frame Using the Factory Installed Cable's Clamp Via a Washer Head Bolt - Next the Cable Feed through a Cable Clamp and Fastener that Attaches to the Cable Bracket that is Welded to the Metal Discharge Chute. - 138-9613 Deflector Cable Assembly - Only Serves the Purpose of Lowering and Raising the Deflector as the Operator Pushes and Pulls the Chute Control Handle Foward and Backward this Also Enables the Operator to Control the Distance of Snow Travel Preventing Blowing Snow and Debris Against Vehicles or other Object, Items and Areas.
• COMMON SERIES APPLICATIONS: Toro Select E - Power MAX & Standard Power MAX Snow Blower Models.





• MODEL FIT CHART:



SNOWBLOWER’S



POWER MAX Series – Model Numbers – (* Model Numbers 37798, 37799, 37802, 37805, 37807, 38812, 38814, 38819)



E - POWER MAX Series – Model Numbers – (* Model Numbers 31875, 39924, 39925, 39926, 39926T)





• ASSOCIATED PARTS CHART:

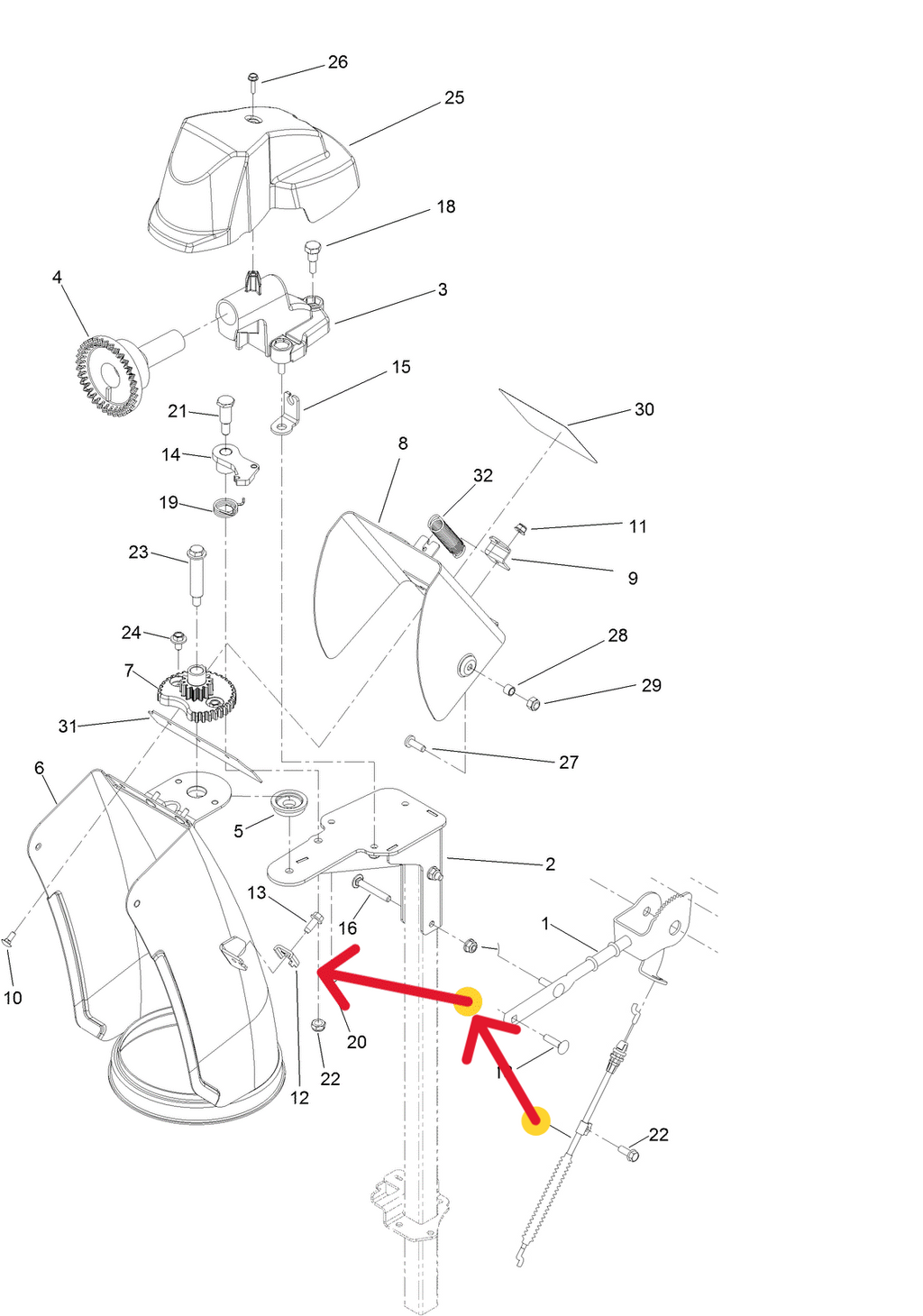

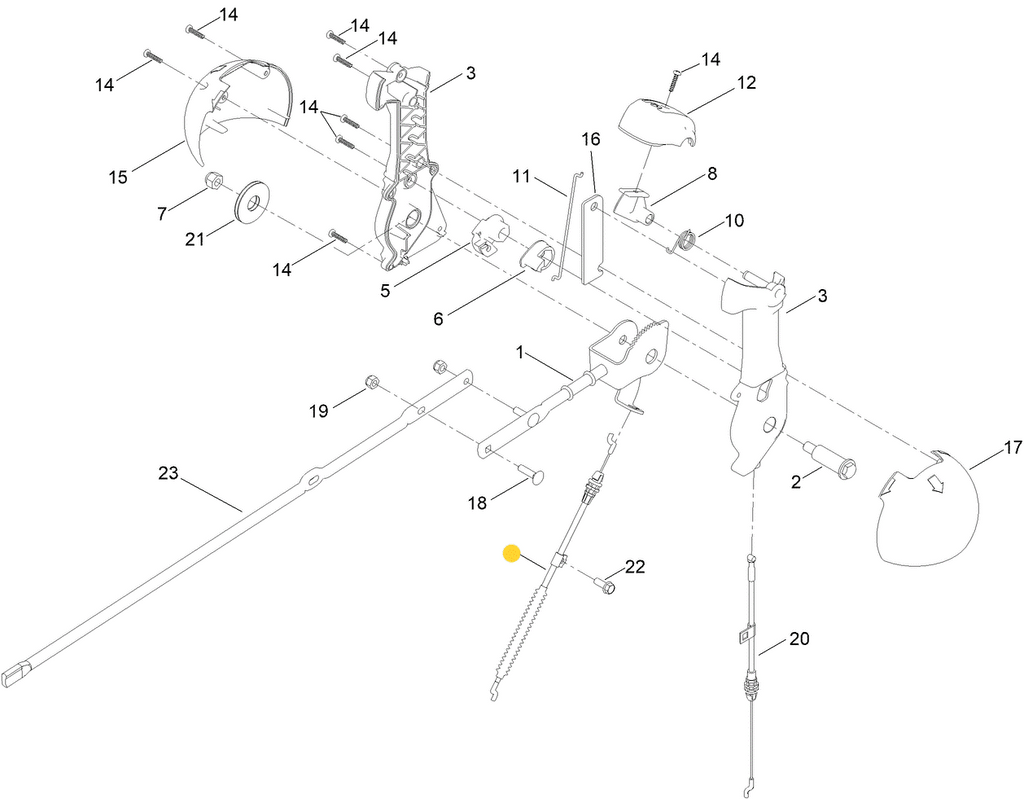

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 138-3672 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 138-0662 - Chute Control Rod Bracket (Whole for Cable Shoe or Hook) x1
2. 32144-85 - Washer Head Bolt (Retains the Cable to the Snowblower Main Frame Using the Factory Installed Cable Clamp Via the Bolt) x1
3. 136-7191 - Cable Clamp (Retains the Cable to the Cable Bracket on the Discharge Chute Via the Washer Head Bolt) x1
4. 137-3043 - Washer Head Bolt (Retains Clamp and Cable to Welded Cable Bracket on the Discharge Chute) x1
5. 138-3615-01 - Deflector Chute - Metal (Retains the Eyelet End of the Cable Via the Bolt) x1
6. 138-0689 - Phillips Head Screw (Retains the Cable Eyelet to the Deflector Chute Installed from Inside Out on the Deflector Chute) x1
7. 138-3678 - Spacer (Inserts into the Eyelet of the Cable on the Outside of the Deflector Chute giving the Cable Eyelet Additional Support and Eliminating Cable Play or Slop) x1
8. 137-3094 - Nylon Lock Nut - Plastic (Retains the Eyelet End of the Cable Via the Bolt) x1
