ToroSKU: 1382564
Price:
$7.69

View Financing Disclaimer

Pickup available, Usually ready in 24 hours

r

Apply for Financing

Description

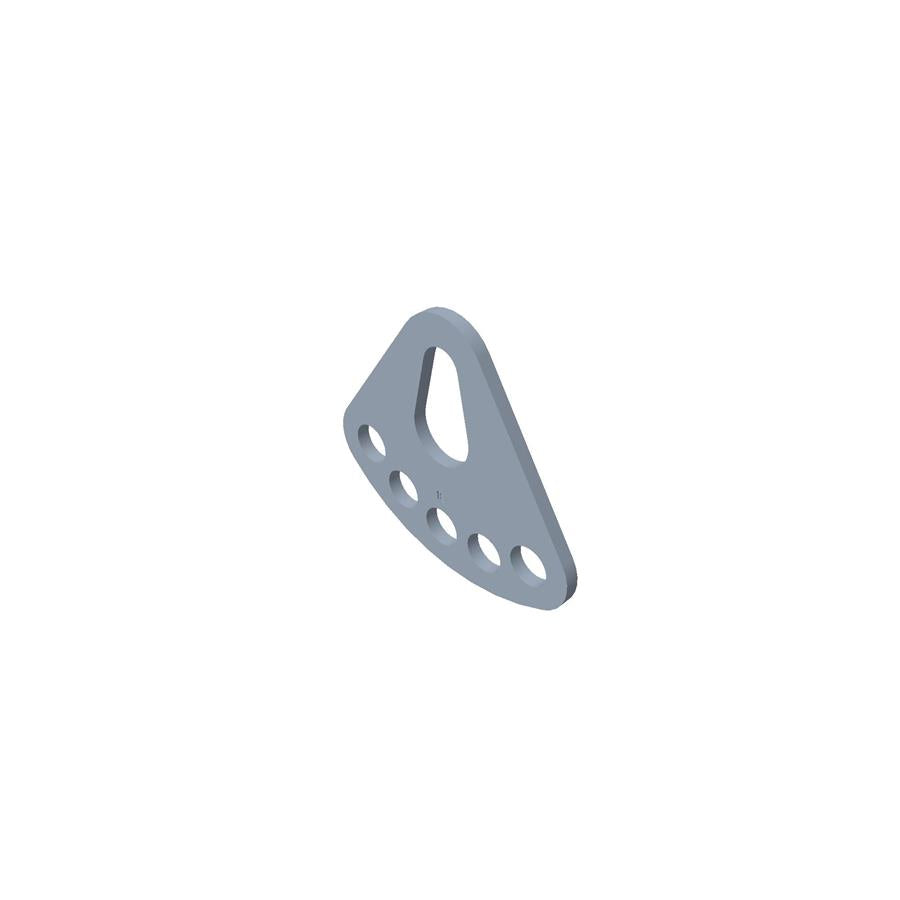

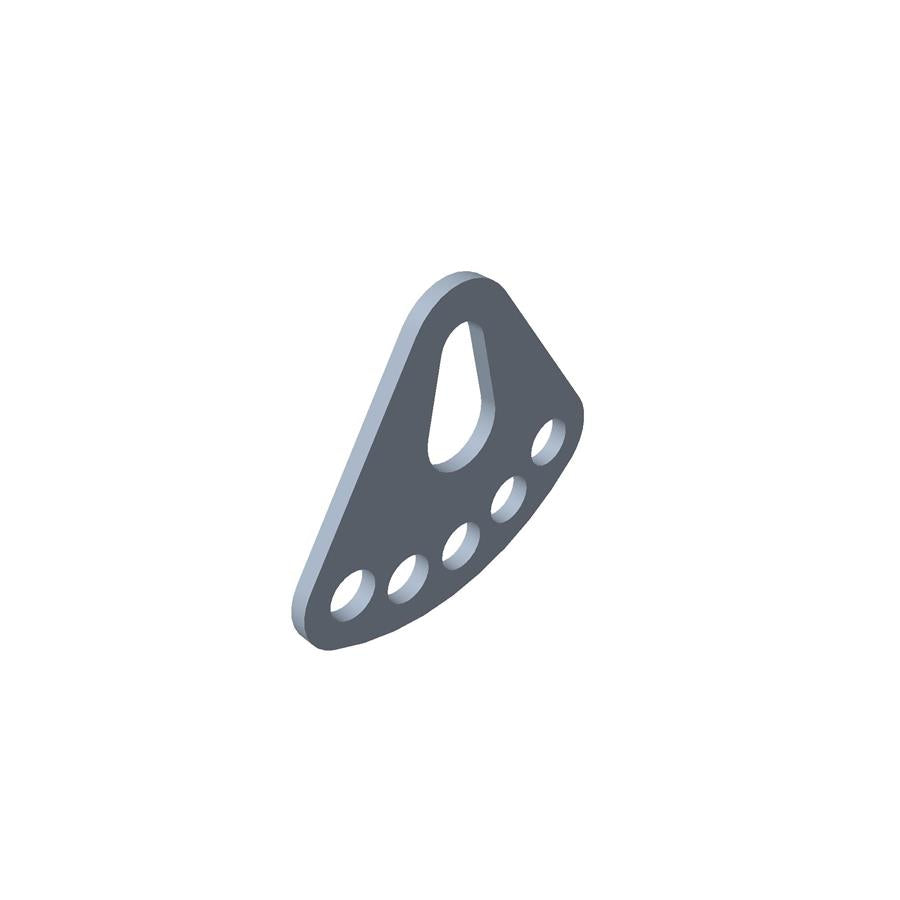

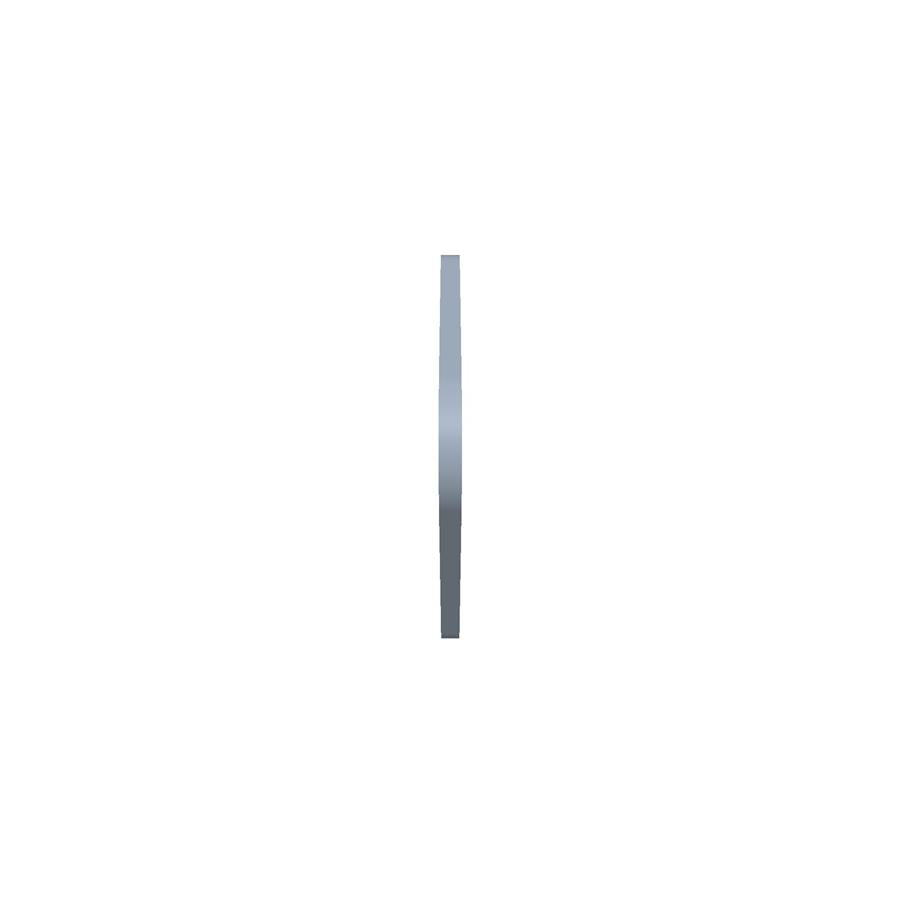

Toro OEM 138 2564 Mower Deck Adjustable Lift Link/Height of Cut Link Connects the Mower Deck Pivot Lift/Leverage Arm and the Mower Deck Sway Bars/Arms. Toro OEM 138 2564 Adjustable Height of Cut Lift Link have Multiple Wholes for Adjustment Purposes and is Designed to be used on Toro Current/Late 34" Timecutter Standard Models (Models with Cast Aluminum Axles) - Current/Late 42" Timecutter ZS, MX, 4200, Standard, My-Ride and Battery Models (Models with Cast Aluminum Axles) Late 50" Timecutter MX, 5000, Standard and My-Ride Models (Models with Cast Aluminum Axles). Please refer to the Images above; Product Specifications, Special Notes, and the Model Fit guide below to ensure proper fit. For Additional Part Number References Refer to the Associate Parts References Chart Below.

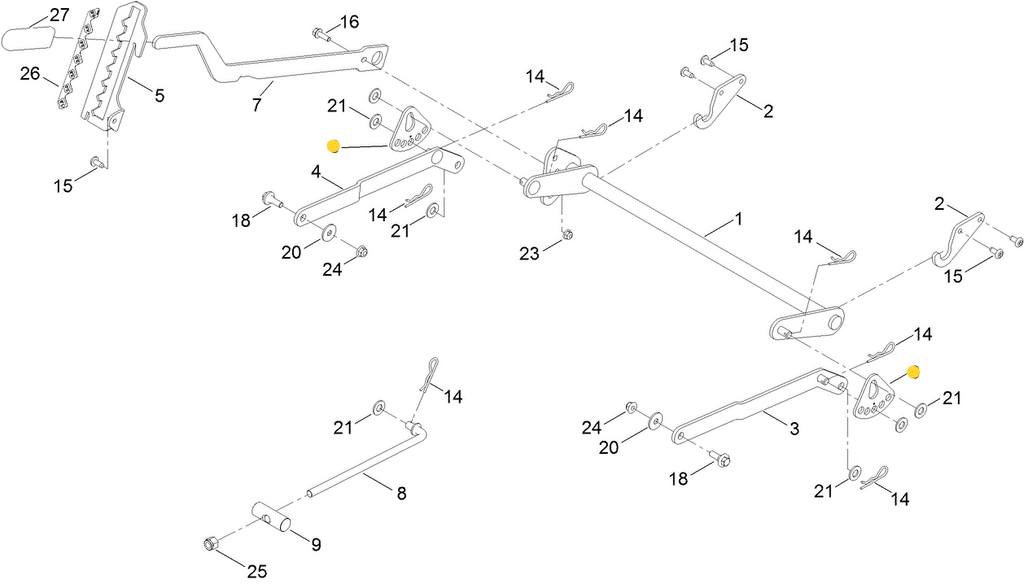

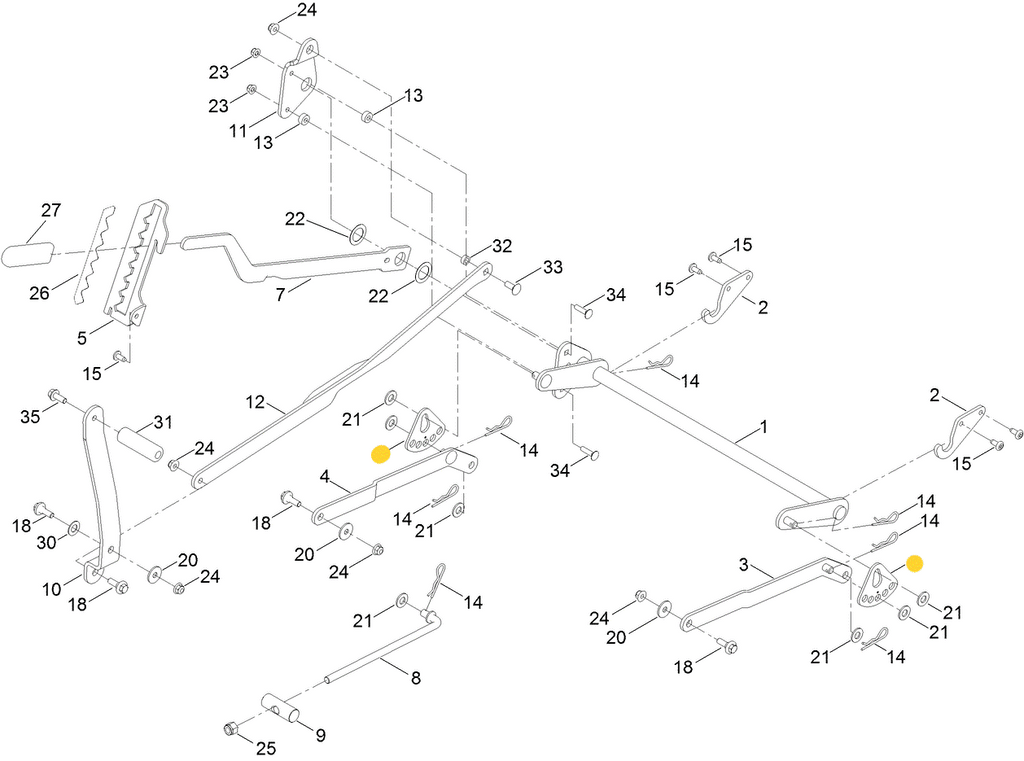

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 138-2564 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





  1. 137-7093-03 - MOWER DECK PIVOT LIFT/LEVARGE ARM - (Attaches to The Frame and Travels Between/Across the Frame of the Mower and assist with lifting the Mower Deck by Leveraging the weight of Mower Deck into a Rotational Pivot Point - Attaches to the Lift Linkage Lift Link Handle and Foot Lift Link) x1 Per Mower Deck or Unit
  2. 138-2564 - LIFT LINK/HEIGHT OF CUT LINK - (Connects Mower Deck Pivot Lift/Leverage Arm and the Mower Deck Sway Bars/Arms - Slotted Brackets Enable the Mower Deck Free Float) x2 Per Mower Deck Pivot Lift/Leverage Arm
  3. 139-2611 - FLAT WASHER - (Supports Retaining Clip Pins for Retaining Slotted Lift Link to Pivot Arm - Lift Link to Sway Bars/Arms - Sway Bars/Arms to Mower Deck and Mower Deck Front Pivot Rods or Pivot Pans to Mower Deck) x7 Per Mower with Front Pivot Rod - x8 Per Mower with Front Pivot Pan
  4. 139-2562 - CLIP/COTTER PIN - (Retains Slotted Lift Link to Pivot Arm - Lift Link to Sway Bars/Arms - Sway Bars/Arms to Mower Deck and Mower Deck Front Pivot Rods or Pivot Pans to Mower Deck) x7 Per Mower with Front Pivot Rod - x8 Per Mower with Front Pivot Pan
  5. 137-9846 - MOWER DECK SWAY BAR/ARM (Right Side as You Sit on the Operator Seat) - (Attaches to the mower Frame and Connects to the Mower Deck Lift Link and Mower Deck) x1 Per Unit
  6. 137-9844 - MOWER DECK SWAY BAR/ARM (Left Side as You Sit on the Operator Seat) - (Attaches to the mower Frame and Connects to the Mower Deck Lift Link and Mower Deck) x1 Per Unit







Specification

Product Number:

1382564

Brand:

Toro

Length:



3.750 IN (9.525 CM)

Width:



3.750 IN (9.525 CM)

Height:

0.125 IN (0.318 CM)

Weight:



0.310 LB (0.141 KG)





Model Fit:





34” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75734, 77301)



42” TIMECUTTER ZS Series – Model Numbers – (* Model Numbers 74677, 74683, 74685, 74687)

42” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74690, 74691)

42” TIMECUTTER 4200 & ZR 4200 Series – Model Numbers – (* Model Numbers 74679, 75740)

42” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404)

42” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74692, 75743, 75745, 75747)

42” TIMECUTTER (Standard & My-Ride - Battery) Series – Model Numbers – (* Model Numbers 75841, 75642)



50” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74694, 74695)

50” TIMECUTTER 5000 Series – Model Numbers – (* Model Numbers 75751)

50” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75750, 75753)

50” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74696, 75755, 75759)
