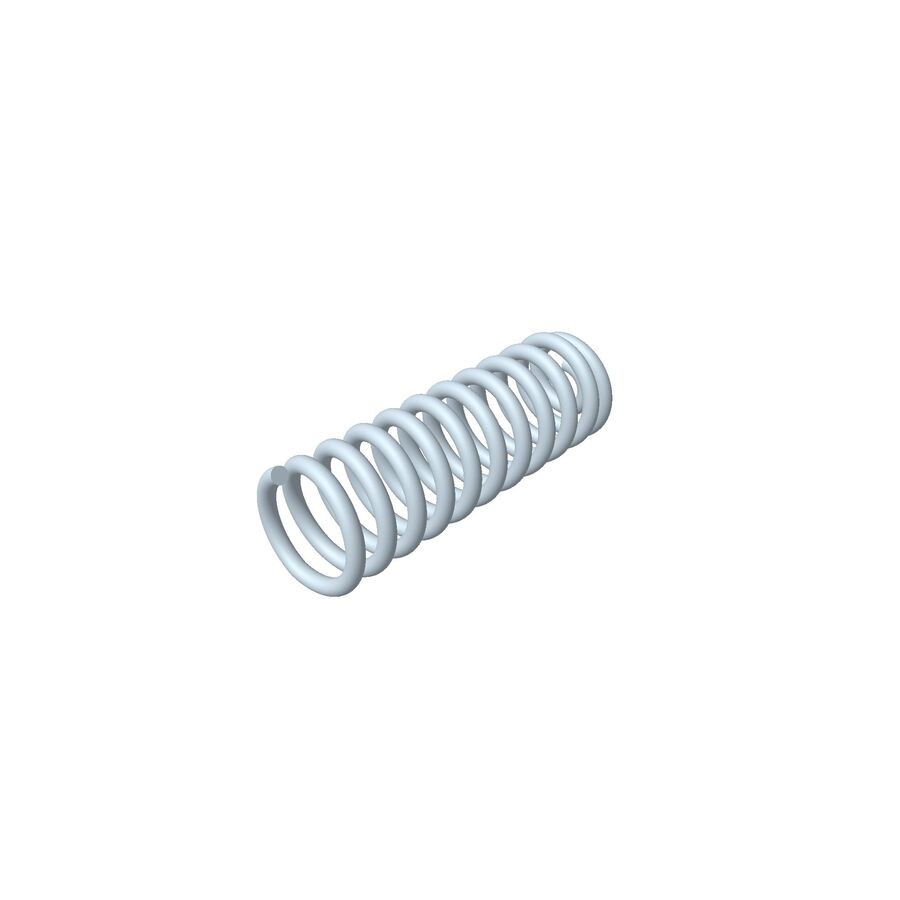

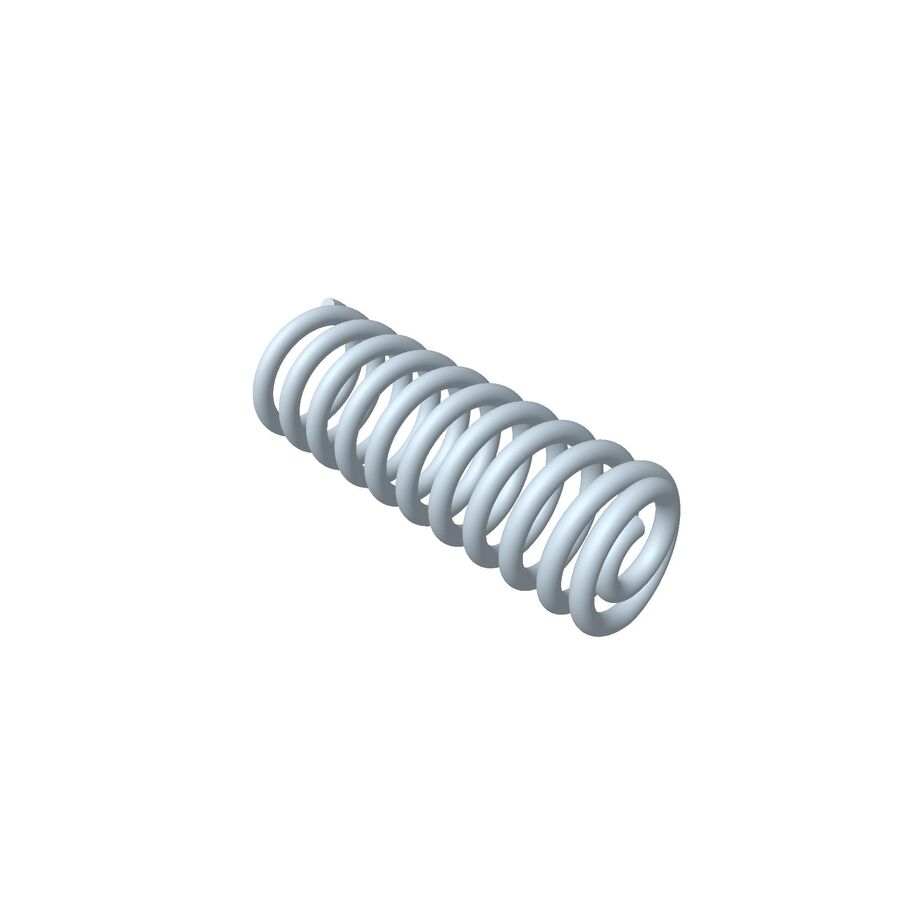

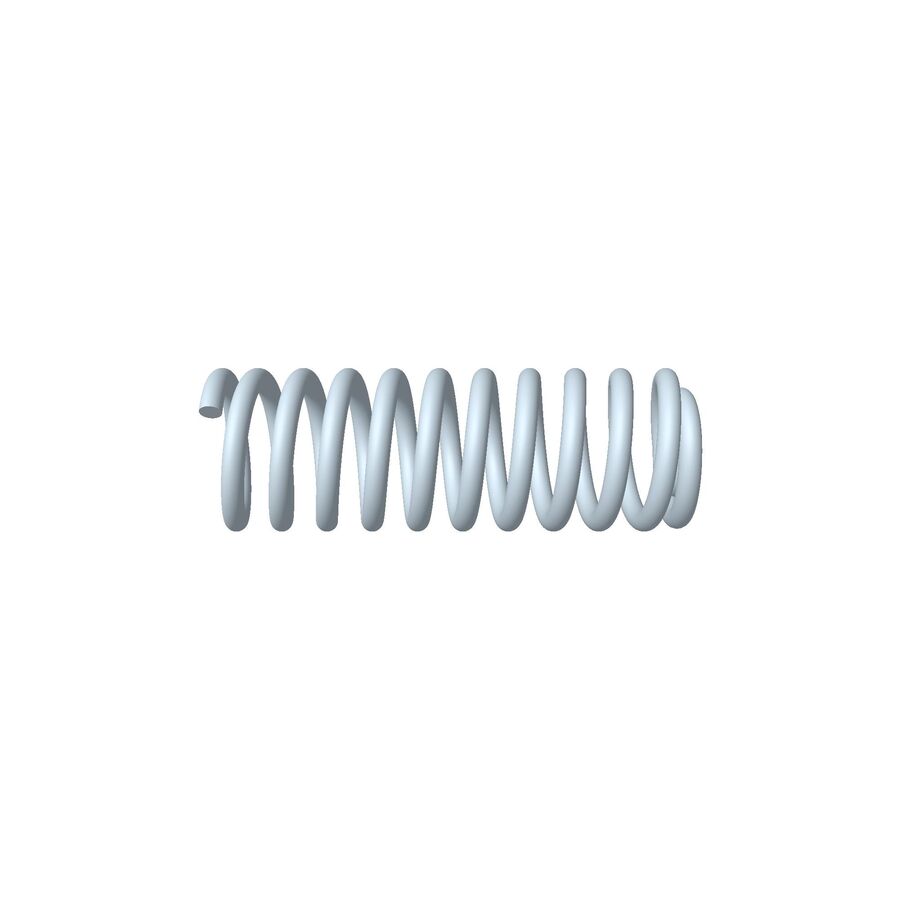

Toro OEM 138-2548 Seat Pan Spring Fits Toro Current 42", 50", 54", 60" Timecutter Max Standard Models (Non-MyRide) - Select Late 34", 42", 50", 60" Timecutter ZS, 4200, 5000 Standard (Non-MyRide) - Current TITAN MAX Model (Non-MyRide and I-Beam Framing).

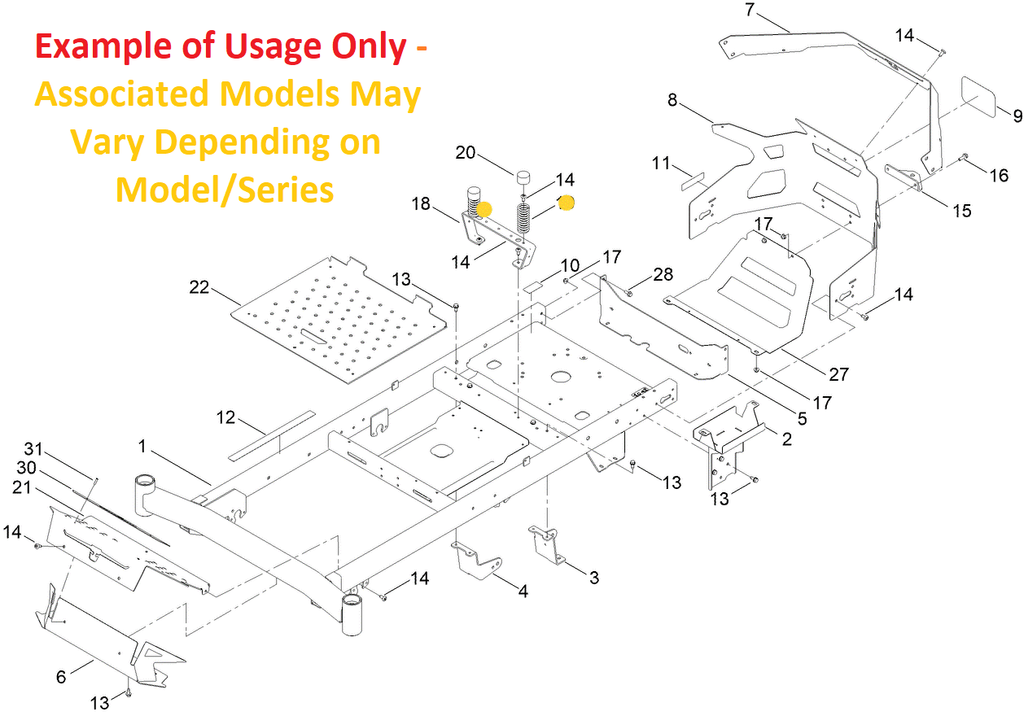

Please refer to the Images above; Product Specifications and the Model Fit Guide below to Ensure a proper fit. For Additional Fasteners & Part References Review the Associated Part Chart Below the Model Fit Guide



• PRODUCT NUMBER AND VARIATIONS: 138-2548, 138 2548, 1382548
• PRODUCT TYPE: TORO OEM SEAT PAN SPRING OR COMPRESSION SPRING
• NOTES & DETAILS: Toro OEM  138 2548 Seat Pan Spring Fasten to the Seat Cross Support Bracket or Frame. Toro 138 2548 Seat Pan Spring's Main Purpose is to Reduce Operating Vibration from the Engine as well as Absorb some of the Discomfort of Riding Across Rough Terrain.
• COMMON SERIES APPLICATIONS: Toro Current 42", 50", 54", 60", Timecutter MAX Models (Standard Models, Non - My-Ride) - Select 34" Standard Models - Select 42" Timecutter ZS, 4200, Standard, Battery Models - Select 50" Timecutter 5000, Standard Models - Select 60" Timecutter Standard Models - Current 48", 54", 60" Titan (Standard Models, Non - My-Ride with I-Beam Framing).
• MODEL FIT CHART:



TIMECUTTER



TIMECUTTER 34” (STANDARD) Series – Model Numbers – 75734, 77301



TIMECUTTER 42” ZS Series – Model Numbers – 74677, 74683, 74685, 74687

TIMECUTTER 42” 4200 & ZR 4200 Series – Model Numbers – 74679, 75740

TIMECUTTER 42” (STANDARD) Series – Model Numbers – 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404

TIMECUTTER 42” (Standard & My-Ride - Battery) Series – Model Numbers – 75841

42” TIMECUTTER MAX (STANDARD) Series – Model Numbers – 77402



TIMECUTTER 50” 5000 Series – Model Numbers – 75751

TIMECUTTER 50” (STANDARD) Series – Model Numbers – 75750, 75753

TIMECUTTER MAX 50” (STANDARD) Series – Model Numbers – 77501, 77505



TIMECUTTER MAX 54” (STANDARD) Series – Model Numbers – 77504, 77506



TIMECUTTER 60” (STANDARD) Series – Model Numbers – 75760, 75762

TIMECUTTER MAX 60” (STANDARD) Series – Model Numbers – 77601, 77604



TITAN & TITAN MAX



48” TITAN Standard, My-Ride (48” Newer/Current Models I-Beam Frame) – 48” Current Models – 76401, 76420



54” TITAN Standard, My-Ride (54” Newer/Current Models I-Beam Frame) – 54” Current Models Only - 76501



60” TITAN, TITAN My-Ride, Titan ZXM 6075 (60” Newer/Current Models I-Beam Frame) – 60” Current Models - 76604, 76605



60” TITAN MAX (60” Newer/Current Models I-Beam Frame) – 60” Current Models 76606, 76608, 76610







• ASSOCIATED PARTS CHART:



ASSOCIATED PARTS REFERENCES FOR PART NUMBER 138-2548 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 138-9753 - SELF-TAPPING SCREW (Retains Seat Pan Spring to the Mower Frame or Seat Supporting Bracket) x1 Per Mower Seat Pan Spring
2. 701178 - SEAT SPRING PROTECTOR CAP (Rubber Cap that Inserts over the Mower Seat Pan Spring Eliminating Wear from the Spring and Seat Pan Making Metal on Metal Contact) x1 Per Mower Seat Pan Spring
