Toro
Price:
$125.99

View Financing Disclaimer

Pickup available, Usually ready in 24 hours

Description

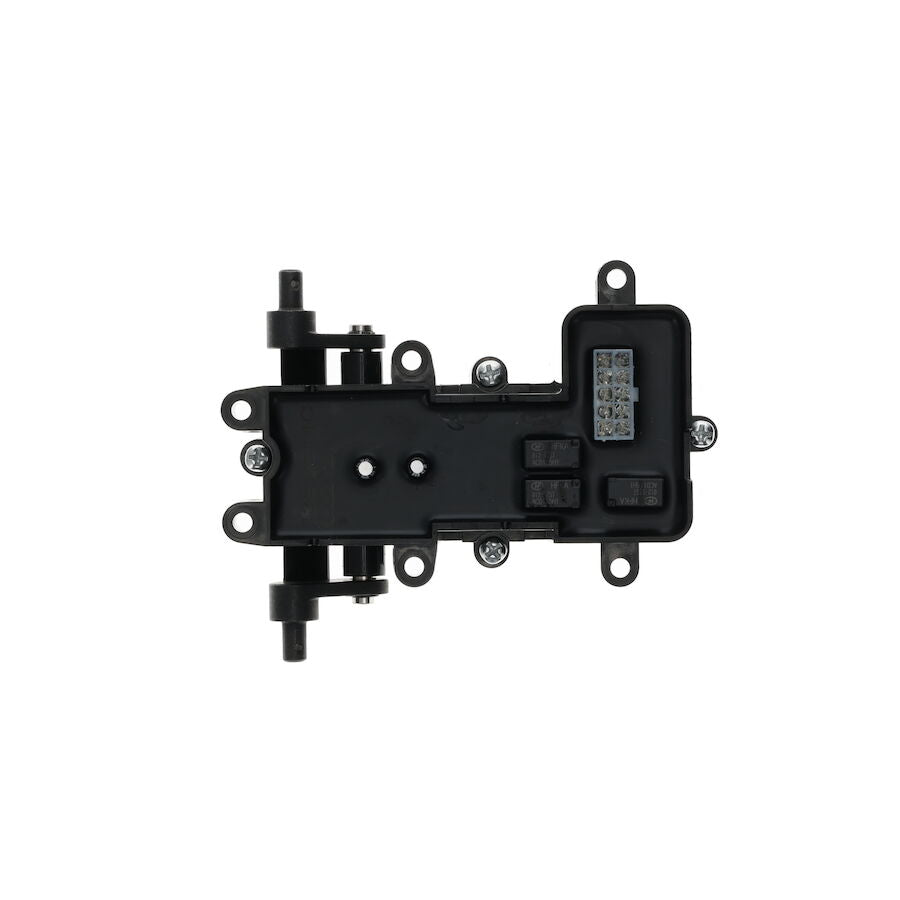

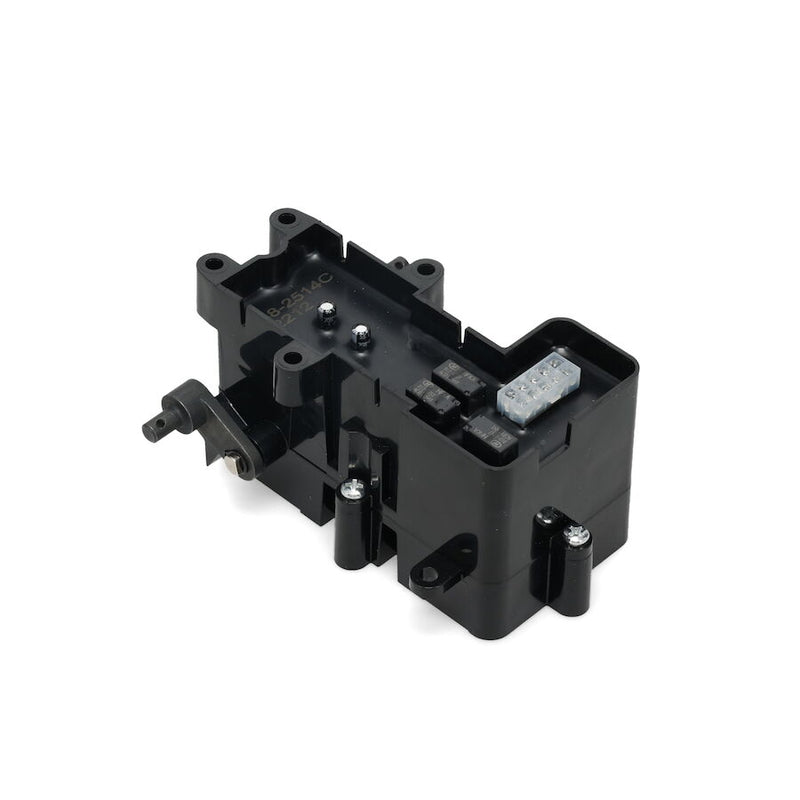

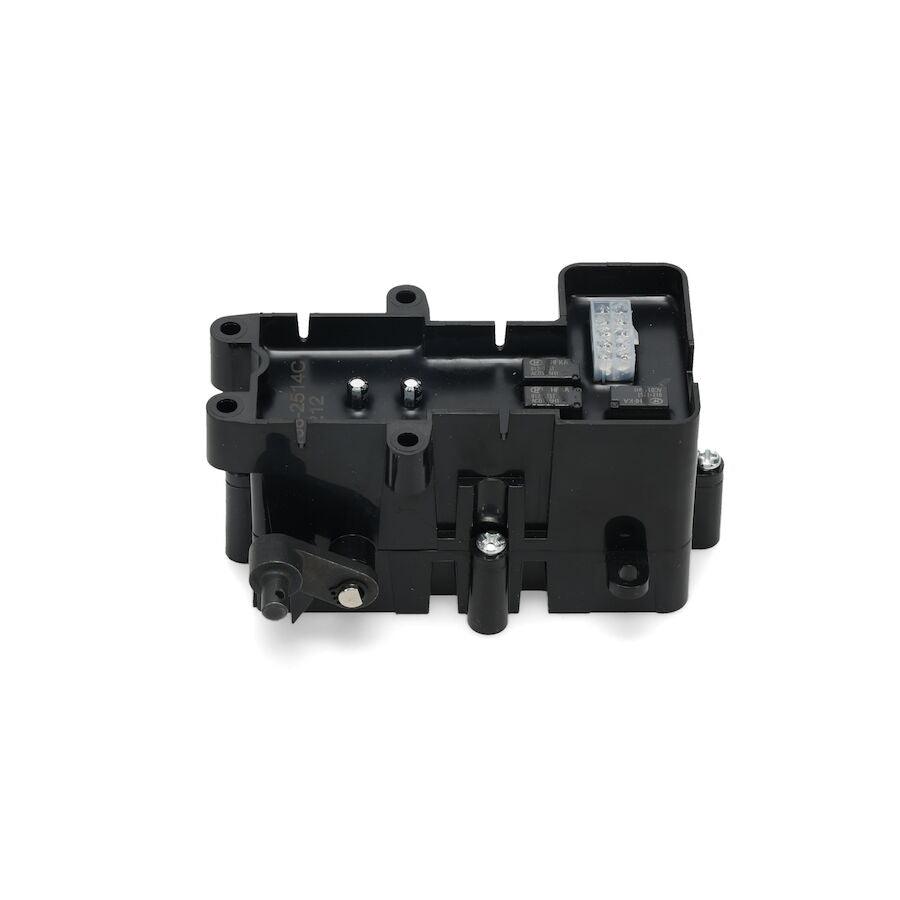

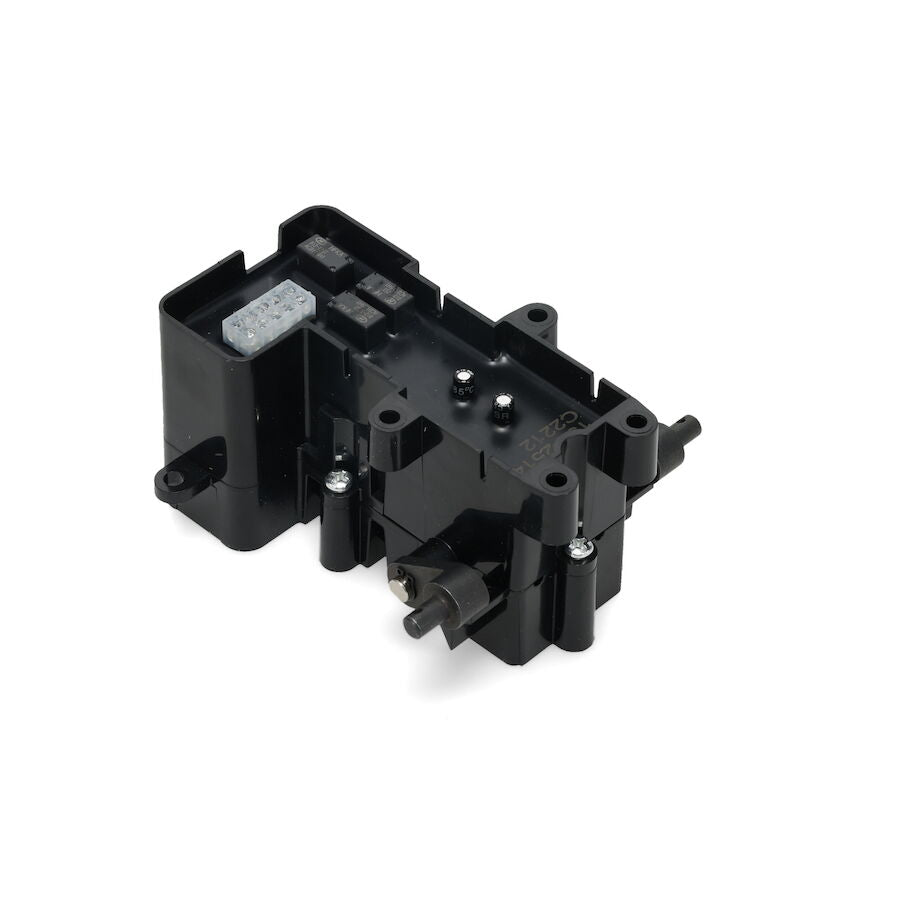

Toro OEM 138 2514 Electrical Brake Box is Responsible for Turning the Brake on and off Electronically However it is not just a Brake Box but Serve a Greater Purpose as well. Toro OEM 138 2514 Serves as a Motherboard or an Electric Junction Box where all Electrical Circuits Meet from Numerous Ground Circuits, Safety Switch Circuits, PTO Switch, Built in Relays and Diodes, Ect. This Junction in Return allow the Ignition Switch to Operate the Engine and in return Communicate Back to the Toro OEM 138-2514 Electrical Box as to What it's intended purpose is Start, Run, Stop. Important to Note If Attempting to Test - In order to test Toro Brake Boxes, it is Important to Know the Purpose of each Electrical Circuit, The Oder in which each Electrical circuit Operates and as to Whether Circuits are supposed to Operate in an Open/Close - Current/Ground Circuit. Toro OEM 138-2514 is Specifically Designed for Toro Late 34" (Standard), 42" (MX, ZS, 4200, Standard, My-Ride), 50" (MX, ZS, 5000, Standard, My-Ride), 54" (My-Ride) and 60" (Standard, My-Ride) Timecutter Models - Most Model Will be in The Series That Contains Replaceable Cast Aluminum Front Axles. Hilly Ridge does not offer any Type of Return on Electrical Items Unless it was an Error in Our Listings. So, Due to Variation Within Model Numbers/Series, Refer to the Model Fit Chart for an Accurate Break down of Specific Model Number Usage. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.

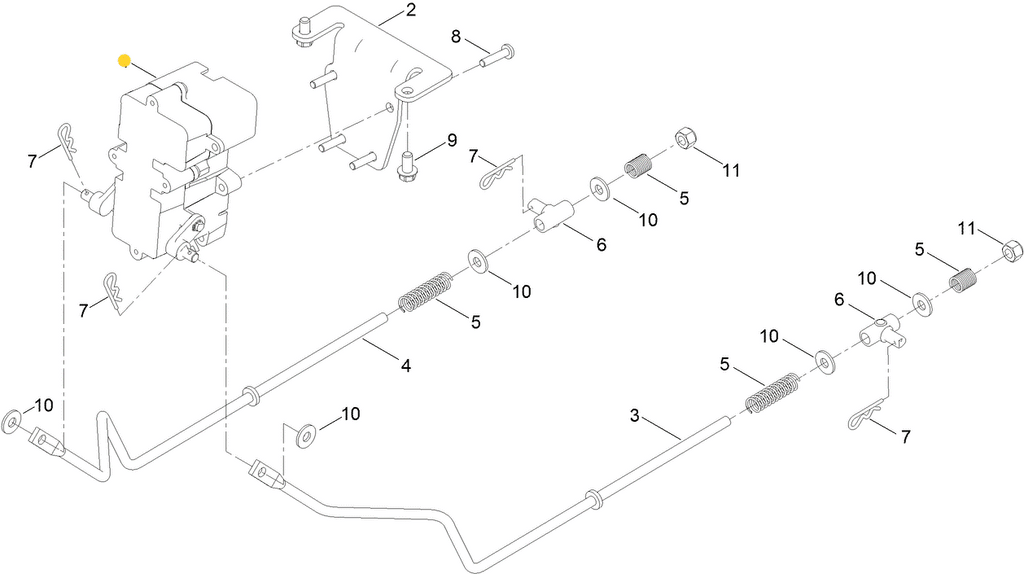

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 138-2514 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





  1. 32144-36 - PHILLIPS PAN HEAD SCREW - (Retains Electrical Brake Box to Brake Box Bracket) x4 Per Electrical Brake Box
  2. 133-9284-03 - ELECTRIC BRAKE BOX MOUNTING BRACKET - (Retains Electrical Brake Box to the Mower Frame) x1 Per Electrical Brake Box
  3. 1-806003 - COTTER/CLIP PIN - (Retains Brake Linkage to Electrical Brake Box) x1 Per Brake Linkage Rod
  4. 119-8952 - FLAT WASHER - (Supports 3290-307 Cotter/Clip Pin) x1 Per Brake Linkage Rod)







Specification

Product Number:

1382514

Brand:

Toro

Length:



6.500 IN (16.510 CM)

Width:



4.000 IN (10.160 CM)

Height:



4.100 IN (10.414 CM)

Weight:



0.614 LB (0.279 KG)





Model Fit:





TIMECUTTER 34” (STANDARD) Series – Model Numbers – 75734, 77301





TIMECUTTER 42” ZS Series – Model Numbers – 74677, 74683, 74685, 74687



TIMECUTTER 42” MX Series – Model Numbers – 74690, 74691



TIMECUTTER 42” 4200 & ZR 4200 Series – Model Numbers – 74679, 75740



TIMECUTTER 42” (STANDARD) Series – Model Numbers – 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404



TIMECUTTER 42” (My-Ride) Series – Model Numbers – 74692, 75743, 75745, 75747





TIMECUTTER 50” MX Series – Model Numbers – 74694, 74695



TIMECUTTER 50” 5000 Series – Model Numbers – 75751



TIMECUTTER 50” (STANDARD) Series – Model Numbers – 75750, 75753



TIMECUTTER 50” (My-Ride) Series – Model Numbers – 74696, 75755, 75759





TIMECUTTER 54” (My-Ride) Series – Model Numbers – 75754, 75756, 75757





TIMECUTTER 60” (STANDARD) Series – Model Numbers – 75760, 75762



TIMECUTTER 60” (My-Ride) Series – Model Numbers – 75763
