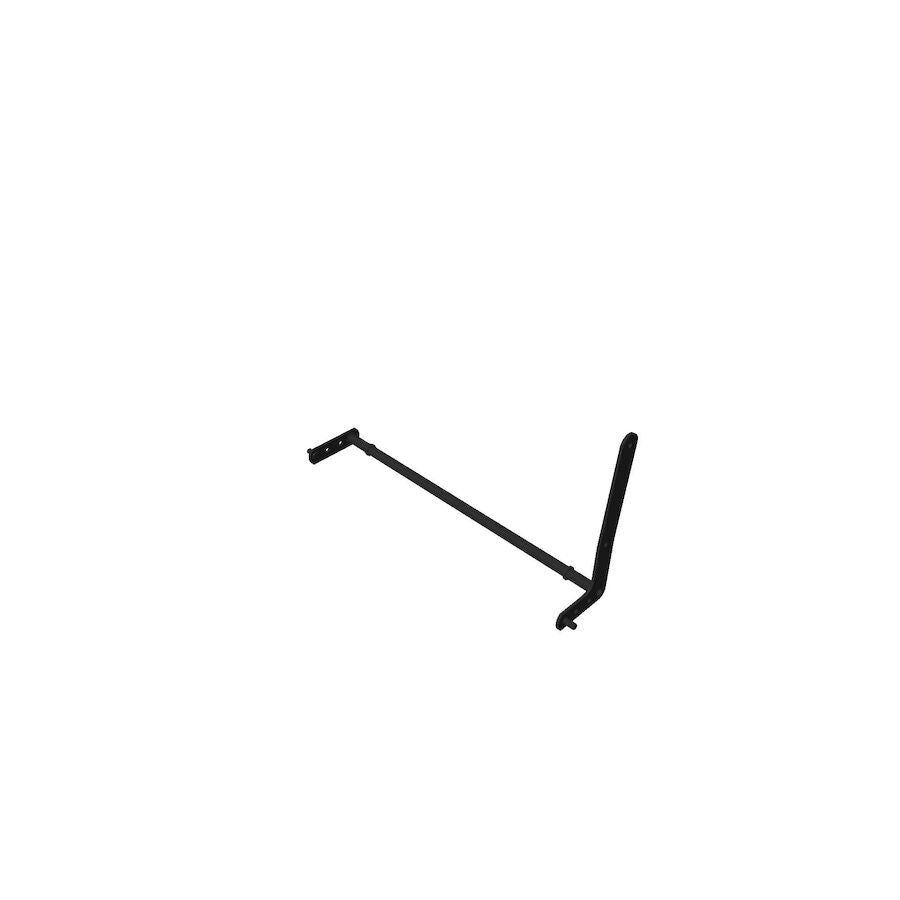

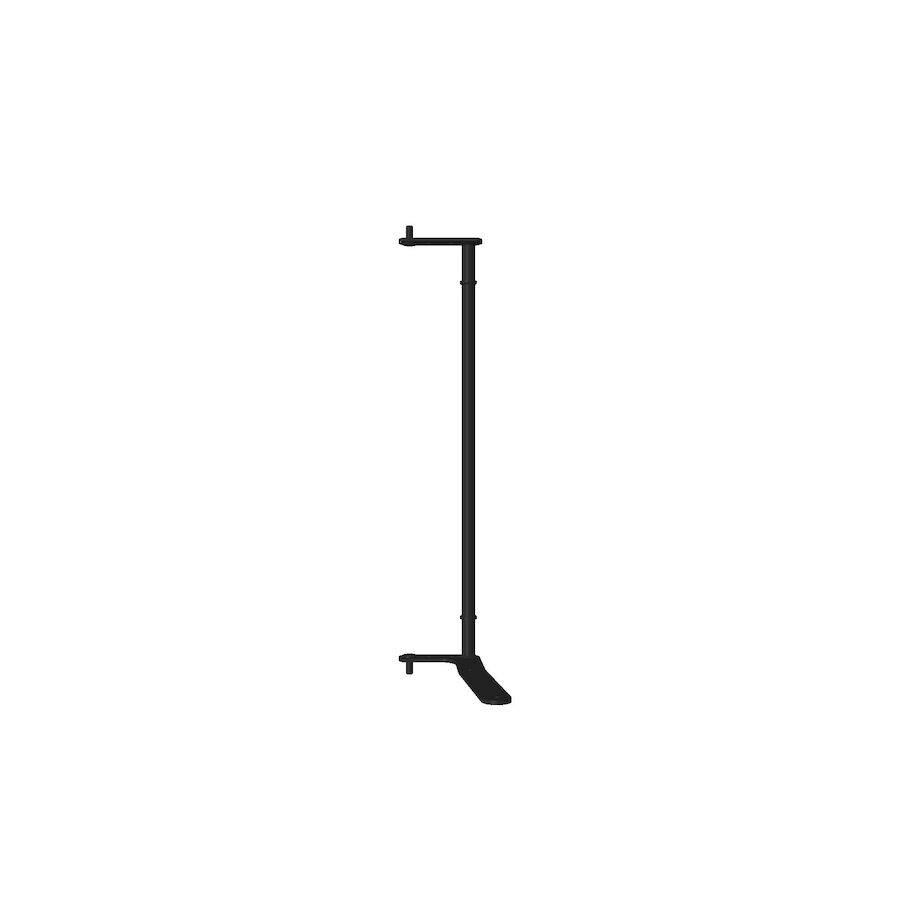

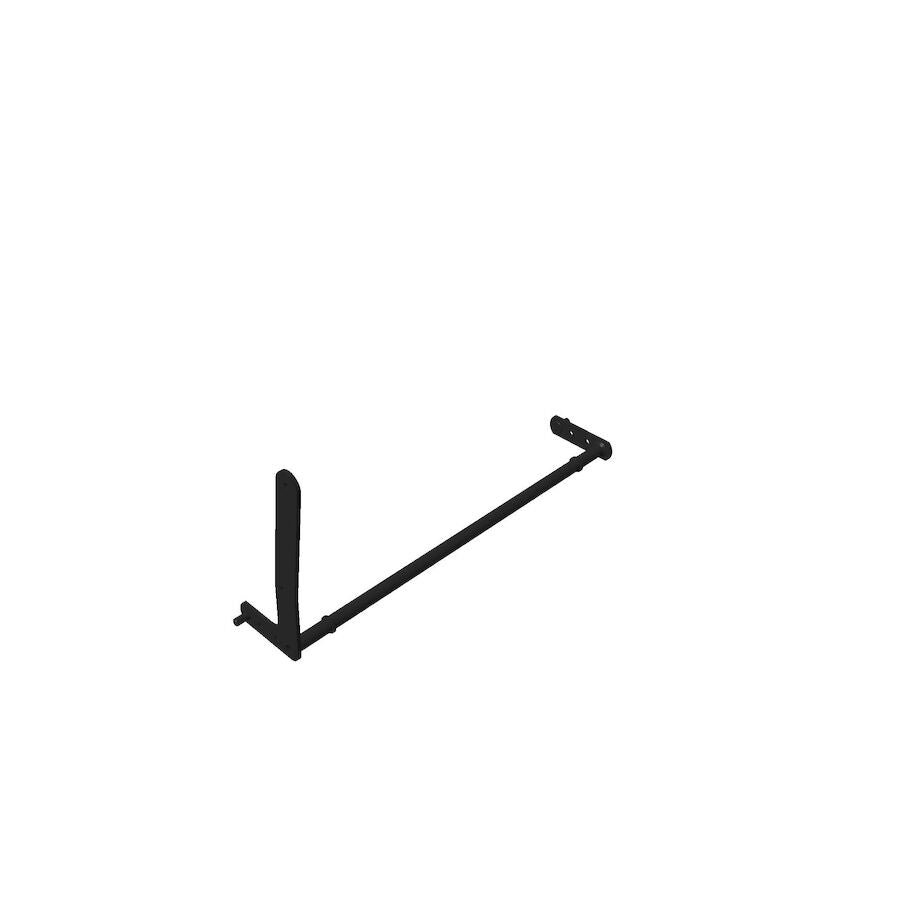

Toro OEM 138-2503-03 Mower Deck Front Lift Pivot Arm Fits Late 60" Timecutter Standard and My-Ride Models 75760, 75762, 75763.

Toro OEM 138 2503 03 Mower Deck Front Pivot Lift/Leverage Arm Is a Rod That Travels across the Frame of the Mower and Attaches to the Mower Deck Rear Pivot Arm, Mower Deck Lift Pedal and Mower Deck Lift Linkage. Toro OEM 138 2503 03 Pivot Arm Rotate across the Frame of the Mower as the Operator Lower's and Raise's Their Mower Deck. This type of Design helps Leverage some of the Mower Deck Weight as well and makes for an easier Raising and Lowering of the Mower Deck. 138-2503-03 Mower Deck Pivot Rod is Designed for Toro Late 60" Timecutter Standard and My-Ride Models 75760, 75762, 75763 Only (Models with Cast Aluminum Axles). Please refer to the Images above; Product Specifications, Special Notes, and the Model Fit guide below to ensure proper fit.

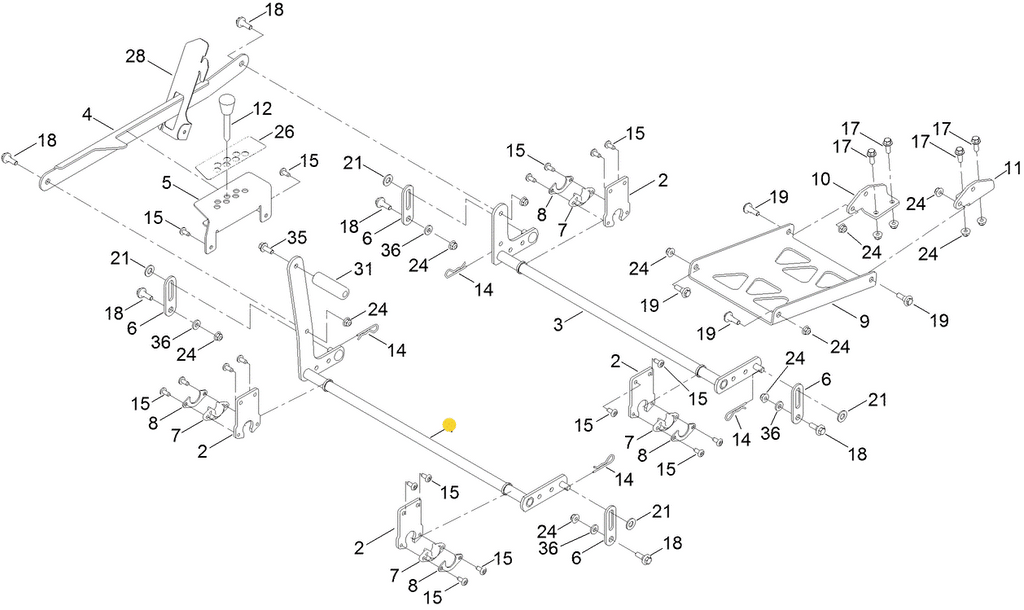

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 138-2503-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 137-7001-03 - LIFT LINKS - (Connects Mower Deck Pivot Lift/Leverage Arm and the Mower Deck the - Slotted Brackets - Enable the Mower Deck Free Float) x2 Per Mower Deck Pivot Lift/Leverage Arm
2. 3256-26 - FLAT WASHER - (Supports Retaining Clip Pin for Retaining Slotted Lift Link to Mower Deck Pivot Lift/Leverage Arm) x2 Per Mower Pivot Lift/Leverage Arm
3. 1-806005 - CLIP/COTTER PIN - (Retains Lift Link to Mower Deck Pivot Lift/Leverage Arm) x2 Per Mower Deck Lift/Leverage Arm
4. 137-9847 - FLANGE SHOULDER BOLT - (Retains Mower Deck Lift Link to the Mower Deck as well as Retaining the Height of Cut Link to the Front and Rear Mower Deck Lift Pivot Arm) x1 Per Lift Link - x2 Per Height of Cut Link
5. 43-0940 - FLAT SPACER WASHER - (Assembled Between the Retaining Flange Nut and the Lift Link - Assist in Retaining Lift Link Due to the Larger Hole in the Lift Link that Enables the Flange Bolt to Insert into the Lift Link) x1 Per Mower Deck Lift Link
6. 104-8301 - FLANGE NUT - (Retains Flat Washer, Lift Link and Shoulder Bolt to the Mower Deck as well as Retaining the Flang Bolt and Height of Cut Link to the Front and Rear Mower Deck Lift Pivot Arm) x1 Per Mower Deck Lift Link - x2 Per Height of Cut Link
7. 138-9804-03 - UPPER MOWER DECK PIVOT-LIFT-LEVARAGE ARM SUPPORT BRACKET - (Attaches to the Lower Support Bearing/Bushing and Lower Mower Cross Support Bracket/Gusset and Allows for the Mower Lift Pivot/Leverage Arm to Rest into and Rotate in a Replaceable Bearing Flange as well as retaining Mower Deck Pivot Arm to the Frame Erea) x4 Per Unit
8. 138-9753 - SCREW - (Retains Upper Mower Cross Support Bracket to Mower Frame as well as the Lower Mower Cross Support Gusset/Bracket and Lower Cross Support Bearing/Bushings to Upper Cross Support Bracket) x4 Per Bracket
9. 139-5872 - LOWER MOWER DECK PIVOT-LIFT-LEVARAGE ARM SUPPORT BEARING/BUSHING - (Attaches with the Lower Support Gusset/Bracket to the Upper Mower Cross Support Bracket and Allows for the Mower Lift Pivot/Leverage Arm to Rest into and Rotate in a Replaceable Bearing Flange Instead of Rotating Against Metal on Metal) x4 Per Unit
10. 138-7204 - LOWER MOWER DECK PIVOT-LIFT-LEVARAGE ARM SUPPORT GUSSET/BRACKET - (Attaches with the Lower Support Bearing/Bushing to the Upper Mower Cross Support Bracket and Allows for the Mower Lift Pivot/Leverage Arm to Rest into and Rotate in a Replaceable Bearing Flange as well as retaining the Bearing/Bushing and Mower Deck Pivot Arm) x4 Per Unit
11. 137-5091-03 - HEIGHT OF CUT LINK - (Connects the Front Mower Deck Pivot Arm to the Rear Pivot Arm and Enable the Operator to use the Height of Cut Assembly and Pin to Set his Preferred Cut of Height as well as lift the Front and Back of the Simultaneously) x1 Per Unit
12. 139-7452 - FOOT LIFT PEDAL - (Fastens to the Front Mower Deck Pivot Lift Arm - Enables Operator to Lift and Lower the Mower Deck) x1 Per Unit
13. 139-2597 - FLANGE BOLT - (Retains the Foot Lift Pedal to the Front Mower Deck Pivot Lift Arm) x1 Per Foot Lift Pedal







Specification

Product Number:	138250303
Brand:	Toro
Length:	31.500 IN (80.010 CM)
Width:	15.000 IN (38.100 CM)
Height:	5.500 IN (13.970 CM)
Weight:	5.322 LB (2.414 KG)





Model Fit:





60” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75760, 75762)

60” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75763)
