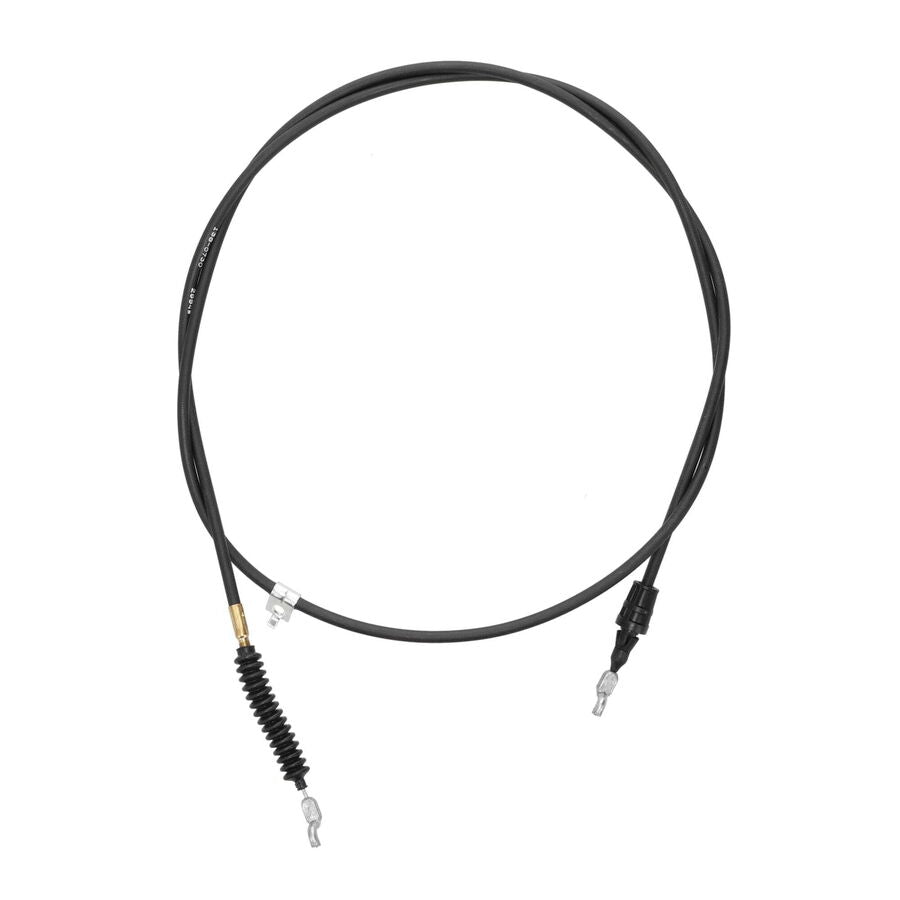

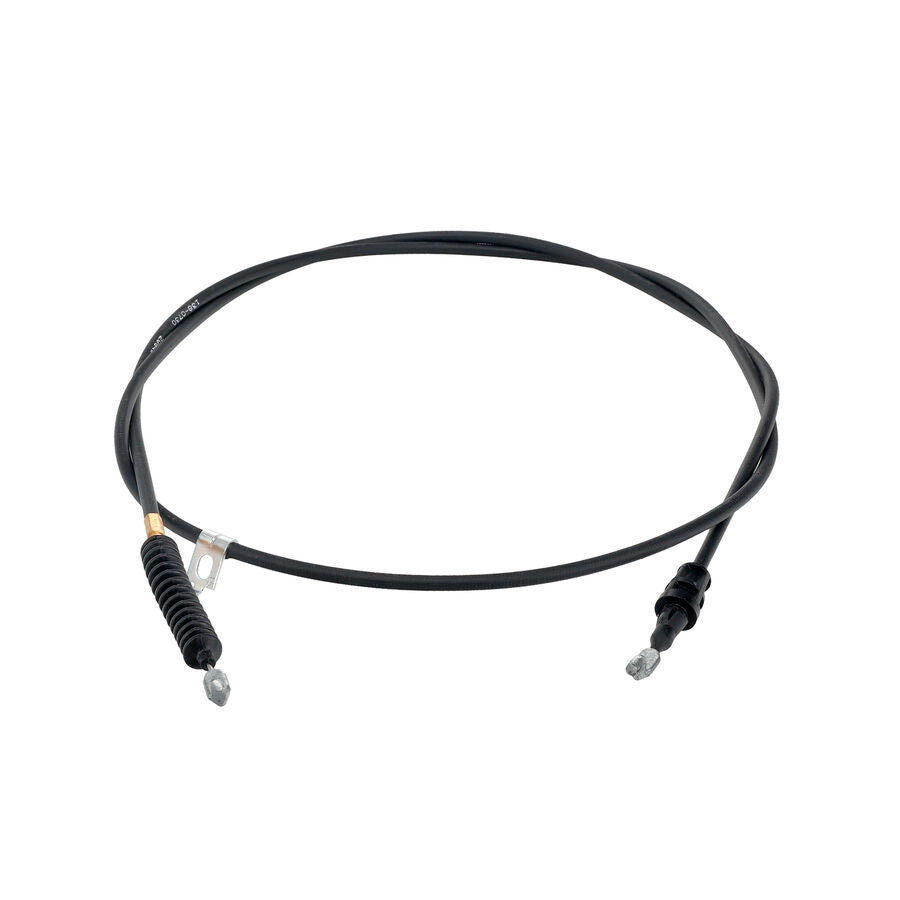

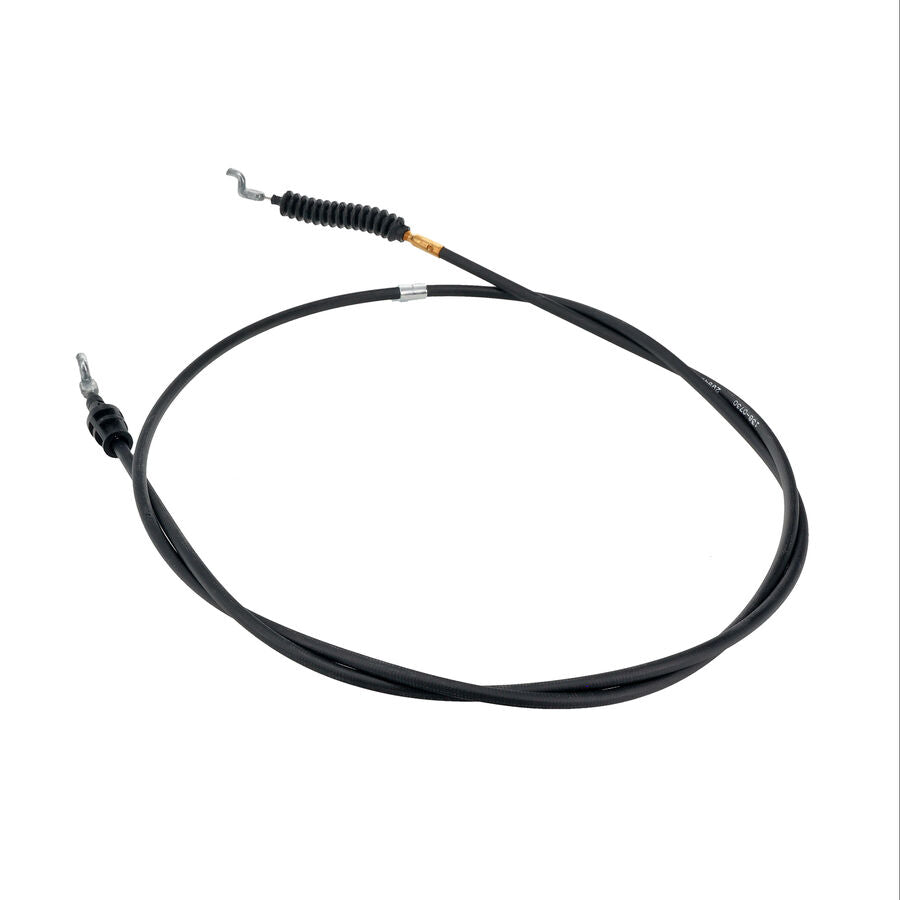

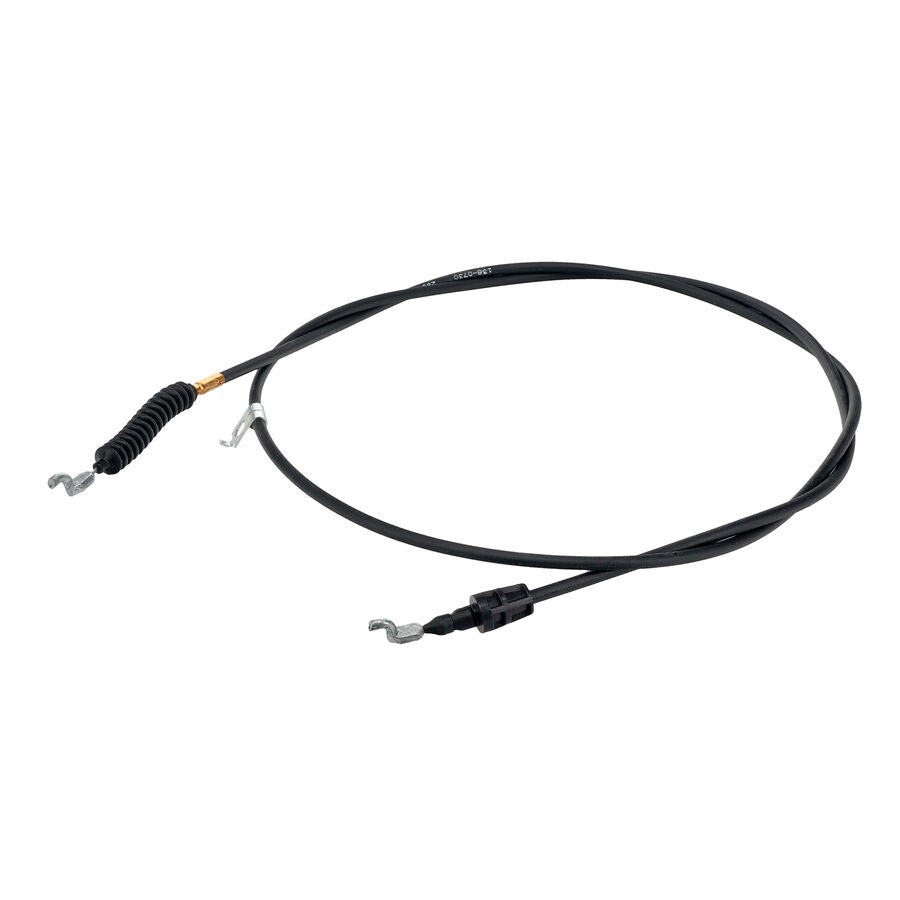

Toro OEM 138-0730 Snowblower Deflector Control Cable Fits Select Power Max HD and Power TRX Snowblower Models (Metal Chute).

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.





• PRODUCT NUMBER AND VARIATIONS: 138-0730, 138 0730, 1380730
• PRODUCT TYPE: Chute Deflector Control Cable
• SIZE: Length N/A - Width N/A - Height N/A - Weight 0.200 lbs.

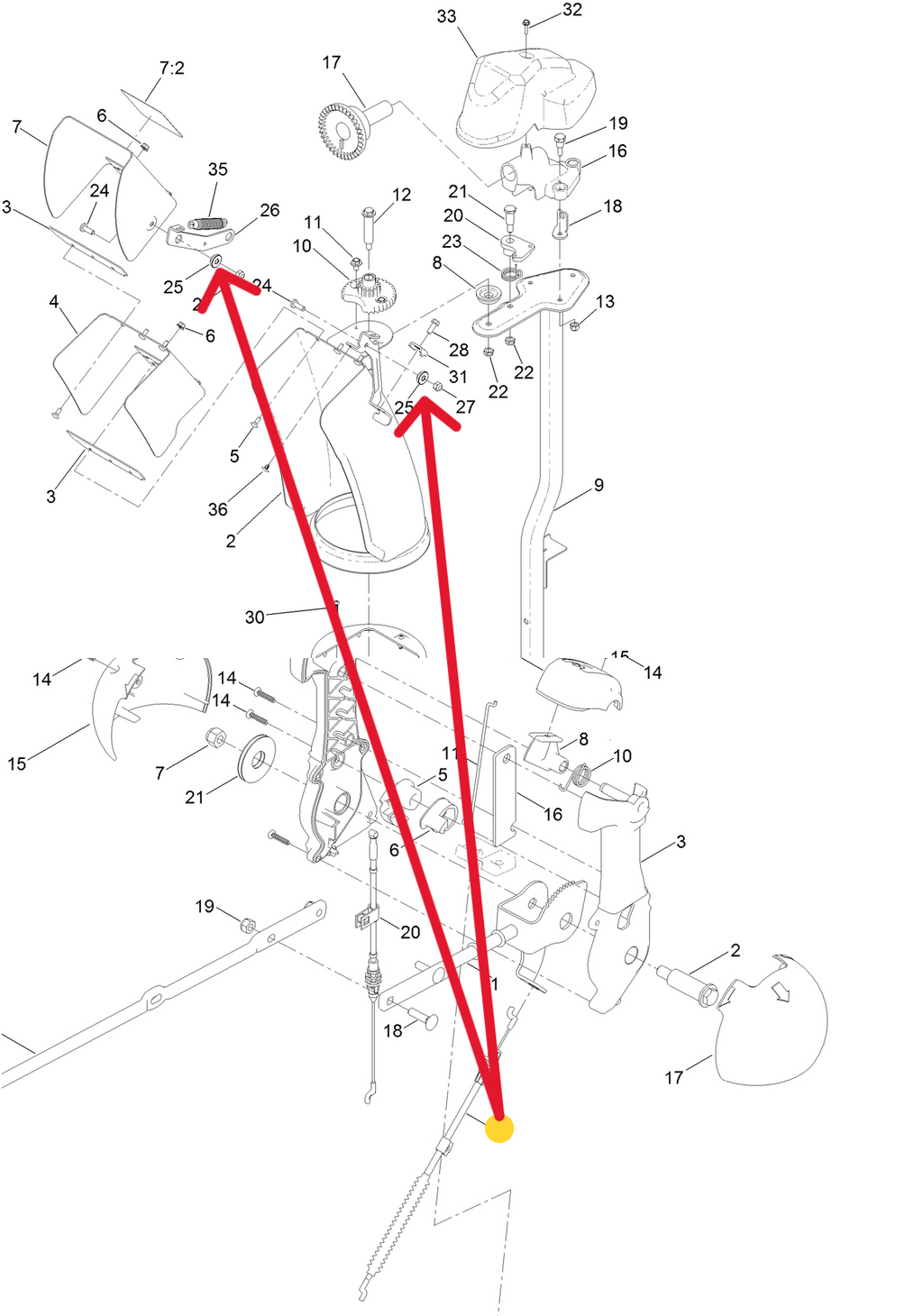

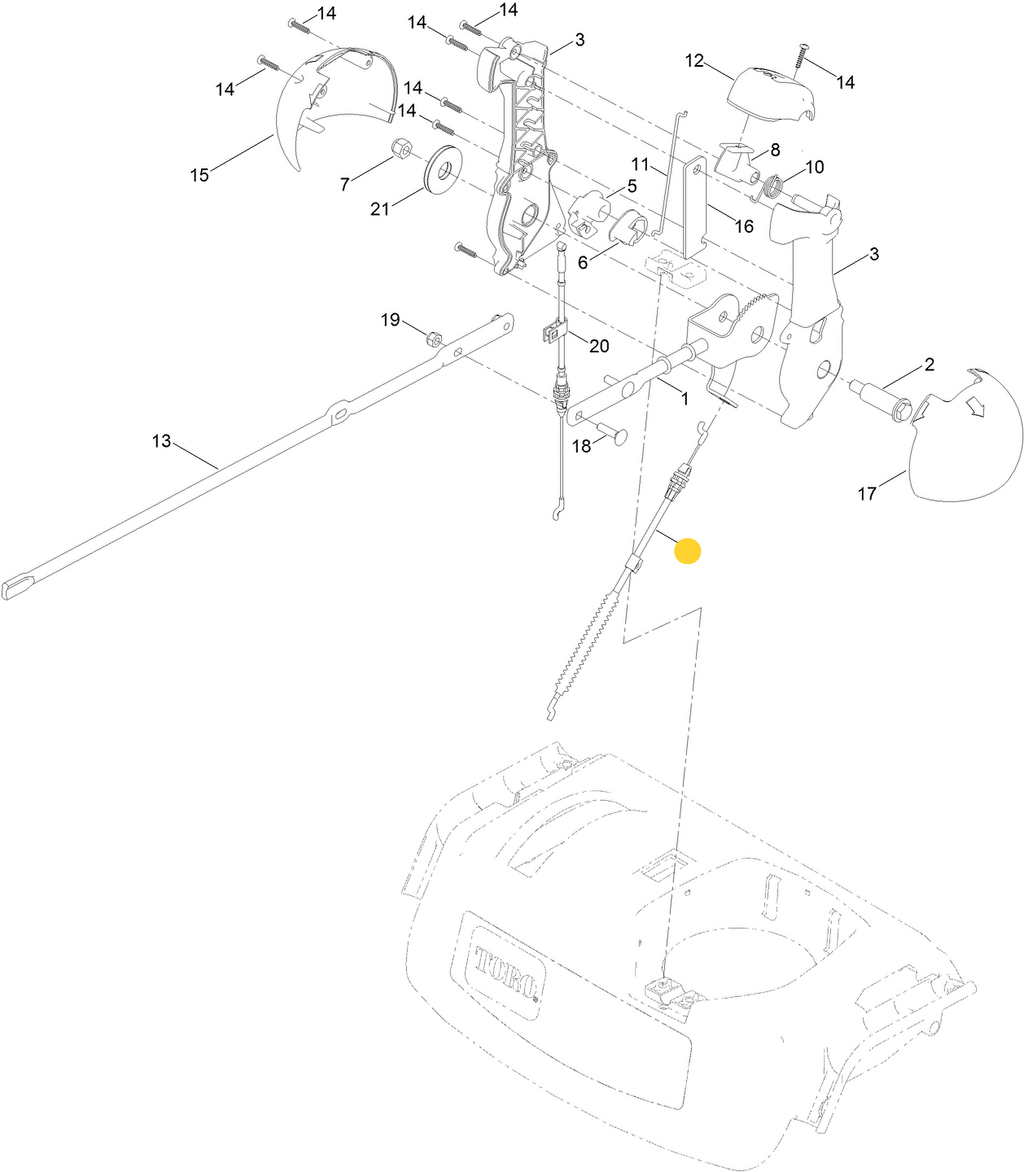

• NOTES & DETAILS: Toro OEM  138-0730 IS COMMINLY USED - 138-0730 Cable Ends - Hook or Shoe End (Insert Clip) Inserts into the Control Rod/Bracket that Mounts to the Chute Control Handle the Hook or End (Expandable Rubber Cable Guard/Spring) Fastens to the Chute Deflector Link that Connect the Two Piece - Hinged Deflector. - 138-0730 The Cable Itself - Fastens through a Series of Fasteners and Clamps that retain it to the Snowblower Assembly. Cable is routed around the Engine Erea and Retained to the Frame Using the Factory Installed Cable's Clamp Via a Washer Head Bolt - Next the Cable Feed through a Cable Clamp and Fastener that Attaches to the Cable Bracket that is Welded to the Metal Discharge Chute. - 138-0730 Deflector Cable Assembly - Only Serves the Purpose of Lowering and Raising the Tow-Piece Hinged Deflector Chute Assembly as the Operator Pushes and Pulls the Chute Control Handle Foward and Backward this Also Enables the Operator to Control the Distance of Snow Travel Preventing Blowing Snow and Debris Against Vehicles or other Object, Items and Areas.
• COMMON SERIES APPLICATIONS: Toro Select Power MAX HD & Power TRX Snow Blower Models.





• MODEL FIT CHART:



SNOWBLOWER’S



POWER MAX Series – Model Numbers – (* Model Numbers 38830, 38840, 38841, 38842, 38843, 38844, 38850, 38855, 38860, 38865)



POWER TRX Series – Model Numbers – (* Model Numbers 38870, 38875, 38890, 38891)

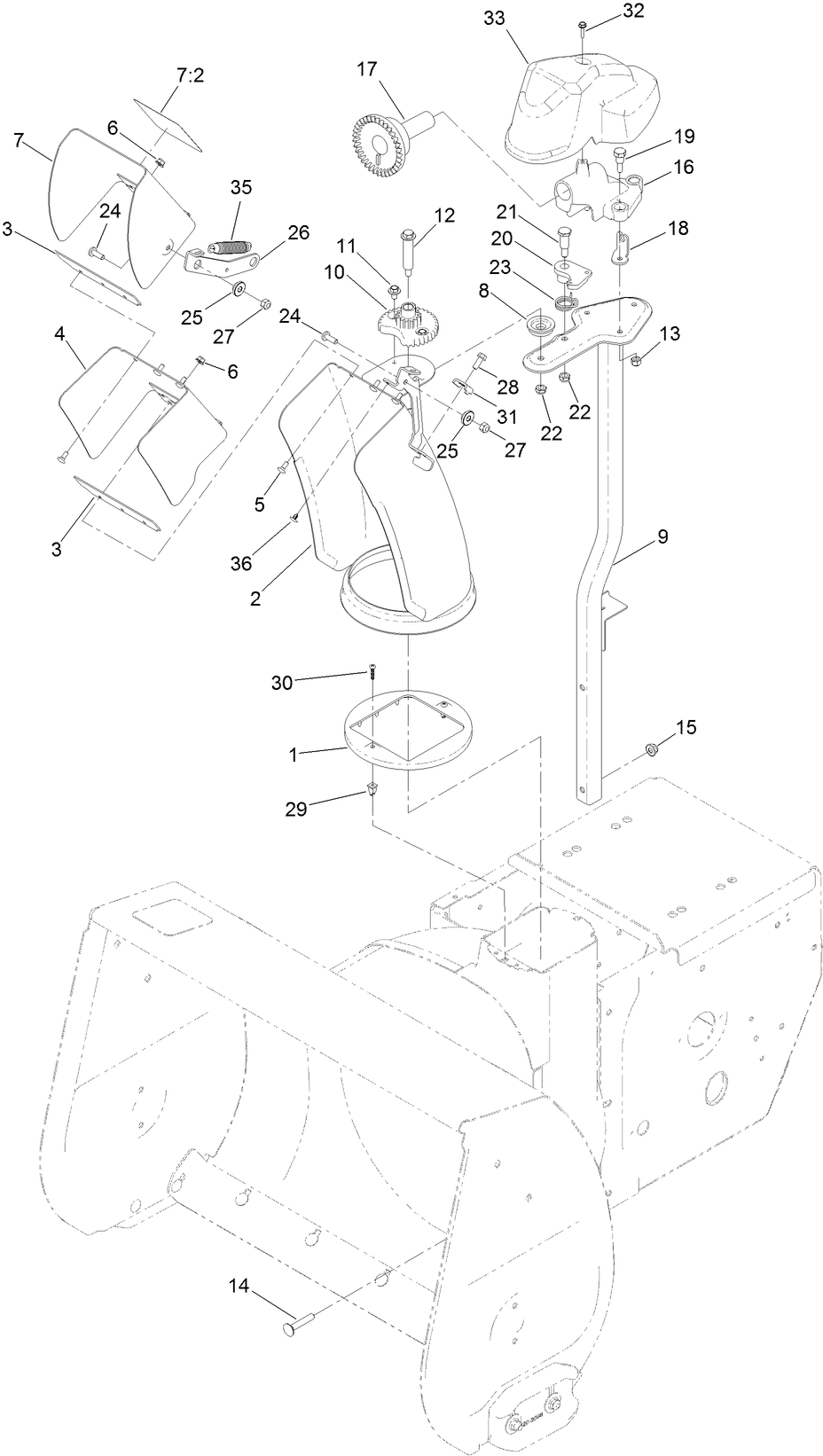

• ASSOCIATED PARTS CHART:





ASSOCIATED PARTS REFERENCES FOR PART NUMBER 138-0730 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 138-0662 - Chute Control Rod Bracket (Whole for Cable Shoe or Hook) x1
2. 32144-85 - Washer Head Bolt (Retains the Cable to the Snowblower Main Frame Using the Factory Installed Cable Clamp Via the Bolt as well as Retaining the Removable Clamp and Cable to Welded Cable Bracket on the Discharge Chute) x1 Per Clamp - x2 Per Chute Deflector Cable
3. 136-7191 - Cable Clamp (Retains the Cable to the Cable Bracket on the Discharge Chute Via the Washer Head Bolt) x1
4. 139-1564 - Upper Deflector Chute Piece - Metal (Retains Half the Chute Bracket Via a Set of Bolt, Spacer and Lock Nuts and Makes up One of the Two Piece Deflector Chute) x2
5. 138-3671 - Deflector Chute Rubber Gasket/Hinge (Retains the Upper and Lower Piece Together of the Two-Piece Deflector Chute and Enable them to Bend or Contort as the Cable Pulls on the Deflector Chute Bracket) x2
6. 136-6582-01 - Lower Deflector Chute Piece- Metal (Retains Half the Chute Bracket Via a Set of Bolt, Spacer and Lock Nuts and Makes up One of the Two Piece Deflector Chute) x1
7. 138-0689 - Phillips Head Screw (Retains the Chute Bracket, Pivot Bushings and Nylon Lock Nuts to the Deflector Two-Piece Chute - Installed from Inside Out on the Deflector Chute) x2
8. 136-6522 - Deflector Chute Bracket (Retains Both Halves the Two-Piece Chute Via a Set of Bolt, Spacer and Lock Nuts and Enable the Cable Shoe or Hook to Be Installed) x1
9. 138-0687 - Pivot Bushing (Inserts into the Hole of the Chute Bracket from the Outside Surface and Spaces the Chute Bracket Away from the Two-Piece Chute Deflectors Allowing it to Contort as them to Contort with the Rubber Gasket/Hinge System as the Cable is Being Pulled or Pushed) x2
10. 137-3094 - Nylon Lock Nut - Plastic (Inserts into the Hole of the Chute Bracket from the Outside Surface and Spaces the Chute Bracket Away from the Two-Piece Chute Deflectors Allowing it to Contort as them to Contort with the Rubber Gasket/Hinge System as the Cable is Being Pulled or Pushed) x2
