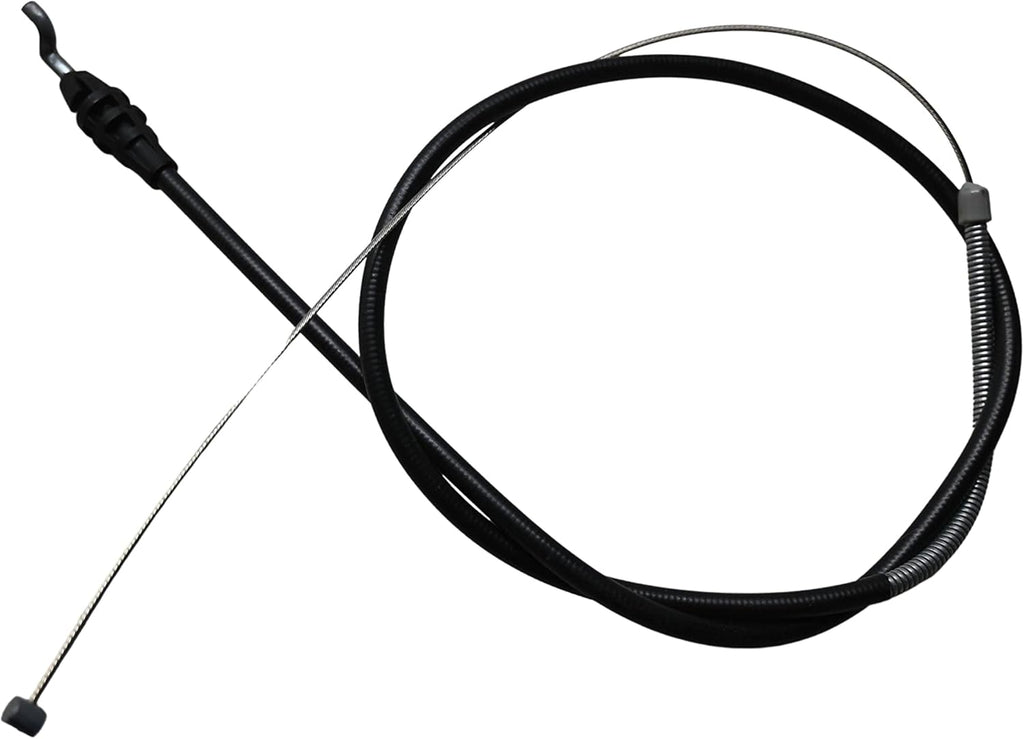

Toro OEM 138-0726 Snowblower Power Steering Clutch Cable Fits Select Power MAX HD Snowblower Models.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.





• PRODUCT NUMBER AND VARIATIONS: 138-0726, 138 0726, 1380726
• PRODUCT TYPE: Power Steering Clutch Cable
• SIZE: Length N/A - Width N/A - Height N/A - Weight 0.088 lbs.

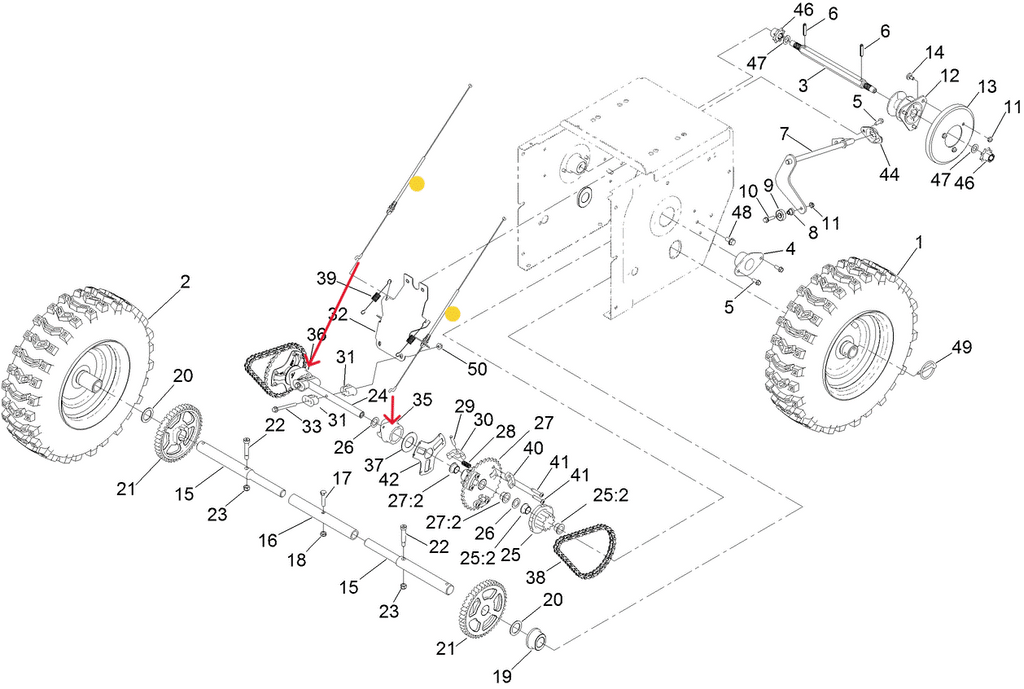

• NOTES & DETAILS: Toro OEM  138-0726 IS COMMINLY USED - 138-0726 Cable End Inserts into the Operator's Steering Clutch Levers on Each Handle Assembly - 138-0726 Cable's Hook End Equipped with the Plastic Retaining Clips Pushes into the Shift Collar Bracket that Mounts to the  Intermediate Shaft with the Shift Collor Guides, While the Hook or Shoe of the Cable End Hooks into the Shift Collar and Enable the Shift Collar to Rotate Away From the Shift Collar Guide when the Operator Engages the Steering Clutch Levers. This Enables the Wheel or Unit Side that is Engaged to Free Wheel Disengaging the Drive Capabilities to that Side, while Pressure to the Steering/ Traction Clutch Lever is Applied - Giving the Snowblower Steering Capabilities. Snow Blower's with the Power Steering Feature Will Require Two Power Steering Cables - One for Each Side.
• COMMON SERIES APPLICATIONS: Toro Select Power Max HD Snow Blower Models.



• MODEL FIT CHART:



SNOWBLOWER’S & POWER BROOMS



POWER MAX Series – Model Numbers – (* Model Numbers 38841, 38842, 38843, 38844, 38855, 38860, 38865)





• ASSOCIATED PARTS CHART:





ASSOCIATED PARTS REFERENCES FOR PART NUMBER 138-0726 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 106-4505 - Power Steering Clutch Lever x2
2. 136-6648-03 - Shift Collar Bracket/Brace x1
3. 107-8888 - Right Hand Shift Collar x1
4. 107-8887 - Left Hand Shift Collar x1
