ToroSKU: 1379844
Price:
$16.99

View Financing Disclaimer

Pickup available, Usually ready in 24 hours

r

Apply for Financing

Description

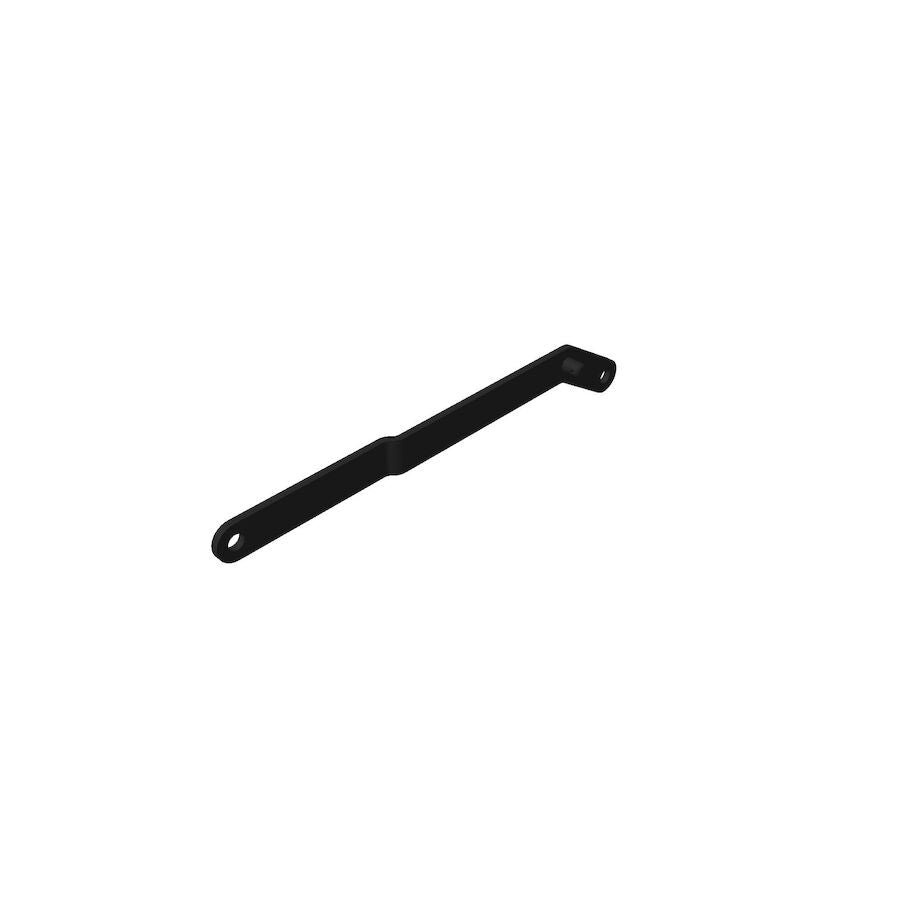

Toro OEM 137 9844 Left Side Sway Bar/Arm Gives the Mower Deck Extra Stability (Eliminating extra travel from Left to Right as well Front to Back) While allowing the Mower Deck to travel Horizontally. Toro Oem 137 9844 Right Sway Bar is Designed for the Left Side of the Mower Deck as you sit on the Operator Seat on Toro Current/Late 34" Timecutter Standard Models (Models with Cast Aluminum Axles) - Current/Late 42" Timecutter ZS, MX, 4200, Standard, My-Ride and Battery Models (Models with Cast Aluminum Axles) Late 50" Timecutter MX, 5000, Standard and My-Ride Models (Models with Cast Aluminum Axles) - Current/Late 54" Timecutter My-Ride and Battery Models (Models with Cast Aluminum Axles). Please refer to the Images above; Product Specifications, Special Notes, and the Model Fit guide below to ensure proper fit. For Additional Part Number References Refer to the Associate Parts References Chart Below.

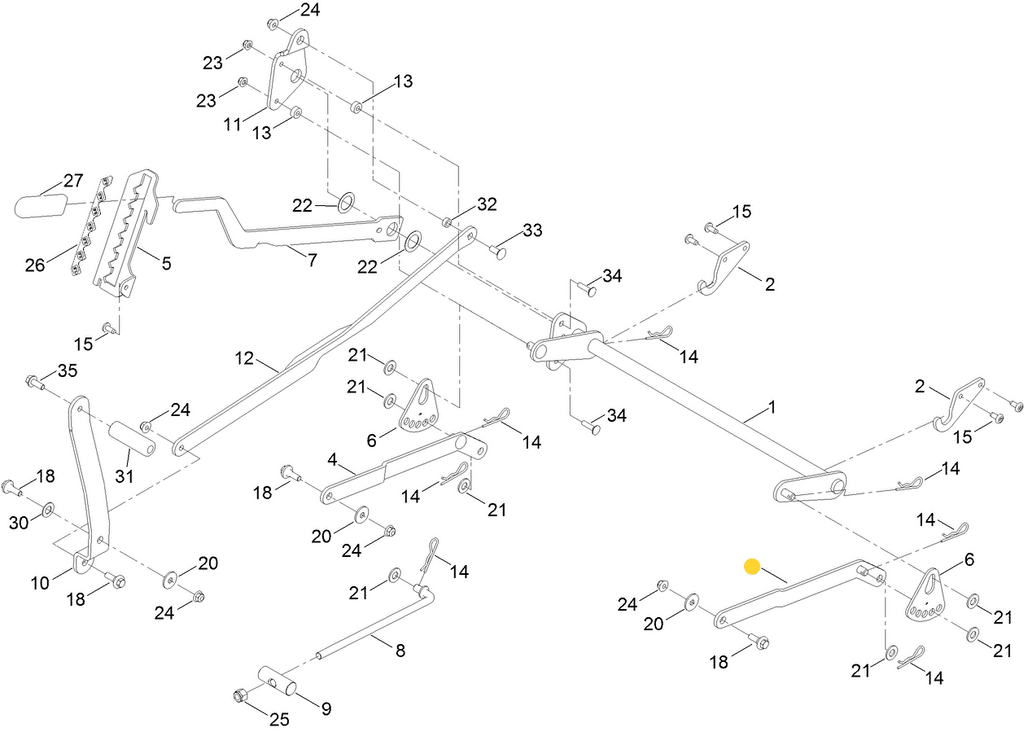

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 137-9844 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





  1. 138-2564 - 34", 42", 50" LIFT LINK/HEIGHT OF CUT LINK - (Connects Mower Deck Pivot Lift/Leverage Arm and the Mower Deck Sway Bars/Arms - Slotted Brackets Enable the Mower Deck Free Float) x2 Per Mower Deck Pivot Lift/Leverage Arm *34", 42", 50" Models Only
  2. 138-6006 - 54" LIFT LINK/HEIGHT OF CUT LINK - (Connects Mower Deck Pivot Lift/Leverage Arm and the Mower Deck Sway Bars/Arms - Slotted Brackets Enable the Mower Deck Free Float) x2 Per Mower Deck Pivot Lift/Leverage Arm *54" Models Only
  3. 139-2611 - FLAT WASHER - (Supports Retaining Clip Pins for Retaining Slotted Lift Link to Pivot Arm - Lift Link to Sway Bars/Arms - Sway Bars/Arms to Mower Deck and Mower Deck Front Pivot Rods or Pivot Pans to Mower Deck) x7 Per Mower with Front Pivot Rod - x8 Per Mower with Front Pivot Pan
  4. 139-2562 - CLIP/COTTER PIN - (Retains Slotted Lift Link to Pivot Arm - Lift Link to Sway Bars/Arms - Sway Bars/Arms to Mower Deck and Mower Deck Front Pivot Rods or Pivot Pans to Mower Deck) x7 Per Mower with Front Pivot Rod - x8 Per Mower with Front Pivot Pan
  5. 137-9846 - MOWER DECK SWAY BAR/ARM (Right Side as You Sit on the Operator Seat) - (Attaches to the mower Frame and Connects to the Mower Deck Lift Link and Mower Deck) x1 Per Unit
  6. 137-9844 - MOWER DECK SWAY BAR/ARM (Left Side as You Sit on the Operator Seat) - (Attaches to the mower Frame and Connects to the Mower Deck Lift Link and Mower Deck) x1 Per Unit
  7. 137-9847 - FLANGE SHOULDER BOLT - (Retains Mower Deck Sway Bar/Arm to the Mower Frame) x1 Per Mower Deck Sway Bar/Arm
  8. 140-5063 or 93-8806 - FLAT WASHER - (Assembled Between the Retaining Flange Nut, Mower Frame and The Mower Deck Sway Bar Arm- Spaces the Mower Deck Sway Bar/Arm Away from the Mower Frame) x1 Per Mower Deck Sway Bar/Arm
  9. 119-4042 - FLANGE NUT - (Retains the Mower Deck Sway Bar/Arm to the Mower Frame as well as Retaining the Foot Pedal Link to the Foot Lift Plate) x1 Mower Deck Sway Bar/Arm







 Specification

Product Number:

1379844

Brand:

Toro

Length:

16.750 IN (42.545 CM)

Width:

2.500 IN (6.350 CM)

Height:



1.000 IN (2.540 CM)

Weight:

1.708 LB (0.775 KG)





Model Fit:





TIMECUTTER



34” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75734, 77301)



42” TIMECUTTER ZS Series – Model Numbers – (* Model Numbers 74677, 74683, 74685, 74687)

42” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74690, 74691)

42” TIMECUTTER 4200 & ZR 4200 Series – Model Numbers – (* Model Numbers 74679, 75740)

42” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404)

42” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74692, 75743, 75745, 75747)

42” TIMECUTTER (Standard & My-Ride - Battery) Series – Model Numbers – (* Model Numbers 75841, 75642)



50” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74694, 74695)

50” TIMECUTTER 5000 Series – Model Numbers – (* Model Numbers 75751)

50” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75750, 75753)

50” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74696, 75755, 75759)



54” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75754, 75756, 75757)

54” TIMECUTTER (My-Ride - Battery) Series – Model Numbers – (* Model Numbers 75851)
