ToroSKU: 137709303
Price:
$59.99

View Financing Disclaimer

Pickup available, Usually ready in 24 hours

r

Apply for Financing

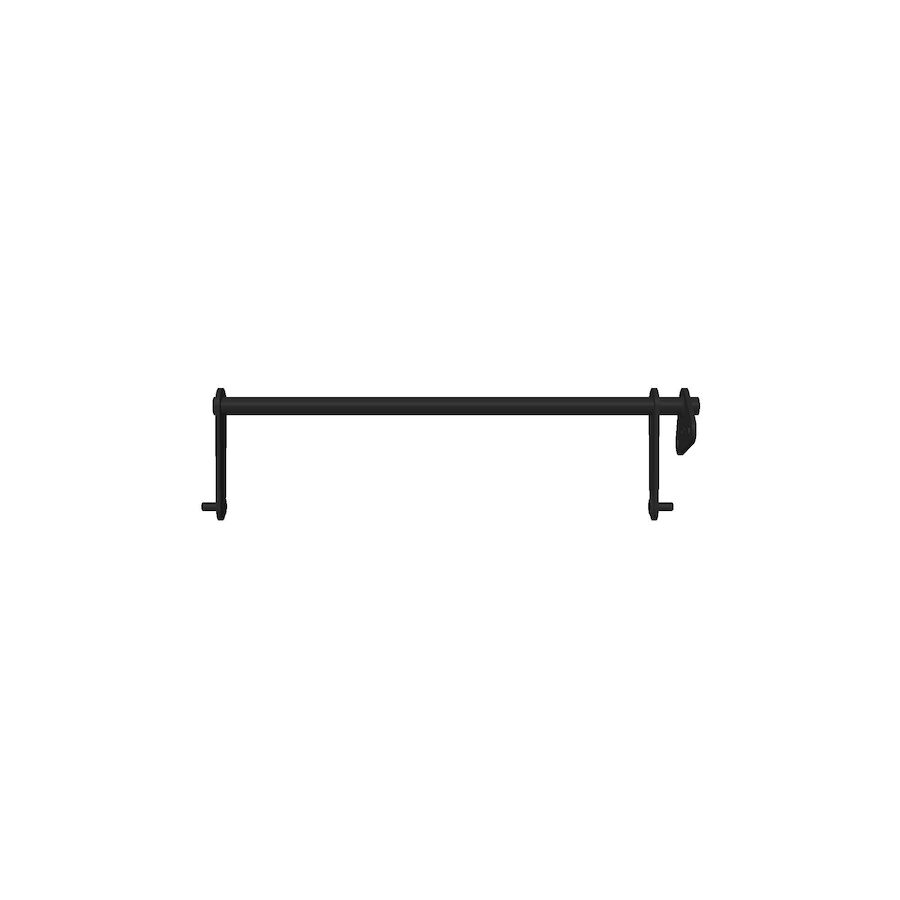

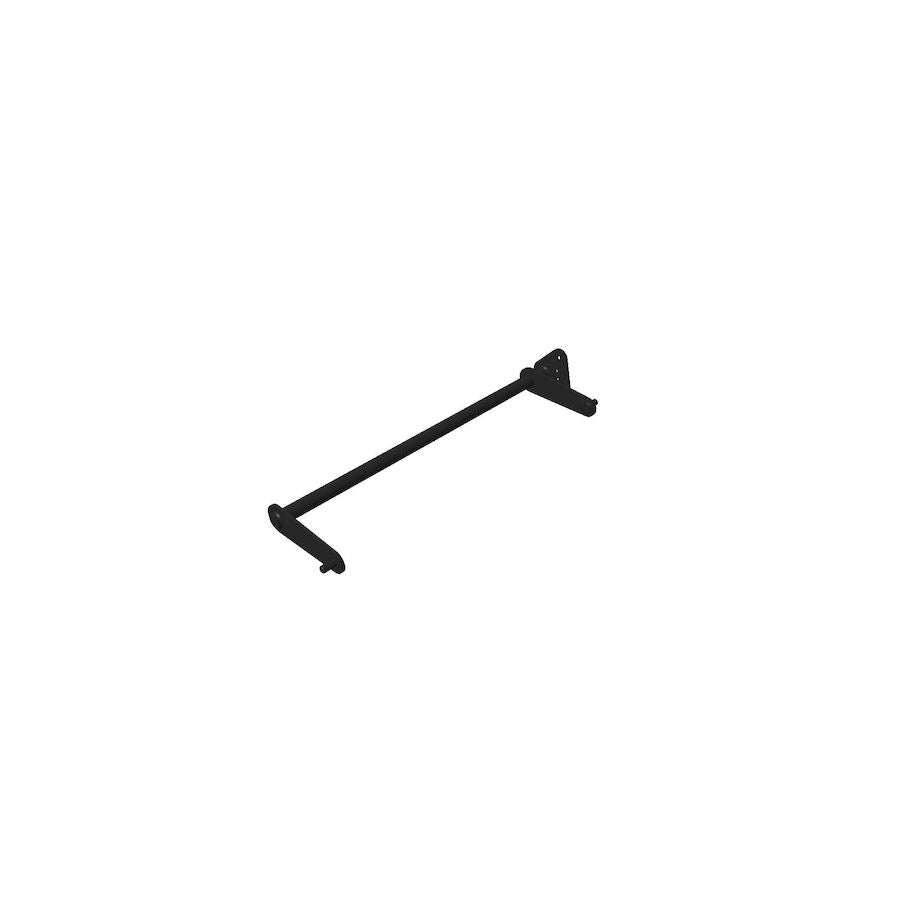

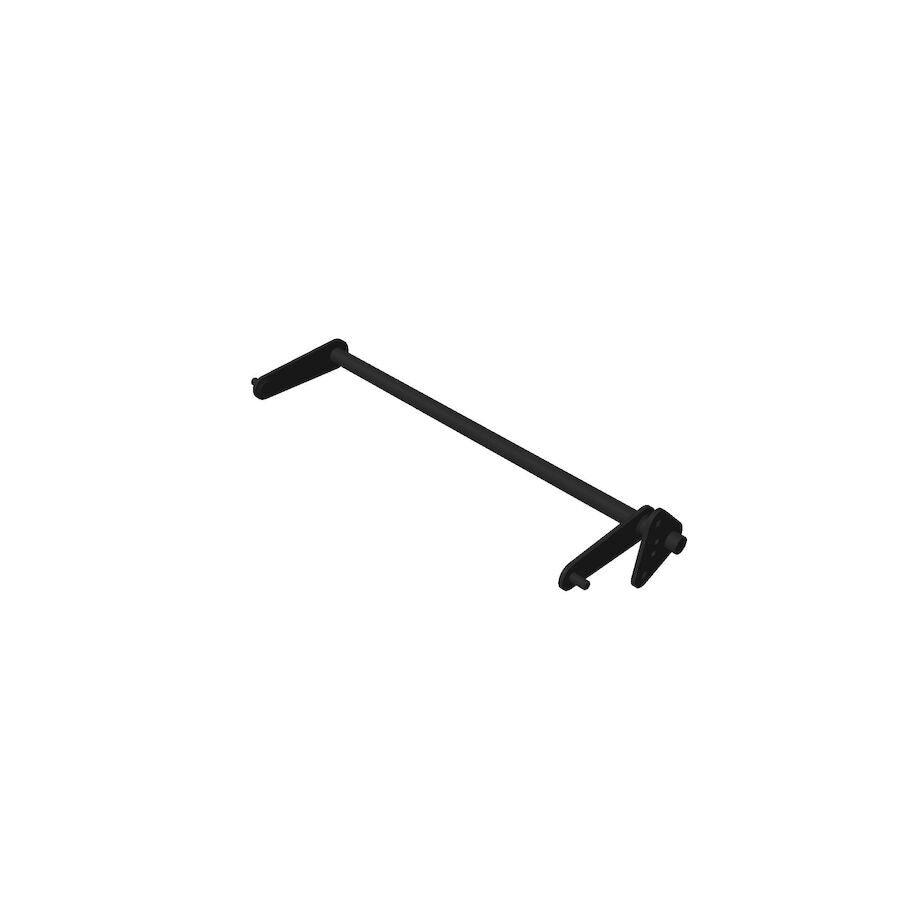

Description

Toro OEM 137 7093 03 Mower Deck Pivot Lift/Leverage Arm Is a Rod That Travels across the Frame of the Mower and Attaches to the Mower Deck Using the Mower Deck Lift Links. Toro OEM 137 7093 03 Pivot Arm Rotate across the Frame of the Mower as the Operator Lower's and Raise's Their Mower Deck. This type of Design helps Leverage some of the Mower Deck Weight as well and makes for an easier Raising and Lowering of the Mower Deck. 137-7093-03 Mower Deck Pivot Rod is Designed for Toro Current/Late 34" Timecutter Standard Models (Models with Cast Aluminum Axles) - Current/Late 42" Timecutter ZS, MX, 4200, Standard, My-Ride and Battery Models (Models with Cast Aluminum Axles) Late 50" Timecutter MX, 5000, Standard and My-Ride Models (Models with Cast Aluminum Axles) - Current/Late 54" Timecutter My-Ride and Battery Models (Models with Cast Aluminum Axles). Please refer to the Images above; Product Specifications, Special Notes, and the Model Fit guide below to ensure proper fit. For Additional Part Number References Refer to the Associate Parts References Chart Below.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 137-7093-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

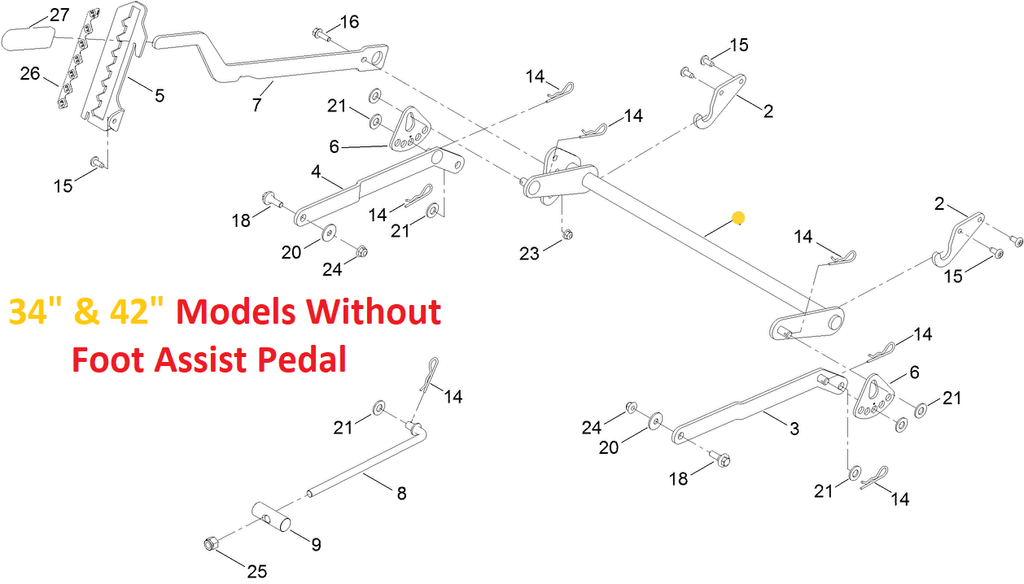

PARTS REFERENCES FOR MODELS WITH & WITHOUT MOWER DECK FOOT-ASSIST PEDAL

*50", 54" Came with Foot assist Petal Whereas 34", 42" Models did Not - Part combination is the same except for lift handle Fastners and Spacers as noted below



  1. 138-2564 - 34", 42", 50" LIFT LINK/HEIGHT OF CUT LINK - (Connects Mower Deck Pivot Lift/Leverage Arm and the Mower Deck Sway Bars/Arms - Slotted Brackets Enable the Mower Deck Free Float) x2 Per Mower Deck Pivot Lift/Leverage Arm *34", 42", 50" Models Only
  2. 138-6006 - 54" LIFT LINK/HEIGHT OF CUT LINK - (Connects Mower Deck Pivot Lift/Leverage Arm and the Mower Deck Sway Bars/Arms - Slotted Brackets Enable the Mower Deck Free Float) x2 Per Mower Deck Pivot Lift/Leverage Arm *54" Models Only
  3. 139-2611 - FLAT WASHER - (Supports Retaining Clip Pins for Retaining Slotted Lift Link to Pivot Arm - Lift Link to Sway Bars/Arms - Sway Bars/Arms to Mower Deck and Mower Deck Front Pivot Rods or Pivot Pans to Mower Deck) x7 Per Mower with Front Pivot Rod - x8 Per Mower with Front Pivot Pan
  4. 139-2562 - CLIP/COTTER PIN - (Retains Slotted Lift Link to Pivot Arm - Lift Link to Sway Bars/Arms - Sway Bars/Arms to Mower Deck and Mower Deck Front Pivot Rods or Pivot Pans to Mower Deck) x7 Per Mower with Front Pivot Rod - x8 Per Mower with Front Pivot Pan
  5. 137-9846 - MOWER DECK SWAY BAR/ARM (Right Side as You Sit on the Operator Seat) - (Attaches to the mower Frame and Connects to the Mower Deck Lift Link and Mower Deck) x1 Per Unit
  6. 137-9844 - MOWER DECK SWAY BAR/ARM (Left Side as You Sit on the Operator Seat) - (Attaches to the mower Frame and Connects to the Mower Deck Lift Link and Mower Deck) x1 Per Unit
  7. 137-9847 - FLANGE SHOULDER BOLT - (Retains Mower Deck Sway Bar/Arm to the Mower Frame) x1 Per Mower Deck Sway Bar/Arm
  8. 140-5063 or 93-8806 - FLAT WASHER - (Assembled Between the Retaining Flange Nut, Mower Frame and The Mower Deck Sway Bar Arm- Spaces the Mower Deck Sway Bar/Arm Away from the Mower Frame) x1 Per Mower Deck Sway Bar/Arm
  9. 119-4042 - FLANGE NUT - (Retains the Mower Deck Sway Bar/Arm to the Mower Frame) x1 Mower Deck Sway Bar/Arm
  10. 137-7087-03 - MOWER DECK LIFT HANDLE - (Fastens Between the Mower Deck Pivot-Leverage-Lift Arm and the Foot Lift Plate) x1 Per Unit
  11. 3234-29 - HEX HEAD FLANGE BOLT - (Retains Mower Deck Handle to Mower Deck Pivot Arm) x1 Per Lift Handle *Only Used on Models without Mower Deck Lift Assist Petal
  12. 104-8300 - FLANGE LOCK NUT - (Retains Mower Deck Handle to Mower Deck Pivot Arm) x1 Per Mower Deck Handle *Only Used on Models Without Mower Deck Lift Assist Petal

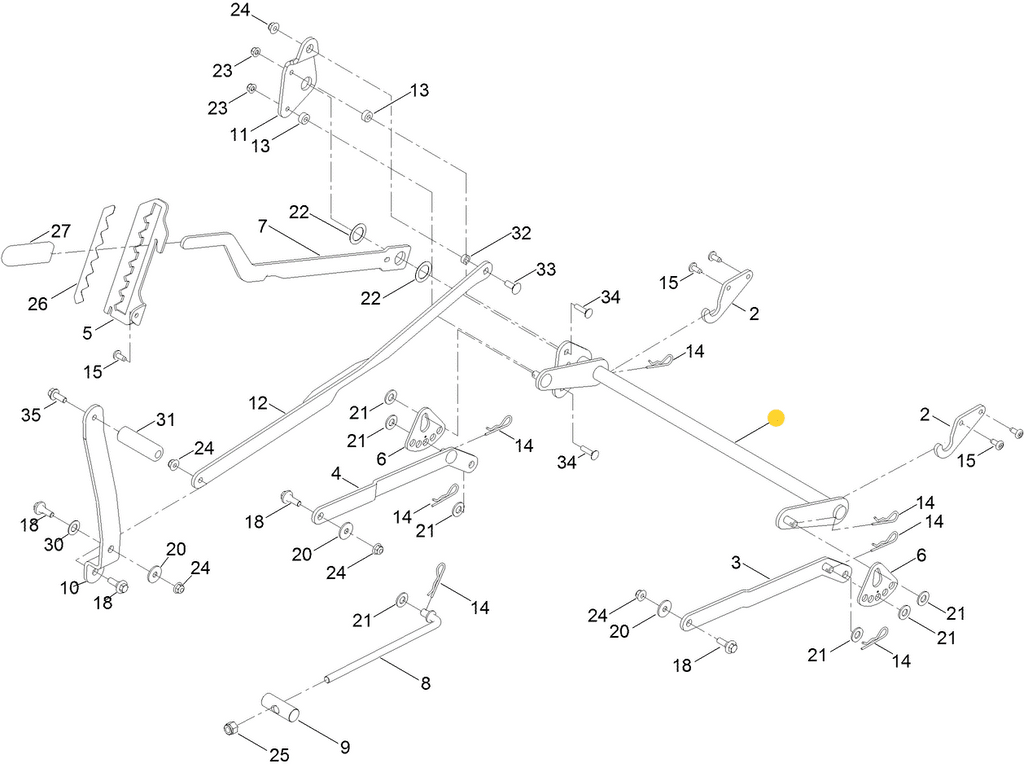

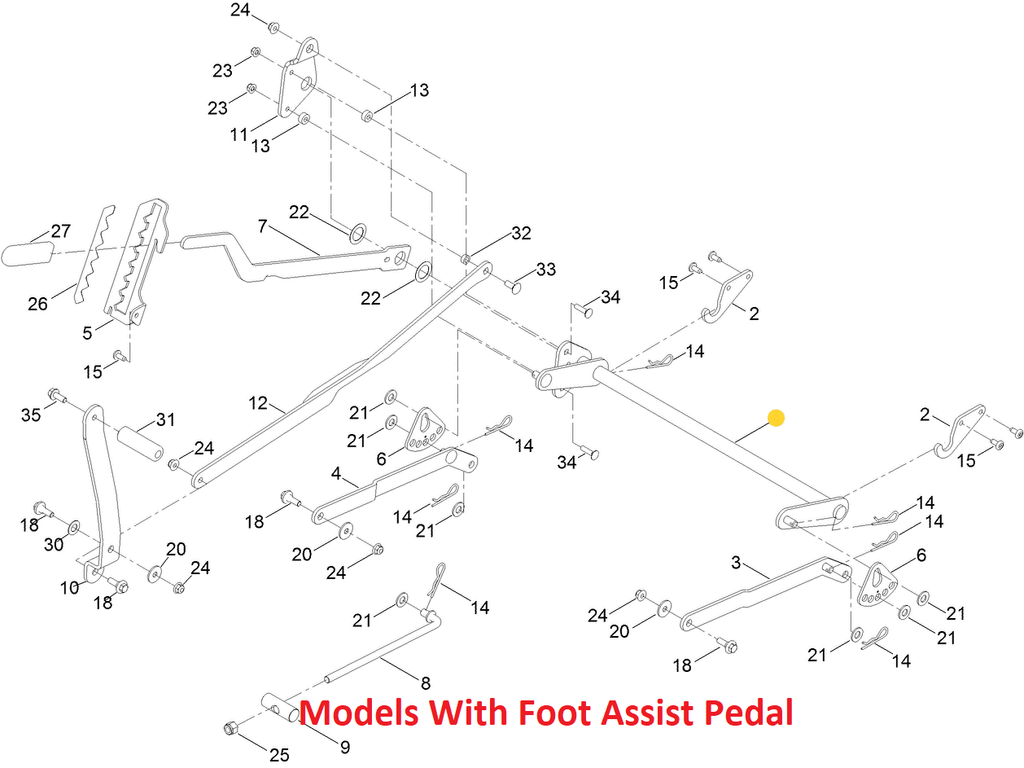

ADDITIONAL PARTS REFERENCES FOR MODELS WITH MOWER DECK FOOT-ASSIST PEDAL

*50", 54" Came with Foot assist Petal Whereas 34", 42" Models did Not - Part combination is the same except for lift handle Fastners and Spacers as noted - Below is the Complete List of Foot Assist Kit Parts List



  1. 139-7452 - FOOT PEDAL - (The Cylinder Shape Foot Pedal That Bolt to the Foot Pedal Bracket) x1 Per Unit
  2. 139-2597 - FLANGE BOLT - (Threads into the Foot Pedal and Retains the Foot Pedal to the Foot Pedal Bracket) x1 Per Foot Pedal
  3. 138-2549-03 - FOOT PEDAL BRACKET - (Fastens to Mower Frame and Retains the Foot Assist Pedal and connect to the Foot Lift Link) x1 Per Unit
  4. 137-9847 - FLANGE SHOULDER BOLT - (Retains the Foot Pedal Bracket to the Mower Frame as well as the Foot Lift Link to the Foot Pedal Bracket) x2 Per Foot Pedal Bracket
  5. 120-2273 - NYLON WASHER - (Installed Over the Flange Against the Flange Bolt Head and Reduces the Amount of Play or Slop there is in the Foot Pedal Bracket but still allows it to Rotate - Installed on the Shoulder Bolt that Retains it to the Frame) x1 Per Foot Pedal Bracket
  6. 93-8806 - FLAT WASHER - (Installed Over the Flange Bolt Threads Against the Flange Bolt Flange Between the Foot Pedal Bracket and the Mower Frame and Spaces the Foot Pedal Bracket Away from the Frame) x1 Per Foot Pedal Bracket
  7. 104-8301 - FLANGE LOCK NUT - (Retains Foot Pedal Bracket to Mower Frame and the Foot Lift Link to Foot Pedal Bracket) x2 Per Foot Pedal Bracket
  8. 140-2746-03 - FOOTLIFT LINK - (Connects Foot Assist Pedal to Mower Deck Lift Handle and Mower Deck Pivot Arm) x1 Per Assist Foot Pedal
  9. 119-4042 - FLANGE NUT - (Retains the Foot Pedal Link to the Foot Lift Plate) x1 Per Foot Pedal Lift Plate
  10. 139-2590 - CARRIAGE BOLT - (Retains Foot Pedal Lift Link to the Foot Lift Plate) x1 Per Foot Pedal Lift Plate
  11. 137-7086 - FOOTLIFT PLATE - (Fastens Overtop Mower Deck Lift Handle and Enable you to Connect Mower Deck Foot Assist Lift Link) x1 Per Mower Deck Lift Handle
  12. 140-3461 - SPACER - (Spaces Mower Deck Lift Handle Away from Mower Deck Lift/Leverage Arm and Foot Lift Plate) x2 Per Mower Deck Lift Handle
  13.  63-2290 - THRUST WASHER - (Installed Over Mower Deck Lift-Leverage-Pivot Rod on Each Side of the Mower Deck Handle and Reduces the Amount of Play or Slop in the Mower Deck Lift Handle) x2 Per Mower Deck Lift Handle
  14. 140-2093 - SPACER (Foot-Lift Assist Linkage/Handle) - (Inserts in the Mower Deck Lift Handle Between Mower Deck Lift Plate and Mower Deck Pivot Arm Allowing them to be Fastened Together without Eliminating the Necessary Rotational Movement) x1 Per Mower Deck Lift Handle
  15. 137-7087-03 - MOWER DECK LIFT HANDLE - (Fastens Between the Mower Deck Pivot-Leverage-Lift Arm and the Foot Lift Plate) x1 Per Unit
  16. 139-1702 - CARRIAGE BOLTS - (Retains Thrust Washers, Spacers, Footlift Plate and Mower Deck Lift Handle to Mower Deck Pivot Lift/Leverage Arm) x2 Per Mower Deck Lift Handle, Foot Lift Plate
  17. 119-4041 - FLANGE LOCK NUT - (Retains Thrust Washer, Spacers, Footlift Plate and Mower Deck Lift Handle to Mower Deck Pivot Lift/Leverage Arm) x2 Per Mower Deck Handle, Foot Lift Plate





MOWER DECK FOOT-ASSIST PEDAL KIT



161-4527 - FOOT PEDAL ASSIST KIT FOR TIMECUTTER - 34" & 42" Timecutter Models (161-4527 is for 34" & 42" Models Listed below in the Model Fit Chart - 161-4527 Contains the Individual Part Listed Above - For Individual Replacement Part Refer to the Foot Pedal Associated Parts Reference Above)







Specification

Product Number:

137709303

Brand:

Toro

Length:

NA

Width:

NA

Height:

NA

Weight:

8.753 LB (3.970 KG)





Model Fit:





TIMECUTTER



34” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75734, 77301)



42” TIMECUTTER ZS Series – Model Numbers – (* Model Numbers 74677, 74683, 74685, 74687)

42” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74690, 74691)

42” TIMECUTTER 4200 & ZR 4200 Series – Model Numbers – (* Model Numbers 74679, 75740)

42” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404)

42” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74692, 75743, 75745, 75747)

42” TIMECUTTER (Standard & My-Ride - Battery) Series – Model Numbers – (* Model Numbers 75841, 75642)



50” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74694, 74695)

50” TIMECUTTER 5000 Series – Model Numbers – (* Model Numbers 75751)

50” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75750, 75753)

50” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74696, 75755, 75759)



54” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75754, 75756, 75757)

54” TIMECUTTER (My-Ride - Battery) Series – Model Numbers – (* Model Numbers 75851)
