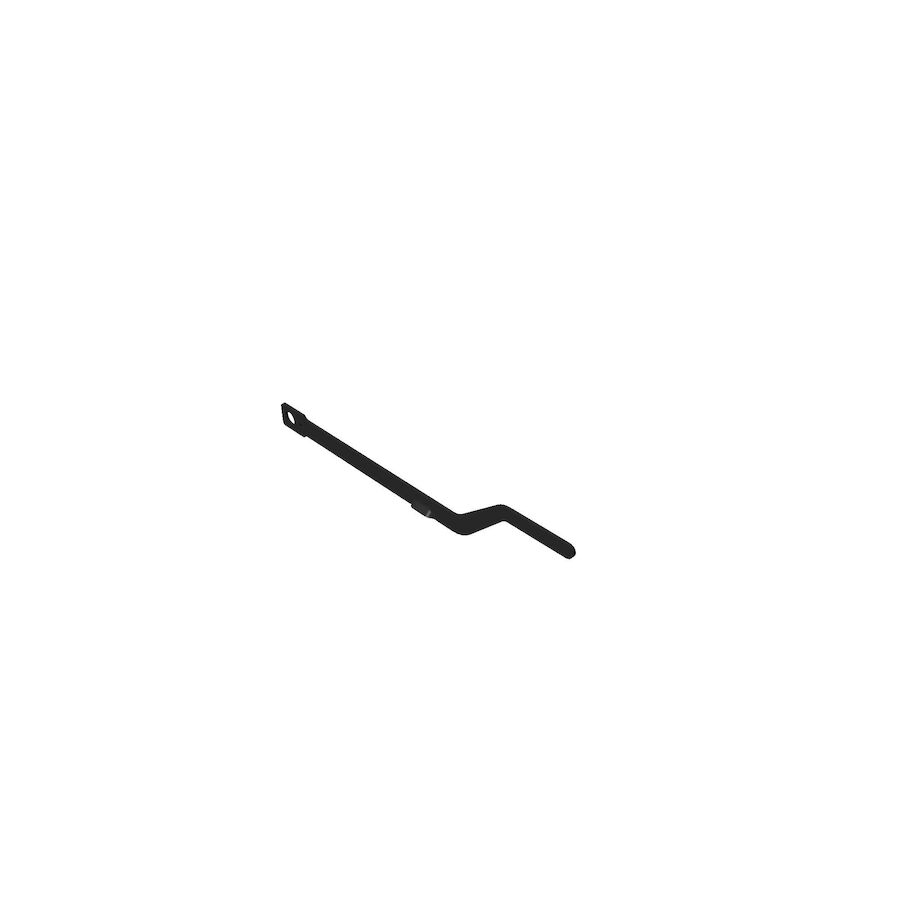

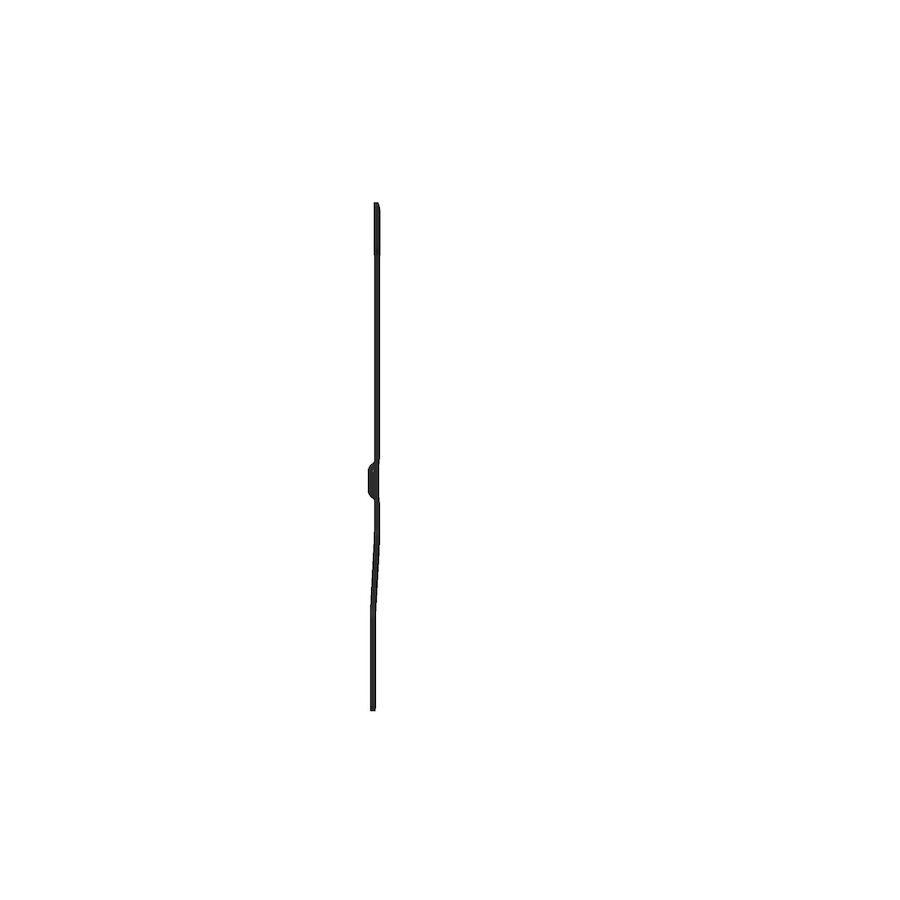

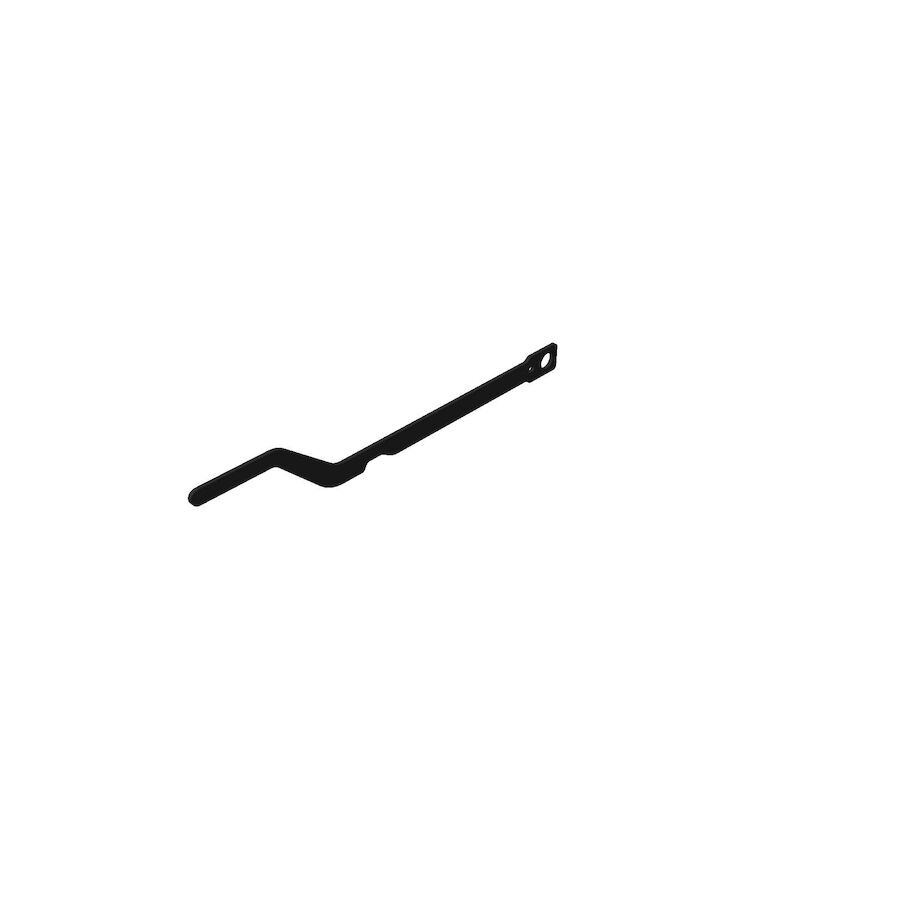

Toro OEM 137-7087-03 Mower Deck Lift Lever Fits Current/Late - 34" Timecutter Standard - 42" Timecutter ZS, MX, 4200, Standard, My-Ride - 50" Timecutter MX, 5000, Standard, My-Ride - 54" Standard, My-Ride (Models Cast Aluminum Axle's).
Toro OEM 137-7087-03 Mower Deck Lift Lever Fits Current/Late - 34" Timecutter Standard - 42" Timecutter ZS, MX, 4200, Standard, My-Ride - 50" Timecutter MX, 5000, Standard, My-Ride - 54" Standard, My-Ride (Models Cast Aluminum Axle's).
Toro OEM 137-7087-03 Mower Deck Lift Lever Fits Current/Late - 34" Timecutter Standard - 42" Timecutter ZS, MX, 4200, Standard, My-Ride - 50" Timecutter MX, 5000, Standard, My-Ride - 54" Standard, My-Ride (Models Cast Aluminum Axle's).
Toro OEM 137-7087-03 Mower Deck Lift Lever Fits Current/Late - 34" Timecutter Standard - 42" Timecutter ZS, MX, 4200, Standard, My-Ride - 50" Timecutter MX, 5000, Standard, My-Ride - 54" Standard, My-Ride (Models Cast Aluminum Axle's).
Toro OEM 137-7087-03 Mower Deck Lift Lever Fits Current/Late - 34" Timecutter Standard - 42" Timecutter ZS, MX, 4200, Standard, My-Ride - 50" Timecutter MX, 5000, Standard, My-Ride - 54" Standard, My-Ride (Models Cast Aluminum Axle's).
Roll over image to zoom in Click on image to zoom
Toro OEM 137-7087-03 Mower Deck Lift Lever Fits Current/Late - 34" Timecutter Standard - 42" Timecutter ZS, MX, 4200, Standard, My-Ride - 50" Timecutter MX, 5000, Standard, My-Ride - 54" Standard, My-Ride (Models Cast Aluminum Axle's).
Toro OEM 137-7087-03 Mower Deck Lift Lever Fits Current/Late - 34" Timecutter Standard - 42" Timecutter ZS, MX, 4200, Standard, My-Ride - 50" Timecutter MX, 5000, Standard, My-Ride - 54" Standard, My-Ride (Models Cast Aluminum Axle's).
Toro OEM 137-7087-03 Mower Deck Lift Lever Fits Current/Late - 34" Timecutter Standard - 42" Timecutter ZS, MX, 4200, Standard, My-Ride - 50" Timecutter MX, 5000, Standard, My-Ride - 54" Standard, My-Ride (Models Cast Aluminum Axle's).
Toro OEM 137-7087-03 Mower Deck Lift Lever Fits Current/Late - 34" Timecutter Standard - 42" Timecutter ZS, MX, 4200, Standard, My-Ride - 50" Timecutter MX, 5000, Standard, My-Ride - 54" Standard, My-Ride (Models Cast Aluminum Axle's).
Toro OEM 137-7087-03 Mower Deck Lift Lever Fits Current/Late - 34" Timecutter Standard - 42" Timecutter ZS, MX, 4200, Standard, My-Ride - 50" Timecutter MX, 5000, Standard, My-Ride - 54" Standard, My-Ride (Models Cast Aluminum Axle's).

Toro OEM 137-7087-03 Mower Deck Lift Lever Fits Current/Late - 34" Timecutter Standard - 42" Timecutter ZS, MX, 4200, Standard, My-Ride - 50" Timecutter MX, 5000, Standard, My-Ride - 54" Standard, My-Ride (Models Cast Aluminum Axle's).

ToroSKU: 137708703
Price:
$21.99

View Financing Disclaimer

Pickup available, Usually ready in 24 hours

r

Apply for Financing

Description

Toro OEM 137 7087 03 Lift Lever Fastens to the Mower Deck Lift/Leverage Pivot Arm and Enables the Operator to Lift and Lower the Mower Deck by Lifting and Lowering the Mower Deck Lift Lever. Toro OEM 137 7087 03 Is Designed to Travels up and down in a Height of Cut (HOC) Bracket and Allows the Operator to Make Preferred Cutting Height Selection by Allowing the Lever to rest in the selected Height Slot. Toro 137-7087-03 is Designed to fit Toro Current/Late 34" Timecutter Standard Models (Models with Cast Aluminum Axles) - Current/Late 42" Timecutter ZS, MX, 4200, Standard, My-Ride and Battery Models (Models with Cast Aluminum Axles) Late 50" Timecutter MX, 5000, Standard and My-Ride Models (Models with Cast Aluminum Axles) - Current/Late 54" Timecutter My-Ride and Battery Models (Models with Cast Aluminum Axles). Please refer to the Images above; Product Specifications, Special Notes, and the Model Fit guide below to ensure proper fit. For Additional Part Number References Refer to the Associate Parts References Chart Below.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 137-7087-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

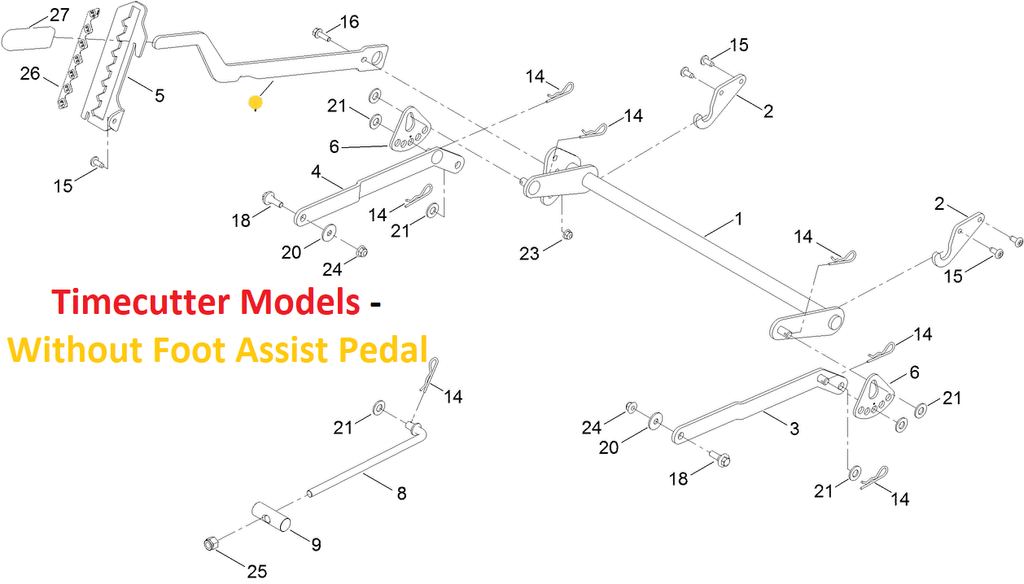

PARTS REFERENCES FOR MODELS WITHOUT MOWER DECK FOOT-ASSIST PEDAL

*50", 54" Came with Foot assist Petal Whereas 34", 42" Models did Not - Part combination is the same except for lift handle Fastners and Spacers as noted below



  1. 1-633268 - LIFT LEVER FOAM GRIP - (Inserts over the section of Lift Lever Used by the Operator and Eliminates the Discomfort of Lifting the Mower Deck Weight with the Sharp Metal Edges of the Mower Deck Lift Lever) x1 Per Mower Deck Lift Lever
  2. 139-2350-01 - HEIGHT OF CUT (HOC) BRACKET- (A slotted /Toothed Bracket that Fastens to the Frame of the Mower and Allows the Mower Deck Lift Lever to Travel through it, enabling the Mower Deck Lift Lever to Rotate Up and Down and Allowing it to Rest into the (HOC) Brackets Slots/Teeth at the Operators Preferred Height Selection). x1 Per Mower Deck Lift Lever
  3. 140-2748 - HEIGHT OF CUT (HOC) NUMERICAL DECAL - (A Decal that sticks to the (HOC) Bracket and enable the Operator to easily Select Their Preferred Height of Cut) x1 Per (HOC) Bracket *Select 42" & 50" Timecutter Models Review Models under Part Number's Model Fit Chart
  4. 139-2392 - HEIGHT OF CUT (HOC) NUMERICAL DECAL - (A Decal that sticks to the (HOC) Bracket and enable the Operator to easily Select Their Preferred Height of Cut) x1 Per (HOC) Bracket *Select 34", 42", 50", 54" Timecutter Models Review Models under Part Number's Model Fit Chart
  5. 137-7087-03 - MOWER DECK LIFT HANDLE - (Fastens Between the Mower Deck Pivot-Leverage-Lift Arm and the Foot Lift Plate) x1 Per Unit
  6. 3234-29 - HEX HEAD FLANGE BOLT - (Retains Mower Deck Handle to Mower Deck Pivot Arm) x1 Per Lift Handle *Only Used on Models without Mower Deck Lift Assist Petal
  7. 104-8300 - FLANGE LOCK NUT - (Retains Mower Deck Handle to Mower Deck Pivot Arm) x1 Per Mower Deck Handle *Only Used on Models Without Mower Deck Lift Assist Petal
  8. 137-7093-03 - MOWER DECK PIVOT LIFT/LEVARGE ARM - (Attaches to The Frame and Travels Between/Across the Frame of the Mower and assist with lifting the Mower Deck by Leveraging the weight of Mower Deck into a Rotational Pivot Point - Attaches to the Lift Linkage Lift Link Handle and Foot Lift Link If Installed) x1 Per Mower Deck or Unit

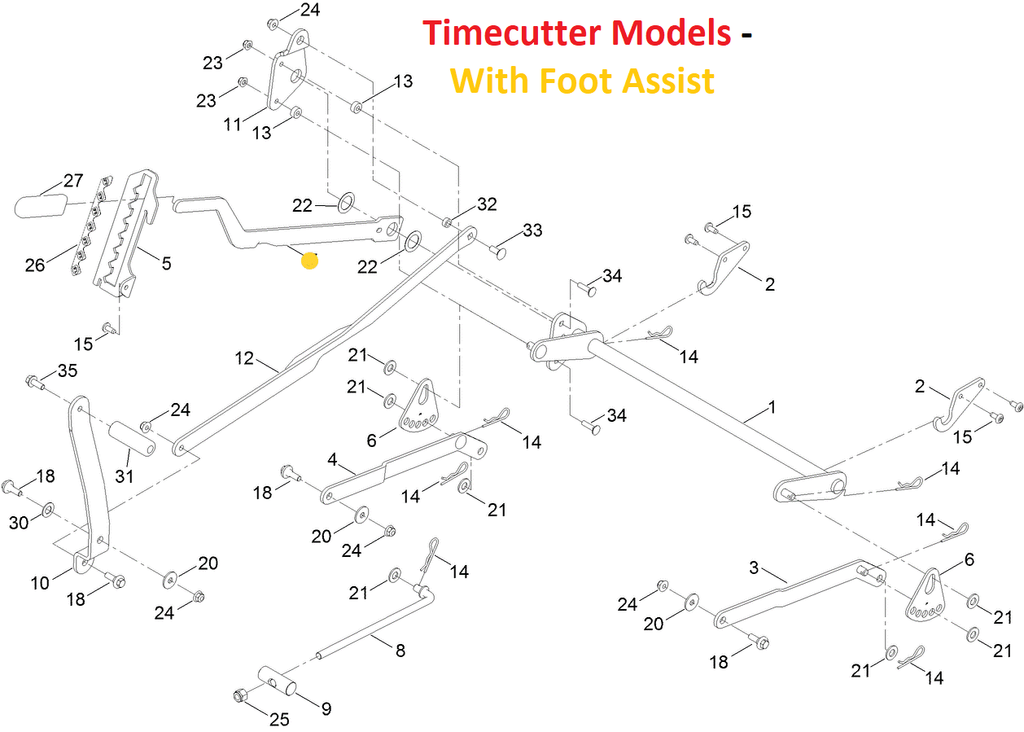

ADDITIONAL PARTS REFERENCES FOR MODELS WITH MOWER DECK FOOT-ASSIST PEDAL

*50", 54" Came with Foot assist Petal Whereas 34", 42" Models did Not - Part combination is the same except for lift handle Fastners and Spacers as noted



  1. 1-633268 - LIFT LEVER FOAM GRIP - (Inserts over the section of Lift Lever Used by the Operator and Eliminates the Discomfort of Lifting the Mower Deck Weight with the Sharp Metal Edges of the Mower Deck Lift Lever) x1 Per Mower Deck Lift Lever
  2. 139-2350-01 - HEIGHT OF CUT (HOC) BRACKET- (A slotted /Toothed Bracket that Fastens to the Frame of the Mower and Allows the Mower Deck Lift Lever to Travel through it, enabling the Mower Deck Lift Lever to Rotate Up and Down and Allowing it to Rest into the (HOC) Brackets Slots/Teeth at the Operators Preferred Height Selection). x1 Per Mower Deck Lift Lever
  3. 140-2748 - HEIGHT OF CUT (HOC) NUMERICAL DECAL - (A Decal that sticks to the (HOC) Bracket and enable the Operator to easily Select Their Preferred Height of Cut) x1 Per (HOC) Bracket *Select 42" & 50" Timecutter Models Review Models under Part Number's Model Fit Chart
  4. 139-2392 - HEIGHT OF CUT (HOC) NUMERICAL DECAL - (A Decal that sticks to the (HOC) Bracket and enable the Operator to easily Select Their Preferred Height of Cut) x1 Per (HOC) Bracket *Select 34", 42", 50", 54" Timecutter Models Review Models under Part Number's Model Fit Chart
  5. 137-7087-03 - MOWER DECK LIFT HANDLE - (Fastens Between the Mower Deck Pivot-Leverage-Lift Arm and the Foot Lift Plate) x1 Per Unit
  6. 137-7086 - FOOTLIFT PLATE - (Fastens Overtop Mower Deck Lift Handle and Enable you to Connect Mower Deck Foot Assist Lift Link) x1 Per Mower Deck Lift Handle
  7. 140-3461 - SPACER - (Spaces Mower Deck Lift Handle Away from Mower Deck Lift/Leverage Arm and Foot Lift Plate) x2 Per Mower Deck Lift Handle
  8.  63-2290 - THRUST WASHER - (Installed Over Mower Deck Lift-Leverage-Pivot Rod on Each Side of the Mower Deck Handle and Reduces the Amount of Play or Slop in the Mower Deck Lift Handle) x2 Per Mower Deck Lift Handle
  9. 140-2093 - SPACER (Foot-Lift Assist Linkage/Handle) - (Inserts in the Mower Deck Lift Handle Between Mower Deck Lift Plate and Mower Deck Pivot Arm Allowing them to be Fastened Together without Eliminating the Necessary Rotational Movement) x1 Per Mower Deck Lift Handle
  10. 137-7087-03 - MOWER DECK LIFT HANDLE - (Fastens Between the Mower Deck Pivot-Leverage-Lift Arm and the Foot Lift Plate) x1 Per Unit
  11. 139-1702 - CARRIAGE BOLTS - (Retains Thrust Washers, Spacers, Footlift Plate and Mower Deck Lift Handle to Mower Deck Pivot Lift/Leverage Arm) x2 Per Mower Deck Lift Handle, Foot Lift Plate
  12. 119-4041 - FLANGE LOCK NUT - (Retains Thrust Washer, Spacers, Footlift Plate and Mower Deck Lift Handle to Mower Deck Pivot Lift/Leverage Arm) x2 Per Mower Deck Handle, Foot Lift Plate
  13. 137-7093-03 - MOWER DECK PIVOT LIFT/LEVARGE ARM - (Attaches to The Frame and Travels Between/Across the Frame of the Mower and assist with lifting the Mower Deck by Leveraging the weight of Mower Deck into a Rotational Pivot Point - Attaches to the Lift Linkage Lift Link Handle and Foot Lift Link If Installed) x1 Per Mower Deck or Unit







Specification

Product Number:

137708703

Brand:

Toro

Length:



25.000 IN (63.500 CM)

Width:



4.000 IN (10.160 CM)

Height:

0.625 IN (1.588 CM)

Weight:

2.162 LB (0.981 KG)





Model Fit:





34” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75734, 77301)



42” TIMECUTTER ZS Series – Model Numbers – (* Model Numbers 74677, 74683, 74685, 74687)

42” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74690, 74691)

42” TIMECUTTER 4200 & ZR 4200 Series – Model Numbers – (* Model Numbers 74679, 75740)

42” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404)

42” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74692, 75743, 75745, 75747)

42” TIMECUTTER (Standard & My-Ride - Battery) Series – Model Numbers – (* Model Numbers 75841, 75642)



50” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74694, 74695)

50” TIMECUTTER 5000 Series – Model Numbers – (* Model Numbers 75751)

50” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75750, 75753)

50” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74696, 75755, 75759)



54” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75754, 75756, 75757)

54” TIMECUTTER (My-Ride - Battery) Series – Model Numbers – (* Model Numbers 75851)
