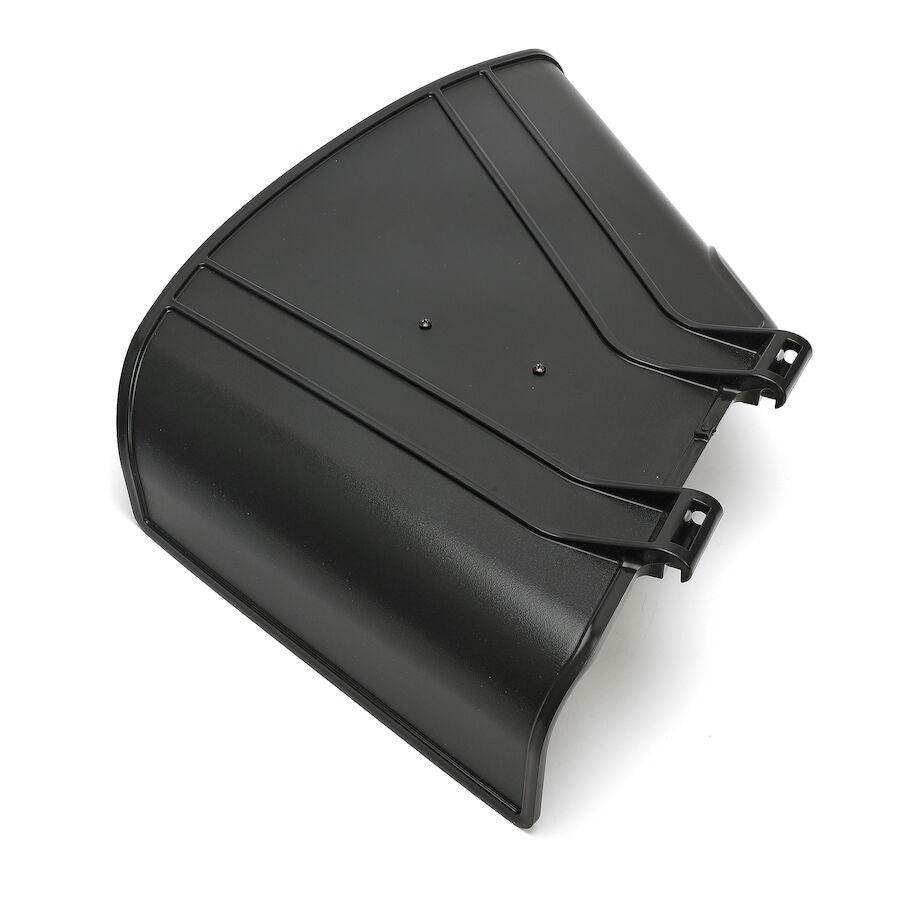

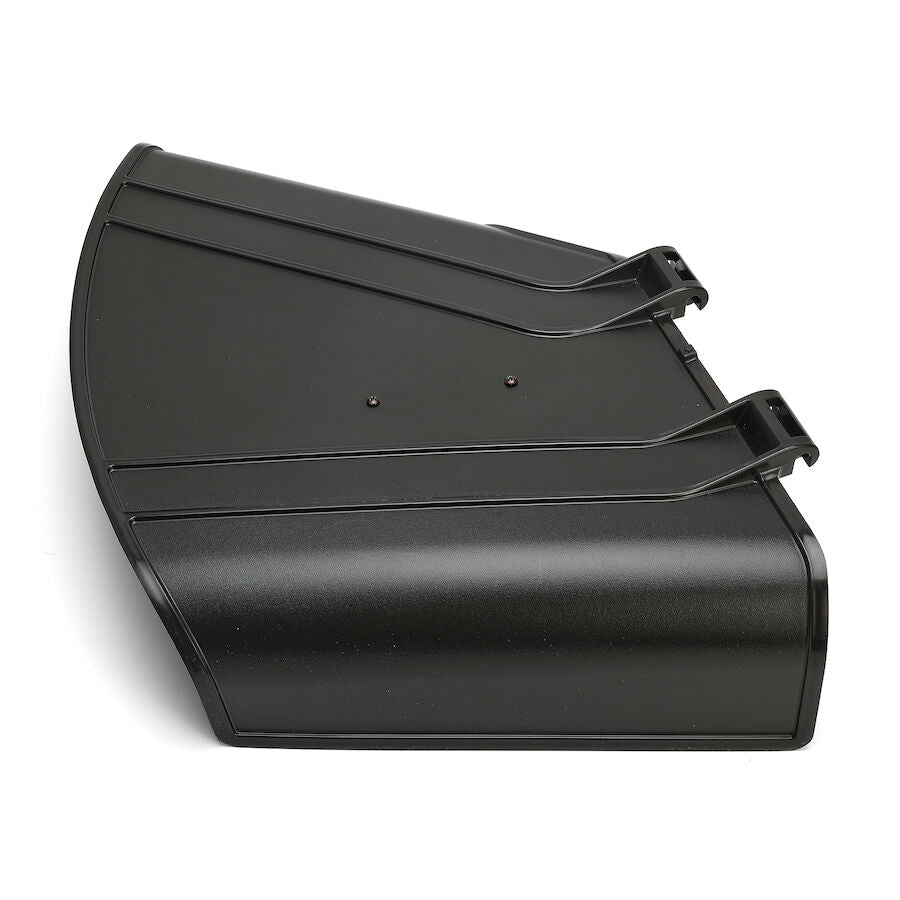

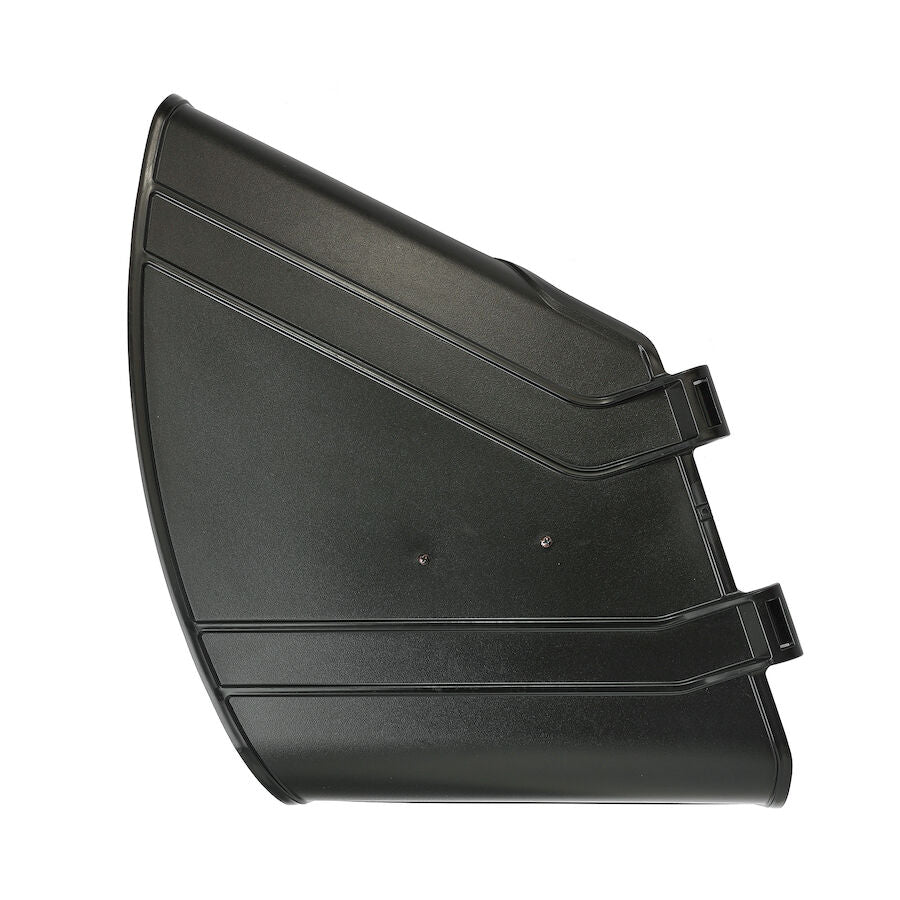

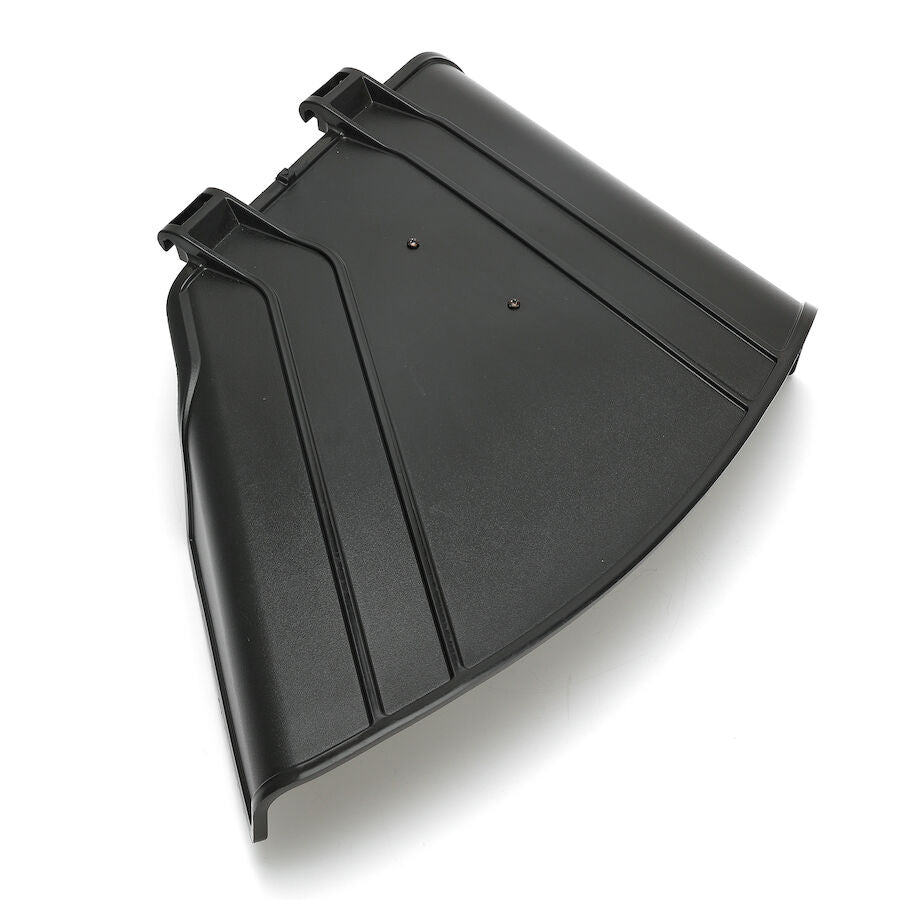

Toro OEM 137-7046 Mower Deck Discharge Chute Fits Late/Current Toro 42" Timecutter Z, ZS, SS, SW, 4200, 4225 and Standard Models with Stamped Mower Decks.

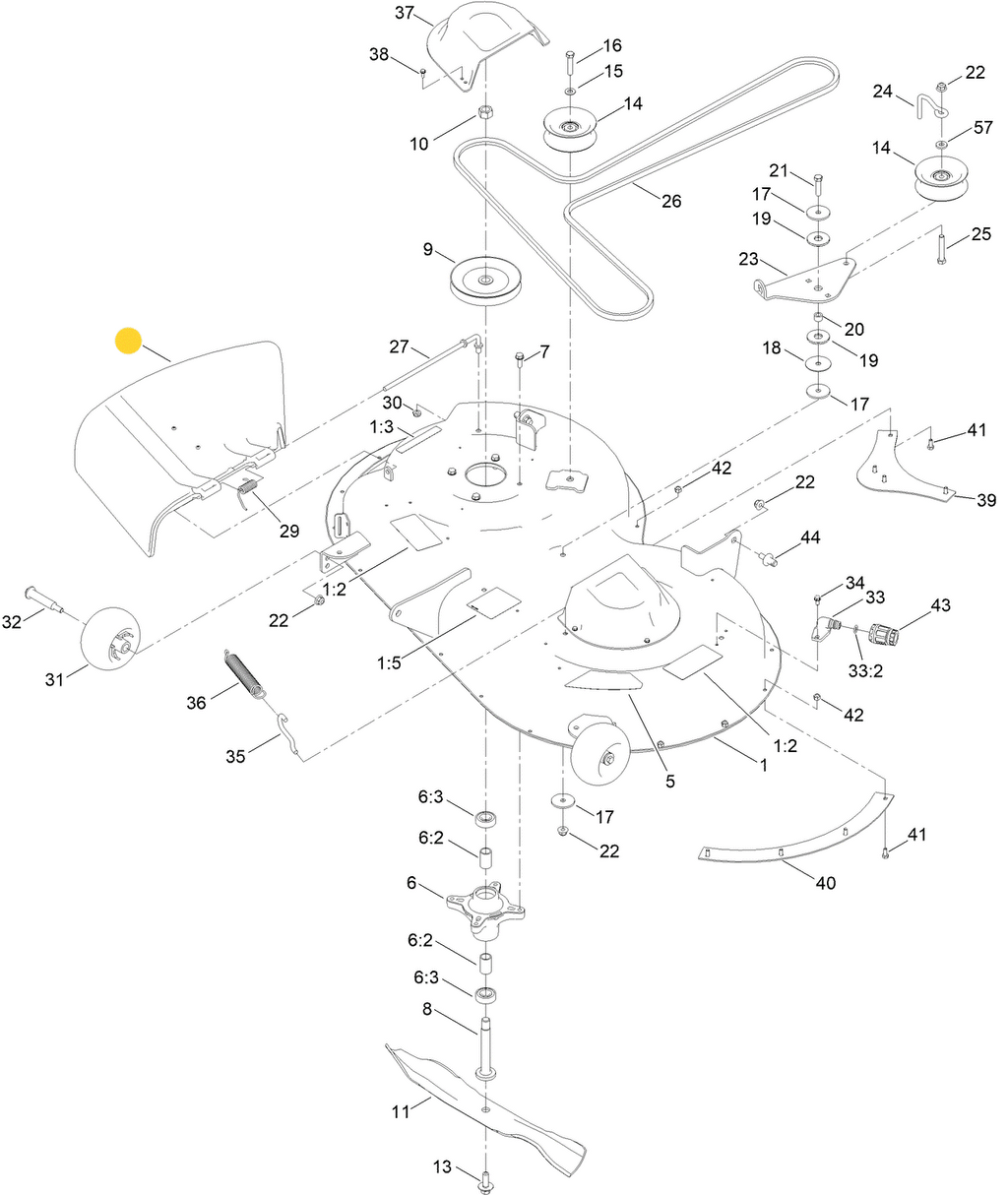

Toro OEM 137 7046 Discharge Chute Is not only designed to keep your grass clipping from blowing all over you while mowing but also is designed to keep liabilities to a minimum. The Toro OEM 137 7046 Discharge Chute is designed to (keep safety first!) by helping to eliminating flying debris and possibly worse amputation. Toro OEM 137-7046 Discharge Chute is Designed to Fit Toro Late/Current 42" Timecutter Z, ZS, SS, SW, 4200, 4225 and Current Standard Models with Stamped Mower Decks. Please Refer to the Images above, Model Fit Guide and Part Referencing Links below to ensure a proper fit. Click on the Part Numbers in the Part Referencing Links to be redirected.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 137-7046 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 137-2019 - PIVOT PIN (Retains Discharge Chute)
2. 121-4600 - LOCKING NUT (Retains Pivot Pin)
3. 110-6694 - TORSION SPRING (Attaches over Pivot Rod)








Specification

Product Number:	1377046
Brand:	Toro
Length:	20.000 IN (50.800 CM)
Width:	18.000 IN (45.720 CM)
Height:	5.500 IN (13.970 CM)
Weight:	2.290 LB (1.039 KG)





Model Fit:



TIMECUTTER 42” Current (Standard) Series – Model Numbers – 75748, 75749, 77401



TIMECUTTER 42” 4200 & 4225 Series – Model Numbers – 75740, 75741, 75742



TIMECUTTER 42” Z Series – Model Numbers – 74665, 74667



TIMECUTTER 42” ZS Series – Model Numbers – 74677, 74683, 74684, 74685, 74686, 74687



TIMECUTTER 42” SS Series – Model Numbers – 74705, 74706, 74711, 74726



TIMECUTTER 42” SW Series – Model Numbers – 74676, 74788
