Toro OEM 137-7034-03 Mower Deck Discharge Clipping Baffle Fits Toro Select Late 42" Timecutter ZS Model (Models with Stamped Mower Decks) - Mulching Kit 137-7042.

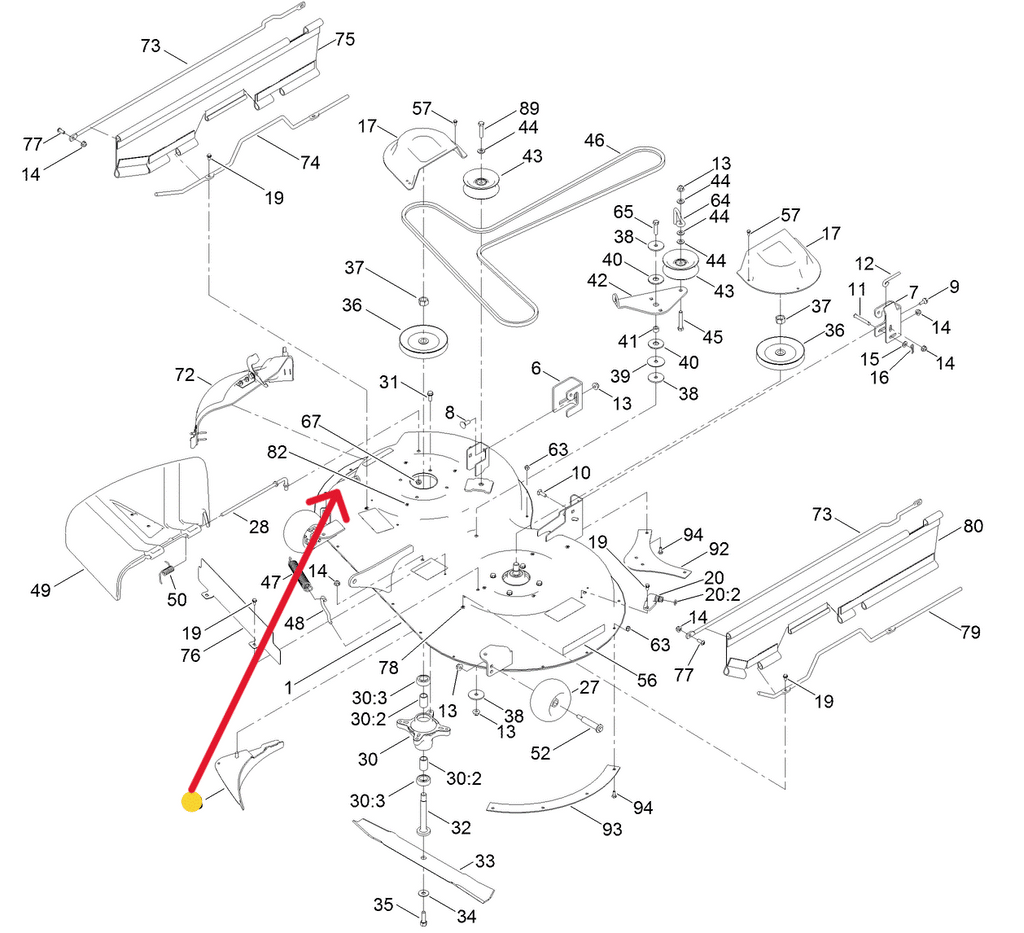

Toro OEM 137 7034 03 Mower Deck Discharge Clipping Baffle is used under or inside the Mower Deck by the Discharge Opening for the Purpose of Eliminating Grass Build-Up by the Discharge Opening and is a Valuable Component to the Require Mulching Kits. Toro 137 7034 03 Discharge Clipping Baffle Not Only Assist in Eliminating Grass Clippings Buil-Up but also Serves the Purpose of acting as Replaceable Mower Deck Skid Plate Receiving the Bulk of the wear and Abuse Instead of it Be Directly Directed to the Mower Deck Shell. Toro OEM 137-7034-03 is Designed to fit Select Late 42" Timecutter ZS Models (Factory Installed) - (Select Models with Stamped Mower Decks) - Mulching Kit 137-7042. Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.







ASSOCIATED PARTS FOR PART NUMBER 137-7034-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 321-3 - CARRIAGE BOLT - (Retains the Mower Deck Cutting Edge Blowout Baffle to the Mower Deck) x2 Per Mower Deck Cutting Edge Blowout Baffle
2. 3296-42 - NYLON LOCK NUT - (Retains the Mower Deck Cutting Edge Blowout Baffle to the Mower Deck) x4 Per Mower Deck Cutting Edge Blowout Baffle







Specification

Product Number:	137703403
Brand:	Toro
Length:	12.000 IN (30.480 CM)
Width:	4.000 IN (10.160 CM)
Height:	2.000 IN (5.080 CM)
Weight:	1.430 LB (0.649 KG)





Model Fit:



TIMECUTTER



(Factory Installed) TIMECUTTER 42” ZS Series – Model Numbers – 74665, 74667, 74677, 74683, 74684, 74685, 74686, 74687



MULCHING KITS



(Used In) MULCHING KITS – Model Numbers – 137-7042
