Toro OEM 137-7001-03 Mower Deck Lift Link Fits Late 60" Timecutter Standard and My-Ride Models 75760, 75762, 75763.

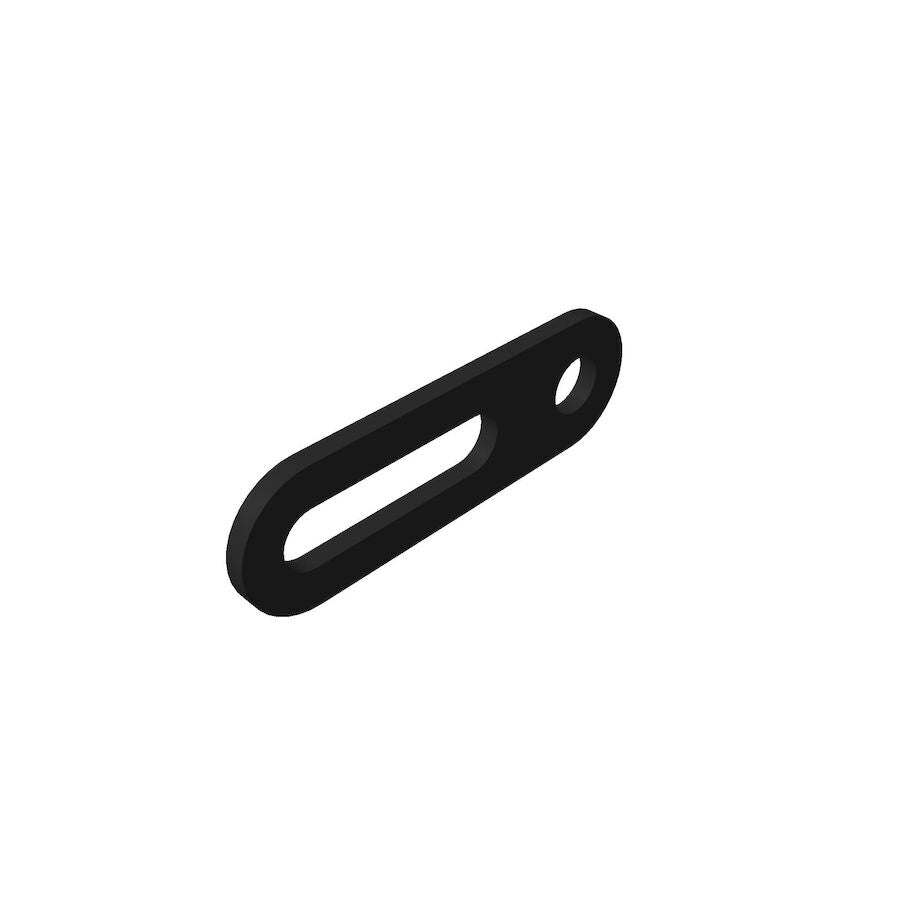

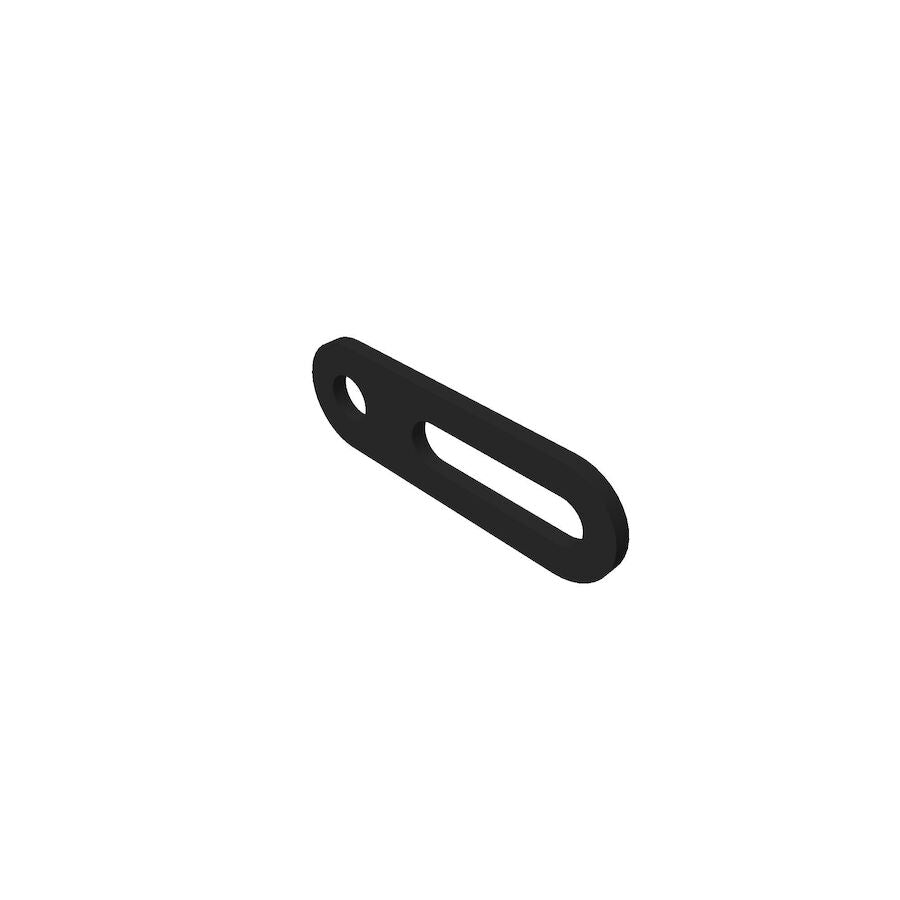

Toro OEM 137 7001 03 Mower Deck Lift Link Connects the Mower Deck to the Mower Deck Lift Pivot Arms and Enables the Mower Deck To be Lifted and Lowered According to the Rotation of the Mower Deck Lift Pivot Arms, Giving the Operator Control of their Mower Deck Height. 137 7001 03 is Made with a Slot to Enable the Mower Deck to Free Float When the Anti-Scalp Wheel make contact with the Ground and is Designed for Toro Late 60" Timecutter Standard and My-Ride Models 75760, 75762, 75763 Only (Models with Cast Aluminum Axles). Please refer to the Images above; Product Specifications, Special Notes, and the Model Fit guide below to ensure proper fit.

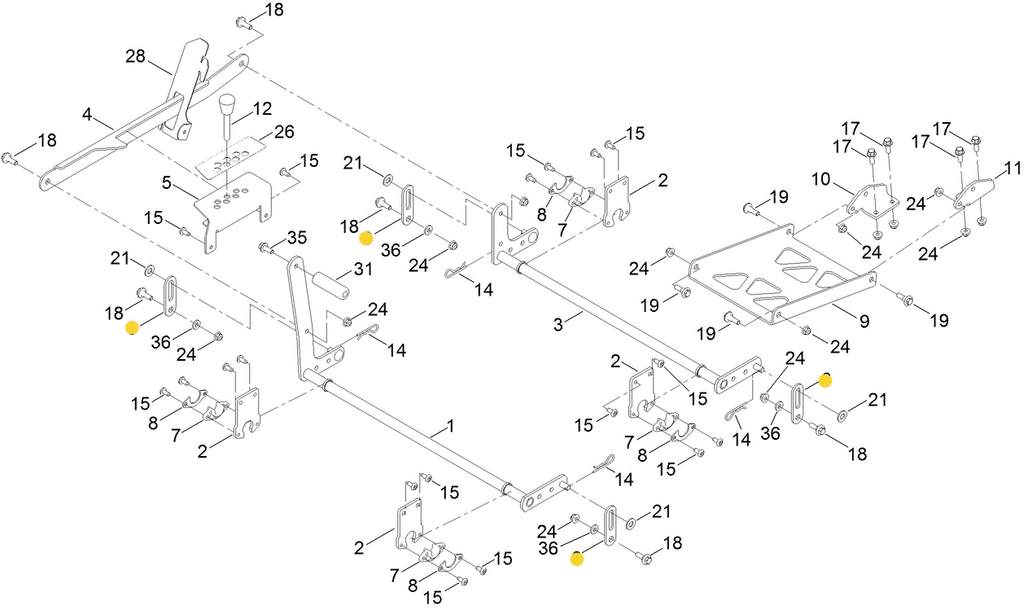

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 137-7001-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 138-2503-03 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (FRONT)- (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage - Review Part Number Model Fit Chart to Ensure Correct Fit) x1 Per Unit
2. 138-2504-03 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (REAR) - (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage - Review Part Number Model Fit Chart to Ensure Correct Fit) x1 Per Unit
3. 3256-26 - FLAT WASHER - (Supports Retaining Clip Pin for Retaining Slotted Lift Link to Mower Deck Pivot Lift/Leverage Arm) x1 Per Mower Deck Lift Link
4. 1-806005 - CLIP/COTTER PIN - (Retains Lift Link to Mower Deck Pivot Lift/Leverage Arm) x1 Per Mower Deck Lift Link
5. 137-9847 - FLANGE SHOULDER BOLT - (Retains Mower Deck Lift Link to the Mower Deck as well as Retaining the Height of Cut Link to the Front and Rear Mower Deck Lift Pivot Arm) x1 Per Mower Deck Lift Link
6. 43-0940 - FLAT SPACER WASHER - (Assembled Between the Retaining Flange Nut and the Lift Link - Assist in Retaining Lift Link Due to the Larger Hole in the Lift Link that Enables the Flange Bolt to Insert into the Lift Link) x1 Per Mower Deck Lift Link
7. 104-8301 - FLANGE NUT - (Retains Flat Washer, Lift Link and Shoulder Bolt to the Mower Deck as well as Retaining the Flang Bolt and Height of Cut Link to the Front and Rear Mower Deck Lift Pivot Arm) x1 Per Mower Deck Lift Link







Specification

Product Number:	137700103
Brand:	Toro
Length:	4.000 IN (10.160 CM)
Width:	1.500 IN (3.810 CM)
Height:	0.375 IN (0.953 CM)
Weight:	0.176 LB (0.080 KG)





Model Fit:





60” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75760, 75762)

60” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75763)
