Toro OEM 137-5092-03 Height of Cut Selection Bracket Fits Late 60" Timecutter Standard and My-Ride Models 75760, 75762, 75763.

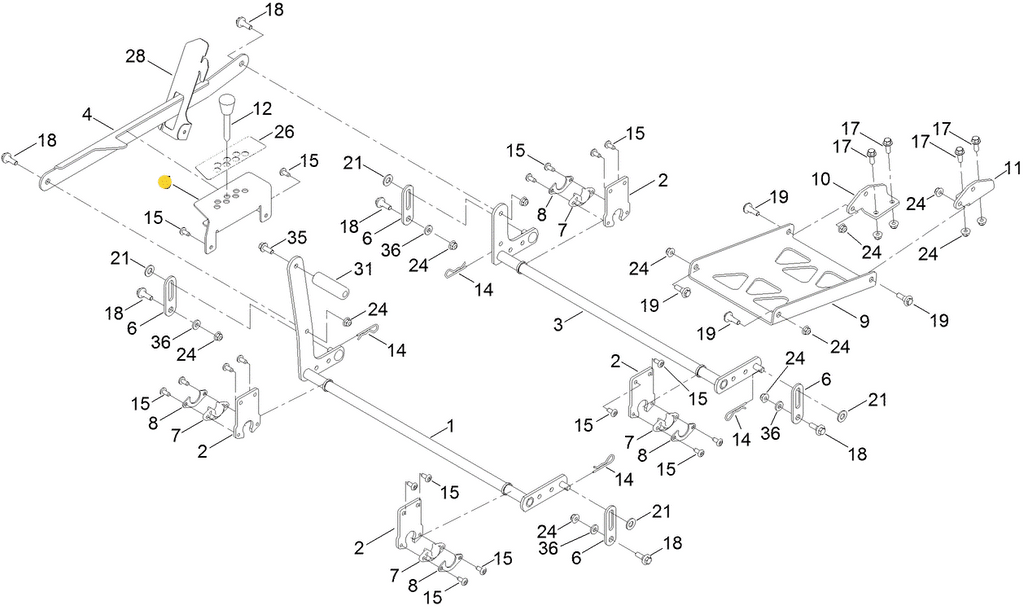

Toro OEM 137 5092 03 Height of Cut (HOC) Pin Selection Bracket Bolts to the Mower Frame Above the Height of Cut Link and Allow the Operator to Insert a Mower Deck Height Adjustment Pin at Their Preferred Mowing Height. Toro OEM 137 5092 03 (HOC) Selection Bracket Fits Toro Late 60" Timecutter Standard and My-Ride Models 75760, 75762, 75763 Only (Models with Cast Aluminum Axles). Please refer to the Images above; Product Specifications, Special Notes, and the Model Fit guide below to ensure proper fit.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 137-5092-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 138-9753 - SCREW - (Enables the Height of Cut Bracket to be Fastened to the Mower Deck Frame) x2 Per (HOC) Bracket
2. 139-5892 - (HOC) Decal - (Allows the Operator to easily Make Their Preferred Selection of Height of Cut Setting- Installed on the Top-Side Surface of the (HOC) Bracket) x1 Per (HOC) Bracket
3. 140-2146 - (HOC) Pin - (Fits into the Height of Cut Pin Adjustment Bracket, providing a stable resting point for the Height Adjustment Link at the operator’s chosen setting) x1 Per (HOC) Bracket
4. 137-5091-03 - HEIGHT OF CUT LINK - (Connects the Front Mower Deck Pivot Arm to the Rear Pivot Arm and Enable the Operator to use the Height of Cut Assembly and Pin to Set his Preferred Cut of Height as well as lift the Front and Back of the Simultaneously) x1 Per Unit







Specification

Product Number:	137509203
Brand:	Toro
Length:	8.000 IN (20.320 CM)
Width:	3.500 IN (8.890 CM)
Height:	2.750 IN (6.985 CM)
Weight:	1.641 LB (0.744 KG)





Model Fit:



60” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75760, 75762)

60” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75763)
