Toro OEM 137-5091-03 Mower Deck Height of Cut (HOC) Link Fits Late 60" Timecutter Standard and My-Ride Models 75760, 75762, 75763.

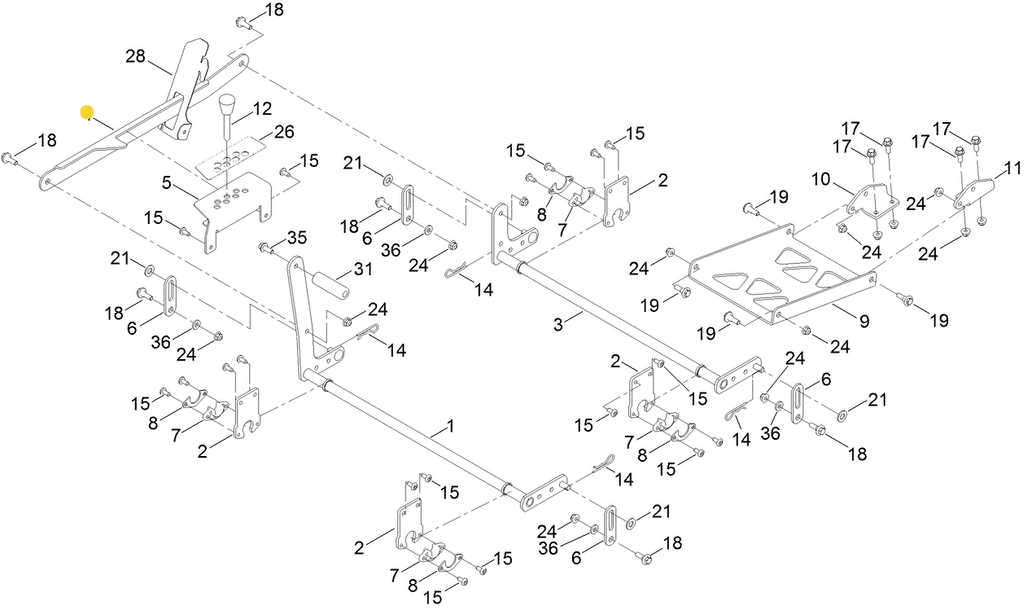

Toro OEM 137 5091 03 Mower Deck Height of Cut (HOC) Link Connects the Front and Rear Mower Deck Pivot Arms, Allowing the Operator to Raise the Deck Simultaneous by using the Mower Deck Lift Assist Pedal. Toro OEM 137 5091 03 Mower Deck Height of Cut Link Also Contains a Built in Ear that Allow the Operator to Select the height they wish to Cut and Lower The deck so that the ear on the (HOC) Link rest against the (HOC) Pin. Toro 137-5091-03 is Built Specifically for Toro Late 60" Timecutter Standard and My-Ride Models 75760, 75762, 75763 Only (Models with Cast Aluminum Axles). Please refer to the Images above; Product Specifications, Special Notes, and the Model Fit guide below to ensure proper fit.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 137-5091-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 138-2503-03 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (FRONT)- (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage - Review Part Number Model Fit Chart to Ensure Correct Fit) x1 Per Unit
2. 138-2504-03 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (REAR) - (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage - Review Part Number Model Fit Chart to Ensure Correct Fit) x1 Per Unit
3. 137-9847 - FLANGE SHOULDER BOLT - (Retains the Height of Cut Link to the Front and Rear Mower Deck Lift Pivot Arm) x2 Per Height of Cut Link
4. 104-8301 - FLANGE NUT - (Retains the Flang Bolt and Height of Cut Link to the Front and Rear Mower Deck Lift Pivot Arm) x2 Per Height of Cut Link
5. 139-7452 - FOOT LIFT PEDAL - (Fastens to the Front Mower Deck Pivot Lift Arm - Enables Operator to Lift and Lower the Mower Deck) x1 Per Unit
6. 139-2597 - FLANGE BOLT - (Retains the Foot Lift Pedal to the Front Mower Deck Pivot Lift Arm) x1 Per Foot Lift Pedal
7. 139-5804-03 - HEIGHT OF CUT TRIM BRACKET - (Height of Cut Link Run through it allow Trimming and eliminating air gaps giving Better Visual Appearance as well as Less Debris Build Up Under the Fender and on top of the Mower Deck Linkages) x1 Per Unit
8. 137-5092-03 - HEIGHT OF CUT PIN ADJUSTMENT BRACKET - (Bolts to the mower Deck Frame Above the Height of Cut Link and Allow the Operator to Insert a Mower Deck Height Adjustment Pin at Their Preferred Mowing Height) x1 Per Unit
9. 140-2146 - HEIGHT ADJUSTMENT PIN - (Inserts into the Height of Cut Pin Adjustment Bracket and Allows the Ear of the Height Adjustment Link to Rest Against it at the Operators Selected Height) x1 Per Unit









Specification

Product Number:	137509103
Brand:	Toro
Length:	25.750 IN (65.405 CM)
Width:	2.500 IN (6.350 CM)
Height:	2.500 IN (6.350 CM)
Weight:	3.107 LB (1.409 KG)





Model Fit:





60” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75760, 75762)

60” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75763)
