Description
The Toro OEM 137-2036-03 Rear Blowout Baffle is Fastened Under the Rear Mower Deck Scurt or Flange to Retain Grass Clippings from Falling to The Ground Before Being Retained by the Air Circulation of the Mower Blade and Directed to the Discharge Chute Opening. Toro 137 2036 03 Rear Blowout Baffle Not Only Assist in the Vacuum and Air Circulation of Grass Clippings but also Serves the Purpose of acting as Replaceable Mower Deck Skid Plate Receiving the Bulk of the wear and Abuse Instead of it Be Directly Directed to the Mower Deck Shell. Toro OEM 137-2036-03 is Designed to fit Select Late 42" Timecutter ZS, SS, SW, 4200, Standard Models (Select Models with Stamped Mower Decks).

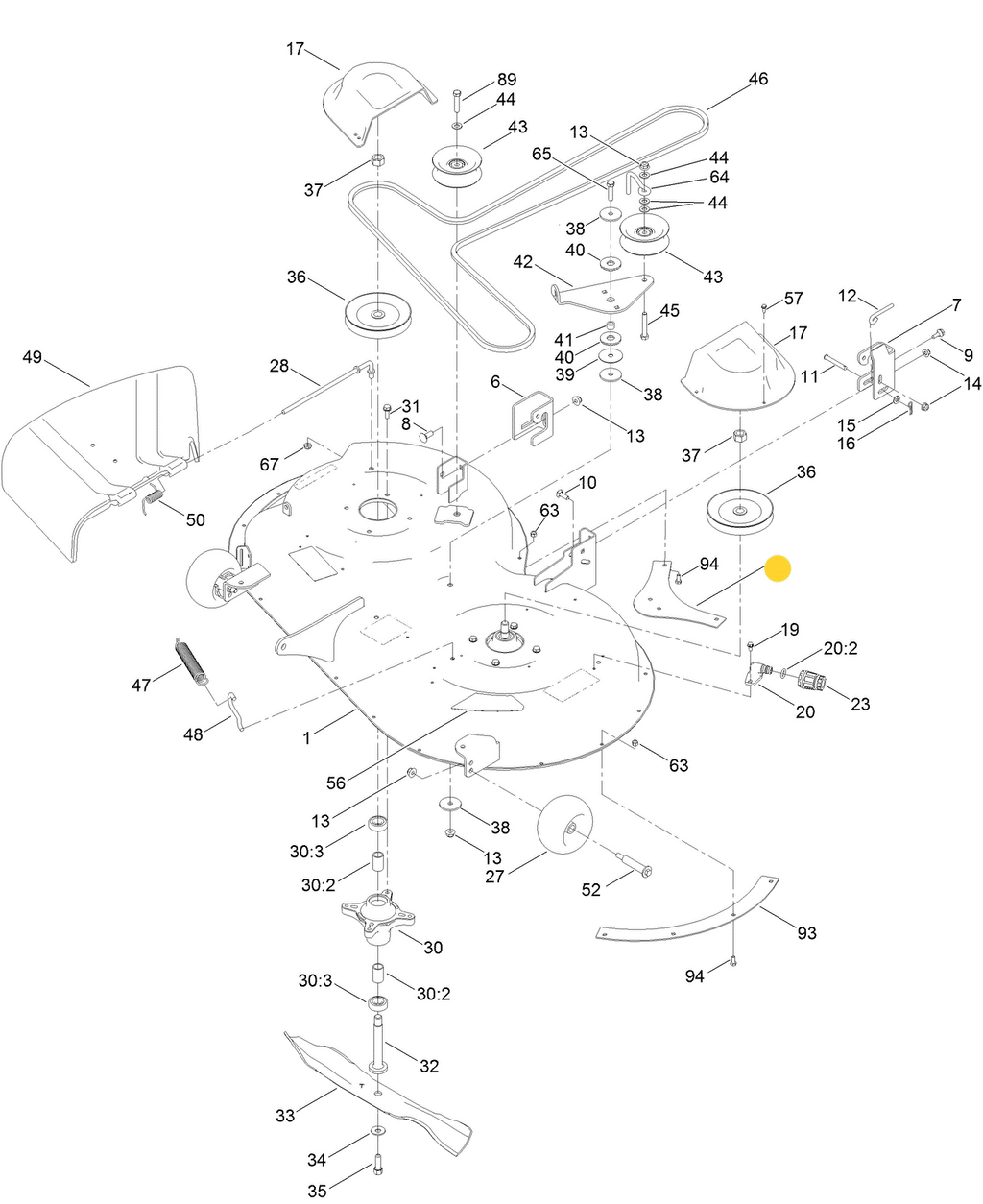

*Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.
ASSOCIATED PARTS FOR PART NUMBER 137-2036-03 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 321-3 - CARRIAGE BOLT - (Retains the Mower Deck Cutting Edge Blowout Baffle to the Mower Deck) x4 Per Mower Deck Cutting Edge Blowout Baffle
- 3296-42 - NYLON LOCK NUT - (Retains the Mower Deck Cutting Edge Blowout Baffle to the Mower Deck) x4 Per Mower Deck Cutting Edge Blowout Baffle
Specification
|
Product Number: |
137203603 |
|
Brand: |
Toro |
|
Length: |
11.000 IN (27.940 CM) |
|
Width: |
6.000 IN (15.240 CM) |
|
Height: |
0.100 IN (0.254 CM) |
|
Weight: |
0.791 LB (0.359 KG) |
Model Fit:
TIMECUTTER
TIMECUTTER 42” SS Series – Model Numbers – 74705, 74706, 74711, 74726
TIMECUTTER 42” SW Series – Model Numbers – 74676, 74788
TIMECUTTER 42” ZS Series – Model Numbers – 74665, 74667, 74677, 74683, 74684, 74685, 74686, 74687
TIMECUTTER 42” 4200 & ZR 4200 Series – Model Numbers – 75740
TIMECUTTER 42” (STANDARD) Series – Model Numbers – 75741, 75742, 75748, 75749, 77401
