137-2021-03 Upper Mower Deck Pivot Lift Arm Cross Support Bracket Fits Toro Late Timecutter HD Models - Late Titan X, XS, 4800, 5400, 6000, Standard, MyRide Models (With Tube Style Framing).

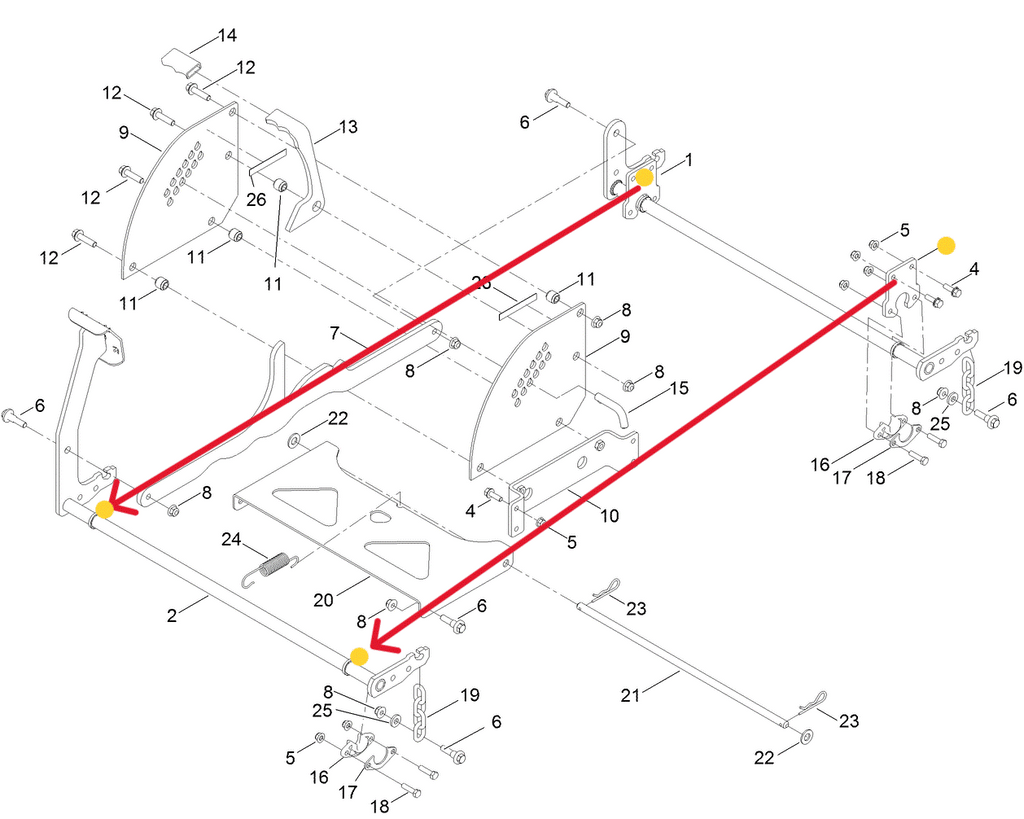

Toro OEM 137 2021 03 Upper Mower Deck Pivot Lift Arm Cross Support Bracket Attaches to the Lower Support Bearing/Bushing and Mower Deck Pivot Arm Gusset/Bracket this Enables the Lower Mower Deck Pivot Arm Support Bracket/Gusset to Retain the Mower Deck Pivot Arm and to Rest in it as well as Enabling it to Rotate in a Replaceable Bearing Flange. The Main Purpose of 137 2021 03 Upper Mower Deck Pivot Arm Cross Support Bracket is to Assists in retaining Mower Deck Pivot Arm to the Frame Erea. 137-2021-03 Fits Toro Late Timecutter HD Models - Late Titan X, XS, 4800, 5400, 6000, Standard, My-Ride Models (With Tube Style Framing). Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 137-2021-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED



TIMECUTTER HD MODELS ONLY

*Parts Appear to be Similar in Both Reference Charts just Different Part Numbers

EXCEPT FOR THE (HOC) LIFT  LINK



1. 133-4430-03 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (FRONT) - (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage and Lift Linkage Mower Deck Chain - Front Mower Deck Pivot Arm Also Contains the Foot Lift Pedal) - *Review Part Number Model Fit Chart to Ensure Correct Fit x1 Per Unit
2. 137-2020-03 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (REAR) - (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage and Lift Linkage Mower Deck Chain) - *Review Part Number Model Fit Chart to Ensure Correct Fit x1 Per Unit

3. 130-0668 - LIFT LINK CHAINS - (Connects the Mower Deck Pivot Lift/Leverage Arm and the Mower Deck - The Lift Link Chains Enable the Mower Deck to Free Float - Bolts to the Mower Deck and Connects to the Mower Deck Pivot Lift Arm Via the The Hook on the Pivot Lift Arm) x2 Per Mower Deck Pivot Lift/Leverage Arm
4. 130-0742 - FLANGE SHOULDER BOLT - (Retains Mower Deck Lift Link Chain to the Mower Deck as well as Retaining the Height of Cut Link to the Front Mower Deck Pivot Arm/Foot Pedal Combo and Rear Mower Deck Lift Pivot Arm) x1 Per Lift Link Chain - x2 Per Height of Cut Link
5. 43-0940 - FLAT SPACER/SUPPORT WASHER - (Assembled Between the Mower Deck Fastner Ear and the Lift Link Chain - Assist in Retaining Lift Link Chain Due to the Larger Adjustment Slotted Hole in the Mower Deck Fastner Ear or Bracket as well as Spaces the Lift Link Chain Away From the Mower Deck and Allows The Mower Deck More Forgiveness to Move as Needed when Coming in contact with Something or Just Simply Raising and Lower the Mower Deck) x4 Per Mower Deck
6. 104-8301 - FLANGE NUT - (Retains Flat Spacer/Support Washer, Lift Link Chain and Shoulder Bolt to the Mower Deck as well as Retaining the Flang Bolt and Height of Cut Link to the Front Mower Deck Lift Pivot Arm/Foot Pedal Combo and Rear Mower Deck Lift Pivot Arm) x1 Per Mower Deck Lift Link Chain - x2 Per Height of Cut Link
7. 137-2021-03 - UPPER MOWER DECK PIVOT-LIFT-LEVARAGE ARM SUPPORT BRACKET - (Attaches to the Lower Support Bearing/Bushing and Mower Deck Pivot Arm Gusset/Bracket this Enables the Lower Mower Deck Pivot Arm Support Bracket/Gusset to Retain the Mower Pivot Arm and to Rest in it as well as Enabling it to Rotate in a Replaceable Bearing Flange - the Upper Mower Deck Pivot Arm Support Bracket Assists in retaining Mower Deck Pivot Arm to the Frame Erea) x? 2 or 4 Per Unit varies on Model/Series
8. 3234-29 - HEX HEAD BOLT - (Retains Upper Mower Deck Pivot Arm Cross Support Bracket to Mower Frame) x2 Per Bracket
9. 104-8300 - FLANGE NYLON LOCK NUT - (Retains Upper Mower Deck Pivot Arm Cross Support Bracket to Mower Frame as well as the Lower Mower Cross Support Gusset/Bracket and Lower Cross Support Bearing/Bushings to Upper Cross Support Bracket) x4 Per Bracket
10. 322-6 - HEX HEAD BOLT - (Retains the Lower Mower Cross Support Gusset/Bracket and Lower Cross Support Bearing/Bushings to Upper Mower Deck Pivot Arm Cross Support Bracket) x2 Per Bracket
11. 115-5065 - LOWER MOWER DECK PIVOT-LIFT-LEVARAGE ARM SUPPORT BEARING/BUSHING - (Attaches with the Lower Mower Deck Pivot Arm Support Gusset/Bracket to the Upper Mower Deck Pivot Arm Cross Support Bracket and Allows for the Mower Deck Pivot Arm to Rest into it and Rotate in a Replaceable Bearing Flange Instead of Rotating Against Metal on Metal) x4 Per Unit
12. 116-2887 - LOWER MOWER DECK PIVOT-LIFT-LEVARAGE ARM SUPPORT GUSSET/BRACKET - (Attaches with the Lower Mower Deck Pivot Arm Support Bearing/Bushing to the Upper Mower Deck Pivot Arm Cross Support Bracket and Allows for the Mower Deck Pivot Arm to Rest into it and Rotate in a Replaceable Bearing Flange as well as retaining the Bearing/Bushing and Mower Deck Pivot Arm) x4 Per Unit
13. 127-3390-03 - HEIGHT OF CUT LINK - (Connects the Front Mower Deck Pivot Arm/Foot Pedal Combo to the Rear Pivot Arm and Enable the Operator to use the Height of Cut Assembly and Pin to Set his Preferred Cut of Height as well as lift the Front and Back of the Mower Deck Simultaneously) x1 Per Unit







TITAN MODELS ONLY

*Parts Appear to be Similar in Both Reference Charts just Different Part Numbers

EXCEPT FOR THE (HOC) LIFT  LINK





1. 133-4430-03 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (FRONT) - (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage and Lift Linkage Mower Deck Chain - Front Mower Deck Pivot Arm Also Contains the Foot Lift Pedal) - *Review Part Number Model Fit Chart to Ensure Correct Fit x1 Per Unit
2. 137-2020-03 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (REAR) - (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage and Lift Linkage Mower Deck Chain) - *Review Part Number Model Fit Chart to Ensure Correct Fit x1 Per Unit

3. 138-7205 - LIFT LINK CHAINS - (Connects the Mower Deck Pivot Lift/Leverage Arm and the Mower Deck - The Lift Link Chains Enable the Mower Deck to Free Float - Bolts to the Mower Deck and Connects to the Mower Deck Pivot Lift Arm Via the The Hook on the Pivot Lift Arm) x2 Per Mower Deck Pivot Lift/Leverage Arm
4. 130-0742 - FLANGE SHOULDER BOLT - (Retains Mower Deck Lift Link Chain to the Mower Deck as well as Retaining the Height of Cut Link to the Front Mower Deck Pivot Arm/Foot Pedal Combo and Rear Mower Deck Lift Pivot Arm) x1 Per Lift Link Chain - x2 Per Height of Cut Link
5. 138-7207 - FLAT SPACER/SUPPORT WASHER - (Assembled Between the Mower Deck Fastner Ear and the Lift Link Chain - Assist in Retaining Lift Link Chain Due to the Larger Adjustment Slotted Hole in the Mower Deck Fastner Ear or Bracket as well as Spaces the Lift Link Chain Away From the Mower Deck and Allows The Mower Deck More Forgiveness to Move as Needed when Coming in contact with Something or Just Simply Raising and Lower the Mower Deck) x4 Per Mower Deck
6. 119-4041 - FLANGE NUT - (Retains Flat Spacer/Support Washer, Lift Link Chain and Shoulder Bolt to the Mower Deck as well as Retaining the Flang Bolt and Height of Cut Link to the Front Mower Deck Lift Pivot Arm/Foot Pedal Combo and Rear Mower Deck Lift Pivot Arm) x1 Per Mower Deck Lift Link Chain - x2 Per Height of Cut Link
7. 137-2021-03 - UPPER MOWER DECK PIVOT-LIFT-LEVARAGE ARM SUPPORT BRACKET - (Attaches to the Lower Support Bearing/Bushing and Mower Deck Pivot Arm Gusset/Bracket this Enables the Lower Mower Deck Pivot Arm Support Bracket/Gusset to Retain the Mower Pivot Arm and to Rest in it as well as Enabling it to Rotate in a Replaceable Bearing Flange - the Upper Mower Deck Pivot Arm Support Bracket Assists in retaining Mower Deck Pivot Arm to the Frame Erea) x4 Per Unit
8. 139-2596 - HEX HEAD BOLT - (Retains Upper Mower Deck Pivot Arm Cross Support Bracket to Mower Frame) x2 Per Bracket
9. 119-4041 - FLANGE NYLON LOCK NUT - (Retains Upper Mower Deck Pivot Arm Cross Support Bracket to Mower Frame as well as the Lower Mower Cross Support Gusset/Bracket and Lower Cross Support Bearing/Bushings to Upper Cross Support Bracket) x4 Per Bracket
10. 120-9696 - HEX HEAD BOLT - (Retains the Lower Mower Cross Support Gusset/Bracket and Lower Cross Support Bearing/Bushings to Upper Mower Deck Pivot Arm Cross Support Bracket) x2 Per Bracket
11. 139-5872 - LOWER MOWER DECK PIVOT-LIFT-LEVARAGE ARM SUPPORT BEARING/BUSHING - (Attaches with the Lower Mower Deck Pivot Arm Support Gusset/Bracket to the Upper Mower Deck Pivot Arm Cross Support Bracket and Allows for the Mower Deck Pivot Arm to Rest into it and Rotate in a Replaceable Bearing Flange Instead of Rotating Against Metal on Metal) x4 Per Unit
12. 138-7204 - LOWER MOWER DECK PIVOT-LIFT-LEVARAGE ARM SUPPORT GUSSET/BRACKET - (Attaches with the Lower Mower Deck Pivot Arm Support Bearing/Bushing to the Upper Mower Deck Pivot Arm Cross Support Bracket and Allows for the Mower Deck Pivot Arm to Rest into it and Rotate in a Replaceable Bearing Flange as well as retaining the Bearing/Bushing and Mower Deck Pivot Arm) x4 Per Unit
13. 139-3553-03 - HEIGHT OF CUT LINK - (Connects the Front Mower Deck Pivot Arm/Foot Pedal Combo to the Rear Pivot Arm and Enable the Operator to use the Height of Cut Assembly and Pin to Set his Preferred Cut of Height as well as lift the Front and Back of the Mower Deck Simultaneously) x1 Per Unit







Specification

Product Number:	137202103
Brand:	Toro
Length:	3.750 IN (9.525 CM)
Width:	3.250 IN (8.255 CM)
Height:	0.250 IN (0.635 CM)
Weight:	0.582 LB (0.264 KG)





Model Fit:



TIMECUTTER



48” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74864, 74866, 74886, 75201, 75210, 75211)



54” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74865, 74867, 74876, 74888, 75202, 75212)



60” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 75213)



TITAN



48” TITAN 4800, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early / Late Models Only - (* Model Numbers 75301, 75311, 75314, 75304)

48” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74874, 74875, 74887, 74890)



54” TITAN 5400, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early / Late Models Only - (* Model Numbers 75302, 75305, 75310, 75312, 75315)

54” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74877, 74889, 74898)



60” TITAN 6000, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Late Models - (* Model Numbers 75303, 75313, 75306, 75316)
