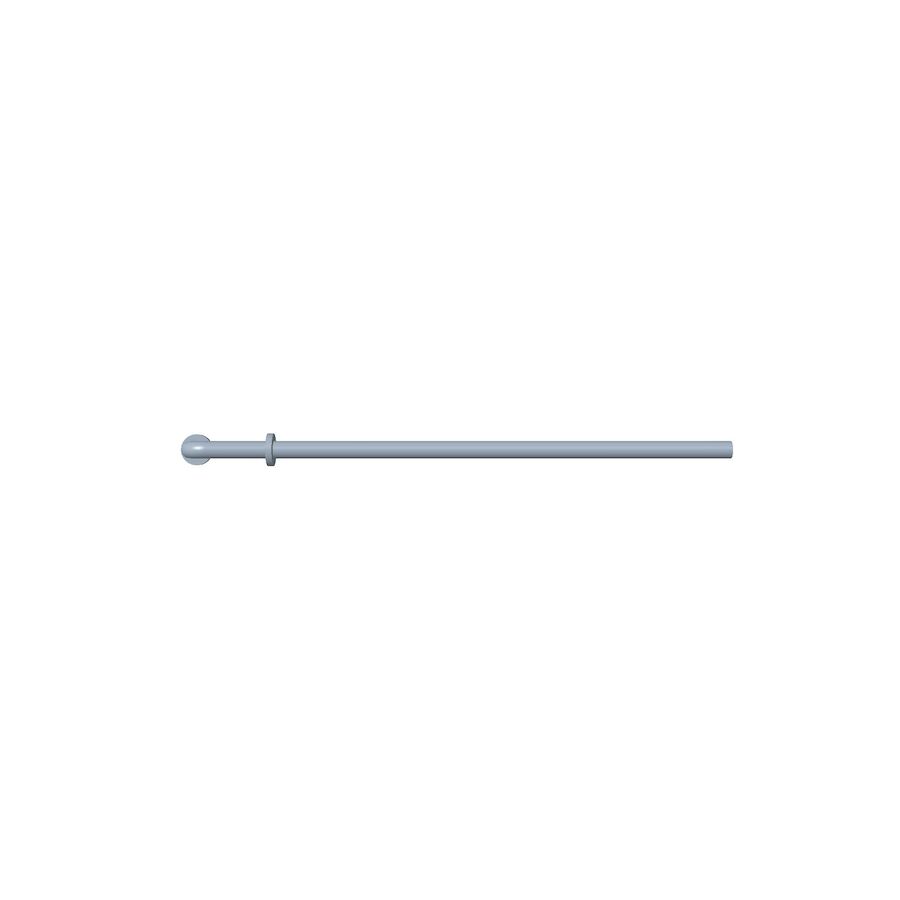

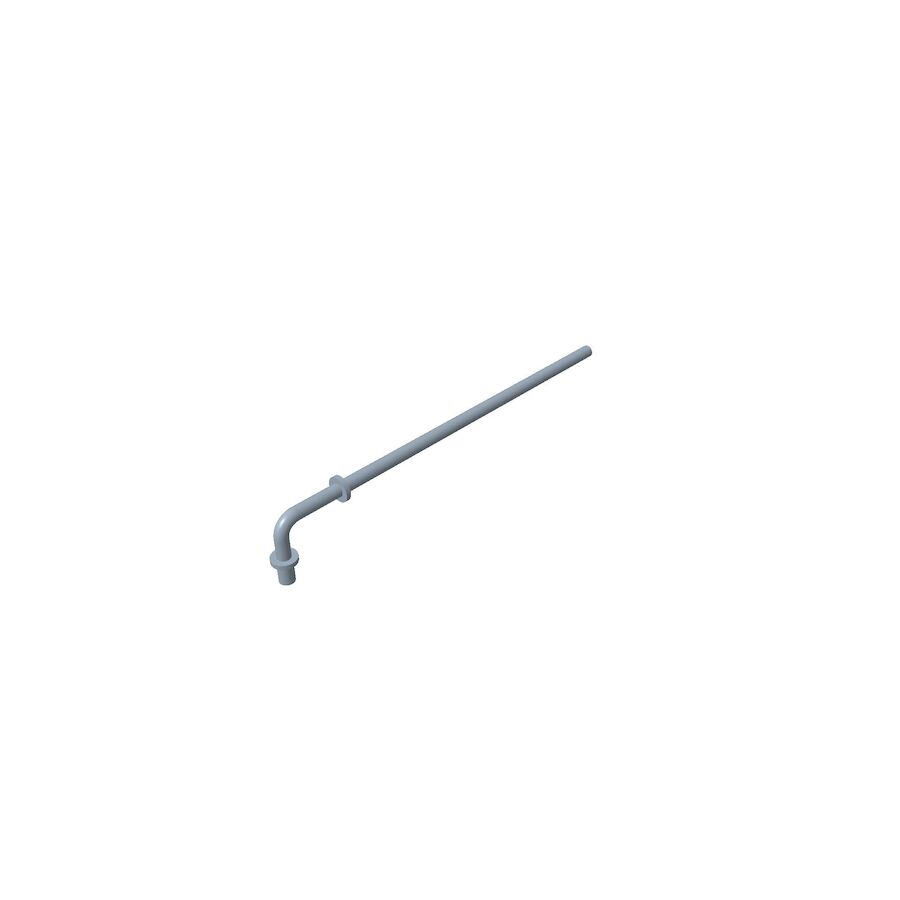

Toro OEM 137-2019 Discharge Chute Pivot Rod Fits Select Late/Current Toro 42", 50", 54", 60" Timecutter Models.

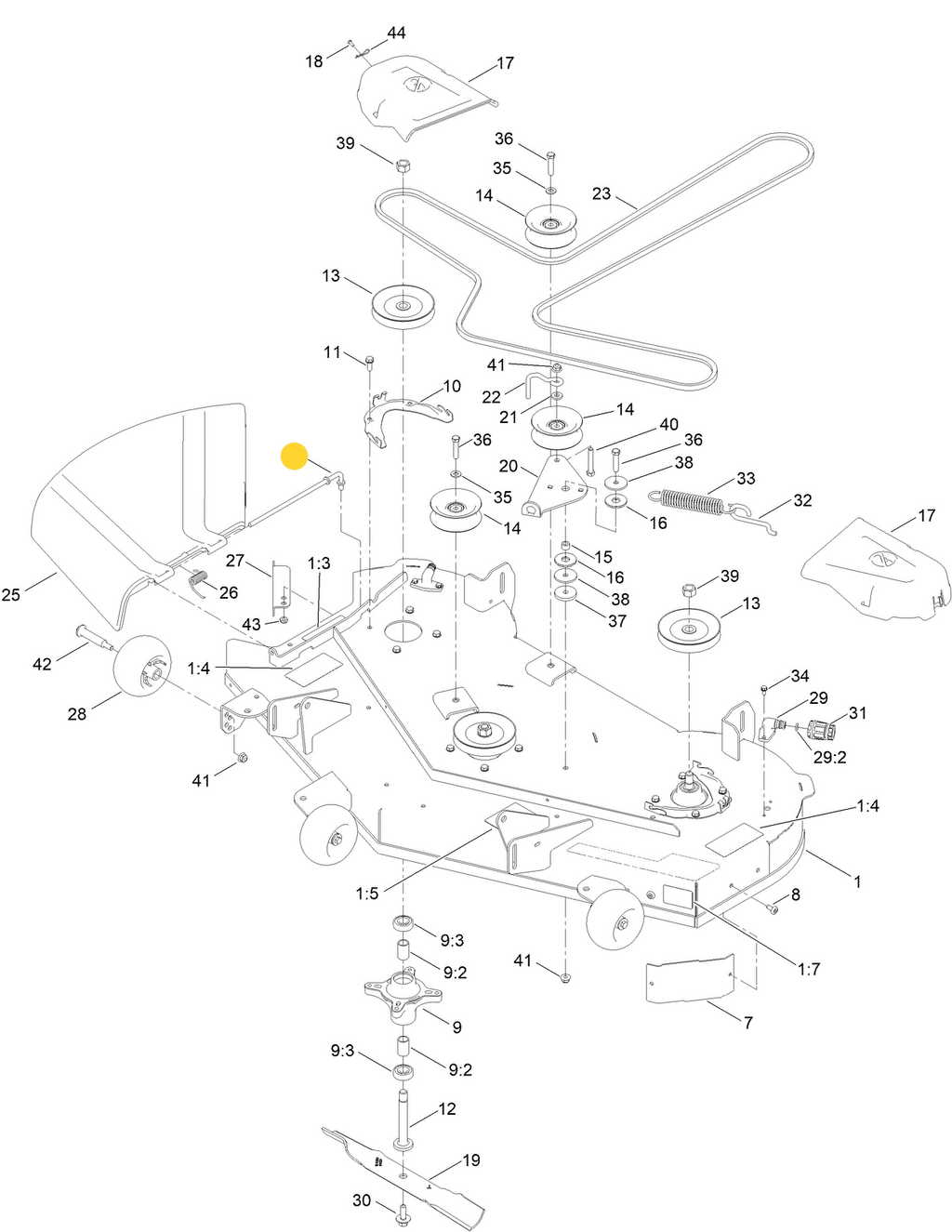

Toro OEM 137 2019 Discharge Chute Pivot Pin is Designed for Toro Discharge Chute. 137 2019 is the Rod that (Keeps on Giving). It Both Allow You to Fasten your Discharge Chute, Retain the Torsion Spring that Keeps Constant Downward Pressure - as well as do what it Sounds like it should (Allow you to Pivot Your Discharge Chut Up and Down). 137-2019 is Factory Designed and Made to Fit Toro Late (Cast Aluminum Axles) and Current (Timecutter MAX) 42", 50", 54", 60" Timecutter Models - *Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.  Click on the Part Numbers in the Part Referencing Links to be redirected.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 137-2019 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 138-7268 - TORSION SPRING (Attaches over Pivot Rod)

2. 121-4600 - LOCKING NUT (Retains Pivot Pin)
3. 138-7502 - DISCHARGE CHUTE (Late/Current Models Review Part Number Model Fit Chart to Ensure Correct Fit)







Specification

Product Number:	1372019
Brand:	Toro
Length:	10.600 IN (26.924 CM)
Width:	2.000 IN (5.080 CM)
Height:	0.620 IN (1.575 CM)
Weight:	0.303 LB (0.137 KG)





Model Fit:



TIMECUTTER 42” SS Series – Model Numbers – 74705, 74706, 74711, 74726

TIMECUTTER 42” SW Series – Model Numbers – 74676, 74788

TIMECUTTER 42” ZS Series – Model Numbers – 74665, 74667, 74677, 74683, 74684, 74685, 74686, 74687

TIMECUTTER 42” MX Series – Model Numbers – 74690, 74691

TIMECUTTER 42” 4200 & ZR 4200 Series – Model Numbers – 74679, 75740

TIMECUTTER 42” (STANDARD) Series – Model Numbers – 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404

TIMECUTTER 42” (My-Ride) Series – Model Numbers – 74692, 75743, 75745, 75747

TIMECUTTER 42” (Standard & My-Ride - Battery) Series – Model Numbers – 75841, 75642



TIMECUTTER 50” MX Series – Model Numbers – 74694, 74695

TIMECUTTER 50” 5000 Series – Model Numbers – 75751

TIMECUTTER 50” (STANDARD) Series – Model Numbers – 75750, 75753

TIMECUTTER 50” (My-Ride) Series – Model Numbers – 74696, 75755, 75759

TIMECUTTER MAX 50” (STANDARD) Series – Model Numbers – 77501, 77505

TIMECUTTER MAX  50” (My-Ride) Series – Model Numbers – 77502



TIMECUTTER 54” (My-Ride) Series – Model Numbers – 75754, 75756, 75757

TIMECUTTER MAX 54” (STANDARD) Series – Model Numbers – 77504, 77506

TIMECUTTER MAX  54” (My-Ride) Series – Model Numbers – 77503, 77507

TIMECUTTER 54” (My-Ride - Battery) Series – Model Numbers – 75851



TIMECUTTER 60” (STANDARD) Series – Model Numbers – 75760, 75762

TIMECUTTER 60” (My-Ride) Series – Model Numbers – 75763

TIMECUTTER MAX 60” (STANDARD) Series – Model Numbers – 77601, 77604

TIMECUTTER MAX  60” (My-Ride) Series – Model Numbers – 77602, 77603
