Toro OEM 136-8684 Hex Head Bolt Fits Toro Power Clear and Powerlite Snowblower Models - Titan and Titan Max Models (3/8 x 1.25 - 16).

Please refer to the Images above and Product Specifications below to Ensure a proper fit.

• PRODUCT NUMBER AND VARIATIONS: 136-8684, 136 8684, 1368684

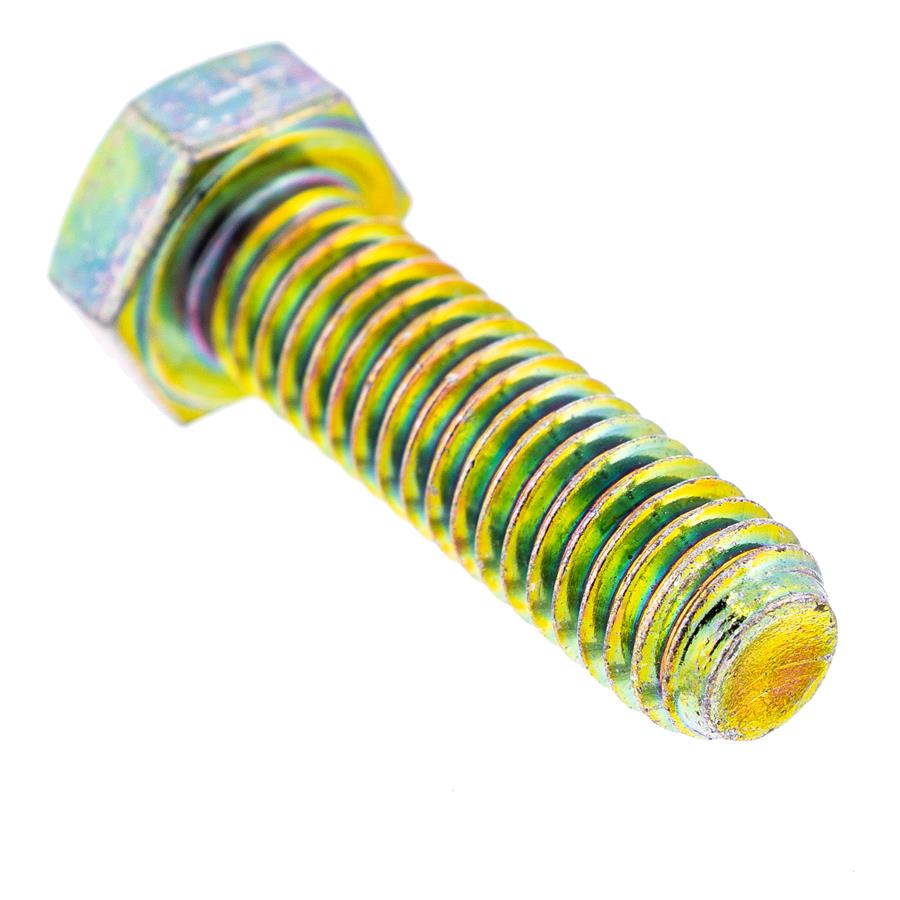

• PRODUCT TYPE: Hex Head Bolt
• SIZE: Common Thread Type 3/8 x 1 1/4 - 16
• NOTES & DETAILS: TORO OEM  136-8684 IS COMMINLY USED -

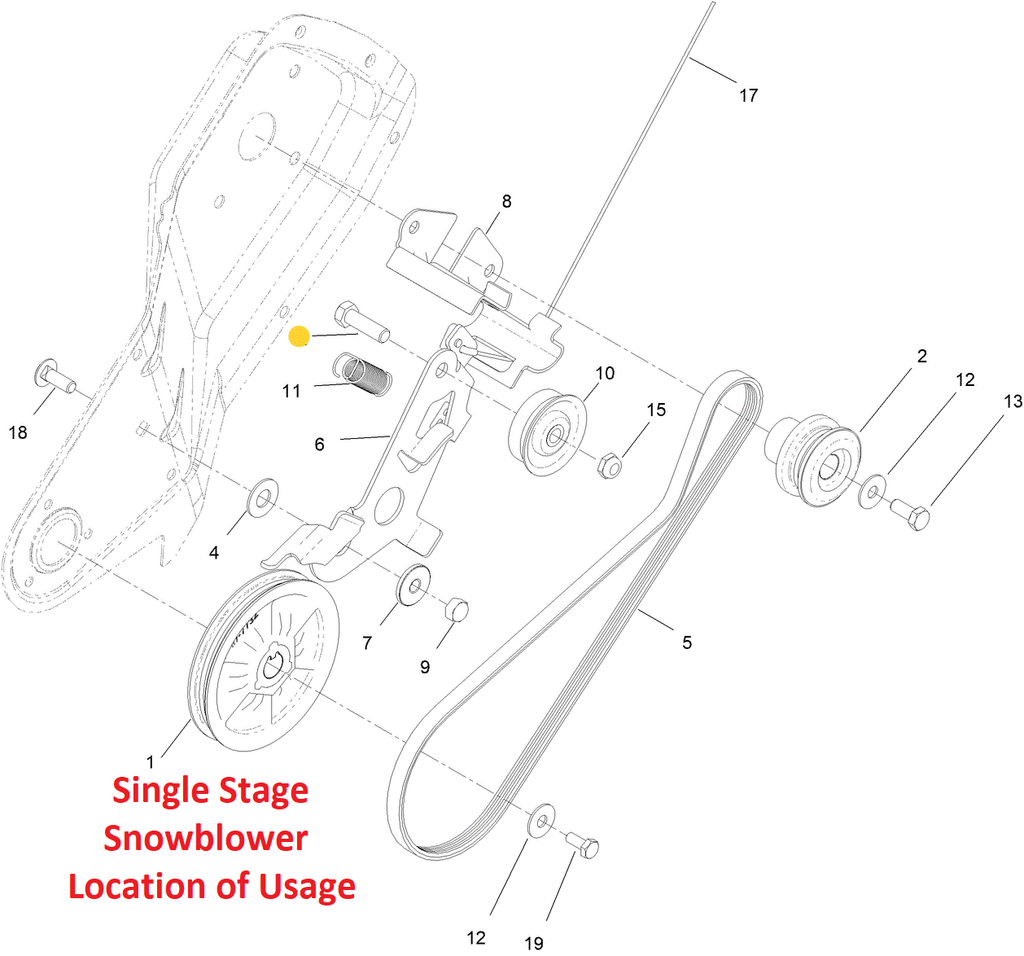

1. Powerlite & Powerclear Snowblower Models - Installed on the Engine side of the Idler Pulley Tensioner Arm and travels through the Idler Arm - Retains the Idler Pulley to the Idler Pulley Tensioner Arm

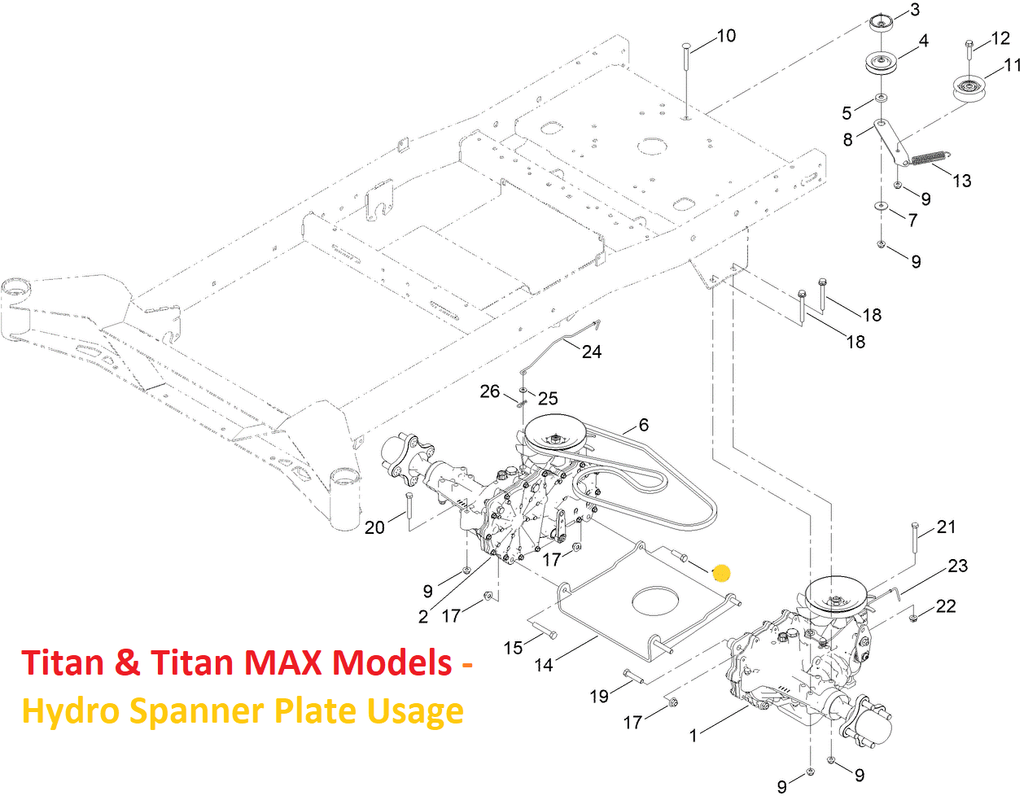

2. Titan & Titan Max Models - Retain the Hydraulic Pump Spanner Plate to the Hydraulic Pump - Used only in the Back or Rear Most Wholes and installed from the inside tabs of the Spanner Plate and Installed Outwards through the Hydraulic Pump Fastner Tabs.

• COMMON SERIES APPLICATIONS: Toro Select 21" Power Clear & Powerlite Snowblower Models - Titan & Titan Max Models (Models Only with I-Beam Framing)

• MODEL FIT CHART:

38274, 38474, 38475, 76420, 76425, 76530, 76635, 07369, 76606, 76607, 76610, 76608, 76609, 76448, 76554, 76660
