Toro OEM 136-8672 Hinge Pin Fits a Wide Range of Snowblower Models and Walk Behind Mower Models.

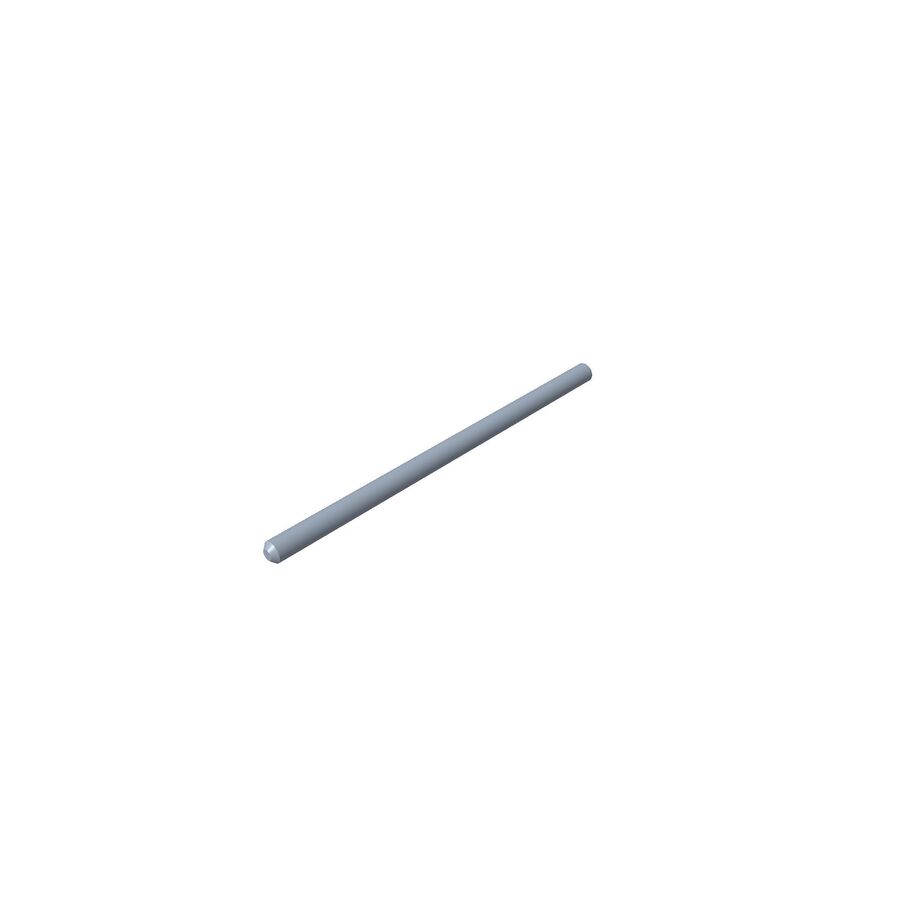

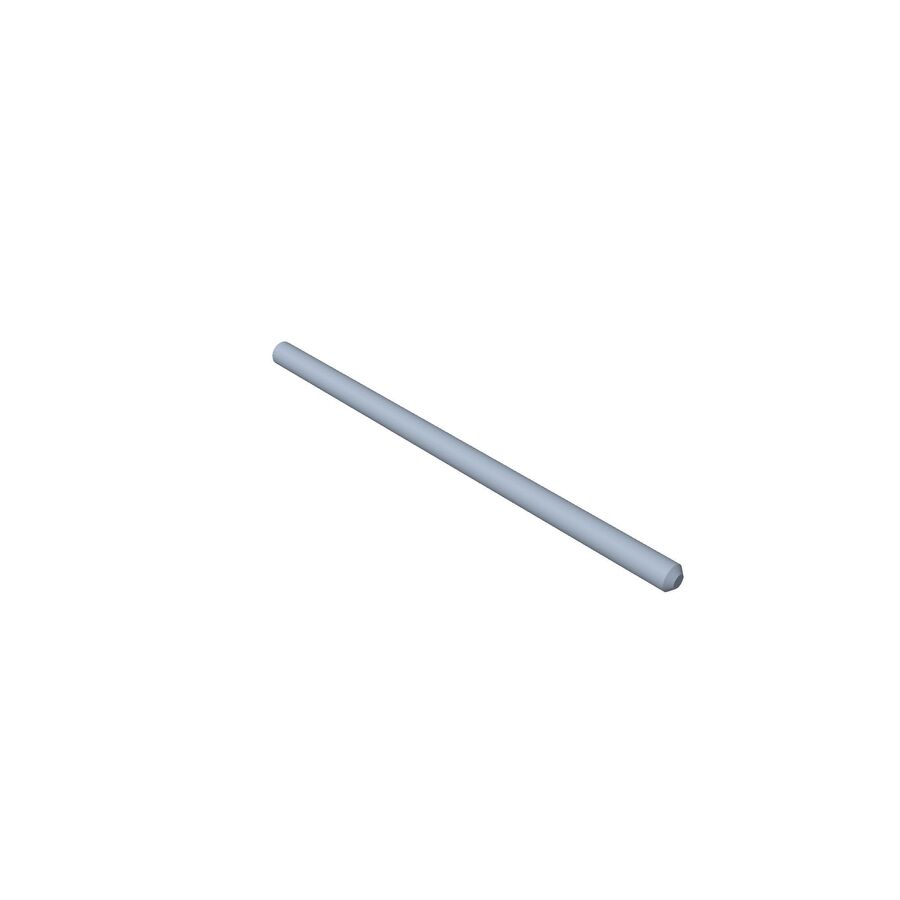

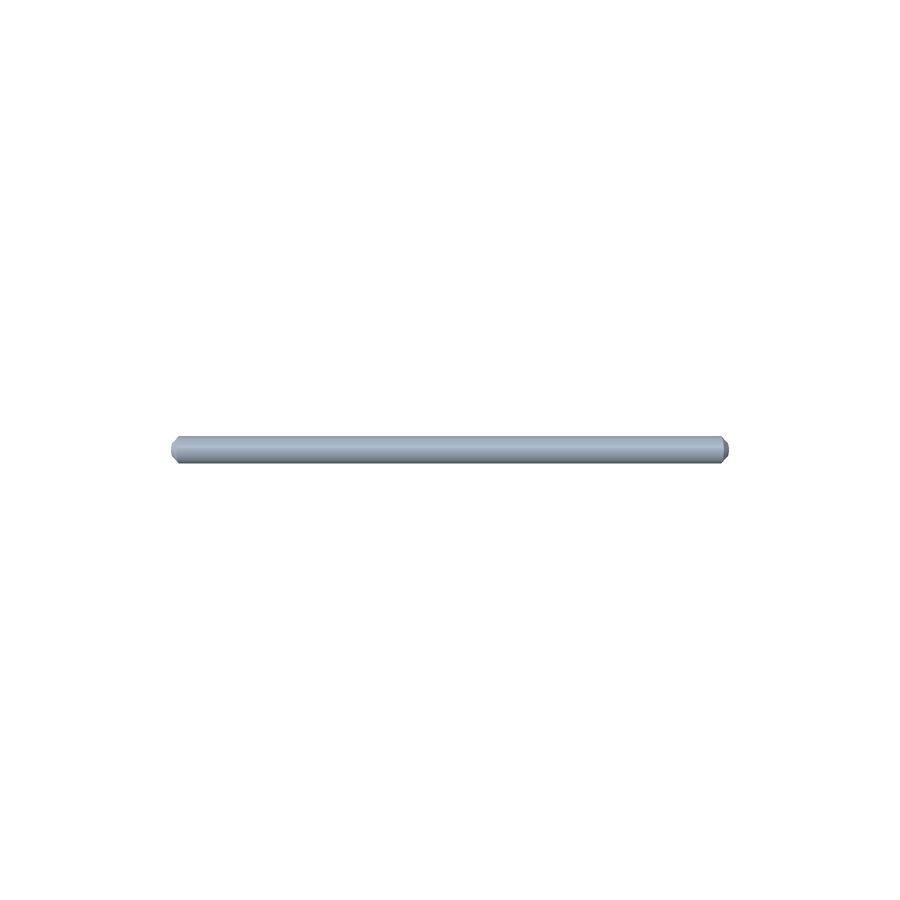

Toro OEM 136-8672 Deflector Hinge Pin

 136-8672 Pivot Rod is Commonly Used to:

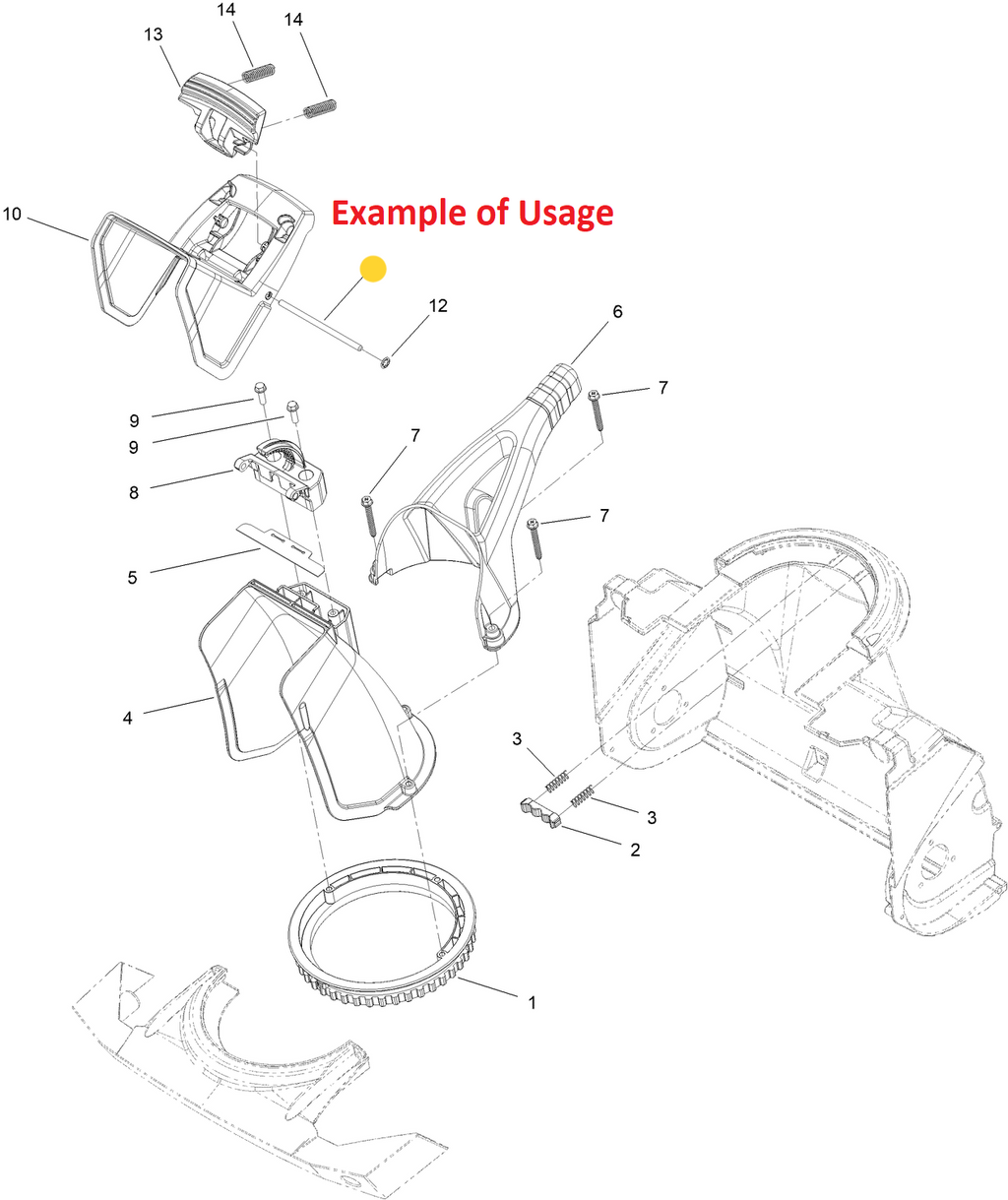

1. Wide Range of Snowblower Models - Retain the Discharge Chute Deflector to the Discharge Chute or Deflector Ratchet Hinge. 136-8672 Enables the Discharge Chute to Rotate to Operator Preferences. Important to Note Whenever Removing 136-8672 Deflector Hinge Pin you will Need to Remove the Deflector Hinge Pin's Retaining Ring that is Retain by Pushing it on and Allowing little Metal Tabs to Restrict it From being Reversed - When Removing the Retaining Rings to Remove the Hinge Pin the Tabs on the Retaining Ring are often Distorted - Therefore it Often Recommended to Replace 104-8310 Hinge Pin-Deflector Retaining Ring When removing the Deflector Hinge Pin.

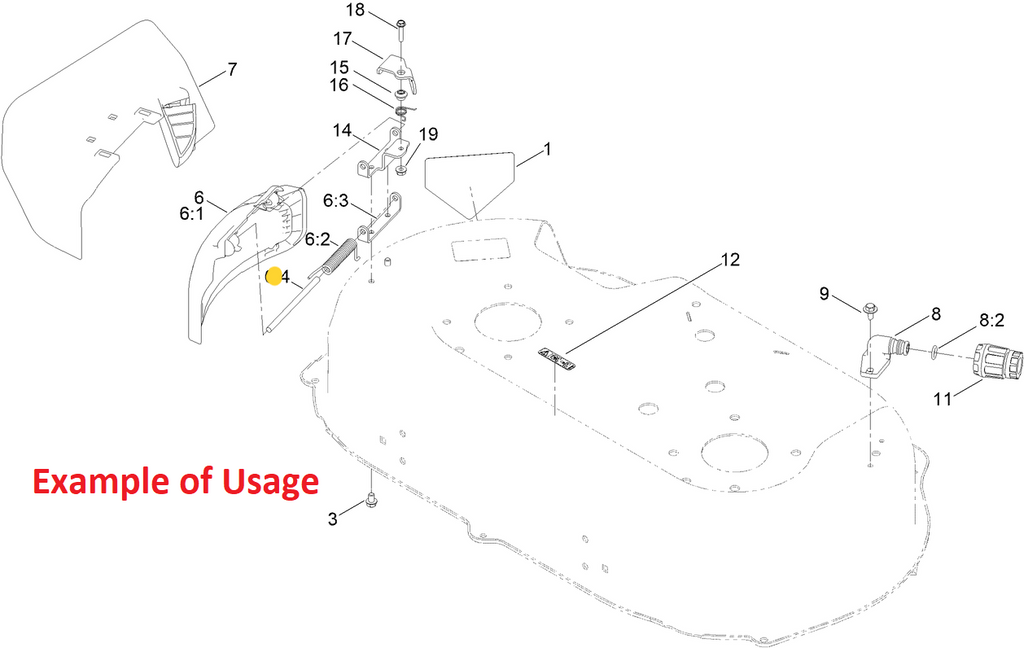

2. Toro Recycler, Super Recycler, TimeMaster, E-TimeMaster & Other Older Walk-behind Models - Retains the Side Discharge Chute Hinge to the Side Discharge Chute Retaining Bracket Which Bolts to the Mower Deck. 136-8672 Enables the Discharge Chute to Rotate or Pivot. Important to Note Select Models May use a Metal Retaining Ring to Retain the Hinge Pin. Whenever Removing 136-8672 Discharge Chute Hinge Pin you will Need to Remove the Hinge Pin's Retaining Ring if Equipped Which is Retain by Pushing it on and Allowing little Metal Tabs to Restrict it From being Reversed - When Removing the Retaining Rings to Remove the Hinge Pin the Tabs on the Retaining Ring are often Distorted - Therefore it Often Recommended to Replace 104-8310 Hinge Pin-Deflector Retaining Ring (If Equipped) When removing the Deflector Hinge Pin.

For Assembly Directions and Associated Parts References Refer to the Discharge Chute Deflector or Deflector Trigger that is Require for your Model Number.

Part Number 99-5291, 110-9368 & 119-7632 Supersede to Part Number 136-8672.

• OEM Part Number: 136-8672, 136 8672, 1368672, 119-7632, 119 7632, 1197632, 110-9368, 110 9368, 1109368, 99-5291, 99 5291, 995291
• Part Name: Discharge Chute Deflector Hinge Pin
• Function: Retains the Discharge Chute Deflector and Enables it to Rotate.
• Genuine Toro OEM: Correct fit and performance on Select Toro Powerlite, Quick Clear, Power Clear, E-Power Clear, Snowthrower, E-Snowthrower, Snow Max, E-Snow Max, Snow Master, Power Max & E-Power Max snow thrower Models *May Contain a Few other Usages that are not listed as well.

Fits These Toro Models

Verify your model number (and serial range when applicable) from the machine tag before ordering. Model Numbers Listed Below are in Order of Smallest to Largest.

10654, 10655, 10656, 10662, 10665, 10666, 10671, 10672, 10673, 10682, 10683, 10684, 10685, 10686, 10687, 10694, 10695, 10696, 10697, 10765, 10780, 10785, 10795, 10796, 10797, 10927, 10995, 10996, 10997, 10998, 17740, 20003, 20005, 20008, 20009, 20010, 20011, 20012, 20013, 20014, 20016, 20017, 20018, 20019, 20020, 20021, 20022, 20023, 20025, 20027, 20028, 20029, 20031, 20035, 20041, 20047, 20049, 20051, 20053, 20054, 20055, 20056, 20057, 20058, 20060, 20061, 20062, 20064, 20065, 20066, 20067, 20068, 20069, 20070, 20071, 20072, 20073, 20074, 20075, 20076, 20079, 20086, 20087, 20089, 20090, 20091, 20092, 20093, 20094, 20095, 20096, 20098, 20099, 20110, 20111, 20112, 20113, 20192, 20194, 20197, 20199, 20200, 20330, 20331, 20332, 20333, 20334, 20337, 20338, 20339, 20340, 20350, 20351, 20352, 20353, 20355, 20357, 20361, 20363, 20366, 20370, 20371, 20372, 20373, 20374, 20376, 20377, 20378, 20379, 20380, 20381, 20382, 20383, 20384, 20651, 20652, 20653, 20654, 20655, 20656, 20658, 20792, 20793, 20794, 20795, 20796, 20797, 20897, 20899, 20954, 20955, 20956, 20958, 20959, 20960, 20961, 20964, 20965, 20975, 20976, 20977, 20978, 20990, 20995, 20996, 20997, 20999, 21199, 21200, 21219, 21220, 21329, 21378, 21381, 21382, 21383, 21385, 21386, 21387, 21388, 21389, 21491, 21493, 21690, 21691, 21761, 21762, 21763, 21764, 21765, 21766, 21767, 21768, 21810, 21811, 21815, 21816, 21863, 21876, 22155, 22156, 22163, 22164, 22193, 22194, 22270, 22271, 36001, 37770, 38453, 38454, 38458, 38459, 38474, 38475, 38563, 38567, 38568, 38569, 38571, 38575, 38576, 38577, 38578, 38581, 38582, 38583, 38584, 38585, 38586, 38588, 38589, 38710, 38720, 38743, 38744, 38752, 38753, 38754, 38755, 38756, 38757, 38810, 38811, 39921, 39921T, 39922T
