Toro OEM 136-7931 Carburetor Kit Fits Select 18" Power Clear Snowblower Models (500 Series) and Powerlite (Only Model 38274) Snowblower Models - Toro Dealer.

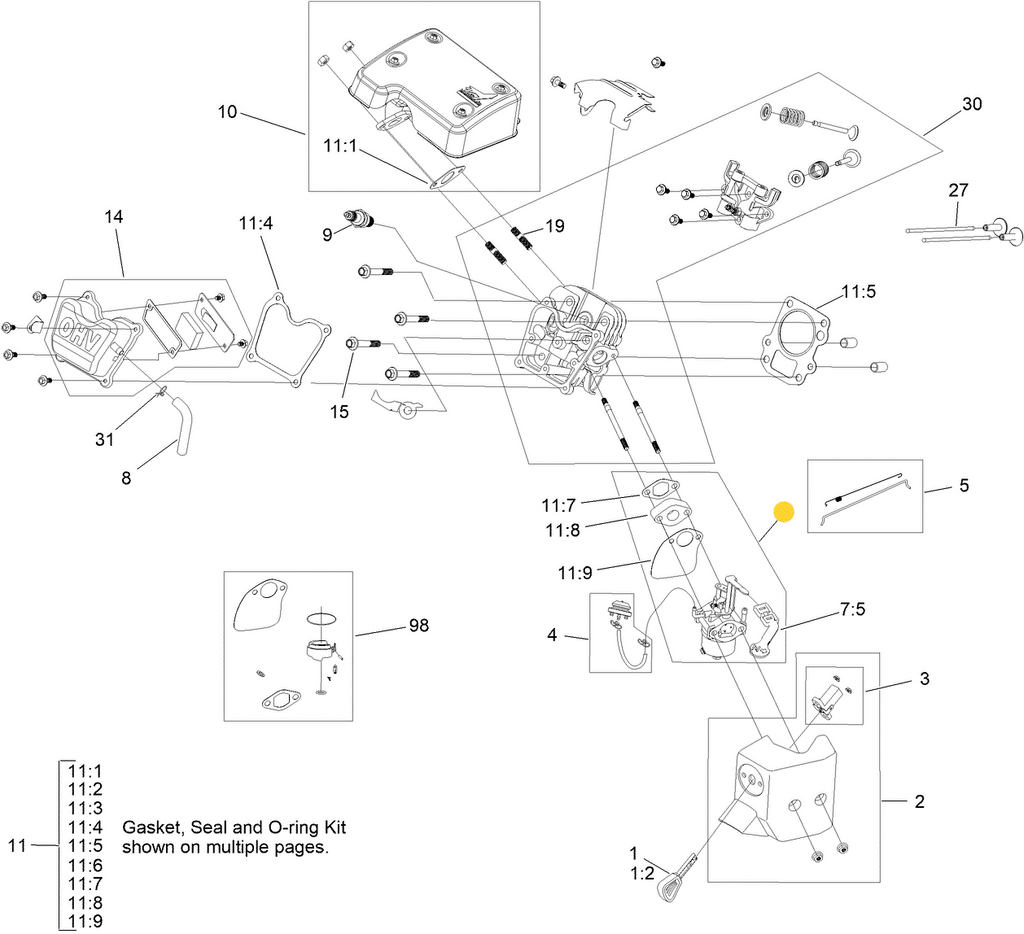

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.

Part Numbers 127-9053 & 127-9352 Supersede to Part Number 136-7931.



• PRODUCT NUMBER AND VARIATIONS: 136-7931, 136 7931, 1367931, 127-9352, 127 9352, 1279352, 127-9053, 127 9053, 1279053

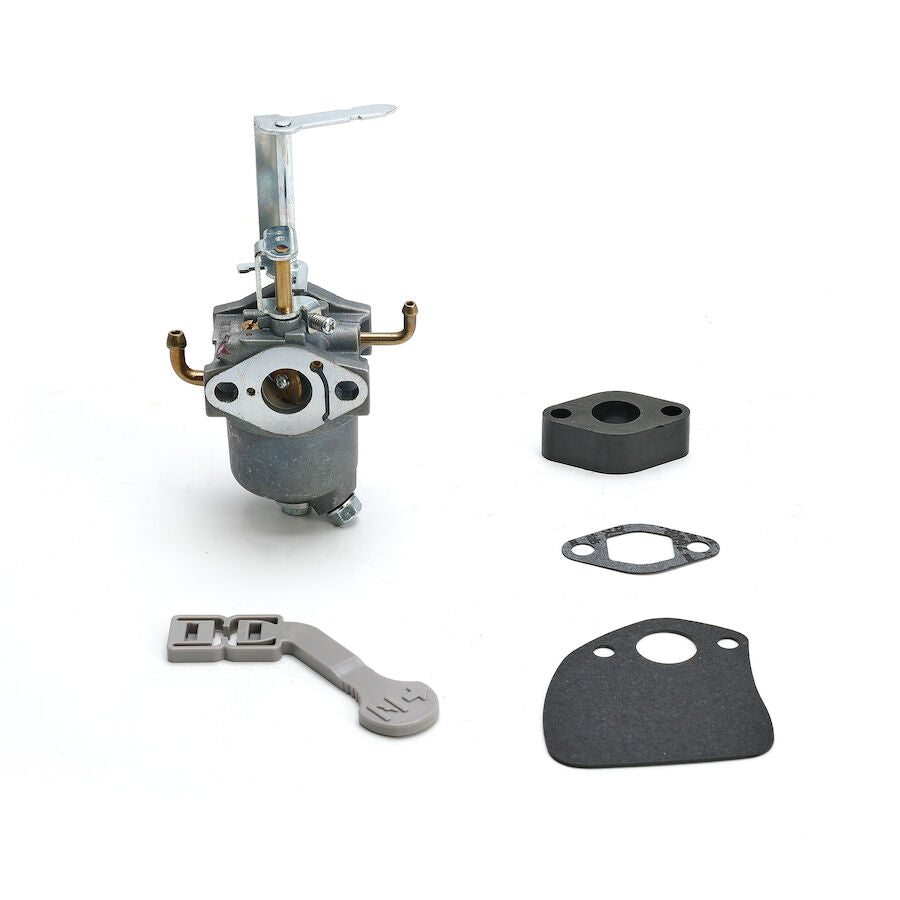

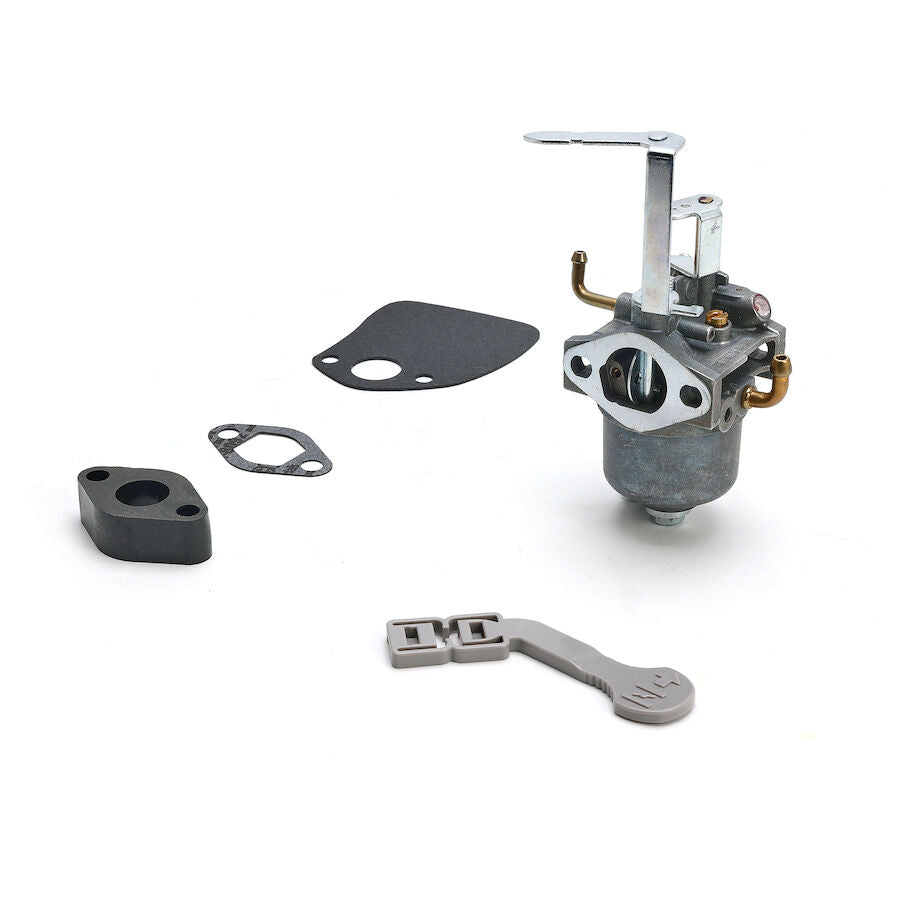

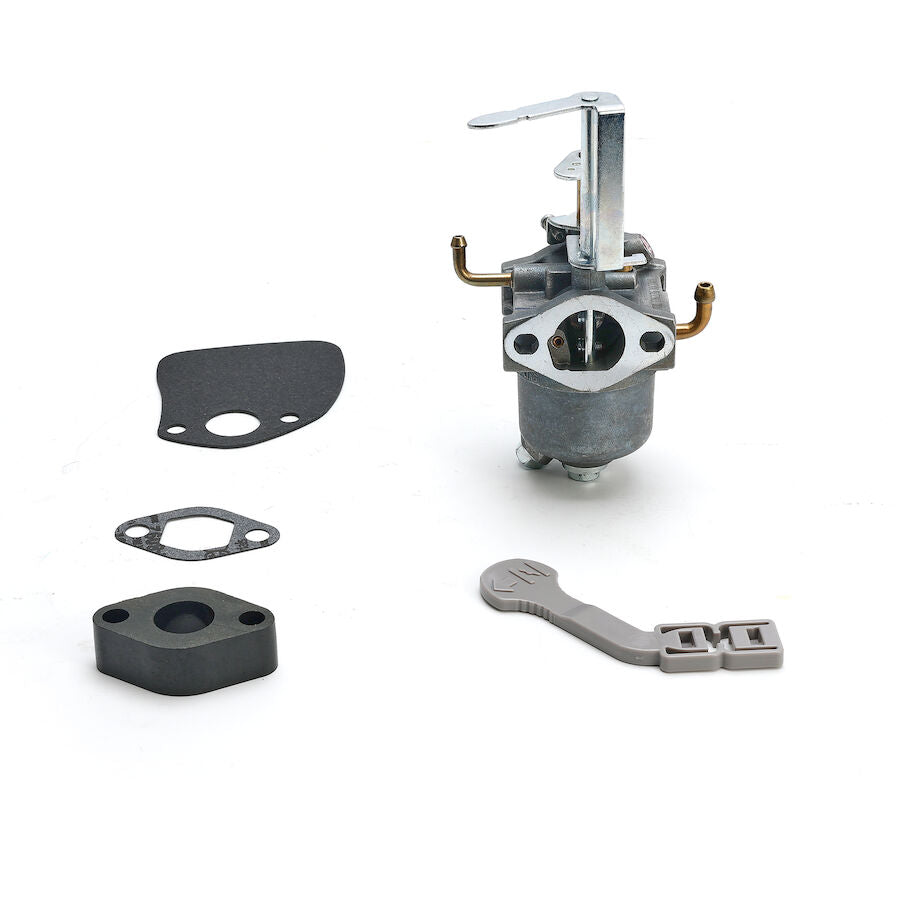

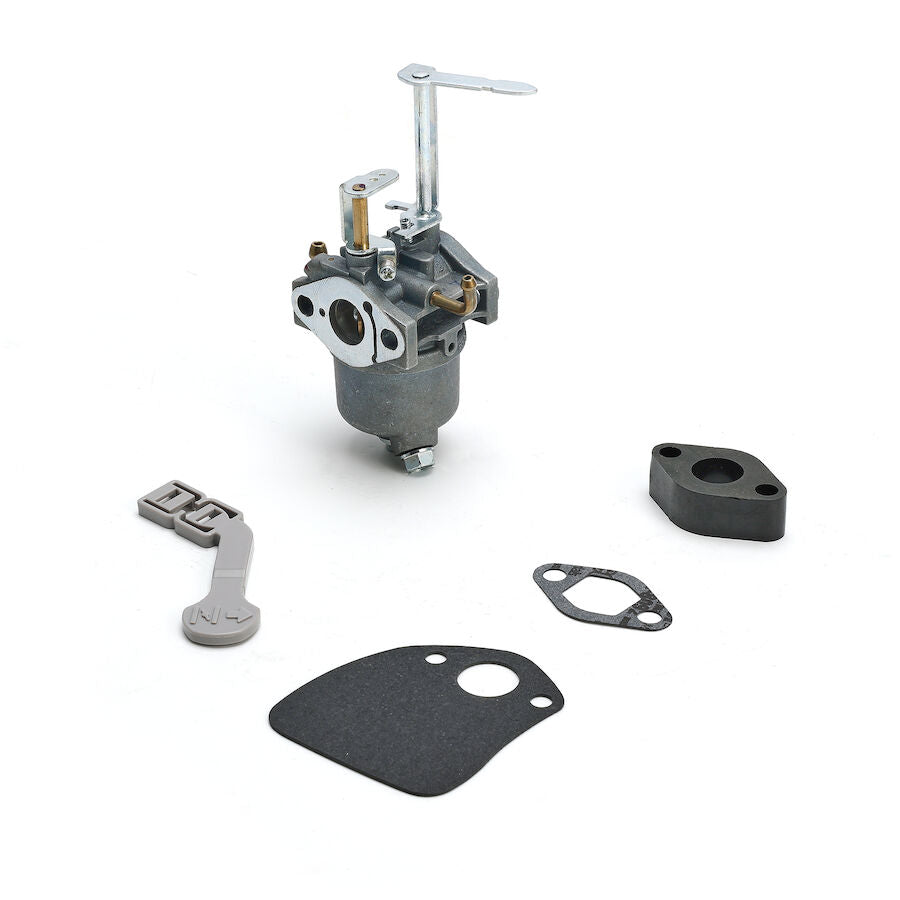

• PRODUCT TYPE: Carburetor Kit - Comes with Gasket's and Isolator
• SIZE: Length 5.500 in. - Width 5.250 in. - Height 2.750 in. - Weight 0.600 lbs.
• NOTES & DETAILS: Toro OEM  136-7931 IS COMMINLY USED - 136-7931 Carburetor is Installed on the Intake Side and Enables the Correct Air and Fuel Mixture to be Drawn Through the Valves and into the Cylinder or Combustion Chamber. Most Common Reason for Snowblower Repairs is a Fuel/Carburetor Issue in Which Fuel Commonly Causes Carburetor issues due to Ethanol and/or Gas Going Stale in The Carburetor Causing Engine Start and/or Run Failure. 136-7931 Carburetor Kit Does Come with Carburetor, Gasket and Isolator.
• COMMON SERIES APPLICATIONS: Toro Select 18" Powerlite (Only Model 38274) and 500 Series Power Clear Snow Blower Models.





• MODEL FIT CHART:

SNOWBLOWER’S



POWER LITE Series – Model Numbers – (* Model Numbers 38274)

POWER CLEAR Series – Model Numbers – (* Model Numbers 38472, 38473, 38474, 38475)





• ASSOCIATED PARTS CHART:



ASSOCIATED PARTS REFERENCES FOR PART NUMBER 136-7931 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 120-4486 - INSUALTOR GASKET (Gasket That is Assemble Between the Isolator and Engine Block) x1 Per Carburetor
2. 121-0093 - INSULATOR - CARBURETOR (Insulator Assemble Between the Carburetor and Engine Block as well as Between 120-4486 Insulator Gasket and 127-9052 Carburetor Gasket - Is Essential for Delivering the Carburetor's Proper Air Fuel Mixture to The Combustion Chamber as well as Correct Spacing for Linkage Arm and Throttle Linkage) x1 Per Carburetor
3. 127-9052 - CARBURETOR GASKET (Gasket That is Assemble Between the Carburetor and Insulator) x1 Per Carburetor
4. 121-0489 - CARBURETOR/GOVERNOR SPRING and ROD LINKAGE KIT (Installed Between the Carburetor and Governor Linkage - Controls the Amount of Air and Fuel Mixture that Enters the Carburetor Via the Engine RPM'S or Speed) x1 Per Carburetor *Spring and Rod Included in the Kit
5. 133-9975 - CHOKE LEVER (Clip over the Choke Linkage and Enables the Operator to Easily Controls the Choke Operation of the Carburetor - Reduces Air and Increase Fuel Draw to the Intake and Combustions Chamber Allowing for a Faster Starting Under Cold Engine Temperatures) x1 Per Carburetor
6. 119-1981 - PRIMER BULB KIT (Enable the Operator to Draw Fuel from the Carburetor Bowl into the Intake Area of the Carburetor Before Trying to Start the Engine - Enabling a Faster Engine Startup) x1 Per Carburetor *Primer Hose, Primer Bulb Assembly, Primer Hose Clamps Include in the Kit
7. 136-7773 - FUEL LINE & FILTER KIT (Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl - Fuel Line Only Connects to the Lower End of the Tank Fuel Filter and from there Connect to the Carburetor - Fuel Filter Screws into the Bottom of the Fuel Tank) x1 Per Carburetor *Fuel Line Hose, Tank Fuel Filter, Hose Clamps are Include in the Kit
8. 119-1982 - CARBURETOR SHROUD or HEAT BOX KIT (Installed Over the Carburetor to Enable the Carburetor to Retain Heat After Startup as well as Eliminate the Entrance of Moisture and Dirt through the Carburetor's Air Intake Hole) x1 Per Carburetor *Comes with Ignition Switch - No Ignition Key, Carburetor Retaining Nut and Carburetor Shroud
9. 127-9158 - CARBURETOR REPAIR KIT (Complete Rebuild Kit Comes with Carburetor Gasket and Necessary Internal Carburetor O-Rings and Other Part Required to Rebuild the Carburetor) x1 Per Carburetor
