ToroSKU: 136-7773
Price:
$15.99

View Financing Disclaimer

Pickup available, Usually ready in 24 hours

r

Apply for Financing

Description

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.



Part Numbers 127-9072 Supersede to Part Number 136-7773.





  • PRODUCT NUMBER AND VARIATIONS: 136-7773, 136 7773, 1367773, 127-9072, 127 9072, 1279072
  • PRODUCT TYPE: Fuel Line Kit
  • SIZE: Length 8.500 in. - Width 1.000 in. - Height 1.000 in. - Weight 0.030 lbs.

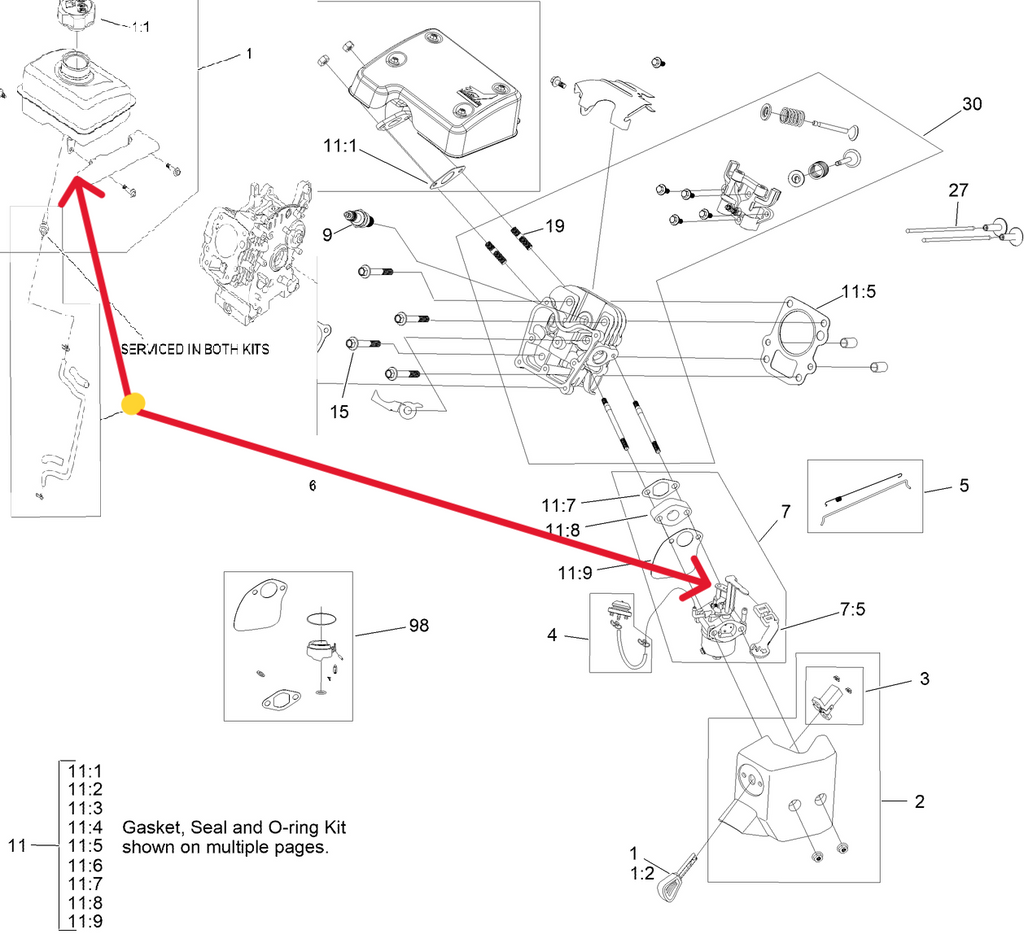

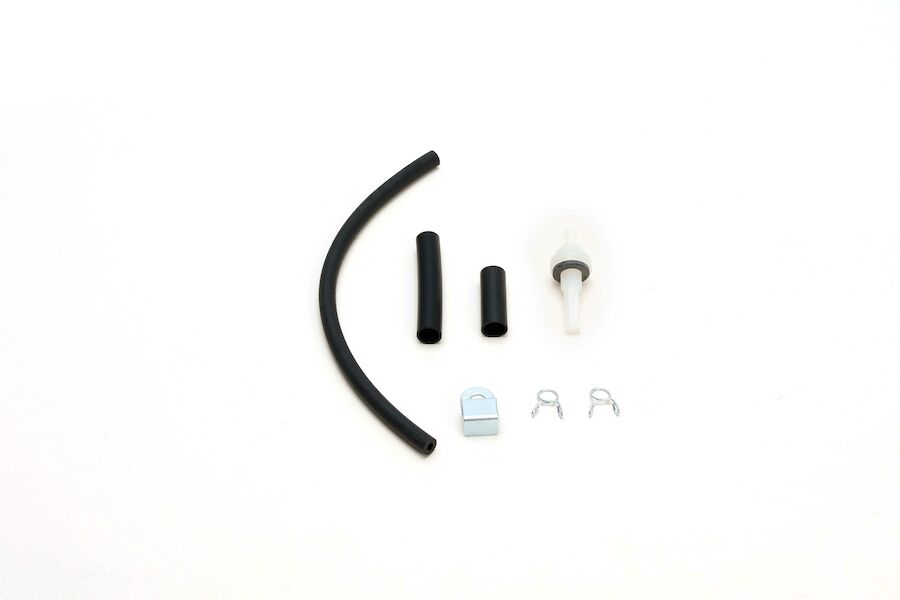

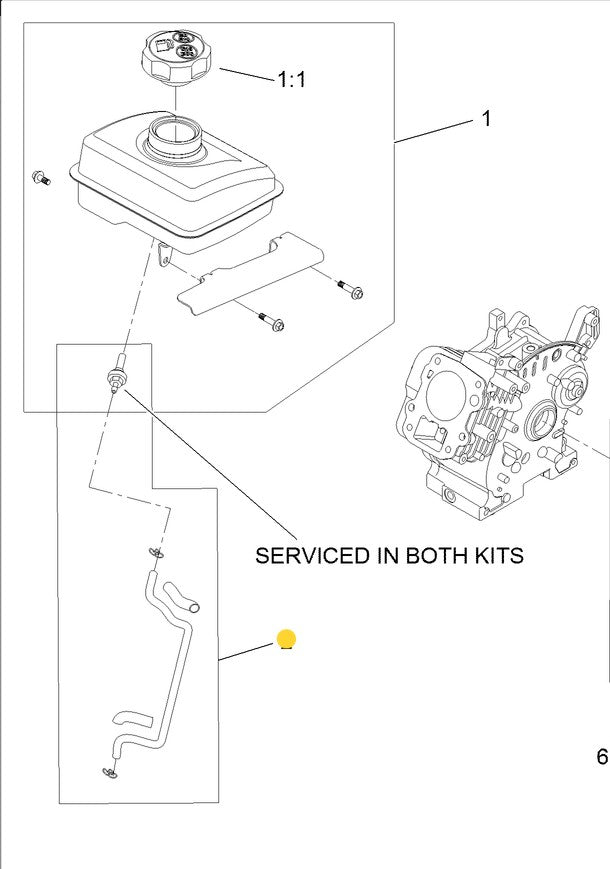

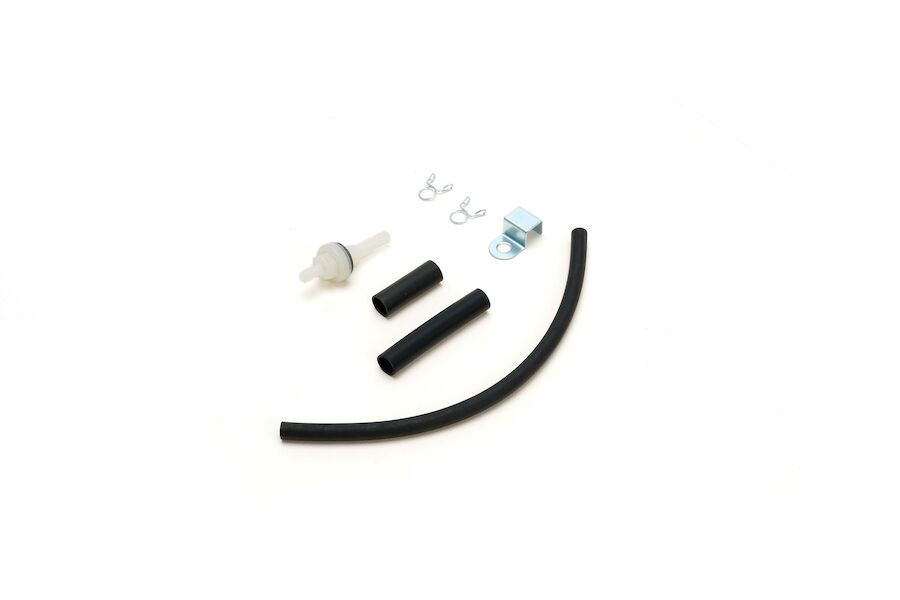

  • NOTES & DETAILS: Toro OEM  136-7773 IS COMMINLY USED - 136-7773 Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl - Fuel Line Only Connects to the Lower End of the Tank Fuel Filter and from there Connect to the Carburetor - Fuel Filter Screws into the Bottom of the Fuel Tank. Fuel Line Kit Contains Fuel Line Hose, Fuel Line Abrasive Sleeves, Tank Fuel Filter and Hose Clamps.
  • COMMON SERIES APPLICATIONS: Toro Select Powerlite (Only Model 38274), Power Clear, SnowMaster, Snowthrower, Snow Max & Power Max (Only Model 38838) Snow Blower Models.





  • MODEL FIT CHART:

SNOWBLOWER’S



POWER LITE Series – Model Numbers – (* Model Numbers 38274)



POWER CLEAR Series – Model Numbers – (* Model Numbers 38472, 38473, 38474, 38475, 38752, 38753, 38754, 38755, 38756, 38757)



SNOW MASTER Series – Model Numbers – (* Model Numbers 36001, 36002, 36003)



SNOW THROWER Series – Model Numbers – (* Model Numbers 38710, 38711, 38712)



SNOW MAX Series – Model Numbers – (* Model Numbers 38720, 38721)



POWER MAX Series – Model Numbers – (* Model Numbers 38838)





  • ASSOCIATED PARTS CHART:



ASSOCIATED PARTS REFERENCES FOR PART NUMBER 136-7773 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





COMPLETE CARBURETOR ASSEMBLY





  1. 136-7931 - Powerlite (Only Model 38274), Power Clear 500 Series
  2. 139-0749 - Select 700 Series Snow MAX (Model 38721)
  3. 127-9111 - Select 700 & 800 Power MAX (800 Series - Only Model Number 38838), Power Clear, SnowMaster, SnowThrower and Snow MAX Snow Blower Models.
  4. 139-0700 - Power Clear 800 Series (Only Power Clear Models 38755, 38757)
  5. 133-1534 - Select 800 Series SnowMaster & SnowThrower Snow Blower Models





ASSOCIATED COMPLETE PRIMER BULB KIT





  1. 119-1981 - Select 18" 400 & 500 Series Power Clear & Powerlite Snow Blower Models (* Select Models and Serial Numbers Only - Review Part Number's Model Fit Chart to Ensure Correct Fit)
  2. 127-9079 - Select 700 & 800 Series Power Clear, SnowMaster, SnowThrower and Snow MAX Snow Blower Models (* Select Models and Serial Numbers Only - Review Part Number's Model Fit Chart to Ensure Correct Fit)





COMMON FUEL LINE KIT INDIVIDUAL PARTS ONLY

(Models without Fuel Shut OFF Valve Only)





  1. 121-0087 or 147-7077 - FUEL LINE CLAMP - CARB. (Retains the Incoming Fuel Line Hose to the Carburetor) x1 Per Fuel Line
  2. 127-9403 - FUEL LINE HOSE - CARB. to FUEL TANK (Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl - Fuel Line Only Connects to the Lower End of the Tank Fuel Filter and from there Connect to the Carburetor - Fuel Filter Screws into the Bottom of the Fuel Tank) x1 Per Carburetor (* Select Models and Serial Numbers Only - Review Part Number's Model Fit Chart to Ensure Correct Fit)
  3. 133-1537 - FUEL LINE HOSE - CARB. to FUEL TANK (Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl - Fuel Line Only Connects to the Lower End of the Tank Fuel Filter and from there Connect to the Carburetor - Fuel Filter Screws into the Bottom of the Fuel Tank) x1 Per Carburetor (* Select Models and Serial Numbers Only - Review Part Number's Model Fit Chart to Ensure Correct Fit)
  4. 147-7085 - FUEL LINE HOSE - CARB. to FUEL TANK (Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl - Fuel Line Only Connects to the Lower End of the Tank Fuel Filter and from there Connect to the Carburetor - Fuel Filter Screws into the Bottom of the Fuel Tank) x1 Per Carburetor (* Select Models and Serial Numbers Only - Review Part Number's Model Fit Chart to Ensure Correct Fit)
  5. 121-0087 - TANK FUEL FILTER (Screws into the Bottom of the Fuel Tank and enable the Fuel Line Hose to Attach to the External Barb Style Fitting - Filtrates or Strains Fuel as it Leaves the Fuel Tank. Clogged Fuel Filtration will not Properly Allow Fuel to Travel to the Carb.) x1 Per Fuel Tank (* Select Models and Serial Numbers Only - Review Part Number's Model Fit Chart to Ensure Correct Fit)
  6. 127-9065 - TANK FUEL FILTER (Screws into the Bottom of the Fuel Tank and enable the Fuel Line Hose to Attach to the External Barb Style Fitting - Filtrates or Strains Fuel as it Leaves the Fuel Tank. Clogged Fuel Filtration will not Properly Allow Fuel to Travel to the Carb.) x1 Per Fuel Tank (* Select Models and Serial Numbers Only - Review Part Number's Model Fit Chart to Ensure Correct Fit)
  7. 127-9120 or 147-7077 - FUEL LINE CLAMP - FUEL TANK (Retains the Fuel Line to the Bottom of the Fuel tank via the Screw-In Fuel Filter) x1 Per Fuel Line
