Toro OEM 136-7198 Flange Spacer Bolt Fits Quick Clear, Power Clear, Power TRX Snowblower Models - Timecutter and Titan My Ride Models - TX Models.

Please refer to the Images above; Product Specifications and the Model Fit Guide below to Ensure a proper fit.

Part Number 56-6590 Supersedes to Part Number 136-7198.



• PRODUCT NUMBER AND VARIATIONS: 136-7198, 136 7198, 1367198, 56-6590, 56 6590, 566590
• PRODUCT TYPE: Flange Spacer Bolt
• SIZE: 0.350 in.
• NOTES & DETAILS: Toro OEM  136-7198 IS COMMINLY USED -

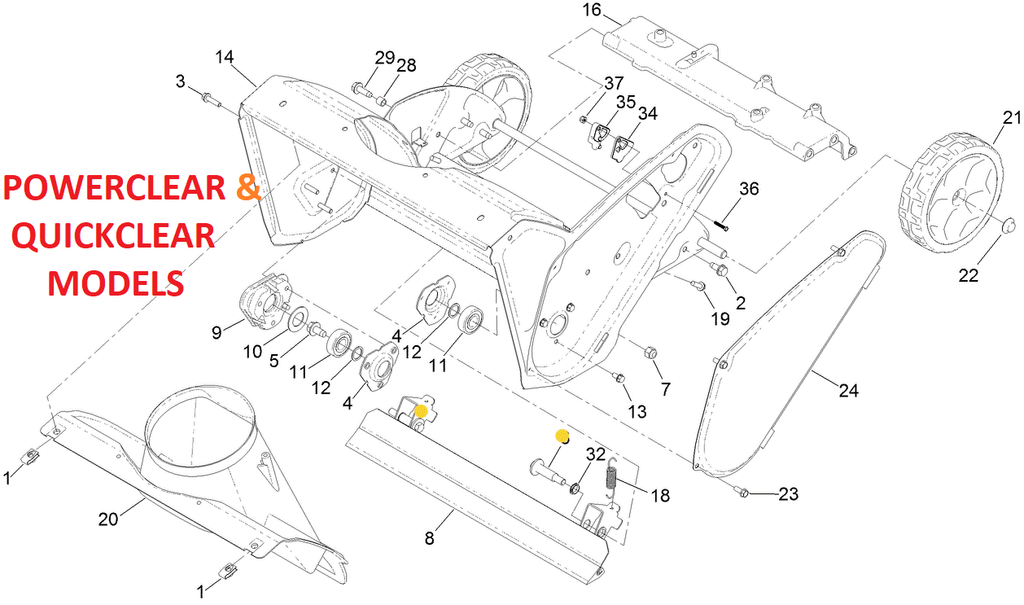

1. Single Stage Quick Clear & Power Clear Snow Blower - Lower Handle Assembly Lower Whole - Scraper Bar Fastner

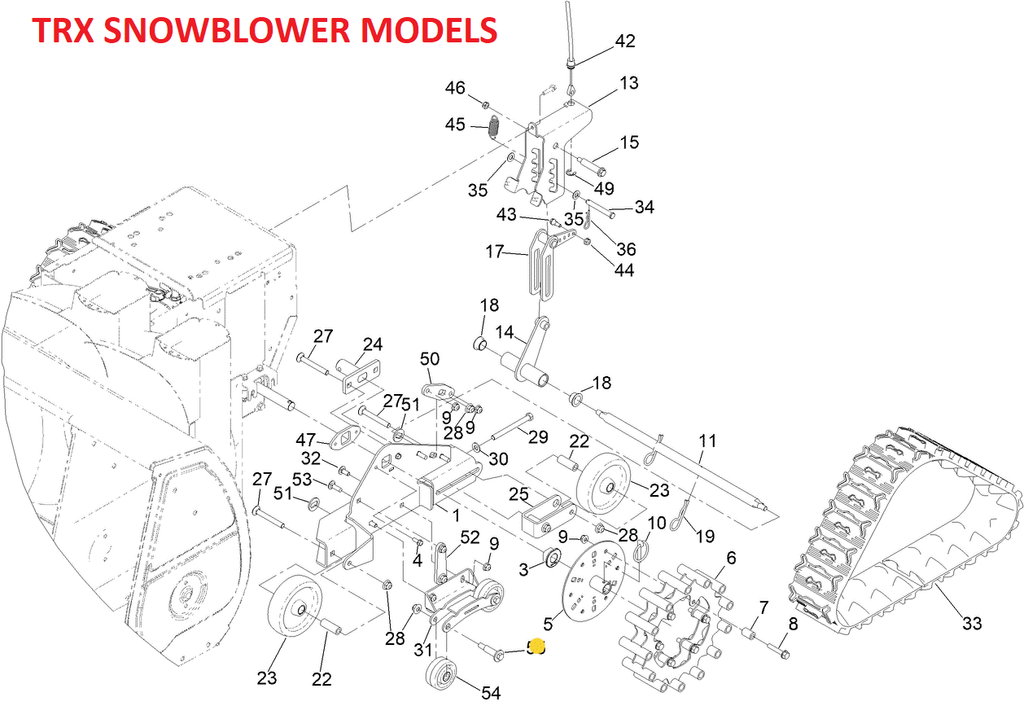

2. Dual Stage TRX Snow Blowers - Track Wheel Support Bracket

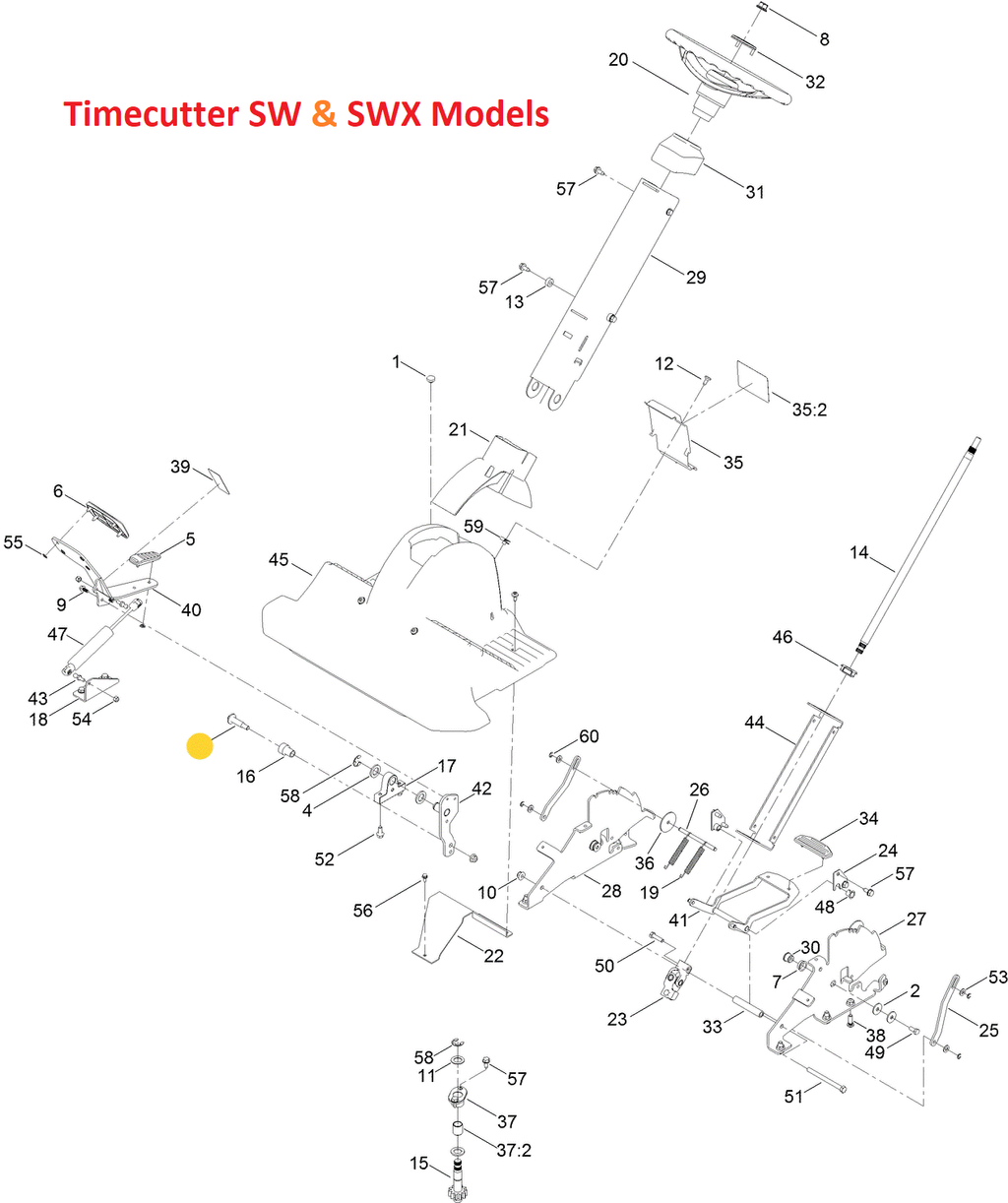

3. Late Timecutter SW & SWX Model - Steering Wheel Pivot Lever Assembly

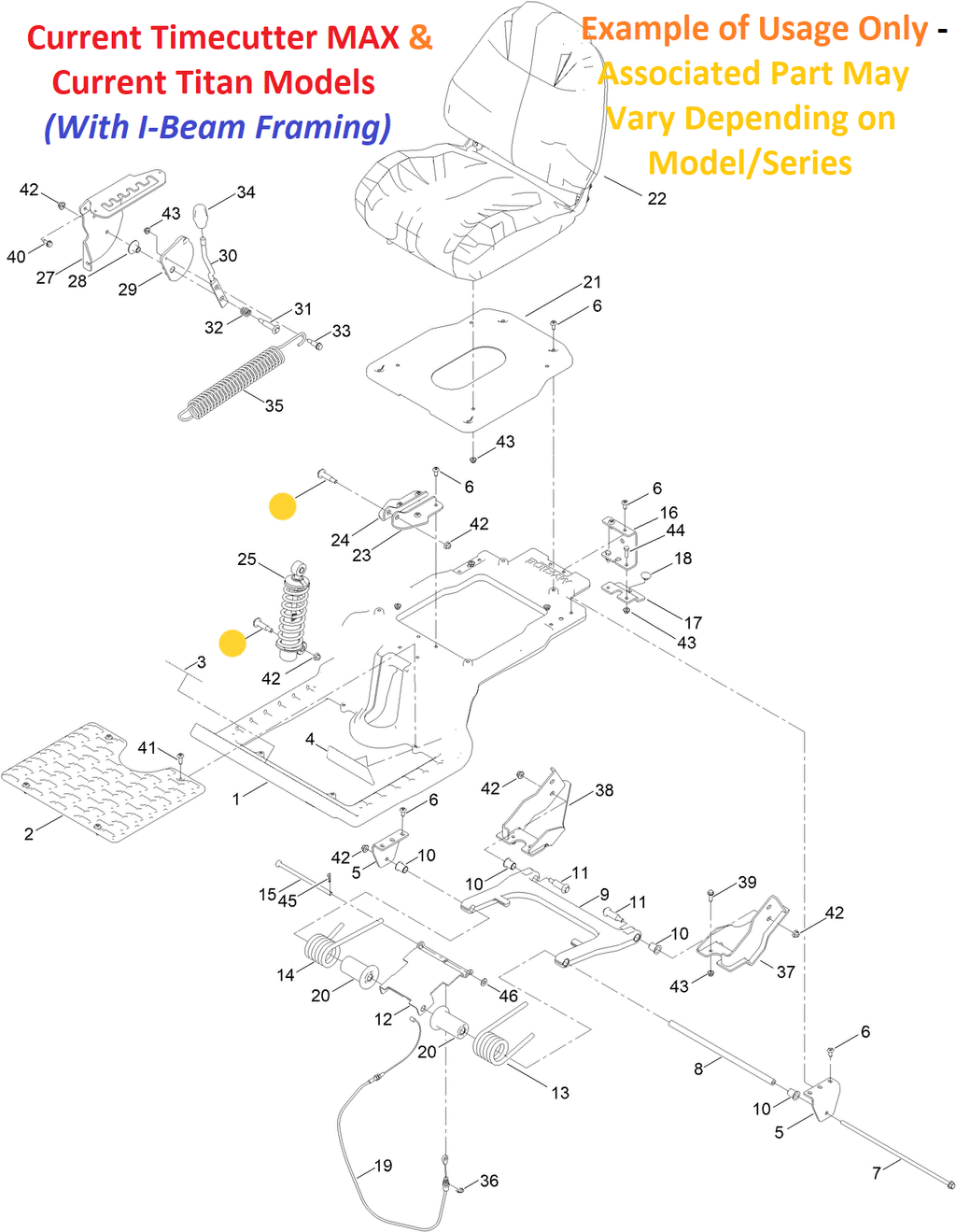

4. Current Timcutter Max & Current Titan (Models with I-Beam Framing) My-Ride Models - Front My-Ride Shock/Spring Assembly

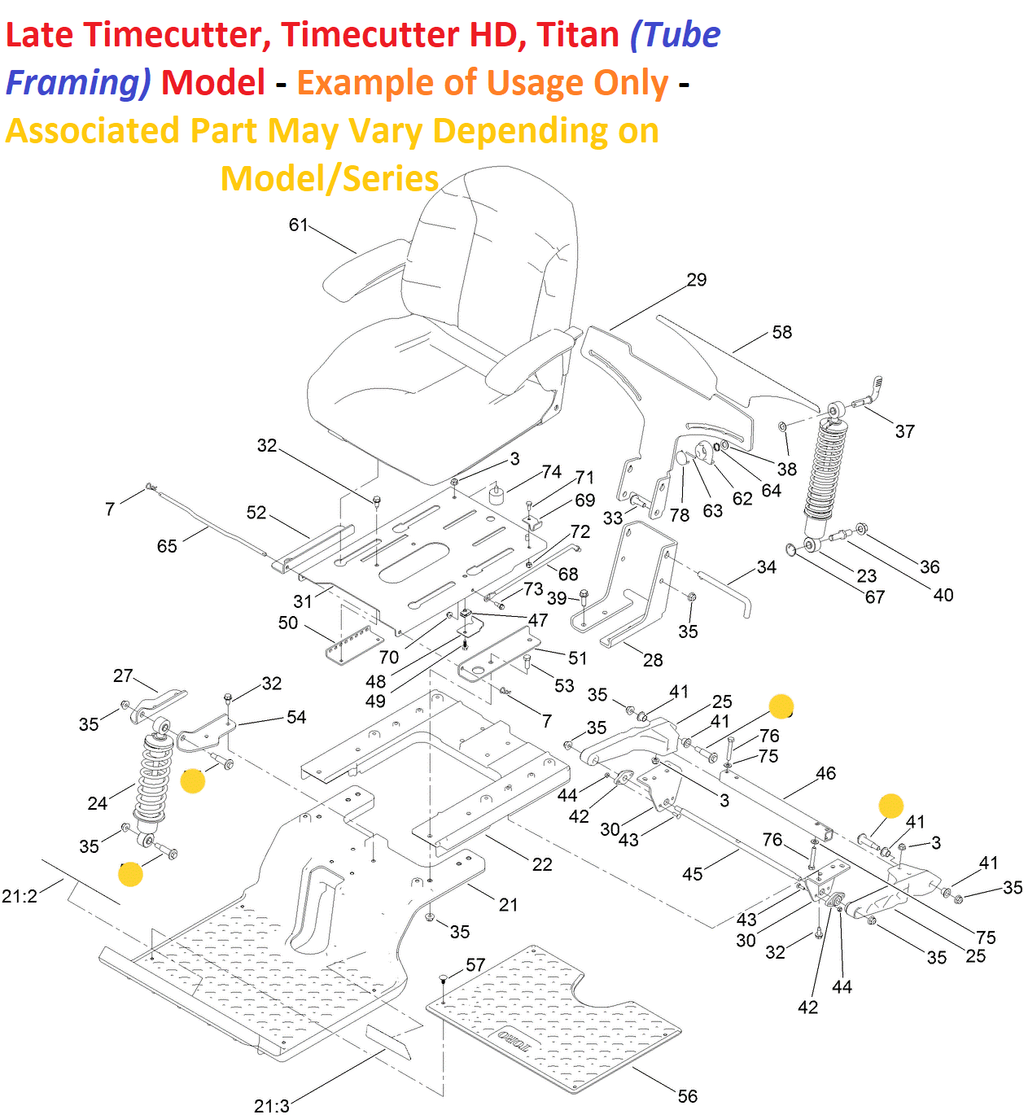

5. Late Timecutter, Timecutter HD & Titan (Models with Tube Style Framing) My-Ride Models - Front My-Ride Shock/Spring Assembly and The My-Ride Trailing Arms Under the Seat.

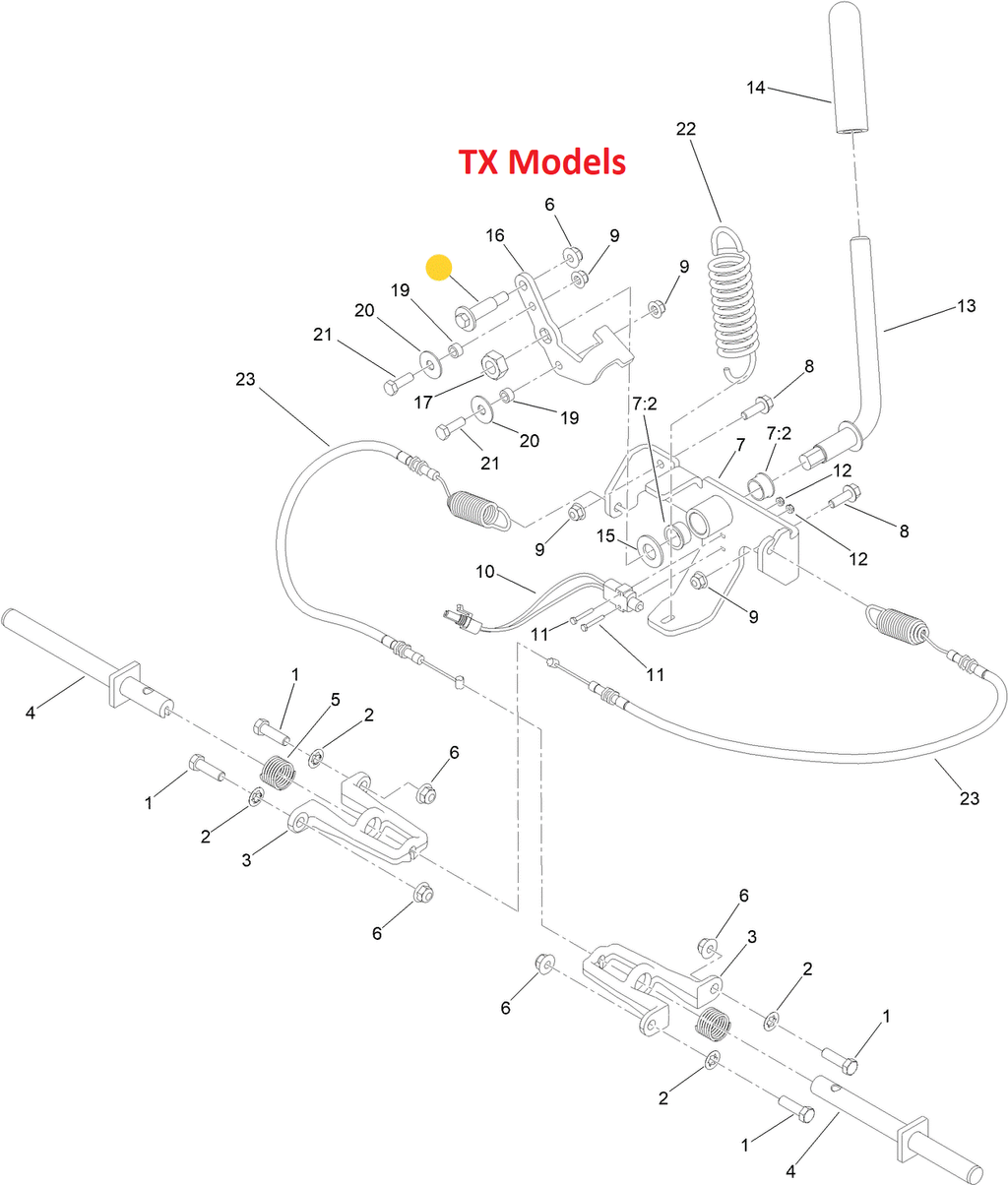

6. TX Models - Brake Plate Linkage

• COMMON SERIES APPLICATIONS: Toro Power TRX, Quick Clear, Power Clear Snow Blower Models - Older or Early Timecutter 42" SW & 50" SWX Models (Steering Wheel Models) - Late Timecutter, Timecutter MX, Timecutter HD Models (Only My-Ride Models) - Current Timecutter  MAX Models (Only My-Ride Models) - Late Titan Models - Current Titan Max Models (I-Beam Framing) - TX Models.



• MODEL FIT CHART:



TIMECUTTER SW & SWX



42” TIMECUTTER SW Series – Model Numbers – (* Model Numbers 74676, 74788)



50” TIMECUTTER SWX Series – Model Numbers – (* Model Numbers 74795)



TIMECUTTER



42” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74690, 74691)

42” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77403)

42” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74692, 75743, 75745, 75747)

TIMECUTTER 42” (My-Ride - Battery) Series – Model Numbers – (* Model Numbers 75642)



50” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77502)

50” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74696, 75755, 75759)

50” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74694, 74695, 74778, 74768)



54” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77503, 77507)

54” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75754, 75756, 75757)

54” TIMECUTTER (My-Ride - Battery) Series – Model Numbers – (* Model Numbers 75851)



60” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77602, 77603)

60” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75763)



TIMECUTTER HD



48” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74866, 74886, 75210, 75211)

54” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74867, 74888, 75212)

60” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 75213)



TITAN



48” TITAN My-Ride (48” Newer/Current Models I-Beam Frame) – 48” Current Models - (* Model Numbers 76411, 76425, 76448)

48” TITAN 4800, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early / Late Models Only - (* Model Numbers 75311, 75314)

48” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74887, 74890)



54” TITAN My-Ride (54” Newer/Current Models I-Beam Frame) – 54” Late/Current Models Only - (* Model Numbers 76511, 76530, 76554)

54” TITAN 5400, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early / Late Models Only - (* Model Numbers 75312, 75315)

54” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74889, 74898)



60” TITAN, TITAN My-Ride, Titan ZXM 6075 (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76614, 76635, 76660)

60” TITAN 6000, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Late Models - (* Model Numbers 75313, 75316)



SNOWBLOWER’S



QUICK CLEAR Series – Model Numbers – (* Model Numbers 38563, 38568)

POWER CLEAR Series – Model Numbers – (* Model Numbers 38741, 38742, 38744, 38751, 38752, 38753, 38754, 38755, 38756, 38757, 39921)

POWER TRX Series – Model Numbers – (* Model Numbers 38870, 38875, 38890, 38891)



TX



TX Series – Model Numbers – 22327, 22328, 22351, 22352, 22587, 22588, 22750, 22751



KITS



Brake Kits – Part Numbers – 136-4799

TRX UPDATE Kits – Part Numbers – 145-0700
