Toro OEM 136-7146 Auger/Rotor Clutch Cable Spring Fits Toro Select 21" Single Stage Power Clear and Quick Clear Snowblower Models.

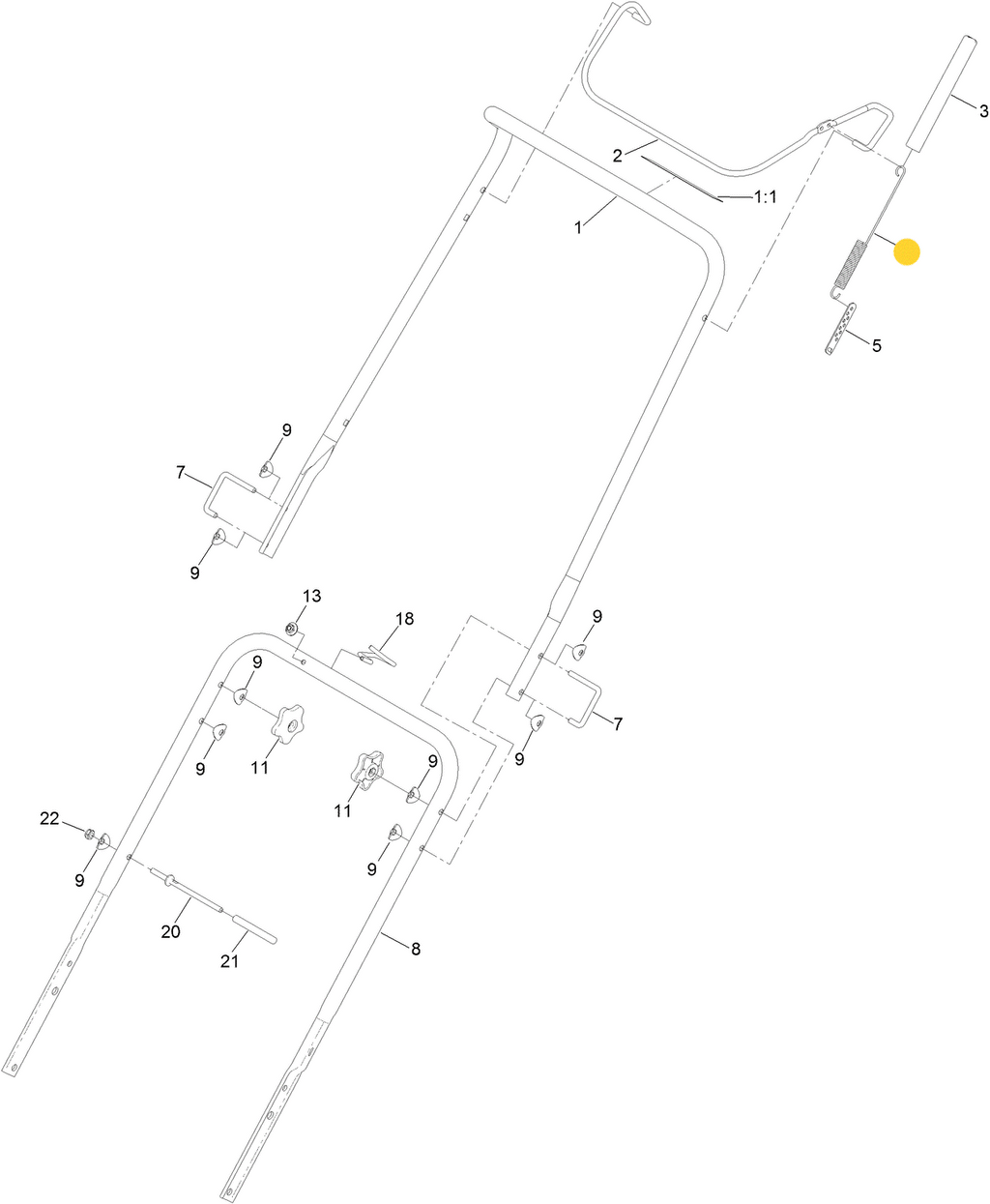

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.

Part Number 125-1148 Supersedes to Part Number 136-7146.

• PRODUCT NUMBER AND VARIATIONS: 136-7146, 136 7146, 1367146

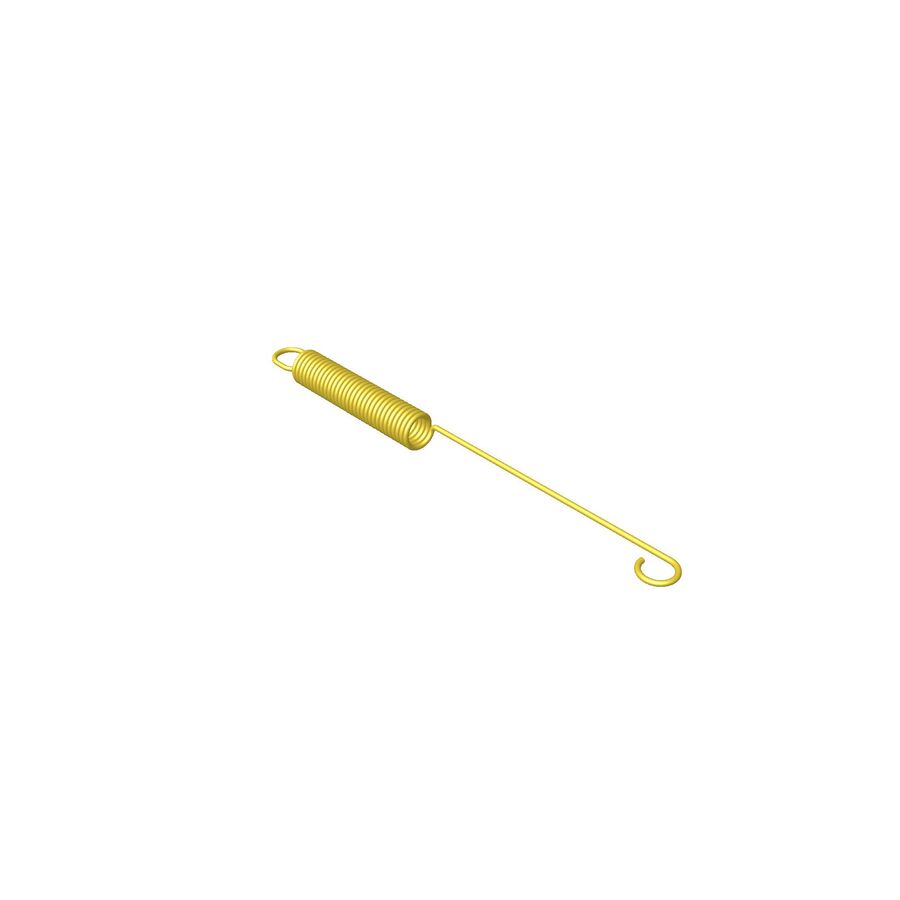

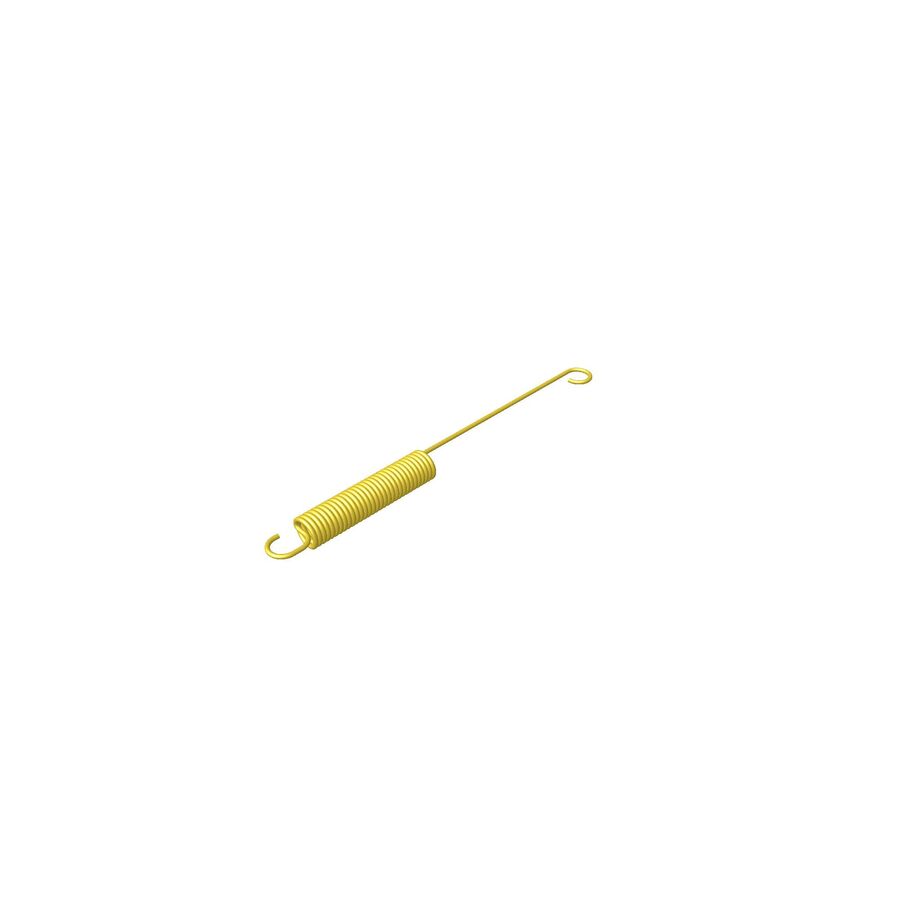

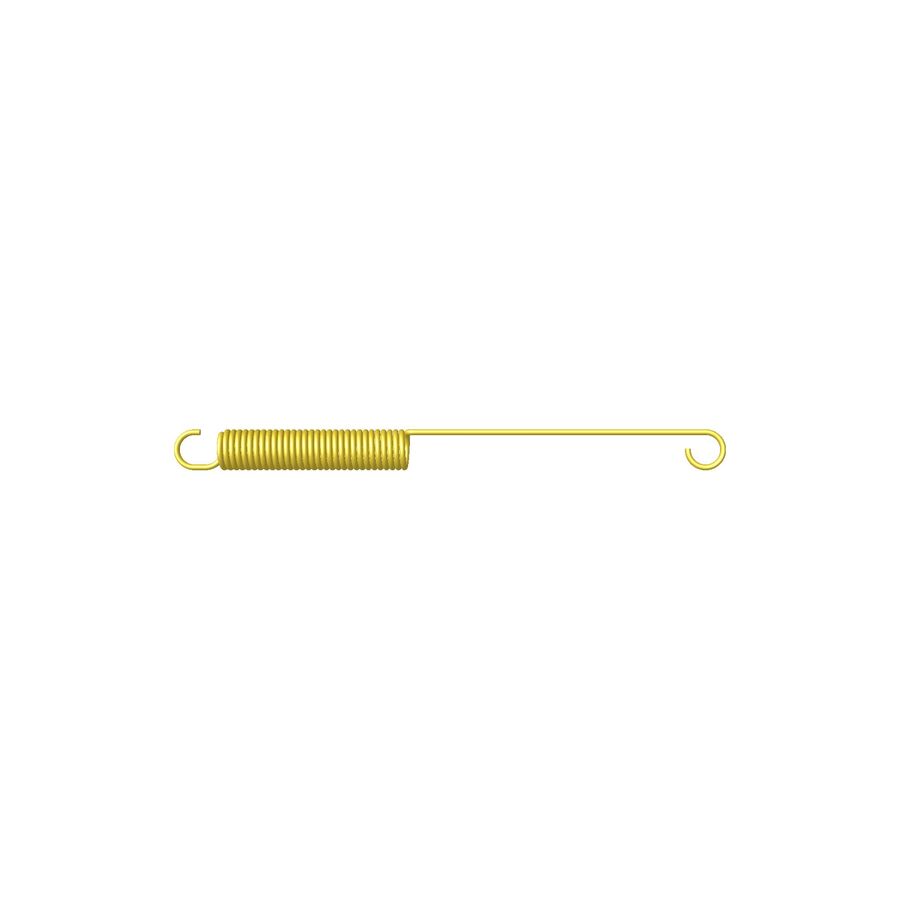

• PRODUCT TYPE: Auger/Rotor Clutch Cable Spring
• SIZE: Length 8.100 in. - Width 0.520 in. - Height 0.520 in. - Weight 0.093 lbs.
• NOTES & DETAILS: Toro OEM  136-7146 IS COMMINLY USED - In the Upper Handle Clutch Bail and Clutch Cable Adjustment Plate and Eliminates Broken Cables and Linkage Items in the Case of if those Items Where to Freeze or Bind from Less-than-Ideal Weather Elements and Circumstances. Toro 136 7146 Design also Enable the Operator to Easily Adjust Clutch Cable Tension/Responsiveness to Preferred Amount While on the Go.
• COMMON SERIES APPLICATIONS: Toro Select 21" Power Clear & Quick Clear Snow Blower Models.

• MODEL FIT CHART:

SNOWBLOWER’S

QUICK CLEAR Series – Model Numbers – (* Model Numbers 38563, 38568)

POWER CLEAR Series – Model Numbers – (* Model Numbers 38741, 38742, 38743, 38744, 38751, 38752, 38753, 38754, 38755, 38756, 38757)

• ASSOCIATED PARTS CHART:

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 136-7146 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

1. 114-3780-03 - CLUTCH BAIL (Inserts into the Upper Whole's in the Upper Handle Section and Enables the Operator to Engage and Disengage the Rotors/Auger) x1 Per Handle Assembly
2. 114-3796 - CLUTCH SPRING COVER (Installed Over the Spring to Protect the Spring of Outside Elements) x1 Auger/Rotor Clutch Spring
3. 136-7126 - CLUTCH SPRING/CABLE ADJUSTMENT PLATE (Serves as the link between the Clutch Cable and the Clutch Cable Spring to which both would Hook Into - 136-7126 Contains Numerous Whole for Adjustment Purposes) x1 Per Clutch Cable and Spring
