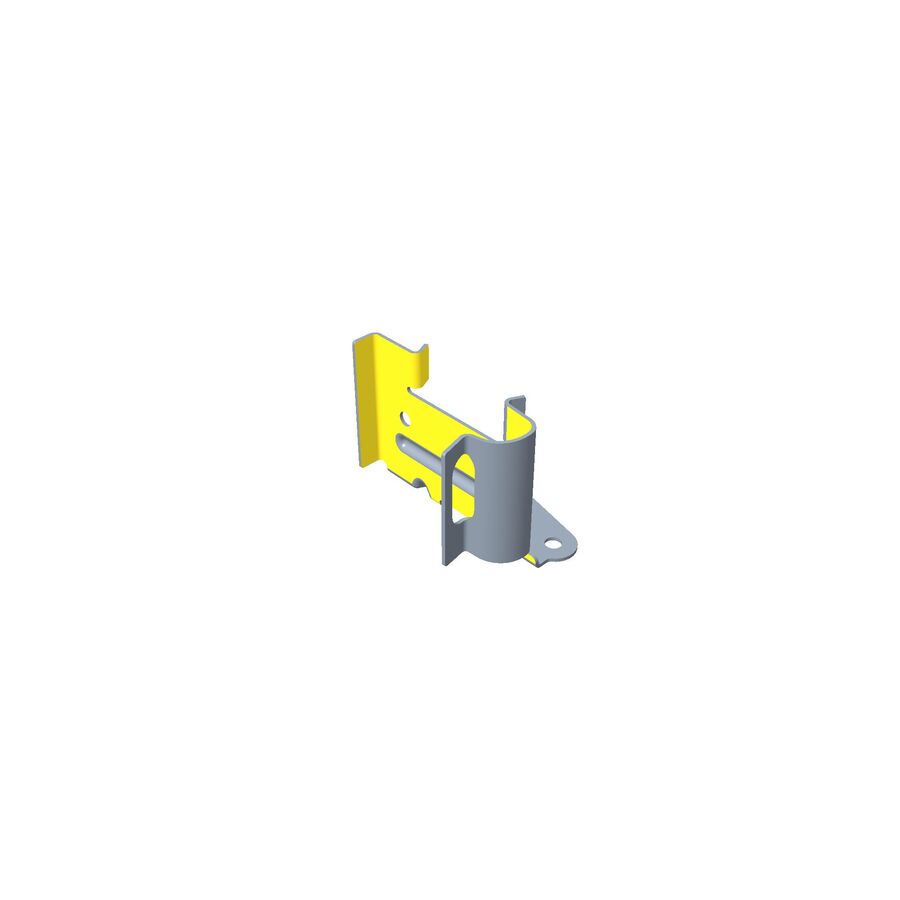

Toro OEM 136-7142 Belt/Cable Guide Fits Select 18" Single Stage Power Clear and Power Lite (Only Model 38274) Snowblower Models.

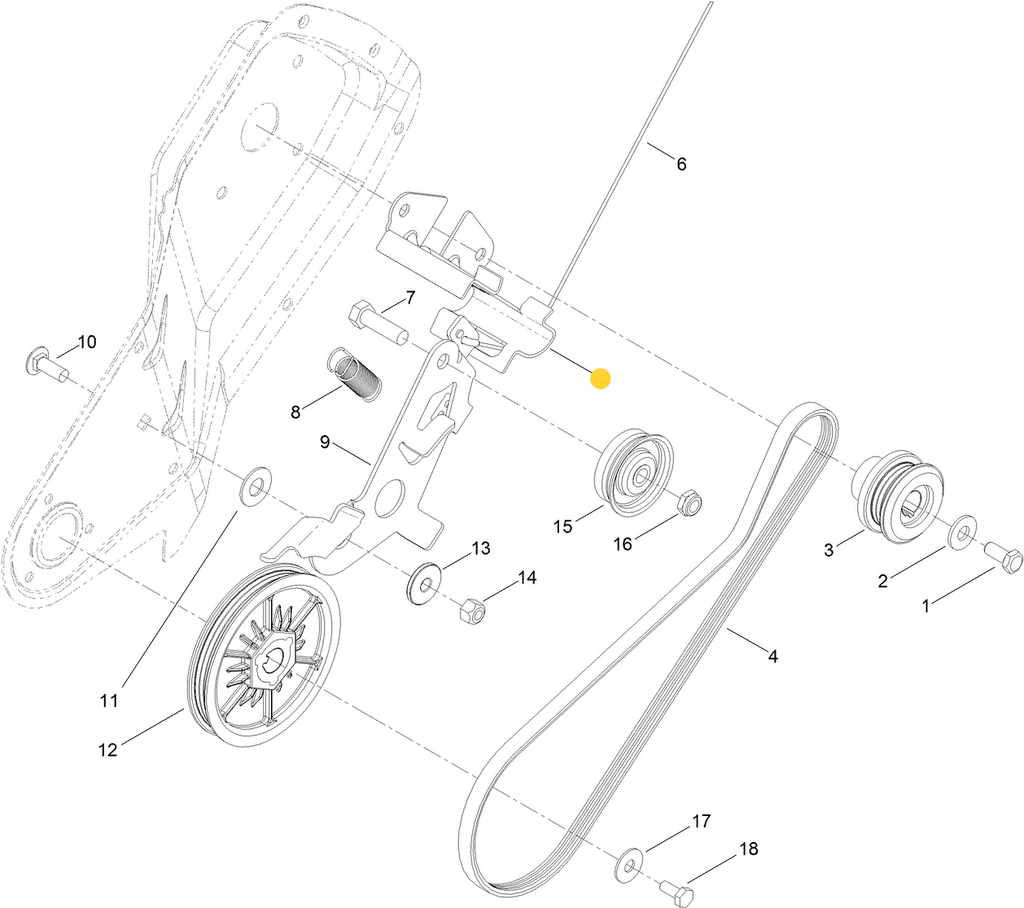

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.

• PRODUCT NUMBER AND VARIATIONS: 136-7142, 136 7142, 1367142
• PRODUCT TYPE: BELT GUIDE/CABLE GUIDE
• SIZE: Length 4.750 in. - Width 3.250 in. - Height 3.000 in. - Weight 0.440 lbs.
• NOTES & DETAILS: Toro OEM  136-7142 IS COMMINLY USED - 136-7142 Fastens to the Frame of the Snowblower and acts in Redirecting the Tension Cable into and Operated in a 90 Degree Angle without Rubbing Against anything that is Sharp or Rough that would Prematurely Wear the Cable - Cable Is Routed under the Bottom Side across the Curved/Shoe Style Surface and through the Opening on the bottom side - 136-7142 Also acts as a belt Guide Reducing the chances of the Rotor/Auger Belt from Coming off.
• COMMON SERIES APPLICATIONS: Toro Select 18" Power Clear & Powerlite (Only Model 38274) Snow Blower Models.

• MODEL FIT CHART:

SNOWBLOWER’S

POWER LITE Series – Model Numbers – (* Model Numbers 38274)

POWER CLEAR Series – Model Numbers – (* Model Numbers 38472 Serial Number 402082000 and Higher, 38473 Serial Number 402082000 and Higher, 38474, 38475)

• ASSOCIATED PARTS CHART:

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 136-7142 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

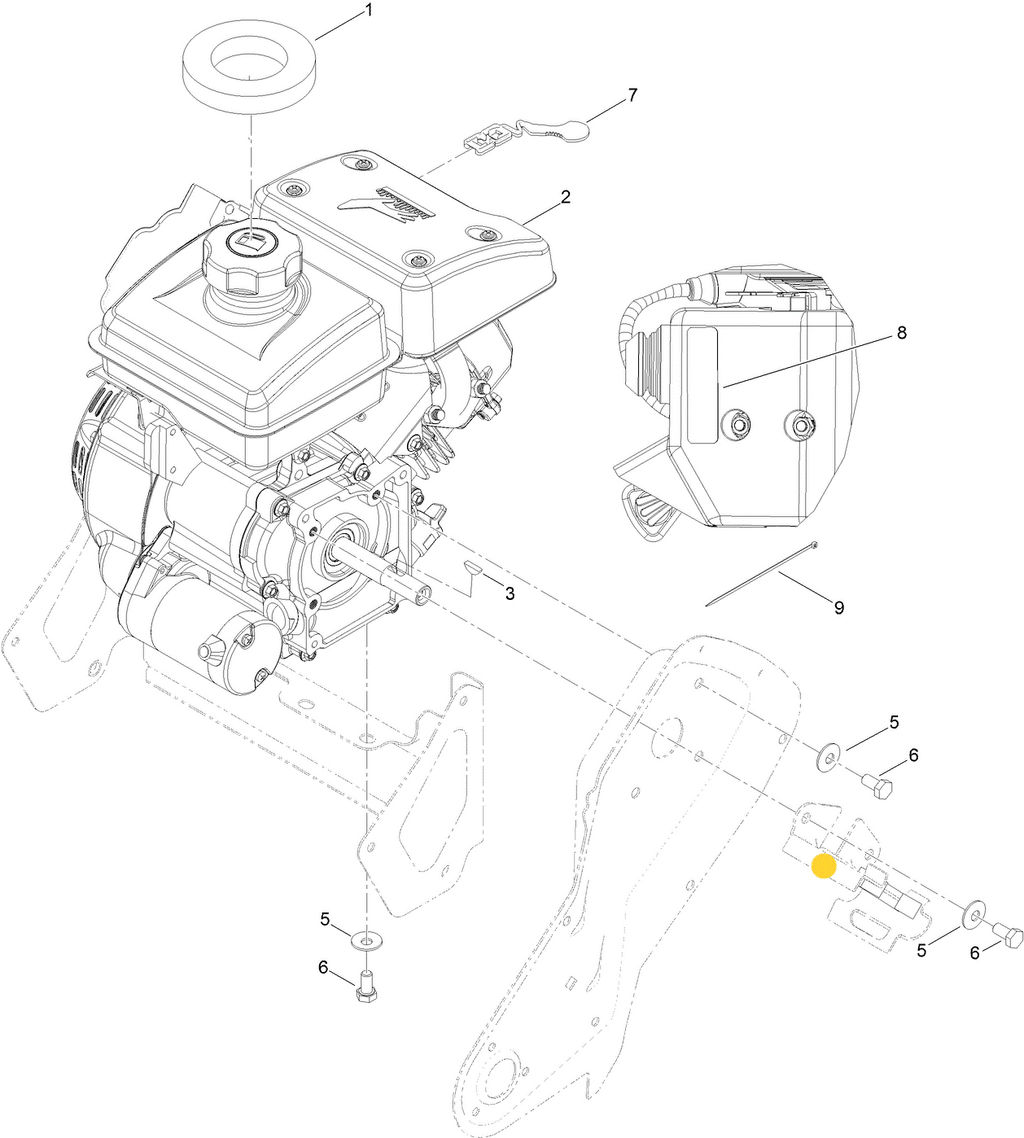

1. 139-9940 - HEX HEAD BOLT (Screws Through the Main Frame and Into the Engine Crankcase, Retaining the Belt Guide/Cable Guide and Engine to the Main Snowblower Frame Using the Threaded Engine Crankcase Wholes) x2 Per Belt Guide/Cable Guide - *Select Models (38274, 38272) Only - M8 x 16 -1.25 - Used Without a Washer
2. 33114-016 - HEX HEAD BOLT (Screws Through the Main Frame and Into the Engine Crankcase, Retaining the Belt Guide/Cable Guide and Engine to the Main Snowblower Frame Using the Threaded Engine Crankcase Wholes) x2 Per Belt Guide/Cable Guide - *Select Models (38473, 38474, 38475) Only M8 x16 - 1.25 - Used with Washer 3290-456
3. 3290-456 - FLAT SPACER WASHER (Installed Between the Bolt Hex Head and the Belt Guide/Cable Guide, Used to Support the Hex Head Bolt Head Against the Belt Guide Cable Guide Bracket whole as well as Retaining Tension Under Tightening Pressure) x2 Per Belt Guide/Cable Guide - *Select Models Only - Used Only with Bolt 33114-016
