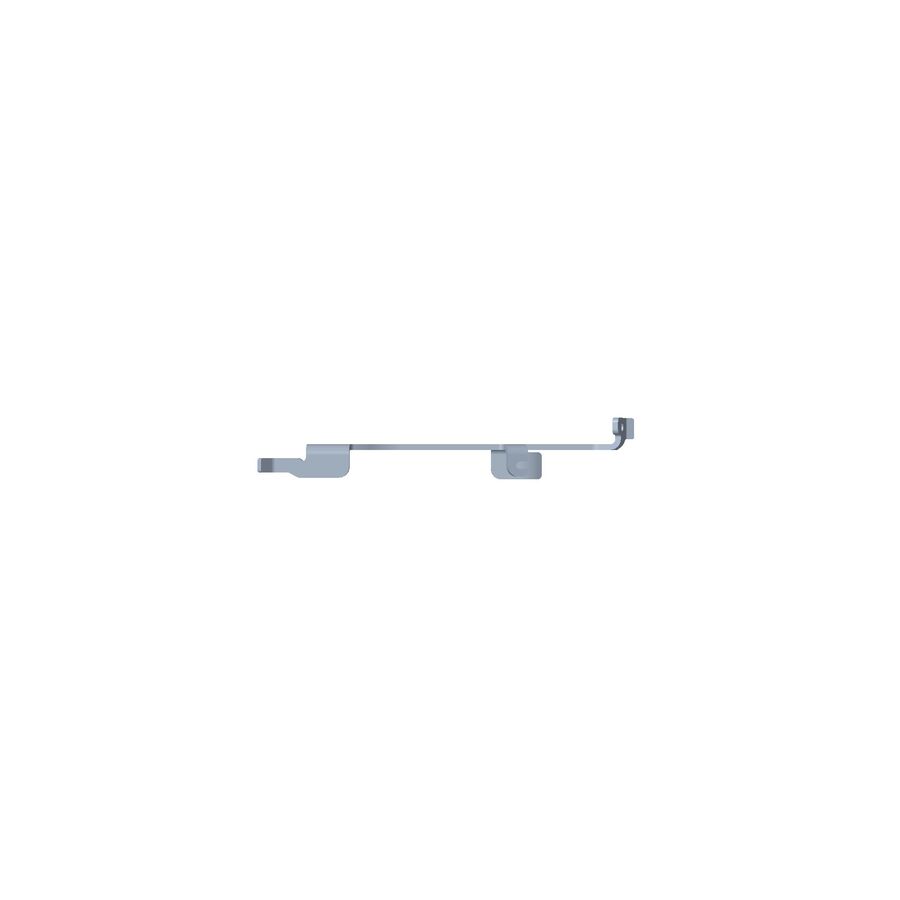

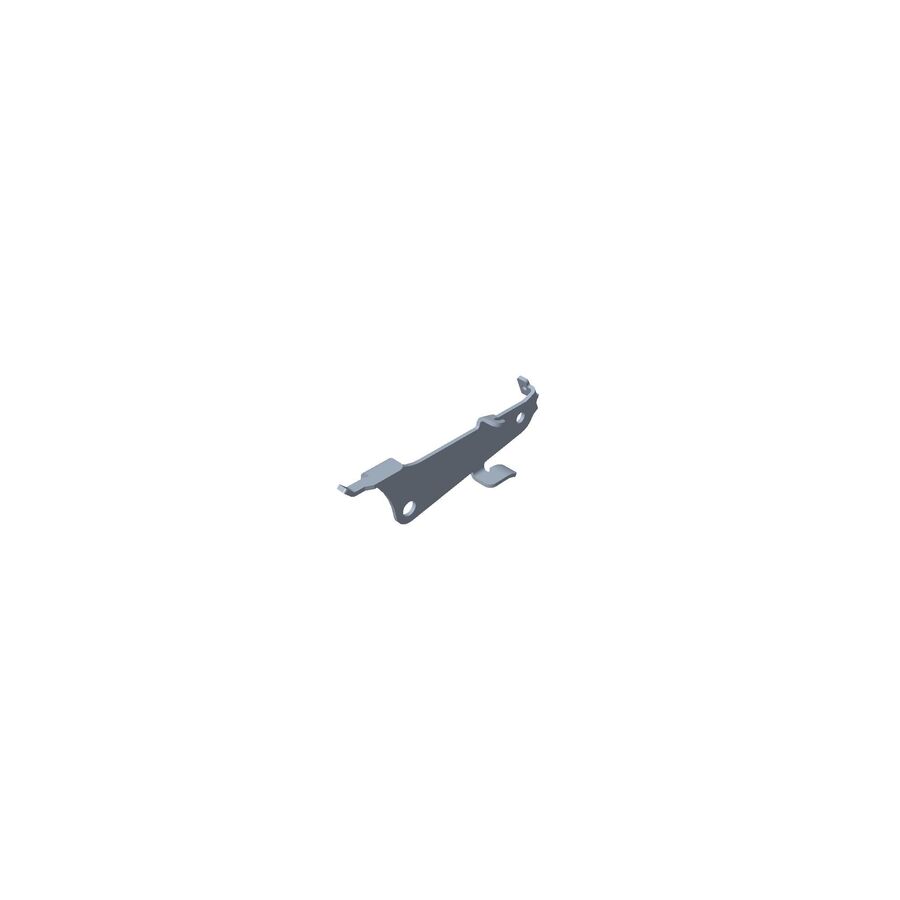

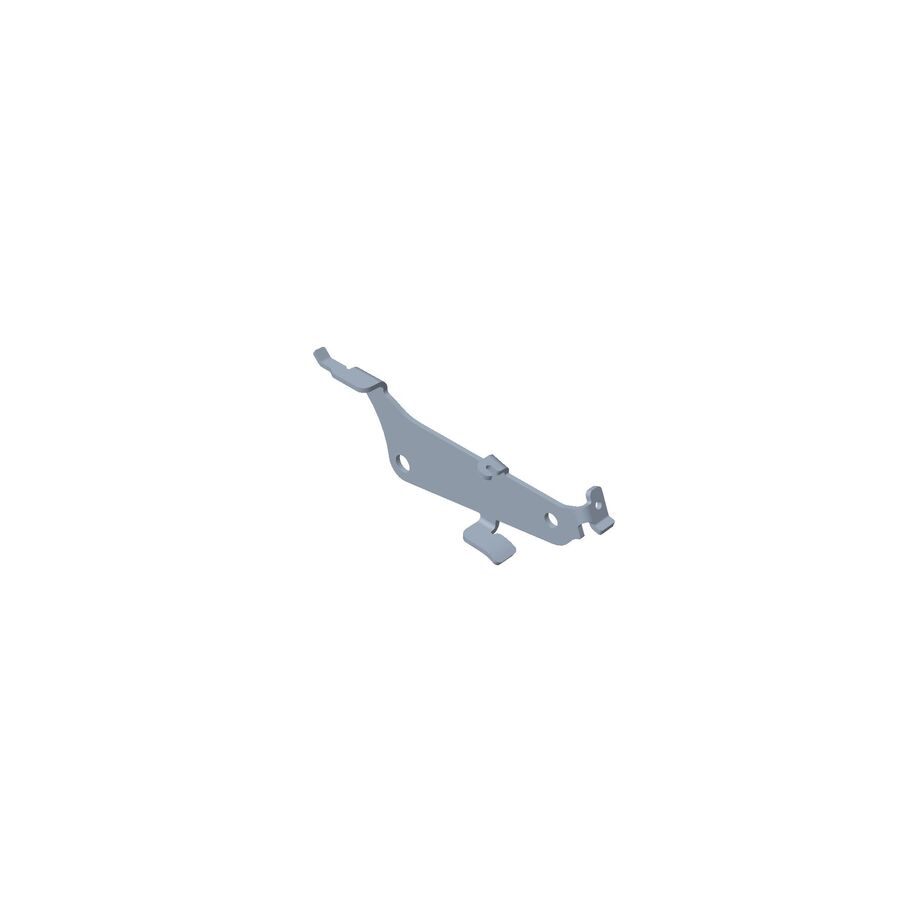

Toro OEM 136-7138 Idler Pulley Tensioner Arm Fits Select 21" Single Stage Power Clear and Quick Clear Snowblower Models.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.

Part Number 114-3782 Supersedes to Part Number 136-7138.



• PRODUCT NUMBER AND VARIATIONS: 136-7138, 136 7138, 1367138, 114-3782, 114 3782, 1143782
• PRODUCT TYPE: Tensioner Idler Pulley Arm
• SIZE: Length 8.750 in. - Width 3.500 in. - Height 1.000 in. - Weight 0.507 lbs.
• NOTES & DETAILS: Toro OEM  136-7138 IS COMMINLY USED - 136-7138 Fastens to the Snowblower main Frame using a Pivot Bushing which allow the Idler Arm to Pivot when the Operator engages The Auger/Rotor Bail Handle. The Auger/Rotor Bail Handle uses a cable to Attach to the Idler Pulley Tensioner Arm and engages it by Tensioning the Idler Pulley against the Belt and Disengages it by allow the Return Spring to Return it when the Tension on the Auger/Rotor Cable and Auger /Rotor Idler Pulley Tensioner Arm is Released.

• COMMON SERIES APPLICATIONS: Toro Select 21" Power Clear & Quick Clear Snow Blower Models.



• MODEL FIT CHART:

SNOWBLOWER’S



QUICK CLEAR Series – Model Numbers – (* Model Numbers 38563, 38564, 38567, 38568, 38569, 38571, 38575, 38576, 38577)



POWER CLEAR Series – Model Numbers – (* Model Numbers 38451,38452, 38453, 38454, 38458, 38459, 38472, 38473, 38474, 38475, 38578, 38581, 38582, 38583, 38584, 38585, 38586, 38587, 38588, 38589, 38593, 38741, 38742, 38743, 38744, 38751, 38752, 38753, 38754, 38755, 38756, 38757)



Misc. Lawn Boy Models – Model Numbers – (* Model Numbers 34001, 34002)



• ASSOCIATED PARTS CHART:

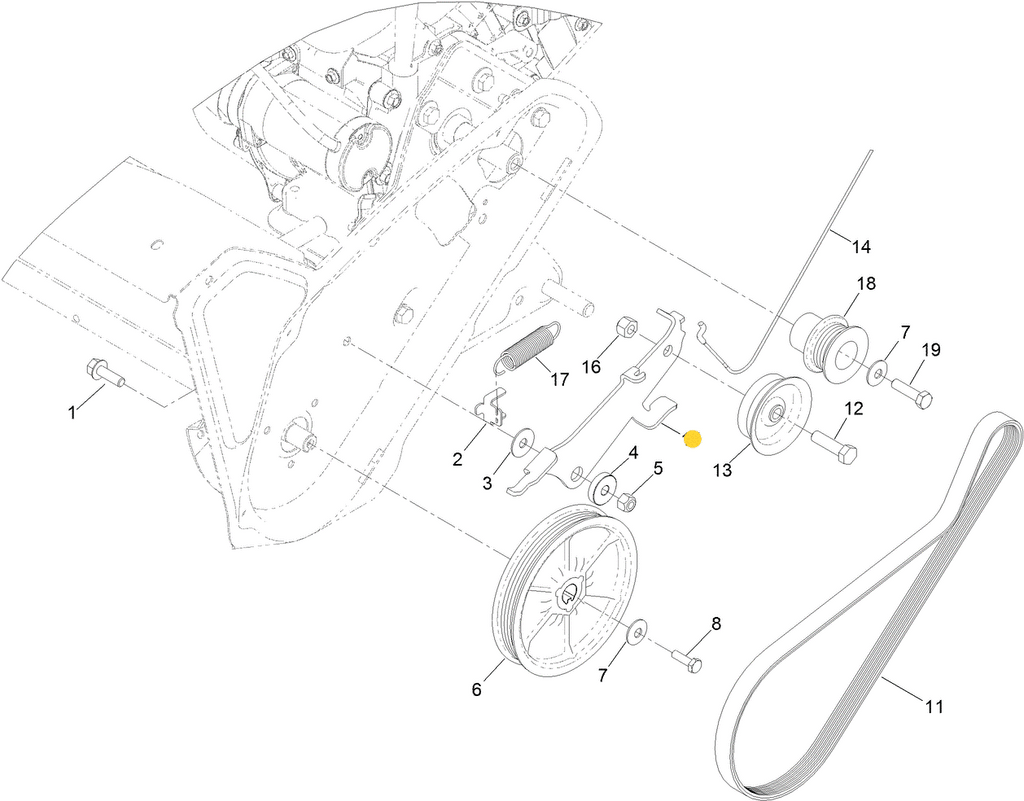

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 136-7138 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED



1. 3234-29 - FLANGE BOLT (Retains the Idler Pulley Tensioner Arm to the Main Snowblower Frame - Installed with the Head of the Bolt on the Inside of the Auger Housing) x1 Per Snowblower
2. 108-4925 - FLAT SPACER WASHER (Installed Between the Ilder Pulley Tensioner Arm and the Main Frame and Spaces the Idler Pulley Tensioner Arm and Idler Pulley Tensioner Arm Insert Spacer Away from the Main Frame Eliminating the Idler Pulley Tensioner Arm from Rubbing against the main Frame) x1 Per Idler Pulley Tensioner Arm
3. 108-4916 - IDLER PULLEY TENSIONER ARM INSERT SPACER (Inserts into the Fastener Whole of the Idler Pulley Tensioner Arm Allowing the Flange to Support the Retaining Nut in Retaining it as well as leaving it Rotate) x1 Per Idler Pulley Tensioner Arm
4. 3296-29 - LOCK NUT (Retains the Idler Pulley Tensioner Arm, Retaining Bolt, Spacer Washer and the Idler Arm Insert Spacer to the Snowblower Frame) x1 Per Idler Pulley Tensioner Arm
5. 121-6630 - IDLER PULLEY TENSIONER ARM RETURN SPRING (Connect to the Idler Pulley Tensioner Arm and also the Spring Clip - Returns the Idler Pulley Tensioner Arm to Reduce Tension on the Auger Belt when the Operator Disengages the Bail/Clutch Handle) x1 Per Idler Pulley Tensioner Arm
6. 136-7133 - RETURN SPRING CLIP (Fastens or Hooks into the Frame of the Snowblower and Allows the Return Spring to be Hooked into it) x1 Per Idler Pulley Tensioner Arm Return Spring
7. 114-3785 - IDLER PULLEY (Maintains Roller Bearing that Allow the Pulley to Match the Speed of the Engine RPM's as the Operator Applies Direct Tension Between the Belt and Idler Pulley while Engaging the Auger or Rotor - Fastens Directly on the Outside side of the Idler Pulley Tensioner Arm) x1 Per Idler Pulley Tensioner Arm * Only Select 21" Power Clear Models & Quick Clear Models - Review Model Numbers Associated to Part Number
8. 139-3513 - IDLER PULLEY (Maintains Roller Bearing that Allow the Pulley to Match the Speed of the Engine RPM's as the Operator Applies Direct Tension Between the Belt and Idler Pulley while Engaging the Auger or Rotor - Fastens Directly on the Outside side of the Idler Pulley Tensioner Arm) x1 Per Idler Pulley Tensioner Arm * Only Select 21" Power Clear Models - Review Model Numbers Associated to Part Number
9. 323-29 - HEX HEAD BOLT (Installed from the Flange Side of the Idler Pulley and travels through the Idler Arm - Retains the Idler Pulley to the Idler Pulley Tensioner Arm) x1 Per Idler Pulley
10. 32152-2 - CONE LOCK NUT (Installed on the Engine side of the Idler Pulley Tensioner Arm and Retains the Idler Pulley to the Idler Pulley Tensioner Arm) x1 Per Idler Pulley
