Description
Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
Part Number 108-4949 Supersedes to Part Number 136-7135
- PRODUCT NUMBER AND VARIATIONS: 136-7135, 136 7135, 1367135, 108-4949, 108 4949, 1084949

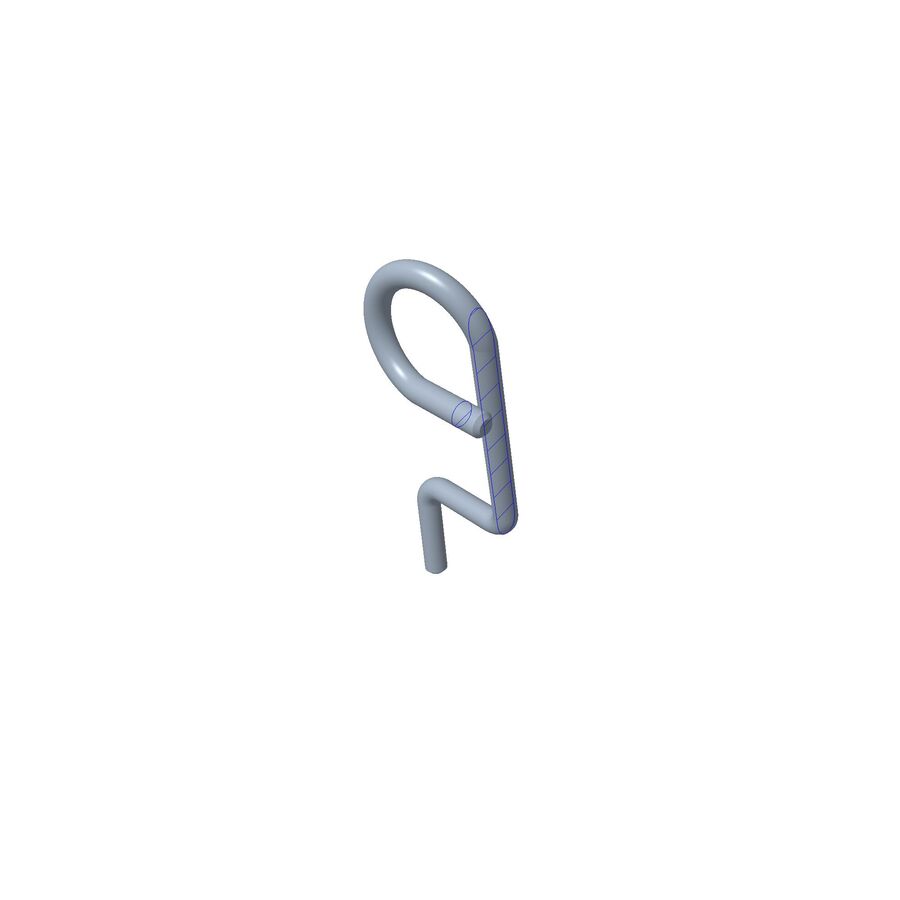

- PRODUCT TYPE: Handle - Rope Guide
- SIZE: Length 3.625 in. - Width 1.500 in. - Height 0.625 in. - Weight 0.068 lbs.

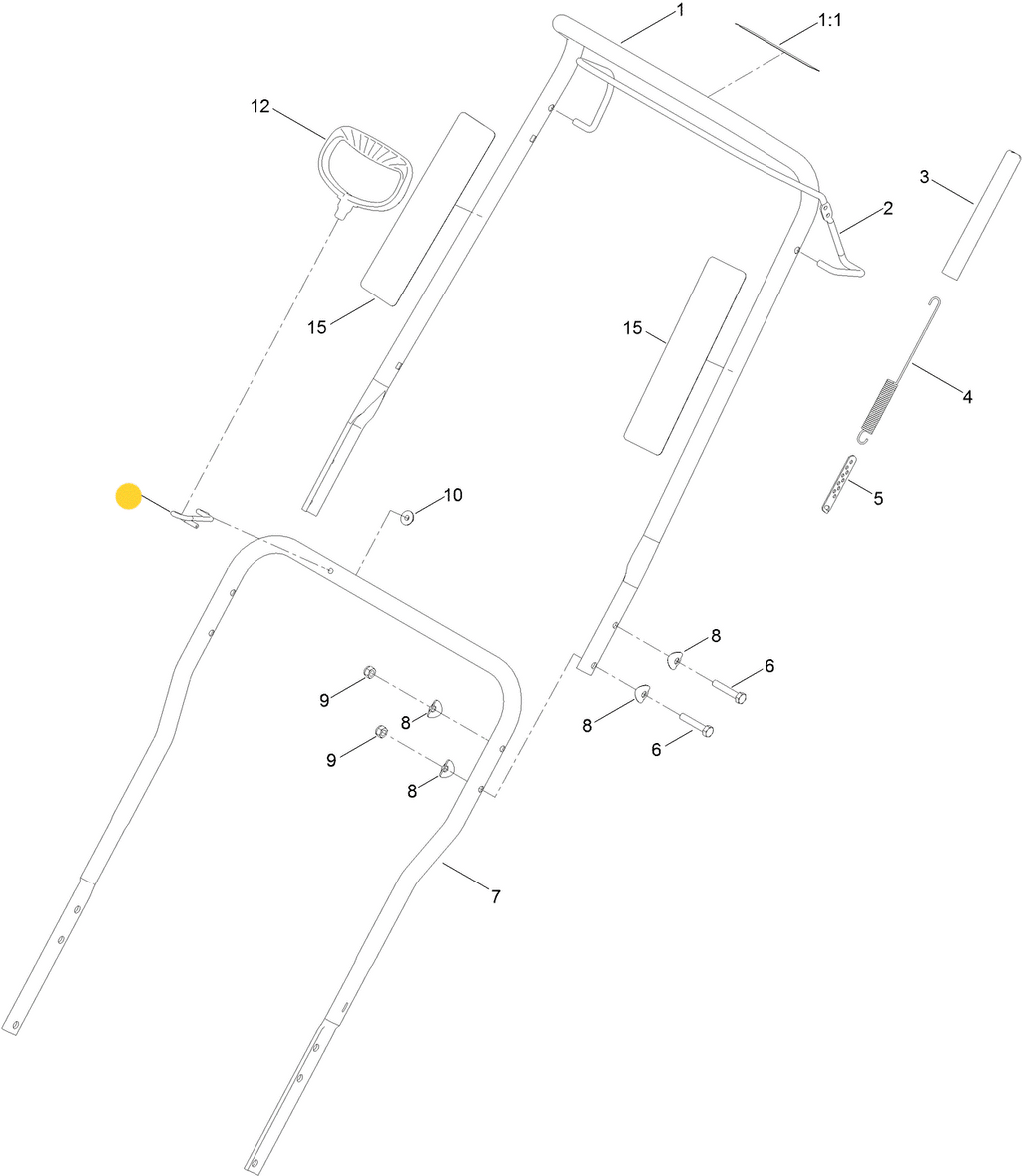

- NOTES & DETAILS: Toro OEM 136-7135 IS COMMINLY USED - Fastened to the Lower Handle Section and Retains the Rope Handle within easy Access to the Operator.
- COMMON SERIES APPLICATIONS: Toro Select 21" Power Clear & Quick Clear Snow Blower Models.
- MODEL FIT CHART:
SNOWBLOWER’S
QUICK CLEAR Series – Model Numbers – (* Model Numbers 38563, 38564, 38567, 38568, 38569, 38571, 38575, 38576, 38577)
POWER CLEAR Series – Model Numbers – (* Model Numbers 38451, 38452, 38453, 38454, 38458, 38459, 38578, 38581, 38582, 38583, 38584, 38585, 38586, 38587, 38588, 38589, 38593, 38741, 38742, 38743, 38744, 38751)
- ASSOCIATED PARTS CHART:
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 136-7135 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 114-3778 - FLANGE NYLON LOCK NUT (Retains the Rope Handle Guide to the Lower Handle Section) x1 Per Handle Assembly
