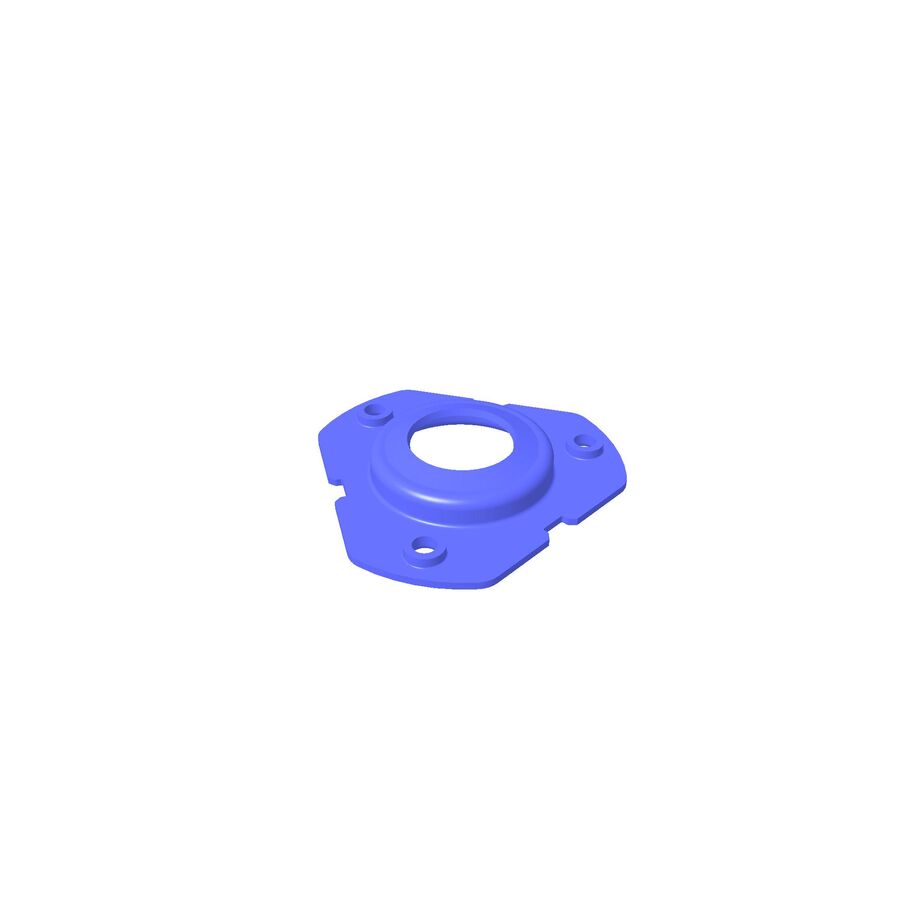

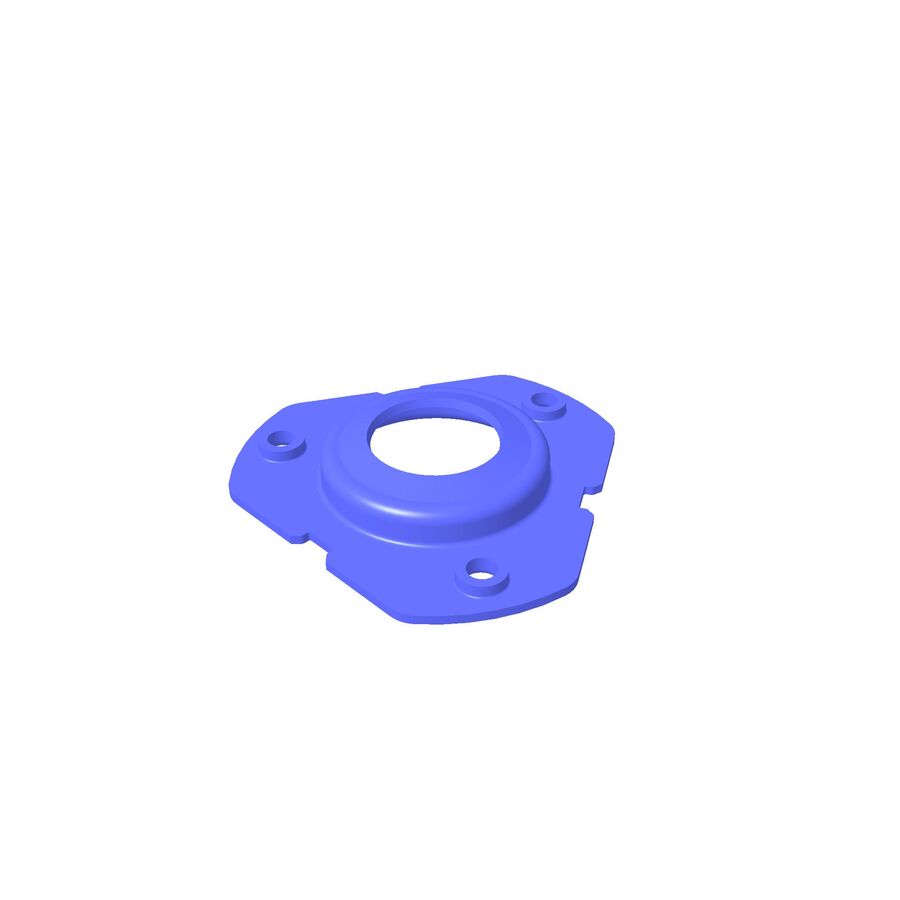

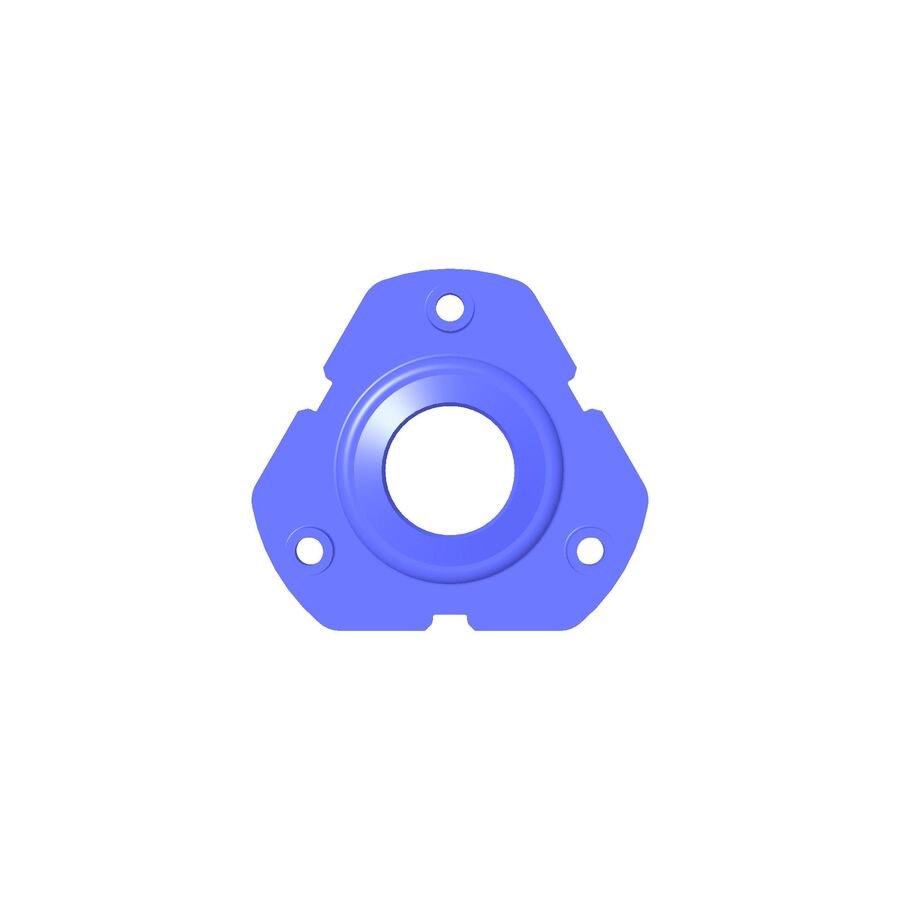

Toro OEM 136-7134 Bearing Flange Fits Toro Power Clear, E-Power Clear, Quick Clear, Snow Master, Snowthrower, E-Snow Master, Snow Max, E-Snow Max Snowblower Models.

Please refer to the Images above and Model Fit Chart below to Ensure a proper fit.

Part Number 108-4943 Supersedes to Part Number 136-7134

• PRODUCT NUMBER AND VARIATIONS: 136-7134, 136 7134, 1367134, 108-4943, 108 4943, 1084943
• PRODUCT TYPE: Bearing Flange
• SIZE: N/A
• NOTES & DETAILS: TORO OEM  136-7134 IS COMMINLY USED -

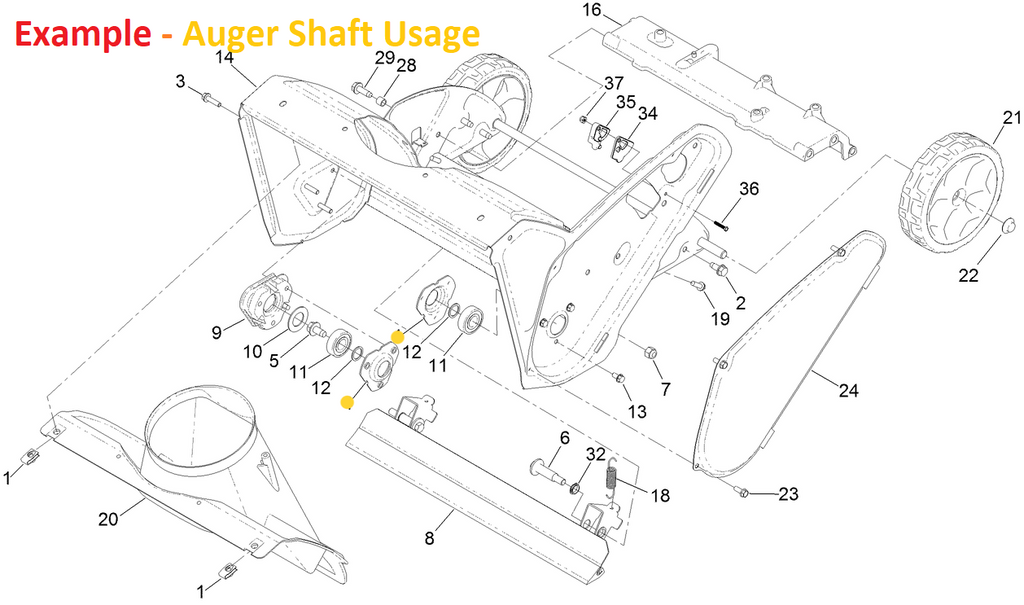

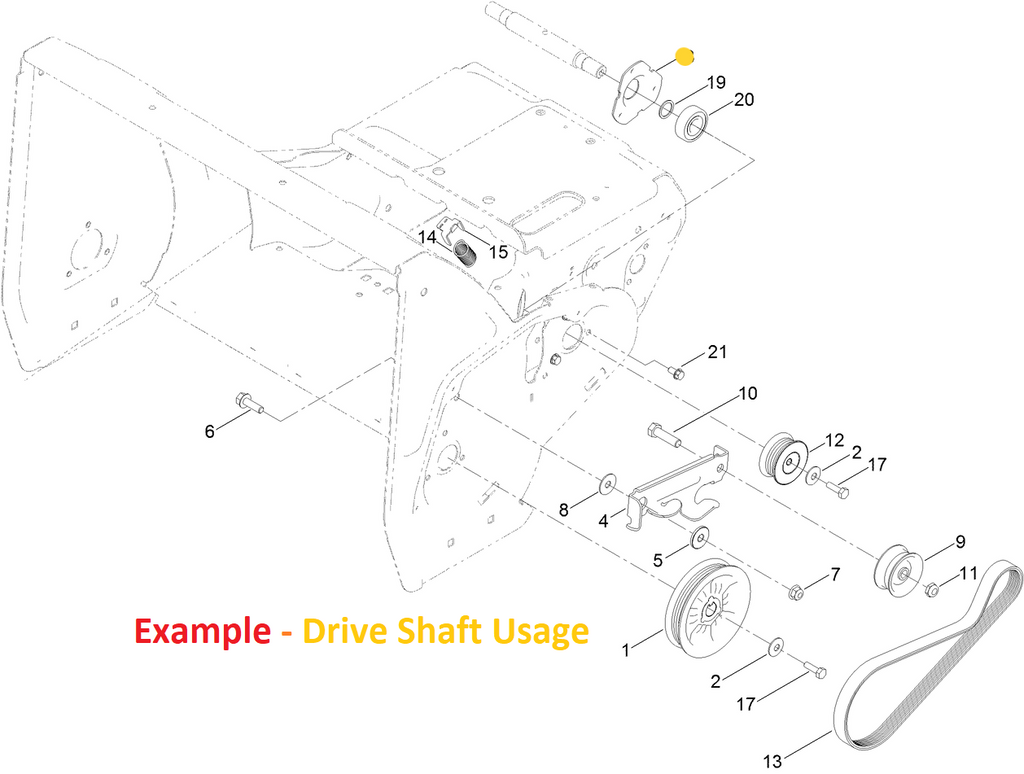

1. Snowblower Usage - Commonly Used to Retain the Auger/Rotor Shaft and Drive Shaft Bearings.

• COMMON SERIES APPLICATIONS: Toro Select Power Clear, Quick Clear, Snowmaster, Snow Max, Snowthrower, E-Power Clear, E-Snowmaster & E-Snow Max Snow Blower Models

• MODEL FIT CHART:

31860, 34001, 34002, 36001, 36002, 36003, 38451, 38452, 38453, 38454, 38458, 38459, 38563, 38564, 38567, 38568, 38569, 38571, 38575, 38576, 38577, 38578, 38581, 38582, 38583, 38584, 38585, 38586, 38587, 38588, 38589, 38593, 38710, 38711, 38712, 38720, 38721, 38741, 38742, 38743, 38744, 38751, 38752, 38753, 38754, 38755, 38756, 38757, 39914, 39914T, 39915, 39915T, 39921, 39921T, 39922T

• ASSOCIATED PARTS & FASTNER CHART:

1. 32144-86 - Washer Head Thread Forming Bolt (Auger Usage) - Threads into the Auger Shaft Bearing Flange that Retains the Roller Bearings - Installed on the Outside of the Auger Housing Retaining the Bearing Flange and Components to the Auger Housing.
2. 32144-4 - Washer Head Thread Forming Bolt (Drive Shaft) - Threads into the Drive Shaft Bearing Flange that Retains the Roller Bearings - Installed on the Outside of the Snowblower Framing/Housing Retaining the Bearing Flange and Components to the Snowblower Housing/Frame.
3. 38-7820 - Auger & Drive Shaft Roller Bearing - Enables the Auger or Drive Shaft to Insert Into it and Tighten allowing it to Rotate with Roller Bearing Assembly - Retained by Using the 136-7134 Bearing Flange.
