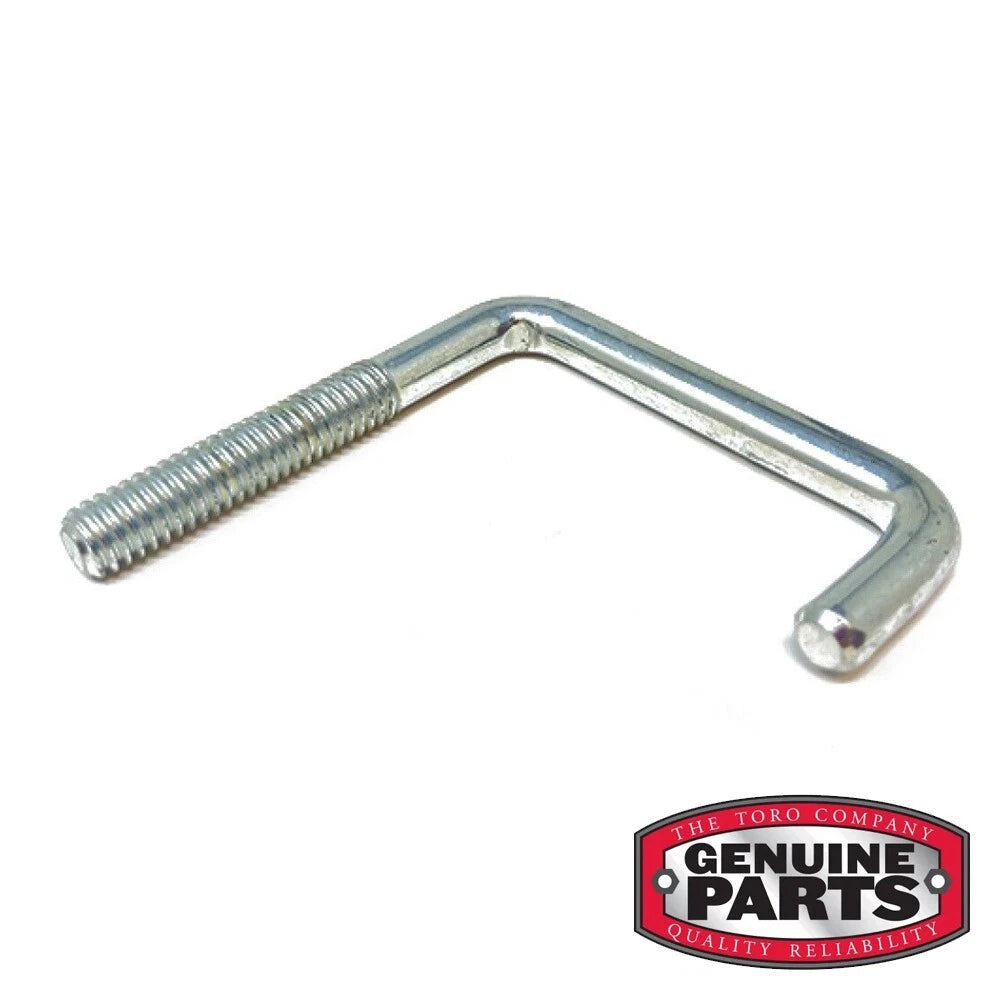

Toro OEM 136-7130 Handle Lock Bolt/Fastner Fits a Wide Range of Toro Snowblower Models (Most Popular on Single Stage Two-Piece Handle Assembly).

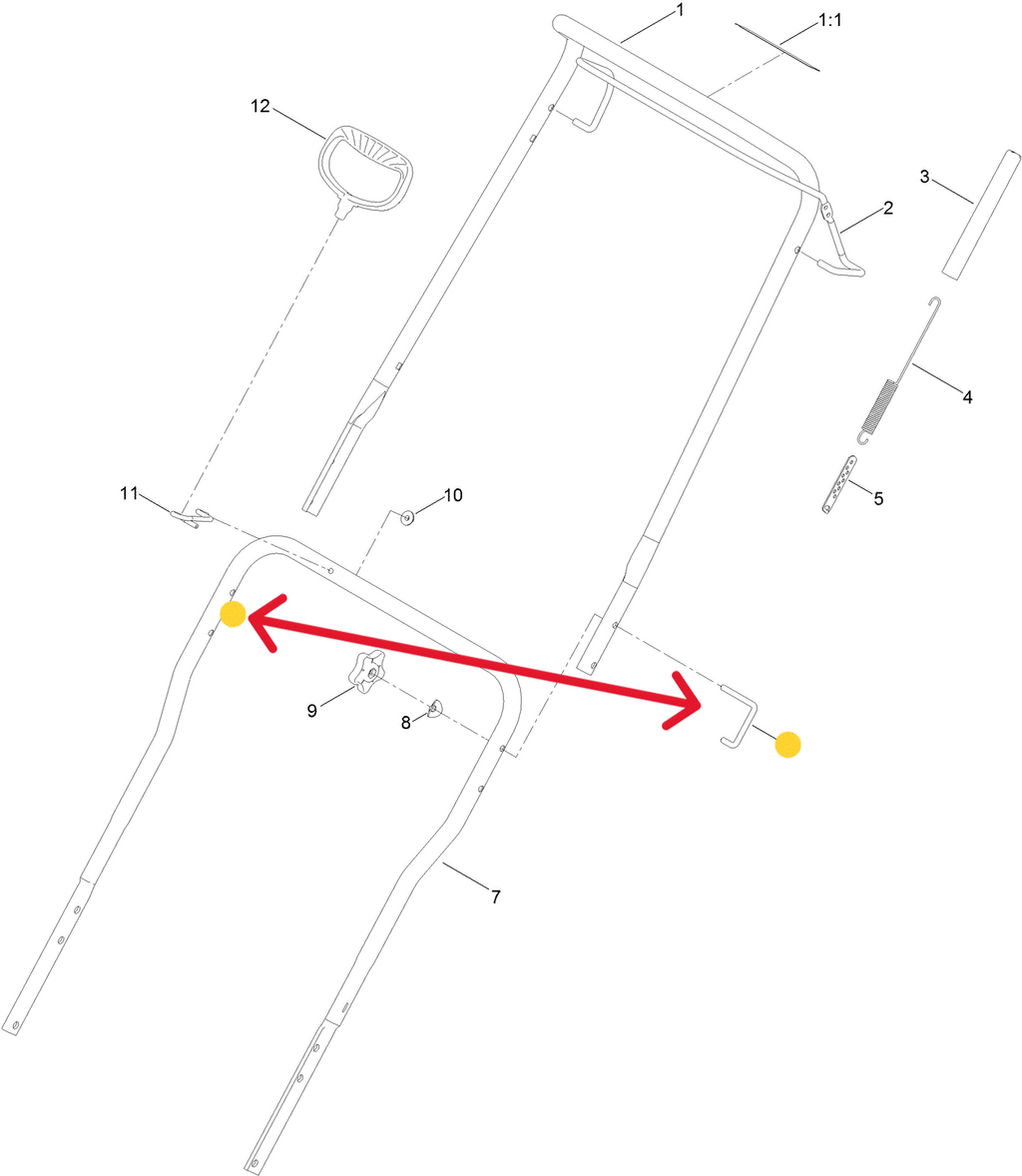

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.

Part Number 108-4887 Supersedes to Part Number 136-7130

• PRODUCT NUMBER AND VARIATIONS: 136-7130, 136 7130, 1367130, 108-4887, 108 4887, 1084887
• PRODUCT TYPE: Handle Lock Bolt/Fastner
• SIZE: 5/16 Common Tread Pattern
• NOTES & DETAILS: Toro OEM  136-7130 IS COMMINLY USED - Retains and Locks Two-Piece Handle Assemblies from Coming Apart or Folding
• COMMON SERIES APPLICATIONS: Toro SnowThrower, QuickClear, PowerClear, QuickClear, SnowMaster, Snow MAX and Wide Range of Snow Blower Models.

• MODEL FIT CHART:

38581, 31860, 36001, 36002, 36003, 38563, 38568, 38720, 38721, 38741, 38742, 38744, 38752, 38753, 38756, 38757, 39914, 39915, 39921, 34001, 34002, 36001, 36002, 36003, 38451, 38452, 38453, 38454, 38458, 38459, 38564, 38567, 38569, 38571, 38575, 38576, 38577, 38578, 38582, 38583, 38584, 38585, 38586, 38587, 38588, 38589, 38593, 38710, 38711, 38712, 38741, 38742, 38743, 38744

• ASSOCIATED PARTS CHART:

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 136-7130 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

1. 114-3779 - HANDLE KNOB (Retains the Handle Lock Bolt Fastner in the Handle Two-Piece Handle Assembly and Enables Operator to Easily Disassemble or Fold the Handle Assembly) x2 Per Handle Assembly
2. 107-3844 - CONTOUR WASHER (Shaped to contour the Handle and is Used Between the Handle and the Fastners to Protect the Handle and Support the Fastners) x1 Per Handle Lock Bolt/Fastner
