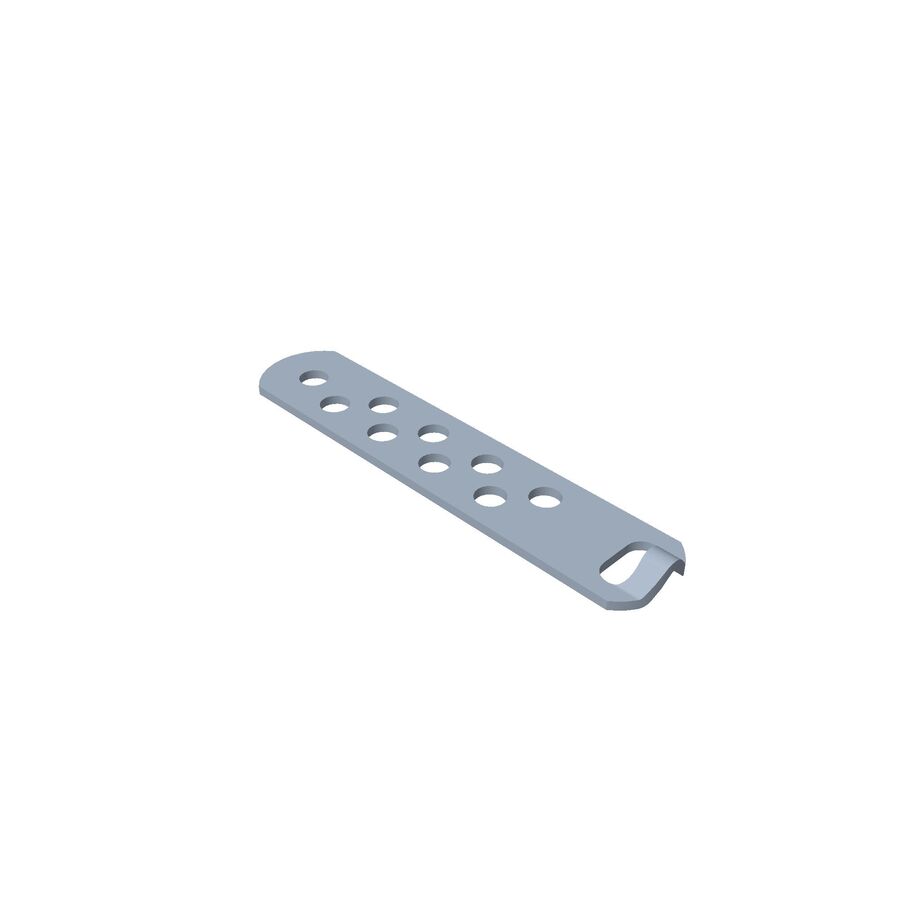

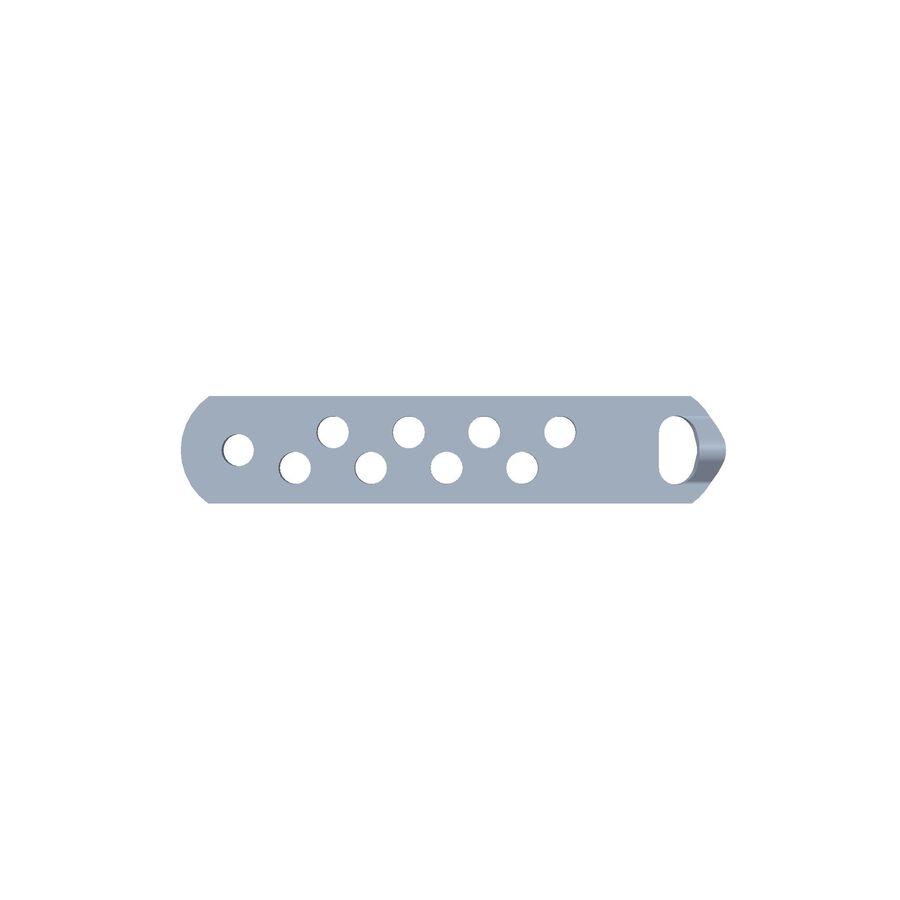

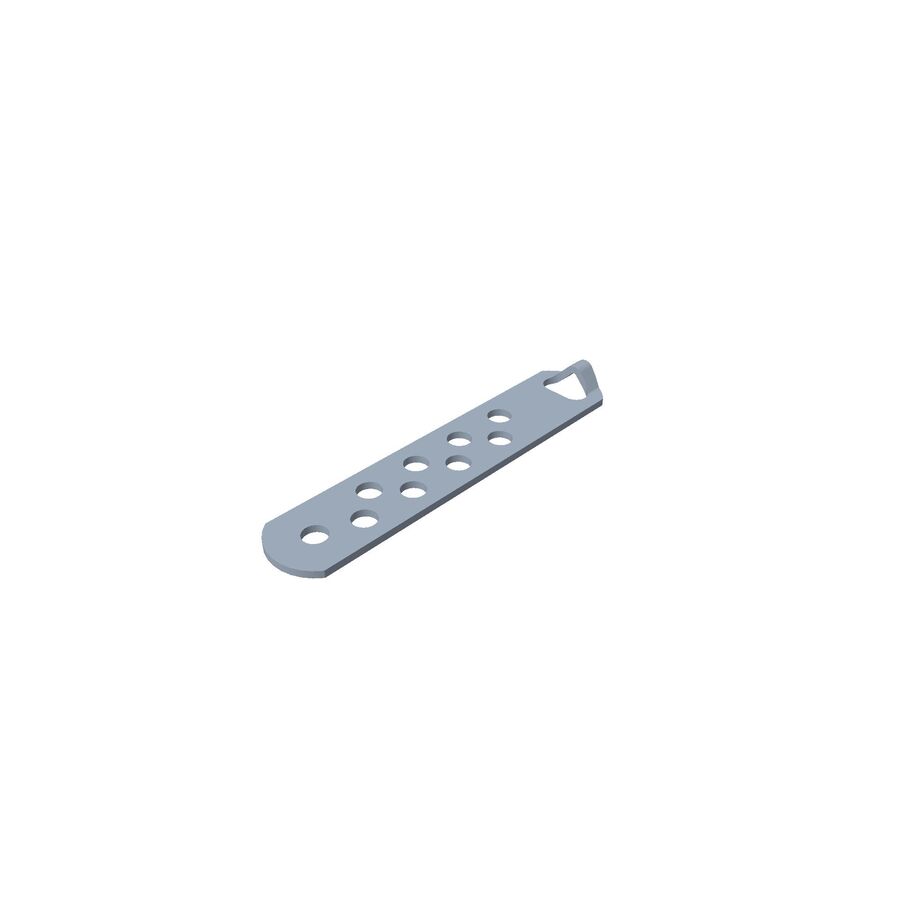

Toro OEM 136-7126 Clutch Spring and Cable Adjuster Plates Fits a Wide Range of Toro Single Stage Powerlite, Quick Clear, Power Clear, Snow Thrower, Snow Commander, GTS Snowblower Models.
Toro OEM 136-7126 Clutch Spring and Cable Adjuster Plates Fits a Wide Range of Toro Single Stage Powerlite, Quick Clear, Power Clear, Snow Thrower, Snow Commander, GTS Snowblower Models.
Toro OEM 136-7126 Clutch Spring and Cable Adjuster Plates Fits a Wide Range of Toro Single Stage Powerlite, Quick Clear, Power Clear, Snow Thrower, Snow Commander, GTS Snowblower Models.
Toro OEM 136-7126 Clutch Spring and Cable Adjuster Plates Fits a Wide Range of Toro Single Stage Powerlite, Quick Clear, Power Clear, Snow Thrower, Snow Commander, GTS Snowblower Models.
Roll over image to zoom in Click on image to zoom
Toro OEM 136-7126 Clutch Spring and Cable Adjuster Plates Fits a Wide Range of Toro Single Stage Powerlite, Quick Clear, Power Clear, Snow Thrower, Snow Commander, GTS Snowblower Models.
Toro OEM 136-7126 Clutch Spring and Cable Adjuster Plates Fits a Wide Range of Toro Single Stage Powerlite, Quick Clear, Power Clear, Snow Thrower, Snow Commander, GTS Snowblower Models.
Toro OEM 136-7126 Clutch Spring and Cable Adjuster Plates Fits a Wide Range of Toro Single Stage Powerlite, Quick Clear, Power Clear, Snow Thrower, Snow Commander, GTS Snowblower Models.
Toro OEM 136-7126 Clutch Spring and Cable Adjuster Plates Fits a Wide Range of Toro Single Stage Powerlite, Quick Clear, Power Clear, Snow Thrower, Snow Commander, GTS Snowblower Models.

Toro OEM 136-7126 Clutch Spring and Cable Adjuster Plates Fits a Wide Range of Toro Single Stage Powerlite, Quick Clear, Power Clear, Snow Thrower, Snow Commander, GTS Snowblower Models.

ToroSKU: 136-7126
Price:
$6.49

View Financing Disclaimer

Pickup available, Usually ready in 24 hours

r

Apply for Financing

Description

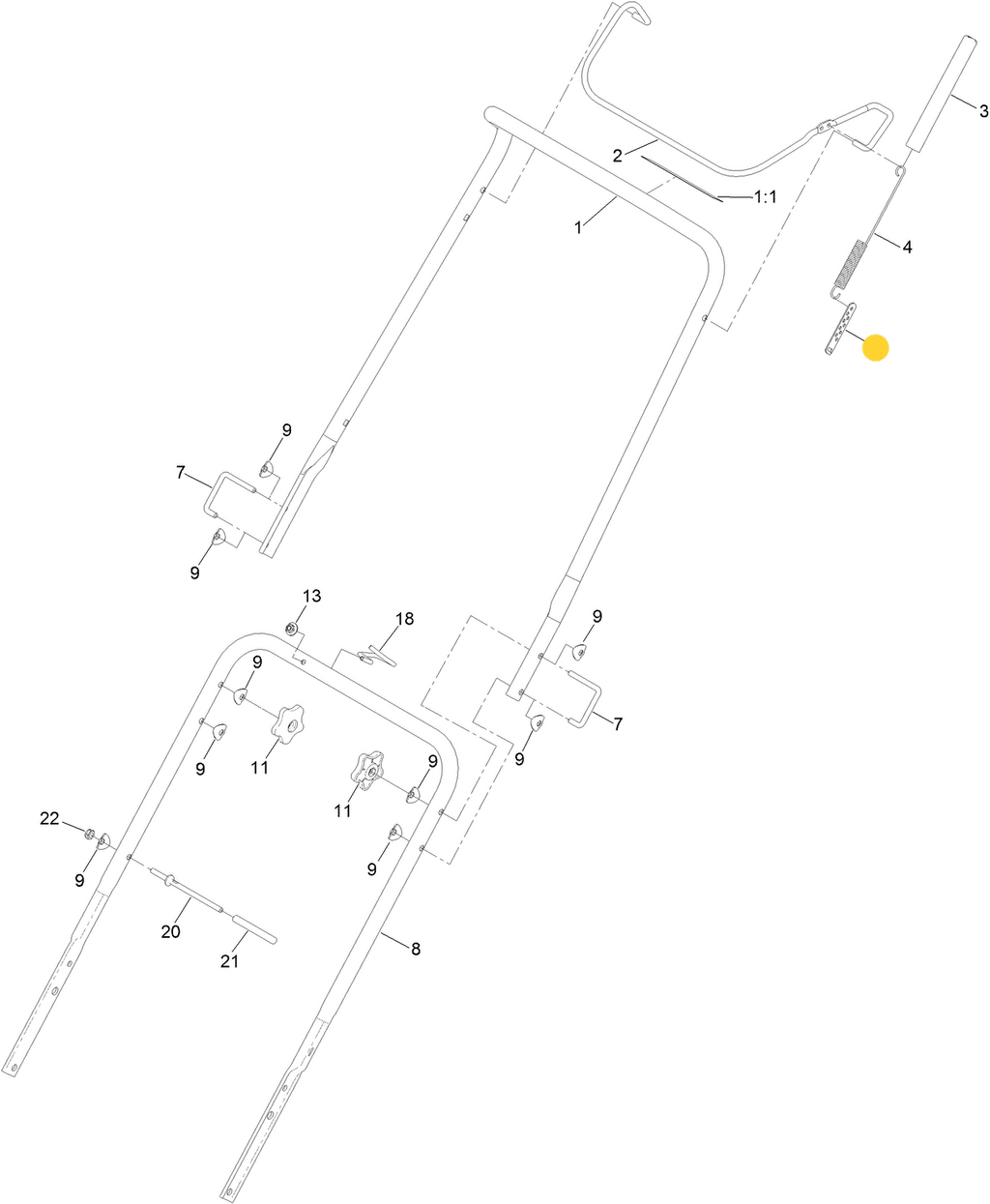

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.

Part Number 71-5330 Supersedes to Part Number 136-7126



  • PRODUCT NUMBER AND VARIATIONS: 136-7126, 136 7126, 1367126, 71-5330, 71 5330, 715330
  • PRODUCT TYPE: Clutch Spring/Cable Adjuster Plate
  • SIZE: Length 3.150 in. - Width 0.650 in. - Height 0.200 in. - Weight 0.027 lbs.
  • NOTES & DETAILS: Toro OEM  136-7126 IS COMMINLY USED - As an Adjustable Link Between the Clutch Cable/Bail Spring and Clutch Cable - Enable the Operator to adjust Cable and Spring Tension as well as Bail Responsiveness According to Operational Requirement and Preferences.
  • COMMON SERIES APPLICATIONS: A Wide Range of Toro Single Stage Snow Blower Models.



  • MODEL FIT CHART:



SNOWBLOWER’S



POWERLITE Series – Model Numbers – (* Model Numbers 38170, 38173, 38175, 38177, 38178, 38182, 38183, 38273, 38274, 38283)



QUICK CLEAR Series – Model Numbers – (* Model Numbers 38563, 38564, 38567, 38568, 38569, 38571, 38575, 38576, 38577)



POWER CLEAR Series – Model Numbers – (* Model Numbers 38272, 38273, 38282, 38451,38452, 38453, 38454, 38458, 38459, 38472, 38473, 38474, 38475, 38578, 38581, 38582, 38583, 38584, 38585, 38586, 38587, 38588, 38589, 38593, 38741, 38742, 38743, 38744, 38751, 38752, 38753, 38754, 38755, 38756, 38757)



SNOW THROWER Series – Model Numbers – (* Model Numbers 38190, 38191, 38195, 38196, 38220, 38222, 38400, 38405)



SNOW COMMANDER Series – Model Numbers – (* Model Numbers 38600, 38601, 38602, 38603)



GTS Series – Model Numbers – (* Model Numbers 38515, 38516, 38517, 38535, 38571)



Misc. Lawn Boy Models – Model Numbers – (* Model Numbers 33005, 33006, 34001, 34002)



Shroud Kits – Part Numbers – (* Model Numbers 108-7338, 108-7343)
