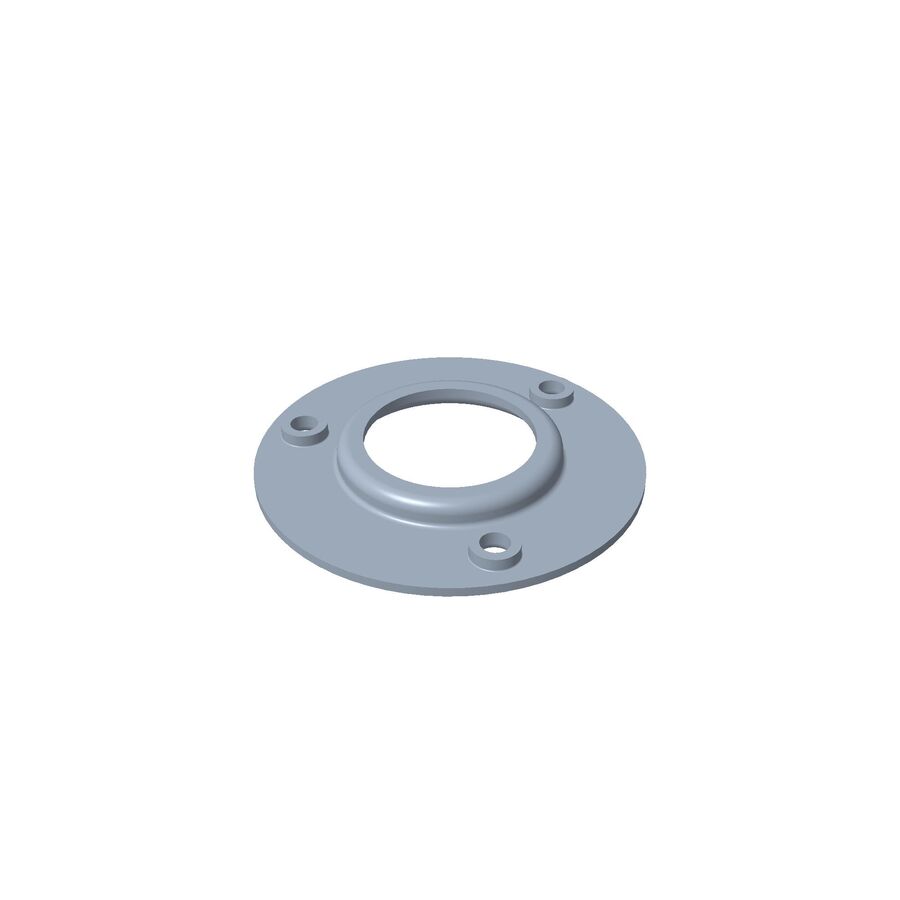

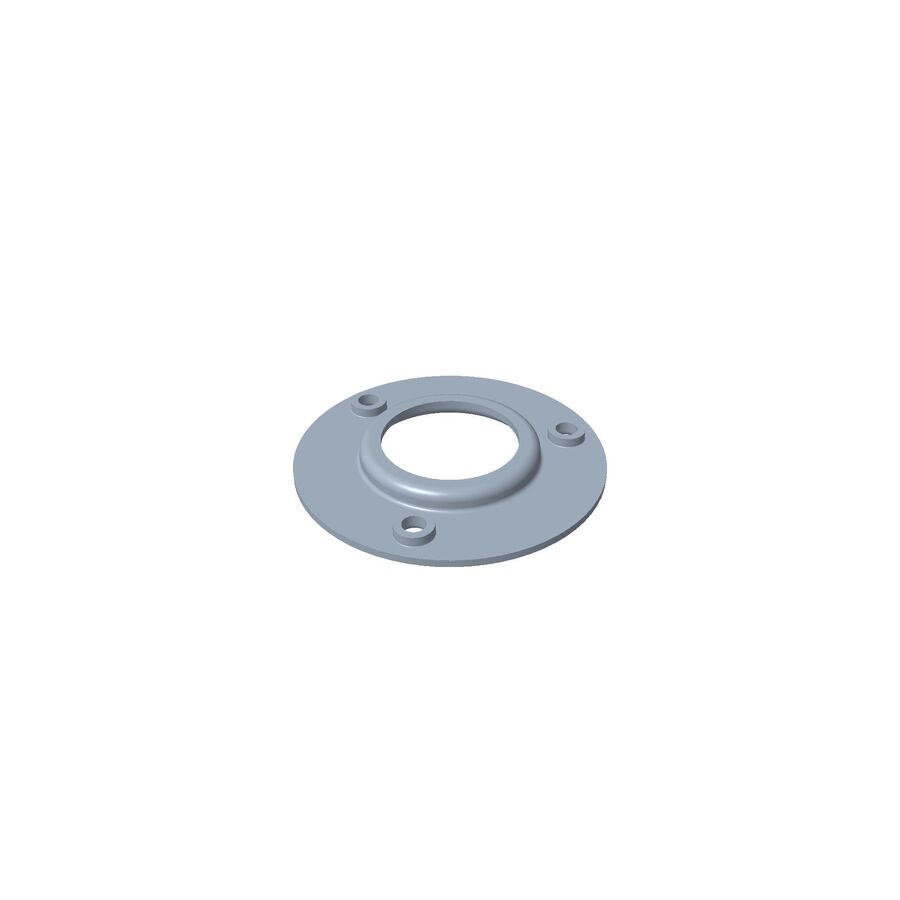

Toro OEM 136-7122 Bearing Flange Fits Select Power Clear and Powerlite (Only Models 38274) Snowblower Models.

Please refer to the Images above and Model Fit Chart below to Ensure a proper fit.

• PRODUCT NUMBER AND VARIATIONS: 136-7122, 136 7122, 1367122
• PRODUCT TYPE: Bearing Flange
• SIZE: N/A
• NOTES & DETAILS: TORO OEM  136-7122 IS COMMINLY USED -

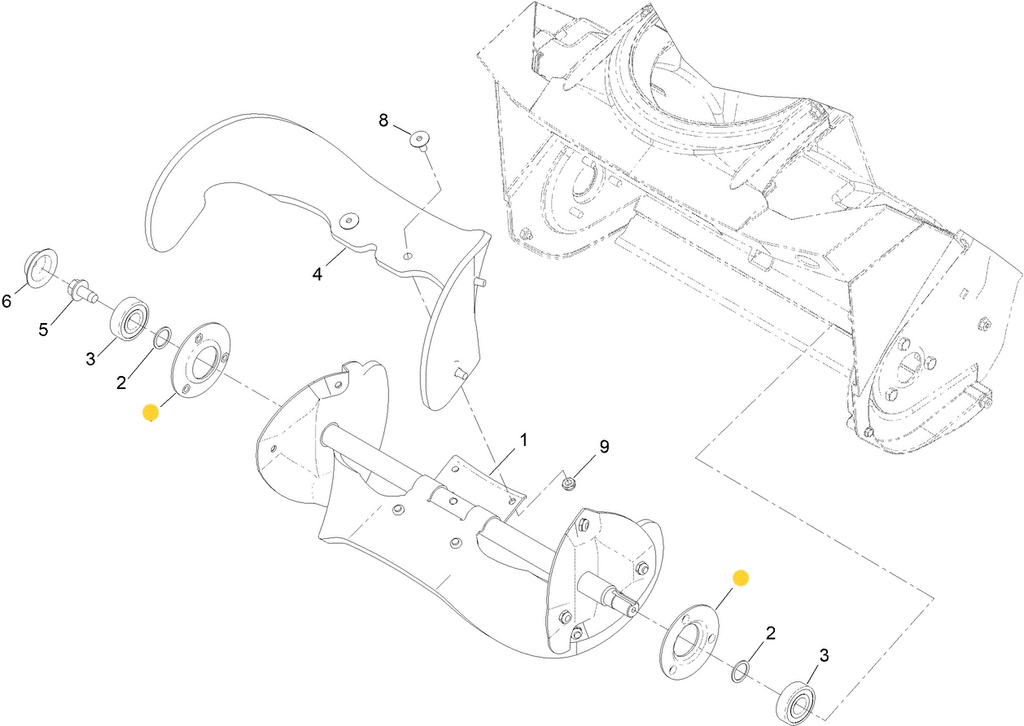

1. Snowblower Usage - Commonly Used to Retain the Auger/Rotor Shaft - Review Parts Diagram in the Images Above to View Exact Usage Location.

• COMMON SERIES APPLICATIONS: Toro Select Power Clear & Powerlite (Model 38274 Only) Snow Blower Models

• MODEL FIT CHART:

38274, 38472, 38473, 38474, 38475

• ASSOCIATED PARTS & FASTNER CHART:

1. 114-9291 - Washer Head Thread Forming Bolt - Threads into the Auger Bearing Flange that Retains the Roller Bearings - Installed on the Outside of the Auger Housing Retaining the Bearing Flange and Components to the Auger Housing.
2. 52-7280 - Thrust Washer - Commonly Used to Space Auger Bearings away from the Bearing Flange and is Installed Inside the Bearing Flange - Sized to Correct Dimensions to leave The Bearing Roller to Rotate when the Bearing is Positioned against 52-7280
3. 38-7820 - Auger Shaft Roller Bearing - Enables the Auger Shaft to Insert Into it and Tighten allowing it to Rotate with Roller Bearing Assembly - Retained by Using the 136-7134 Bearing Flange.
4. 117-7720 - Right-Hand Side Plate Cap - Used to Cover the Side Plate Bolt Access Hole for the Auger 110-9380 Bolt and Protect from the Entering of Debris and Elements.
5. 110-9380 - Washer Head Thread Bolt - Retains the Auger Shaft to the Bearing and Bearing Assembly as well as Eliminating any side-to-side Play - Flange on the Bolt Head is Made to Correct Speciation to Allow it to Tighten Against the inner Bearings Inner Ring or Race without Hindering its Rotation.
