Description
Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
Model Number 38840, 38842, 38843, 38844, 38850, 38855, 38860 & 38865 Does Contain a Serial Number Break in Requiring Correct Part Number Usage - Review the Model Fit Chart to Ensure Correct Part Number. if it is the Incorrect Part Number Refer to Part Number 139-9903
- PRODUCT NUMBER AND VARIATIONS: 136-6671, 136 6671, 1366671

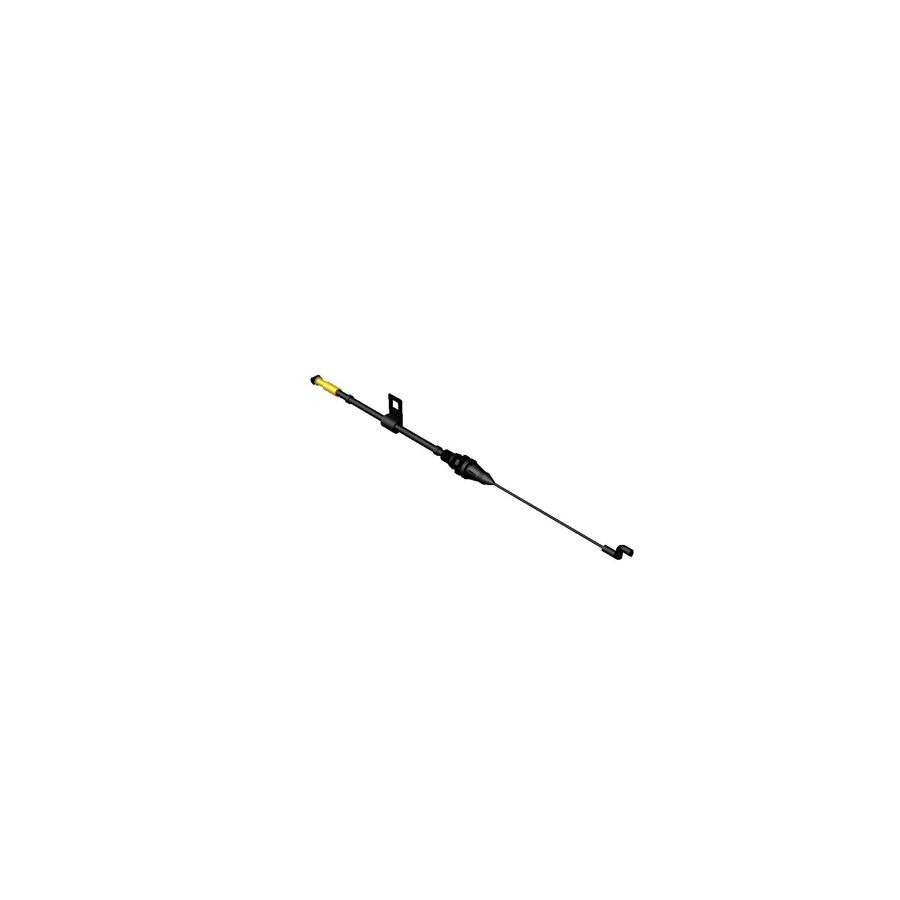

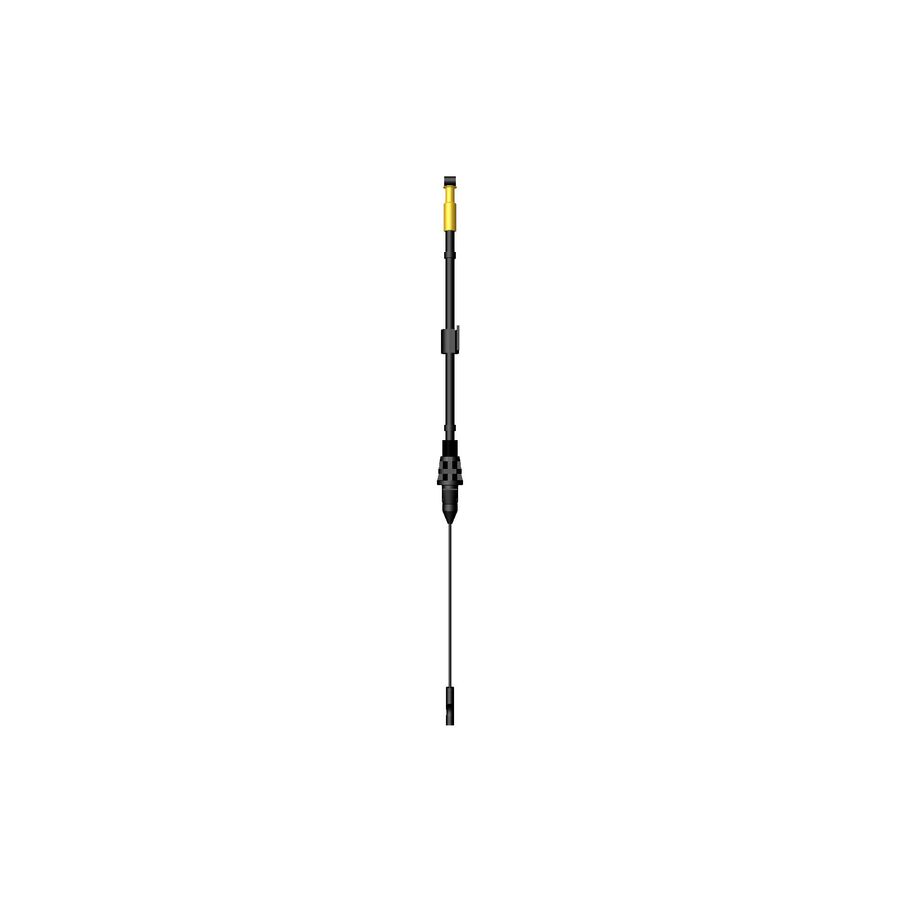

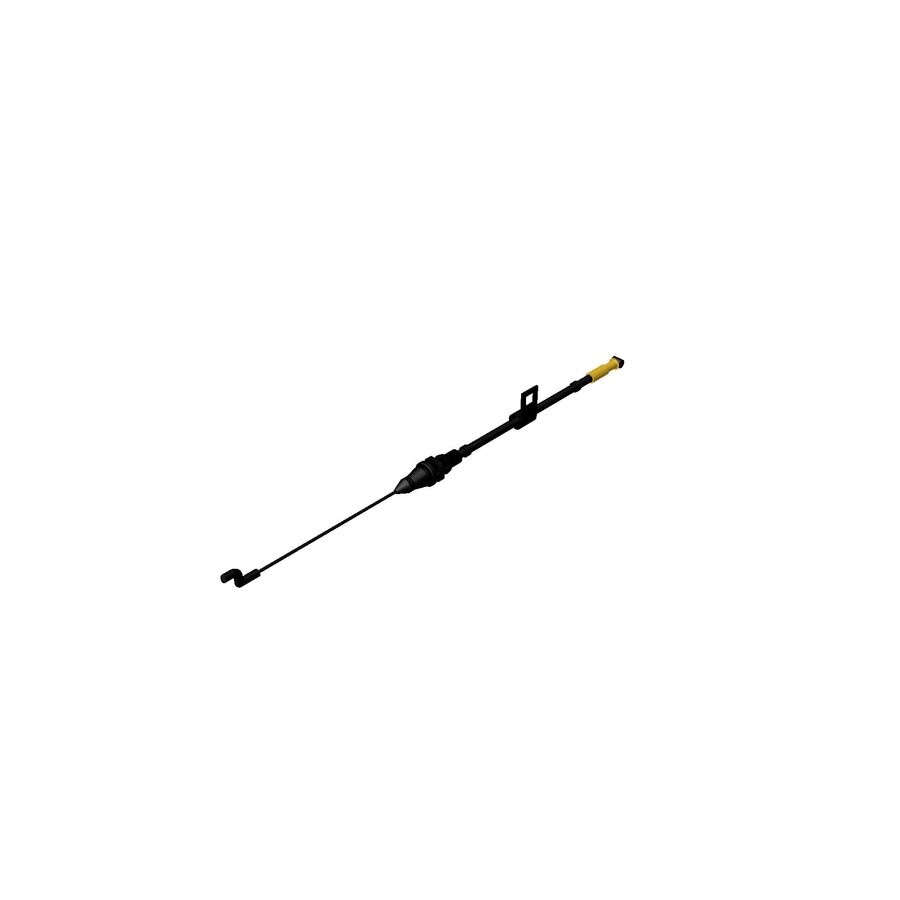

- PRODUCT TYPE: Discharge Chute Latch Release Cable
- SIZE: Length N/A - Width N/A - Height N/A - Weight 0.200 lbs.

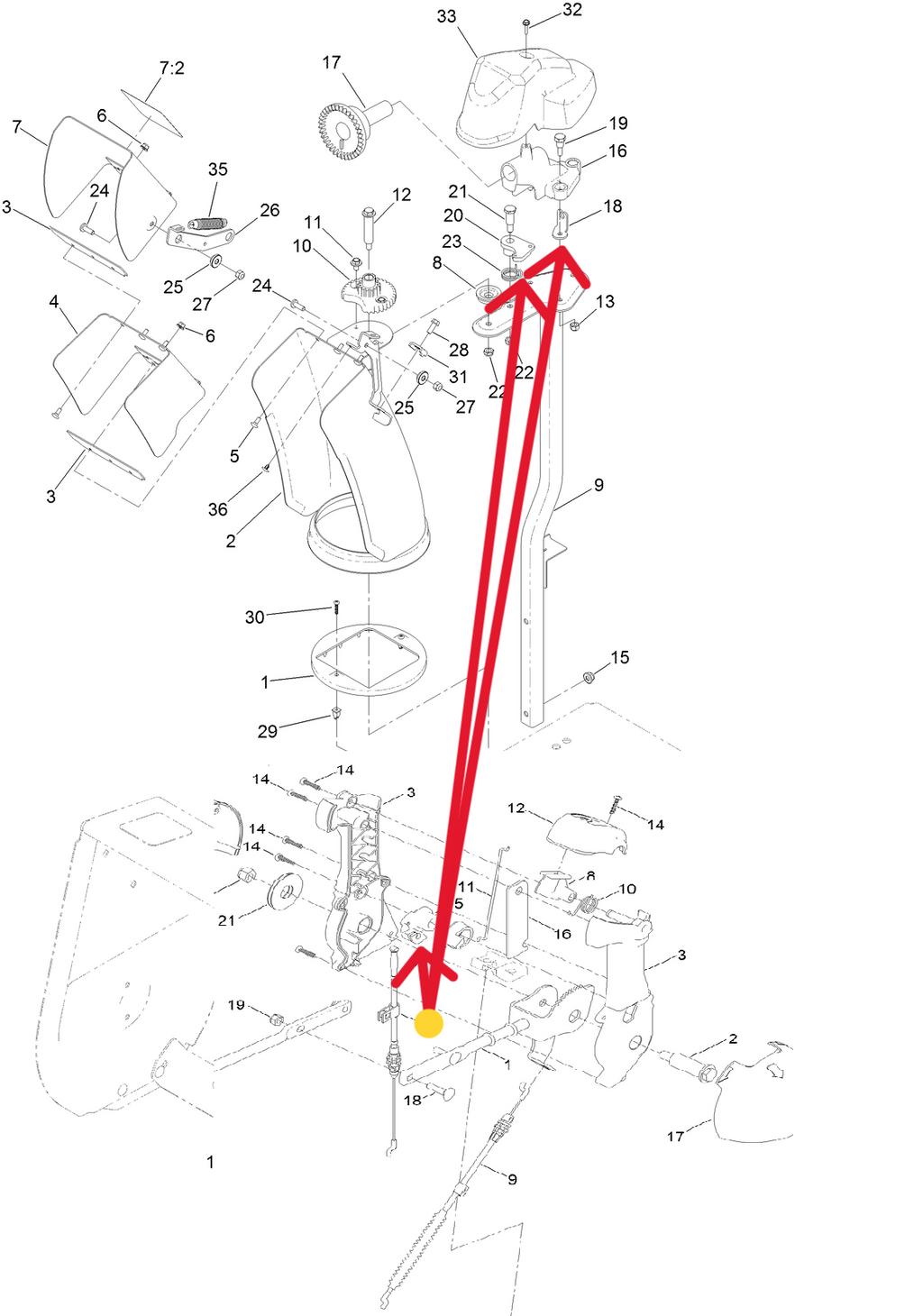

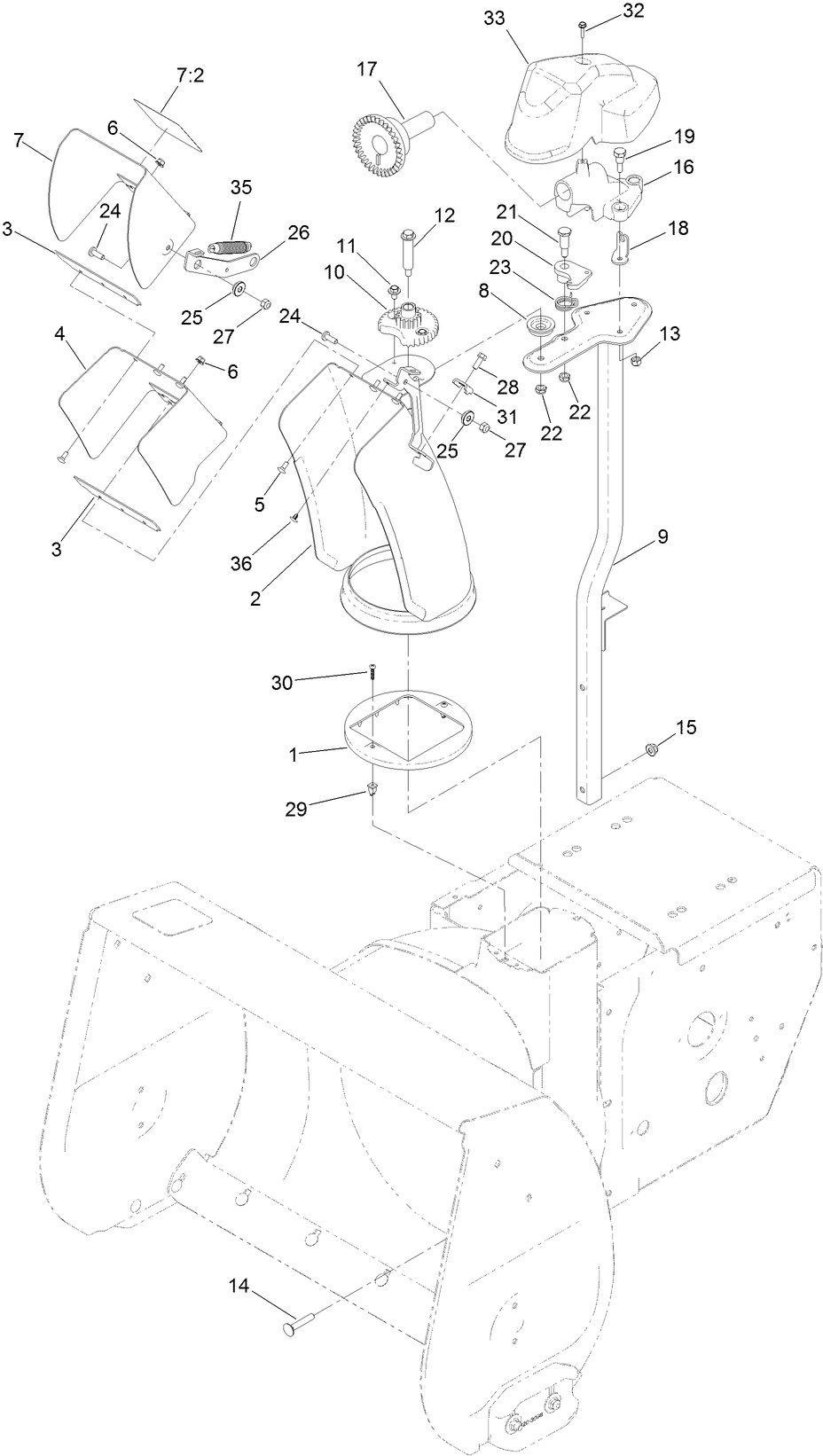

- NOTES & DETAILS: Toro OEM 136-6671 IS COMMINLY USED - 136-6671 Cable Ends - 136-6671 Chute Release Cable Attaches to the Chute Release Cable's QuickStick or Latch Lever 105-9988 that is Assembled inside the Handle or Quickstick assembly. The Lower End of the Chute Release Cable (With the Plastic Insert Clips) Attaches to the Quickstick Chute Latch 136-6525 (Latch is Responsible from Disabling the Discharge Chute to Rotation). - 136-6671 The Cable Itself - 136-6671 Chute Release Cable is Routed from the Chute Control Lever or Quistick Assembly Across the Discharge Chute Rod 136-6578 and Fastened to the Chute Control Rod with the Factory Installed Cable Clamp By Using the Spare Bolt Whole on the Chute Control Rod and Carriage Bolt 137-3056 and Nylon Lock Nut 137-3094 - Next the Cable Continues Its Routed Directly to and Insert Into the Cable Anchor 136-6676 that Is installed on the Chute Gear Mount 136-6517 Using The Factory Molded Retaining Tabs on the Chute Release Cable. - 136-6671 Deflector Cable Assembly - Enables the Operator to Push on the Blue Lever/Button on the Control Handle or Quick stick, By Pushing the Button/Lever the Cable Pulls the Toothed Latch Away from the Discharge Chute Gear Allowing the Discharge Chute to Rotate Left to Right as the Operator Rotate the Quickstick Left to Right. Click on the Associated Part Numbers to Be Redirected.
- COMMON SERIES APPLICATIONS: Toro Standard Power MAX HD Snow Blower Models.
- MODEL FIT CHART:
SNOWBLOWER’S
POWER MAX Series – Model Numbers – (* Model Numbers 38840 Serial Number 406399999 and Lower, 38841, 38842 Serial Number 408999999 and Lower, 38843 Serial Number 408999999 and Lower, 38844 Serial Number 408999999 and Lower, 38850 Serial Number 406319999 and Lower, 38855 Serial Number 406309999 and Lower, 38860 Serial Number 406319999 and Lower, 38865 Serial Number 406319999 and Lower)
