Description
Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
- PRODUCT NUMBER AND VARIATIONS: 136-6588-01, 136 6588 01, 136658801

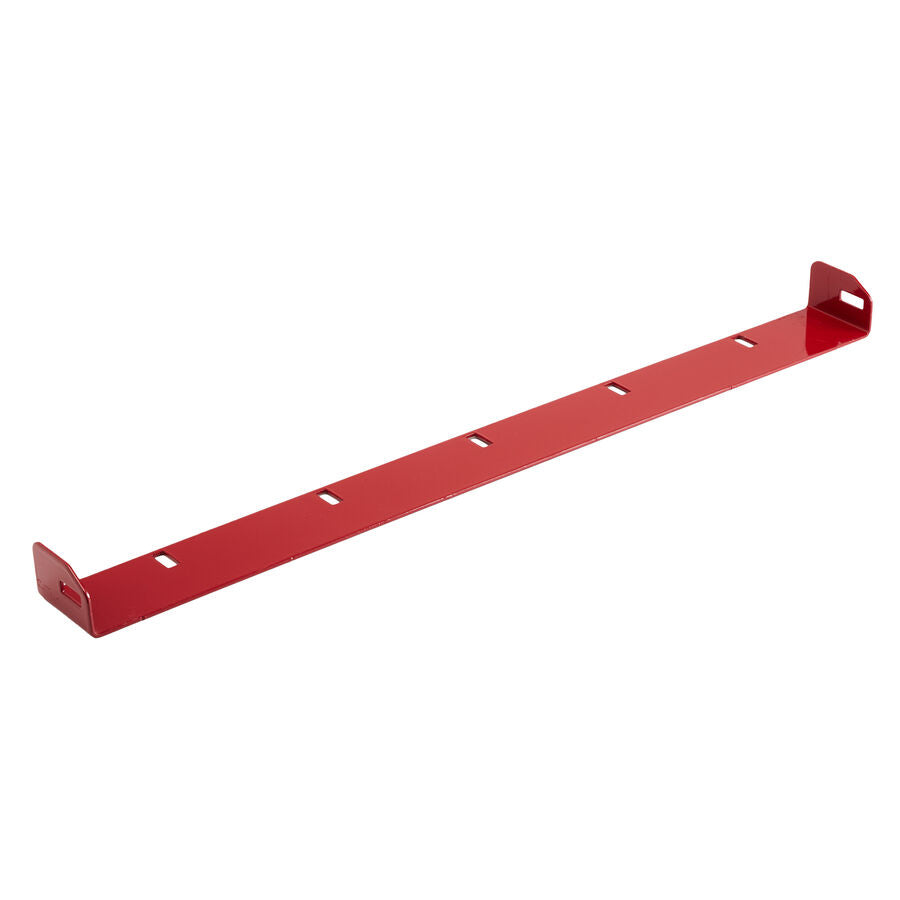

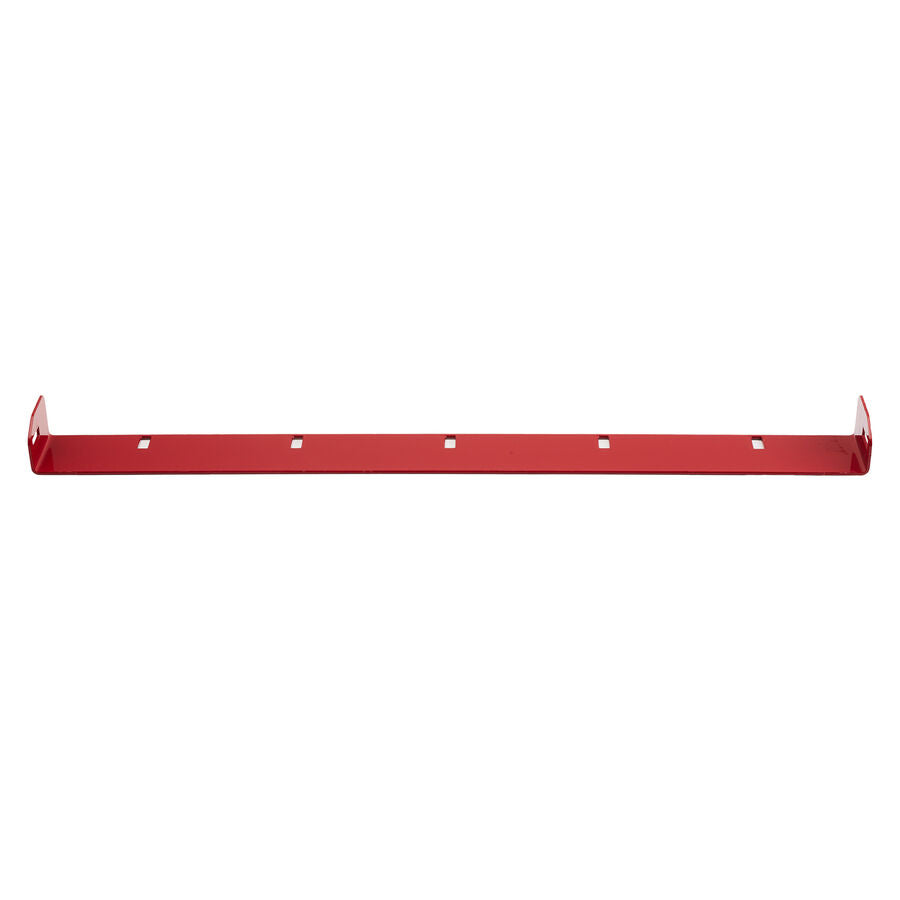

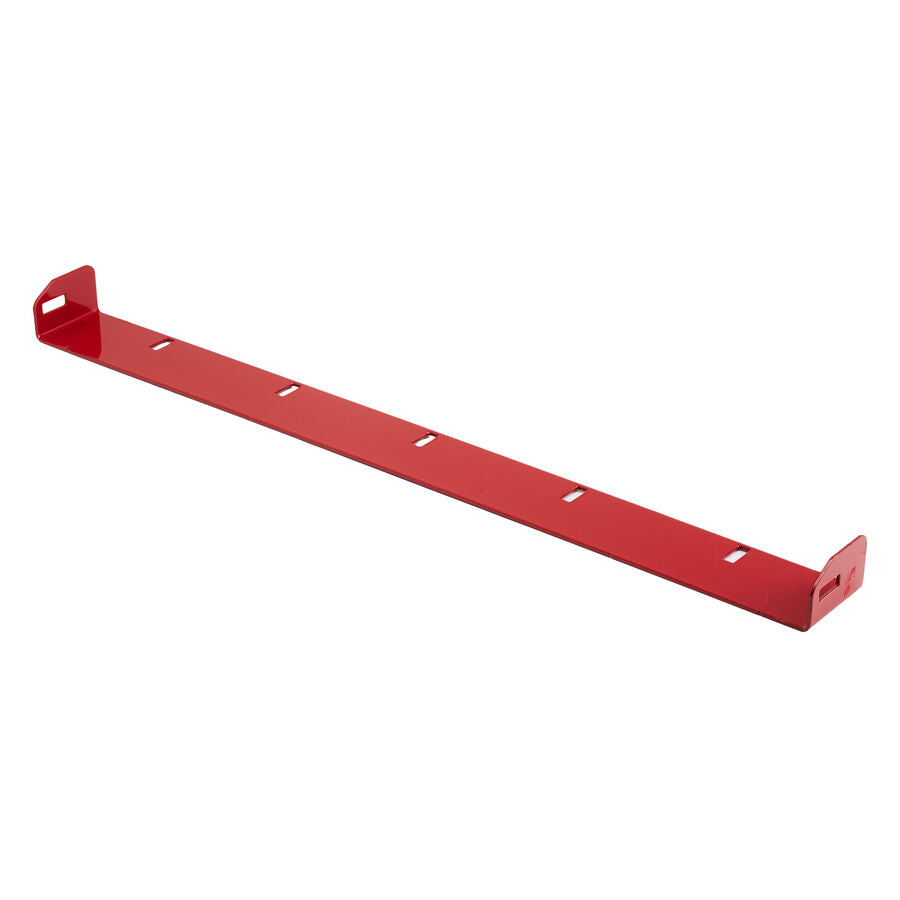

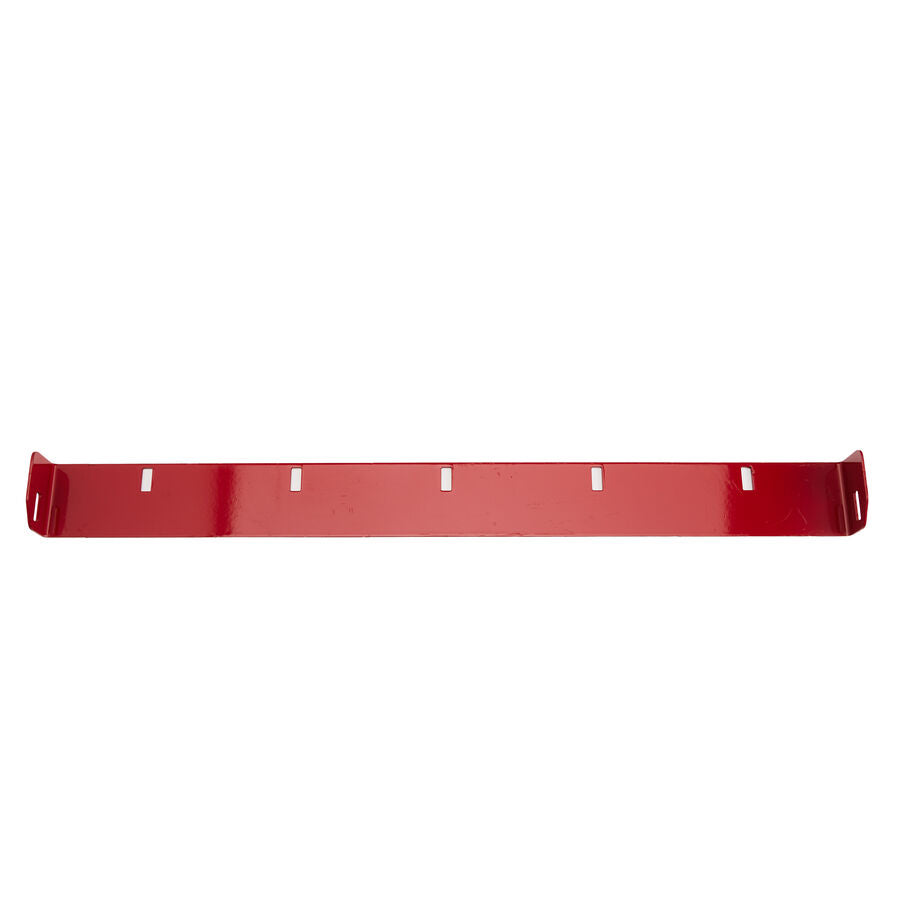

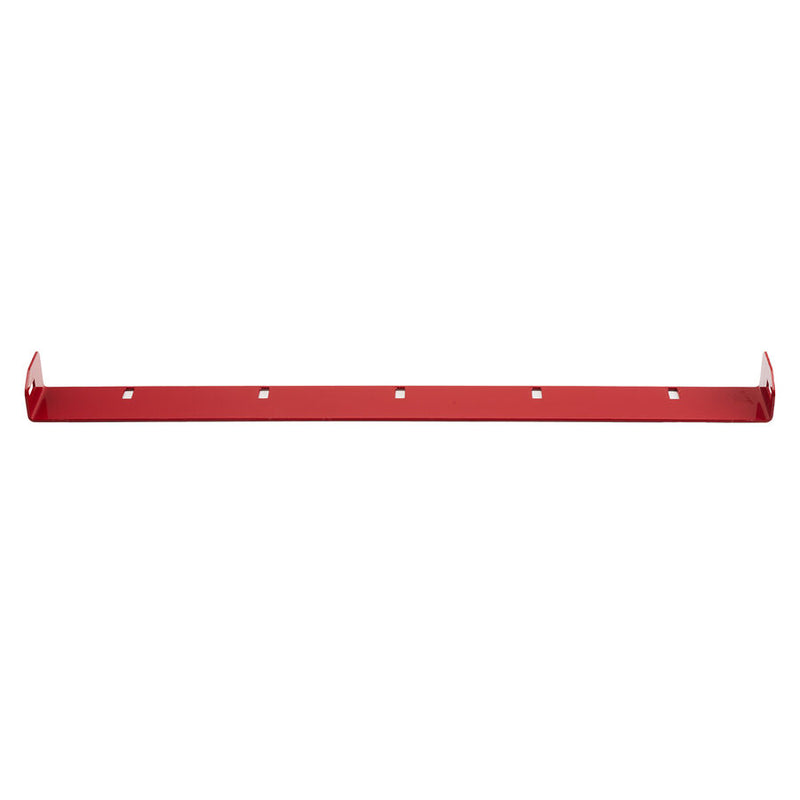

- PRODUCT TYPE: Replaceable Metal Scraper Blade
- SIZE: Length 27.250 in. - Width 2.750 in. - Height 1.750 in. - Weight 2.390 lbs.

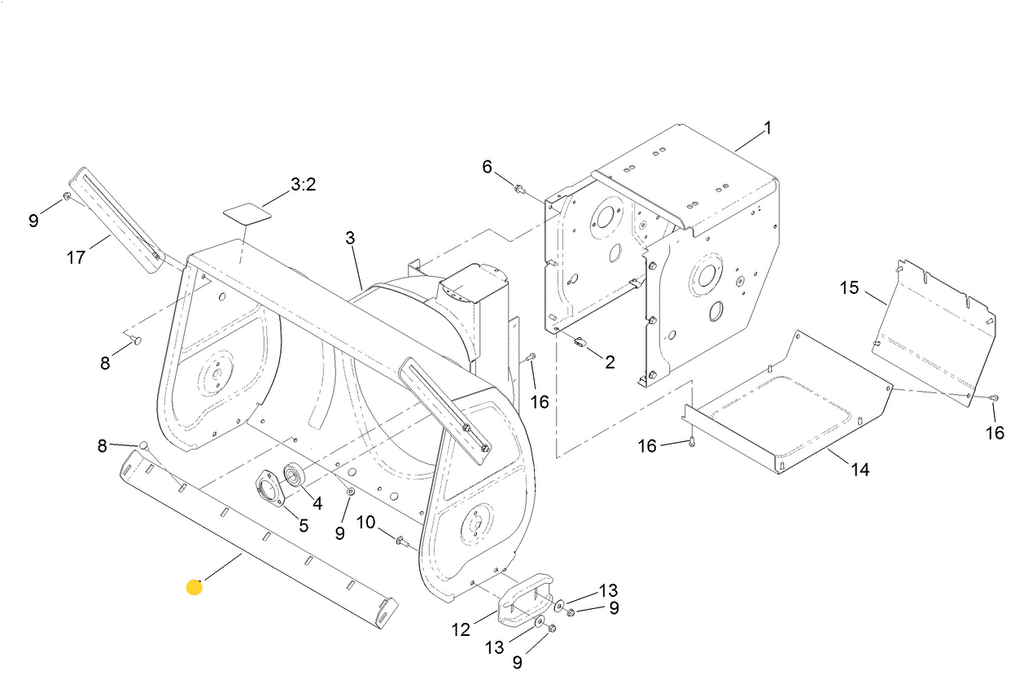

- NOTES & DETAILS: Toro OEM 136-6588-01 IS COMMINLY USED - 136-6588-01 is a Metal Replaceable Scraper Bar and is Designed to Travels the Length of the Snowblower Housing. 136-6588-01 Scraper Bar Travels Against Hard Surfaces Absorbing the Wear and Abuse. This Enable an Easy Replacement of the Scraper Bar when it is Worn, over Repairing or Replacing the Main Snowblower Auger Housing. 136-6588-01 Scraper Bar can Serve the Purpose of Scraping Against Paved or Concrete Walkways and Driveways or a Straight Line of Depth Adjustable from Stone Surface and Hard Surfaces Upon the Operator Preferences. - Important to Note the Effectiveness and Durability of the Scraper Bar and Unit can be Affected in How the Operator Uses and Adjust the Adjustable Skid Plates - REFER TO THE OWNER'S MANUAL FOR PREFERED ADJUSTMENT DIRECTIONS.136-6588-01 Scraper Bar is Fastened Inside the Auger Housing Using Seven Carriage Bolts That Insert With the Bolt Head Resting into the Scraper Bar or Inside the Auger Housing Out. Five Bolts Retain the Lower Section of the Scraper Bar to the Snowblower Auger Housing While Two Bolts Will Retain the Two Side Retaining Ear Using the Same Wholes as the Adjustable Skid Plates on the Side of the Auger Housing. Using Lock Nut on the Back Side of the Auger Housing as well as the Skid Shoes.
- COMMON SERIES APPLICATIONS: Toro 28" Power MAX and Power TRX Snow Blower Models.
- MODEL FIT CHART:
SNOWBLOWER’S
POWER MAX Series – Model Numbers – (* Model Numbers 38838, 38840, 38841, 38843, 38850, 38855, 38860)
POWER TRX Series – Model Numbers – (* Model Numbers 38870, 38890)
- ASSOCIATED PARTS CHART:
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 136-6588-01 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 137-3061 - CARRIAGE BOLT (Retains the Scraper Bar to the Bottom of the Snowblower Auger Housing - Inserts from Inside the Auger Housing and Travels Through the Scraper Bar and Auger Housing Allowing the Nut to Be Attached to the Back of the Auger Housing) x5 Per Scraper Blade *Used Only in Lower Auger Wholes
- 110-3144 - CARRIAGE BOLT (Retains the Scraper Bar to the Bottom of the Snowblower Auger Housing - Inserts from Inside the Auger Housing and Travels Through the Scraper Bar, Adjustable Skid Plates and Auger Housing Allowing the Nut to Be Attached to the Back of the Auger Housing) x2 Per Scraper Blade *Used Only on the Whole on the Side of the Auger Housing or Whole for the Adjustable Skid Plates
- 119-4041 - LOCK NUT (Retains the Scraper Bar, Skid Plates and Carriage Bolt to the Auger Housing - Used on the Back Side or Outside of the Auger Housing) x7 Per Scraper Blade
