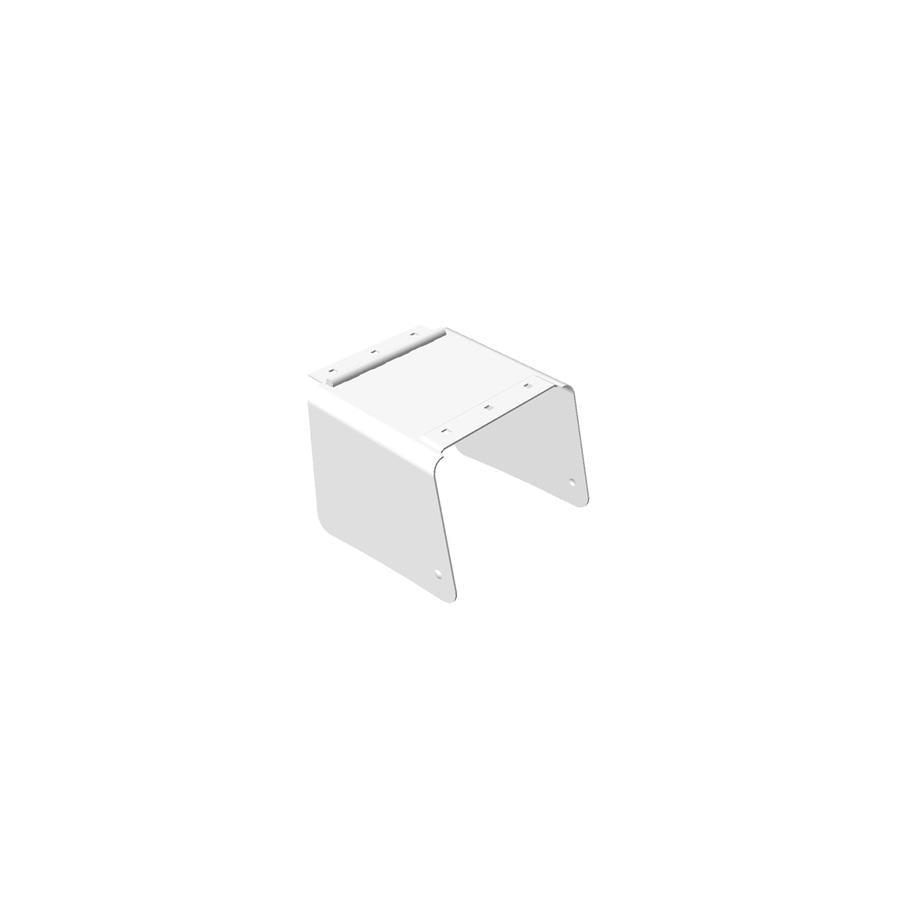

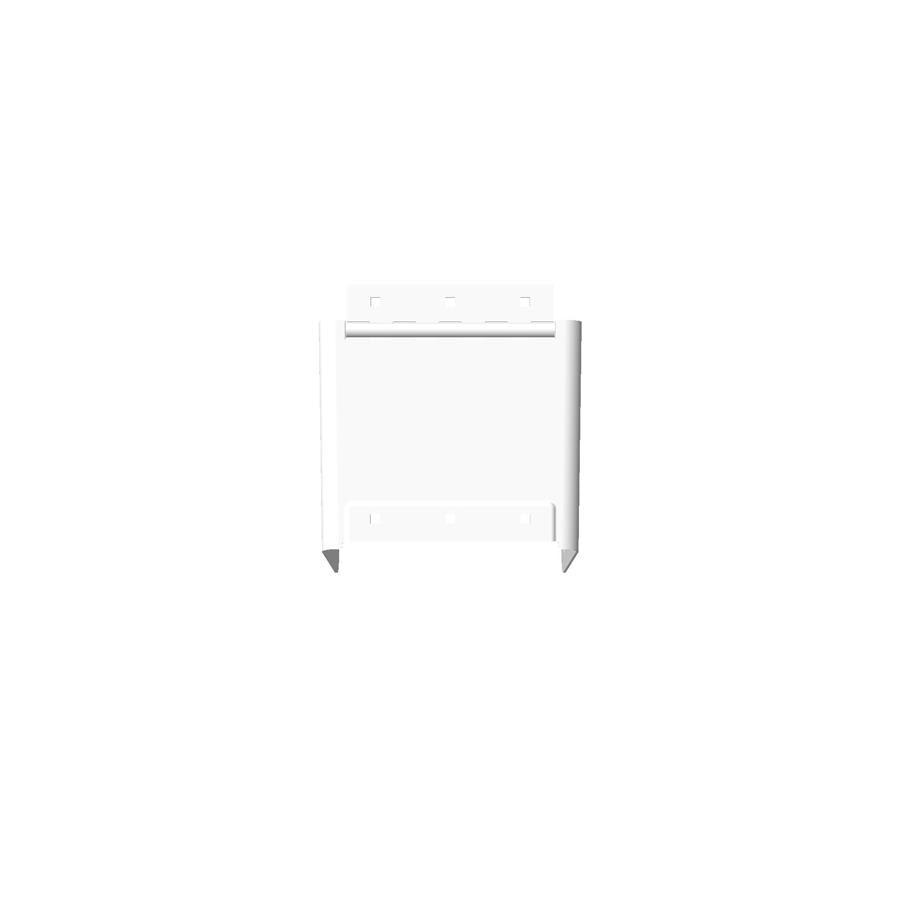

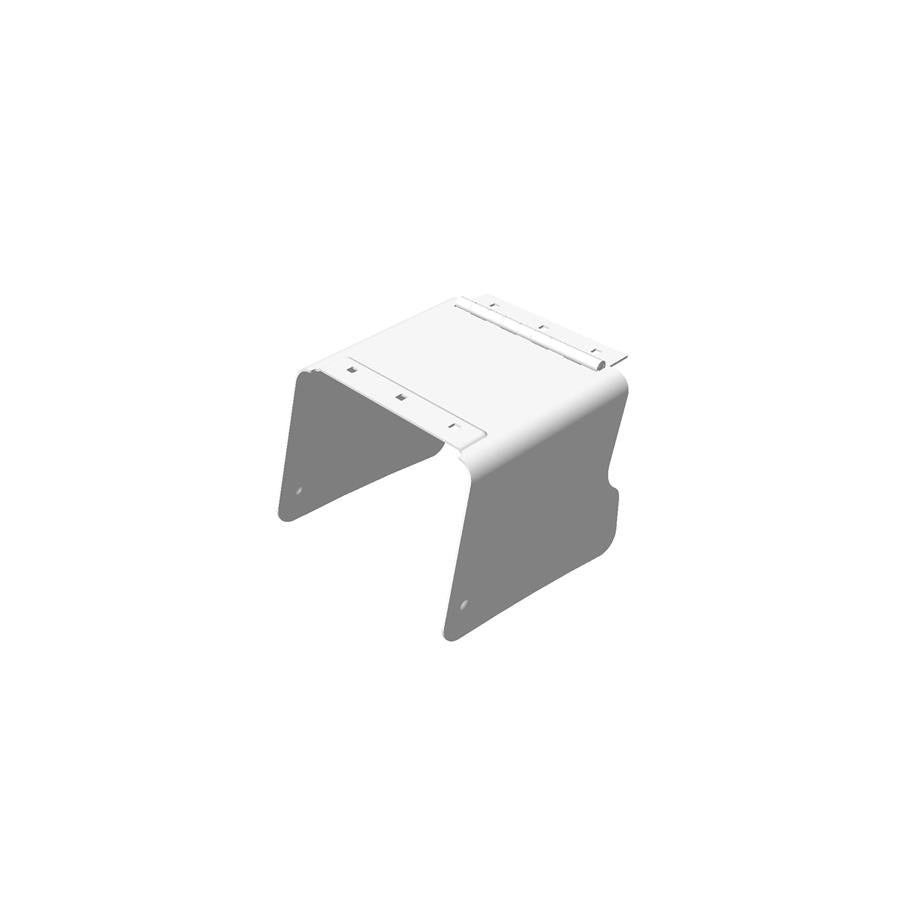

Toro OEM 136-6582-01 Lower or Secondary Chute Deflector



Restore proper snow-throwing control with this genuine Toro chute deflector assembly. The deflector mounts to the top of the discharge chute and adjusts the discharge height/trajectory helping you keep snow where you want it. * Toro 136-6582-01 is a One in a Two-Piece Adjustable Discharge Deflector Chute Assembly that bolts Between the Discharge Chute Stack and the Upper Deflector Chute - Toro refers to it as the Middle Discharge Chute.



• OEM Part Number: 136-6582-01, 136 6582 01, 136658201
• Part Name: Lower or Secondary Deflector (One of a Two-Piece Deflector Weld Assembly)
• Function: Controls discharge throw height at the chute outlet
• Genuine Toro OEM: Correct fit and performance on compatible Power Max HD, Power TRX & Multi Force Attach. Toro snow throwers



Supersession / Cross-Reference



• Replaces / Supersedes: 136-6582, 136 6582, 1366582



Fits These Toro Models (By Family)

Verify your model number (and serial range when applicable) from the machine tag before ordering.



POWER MAX & POWER MAX HD Series – Model Numbers – (* Model Numbers 38830, 38840, 38841, 38842, 38843, 38844, 38850, 38855, 38860, 38865)



POWER TRX Series – Model Numbers – (* Model Numbers 38870, 38875, 38890, 38891)



Multi-Force Snowblower Series – Model Numbers – (* Model Numbers 78598)

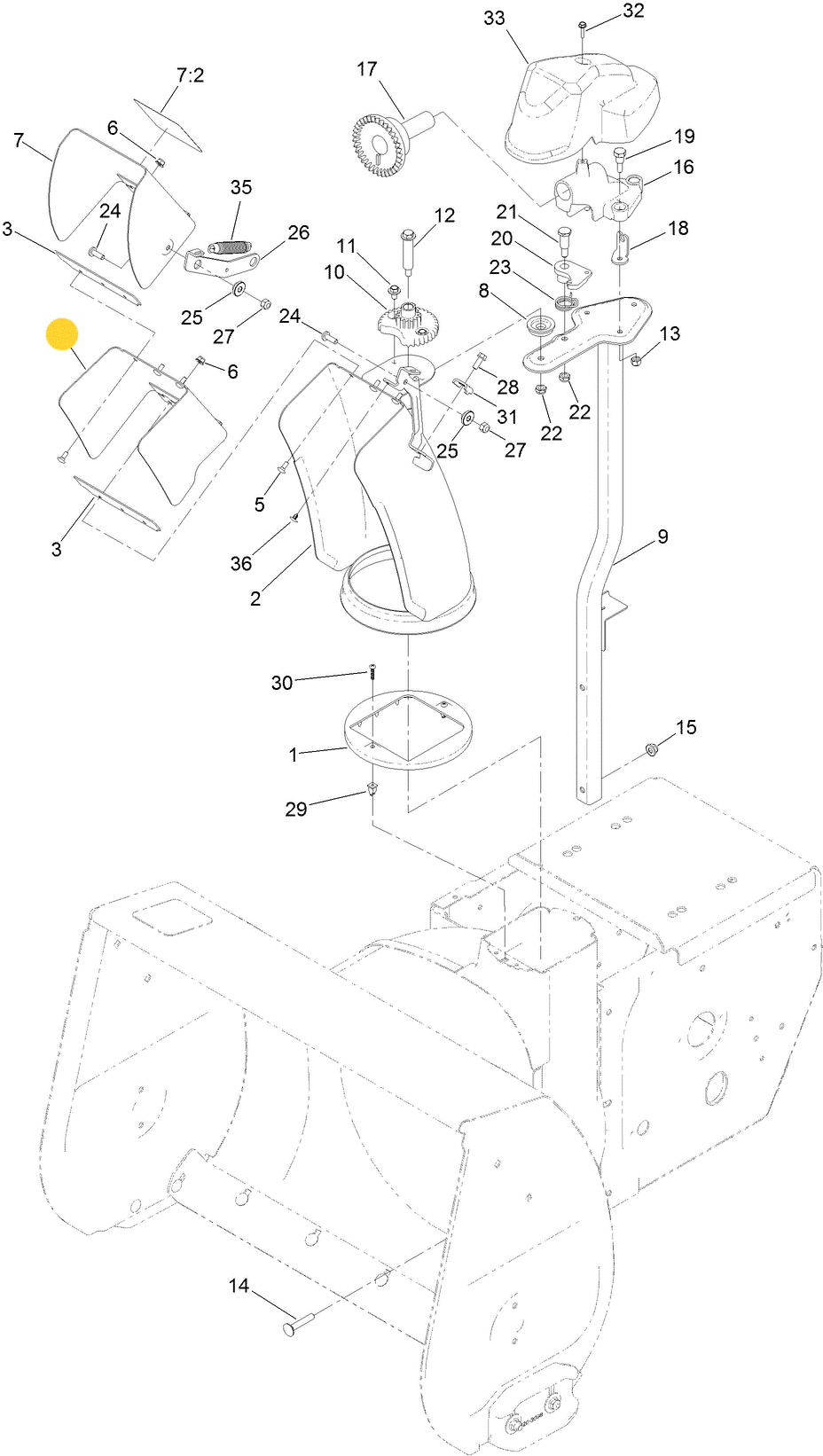

Associated Parts (Common “Replace With” Items)



A) Deflector Mounting / Seal or Gasket Parts

* Requires the Same Mounting Parts (Hardware and Seal) for Mounting Both Upper and Lower Discharge Chute Deflector To each Other as Well as the Lower Chute Deflector to the Main Discharge Chute or Chute Stack - QTY is based off both Discharge Chute Deflector Sections (Upper & Lower).



• 138-3671 – Gasket, Deflector (prevents leakage and helps proper fit - assembled below the Deflector Hinge) - Qty 2 for Both Sections Upper and Lower
• 135-1929 – Bolt, Carriage (Retains Upper and Lower Discharge Chute Deflectors to Each other as well as the Lower Discharge Chute Deflector to the Main Discharge Stack using the Hinged Carriage Bolt Holes - all Carriage Bolts should be Assemble Inside -Out of the Chute Component Parts) - Qty 6 for Both Sections Upper and Lower
• 138-0719 – Nut, Hex Flange (Retains Upper and Lower Discharge Chute Deflectors to Each other as well as the Lower Discharge Chute Deflector to the Main Discharge Stack using the Hinged Carriage Bolt Holes - all Carriage Bolts should be Assemble Inside - Out, nut on the outside of Chute Component Parts) - Qty 6 for Both Sections Upper and Lower
• 139-1564 – Upper Chute Deflector - Fastens Above the Lower Chute Deflector) Qty 1
• 136-6580-01 – Main Discharge Chute or Stack (Replace if Damaged or Broken)



B) Chute / Deflector Control Cable Area Hardware & Linkage

* Parts in the Reference below do not Directly Fasten to the Lower Deflector Chute 136-6582-01 - However References listed can be used for Assembly Conveniences



• 136-6522 – Link-Deflector (connects control to deflector - Link to the Upper Chute Deflector and to the Main Discharge Chute Stack Weldment Bracket - Retain the Chute Control Cable Which Enable the Upper & Lower Discharge Chute Deflector to Pivot) Qty 1 * Excluding Mult-Force Model 78598
• 144-7766 – Link-Deflector (connects control to deflector - Link to the Upper Chute Deflector and to the Main Discharge Chute Stack Weldment Bracket - Retain the Chute Control Cable Which Enable the Upper & Lower Discharge Chute Deflector to Pivot) Qty 1 * Only Multi-Force Model 78598
• 138-0687 – Bushing-Pivot (Inserts into both Link Deflector holes Allowing the Deflector Link to Pivot) - Qty 2
• 138-0689 – Carriage Bolt (Retains the Pivot Bushings and the Deflector Link to the Upper Discharge Chute Deflector and the Discharge Chute Stack Weldment Bracket) Qty 2
• 137-3094 – Nut-Hex (Retains the Pivot Bushings and the Deflector Link to the Upper Discharge Chute Deflector and the Discharge Chute Stack Weldment Bracket) Qty 2
• 132-6915 – Spring-Extension (deflector return/assist spring - Fastens to the Deflector Link and Main Discharge Chute Stack Weldment Bracket) Qty 1
• 136-7191 – Clamp, Cable (Retains Control Cable to the Discharge Chute Cable Weldment Bracket) Qty 1
• 32144-85 – Hex Washer Head (Retains Control Cable and Cable Clamp to the Discharge Chute Deflector Weldment) Qty 1
• 138-0730 - Chute Control Cable (Control the Up and Down Adjustment of the Chute Deflector) * Excluding Multi-Force Model 78598



Installation Tips (Chute Deflector Replacement)

1) Prep & access

1. Shut machine off, cool down, pull spark plug wire (snowthrower safety standard).
2. Rotate the chute so you can access the deflector linkage comfortably.
3. Take a visual Documentation of Parts (a quick phone photo helps).

2) Disconnect the control linkage

1. Note routing/attachment of the deflector control cable and any clamp points - Detach Deflector Control Cable (often the cable clamp can get bent or mispositioned).
2. Unhook the Deflector Link by Removing the deflector pivot fasteners (Carriage Bolts, Pivot Bushings, Nuts) from the deflector as needed (retain hardware).
3. If equipped, carefully relieve tension and remove the extension spring (don’t let it snap back).

3) Remove the deflector assembly

1. Remove Hardware Carriage Bolts & Lock Nuts from the Deflectors Hinged Erea from the Upper and Lower Discharge Chute Deflector Assembly and Remove the Upper Discharge Chute Deflector.
2. Remove Hardware Carriage Bolts & Lock Nuts from the Deflectors Hinged Erea from the Lower Discharge Chute Deflector and the Main Discharge Chute or Stack Assembly and Remove the Lower Discharge Chute Deflector from the Main Discharge Chute/Stack.

4) Inspect the “sandwich stack” - Gasket & Pivot Linkage & Hardware

1. Inspect/replace the Pivot Bushings & Deflector Link if worn/ovalized (common).
2. Inspect/replace Gaskets in Both the Upper and Lower Discharge Chute Deflectors (Replace If you see cracking, leakage, or misalignment)

5) Install the new 136-6582-01 and Re-Install or Replace 139-1564

1. Install the New Lower Deflector and Gasket (If replacing) that was removed in Step 3.
2. Install the New/Pre-Existing Upper Deflector and Gasket (If replacing) that was removed in Step 3.
3. Install the new Deflector Link by Installing the deflector pivot fasteners (Carriage Bolts, Pivot Bushings, Nuts).
4. Reconnect the Spring to the Deflector Link and the Discharge Chute Main Stack.
5. Reconnect the Chute Control Cable by Inserting the Shoe or Hook into the Deflector Link using the Cable Clamp and adjust so the control has full range.

6) Functional check

1. Cycle the deflector through full travel: confirm it reaches full open/close and holds position (no slipping, no binding).
