Description

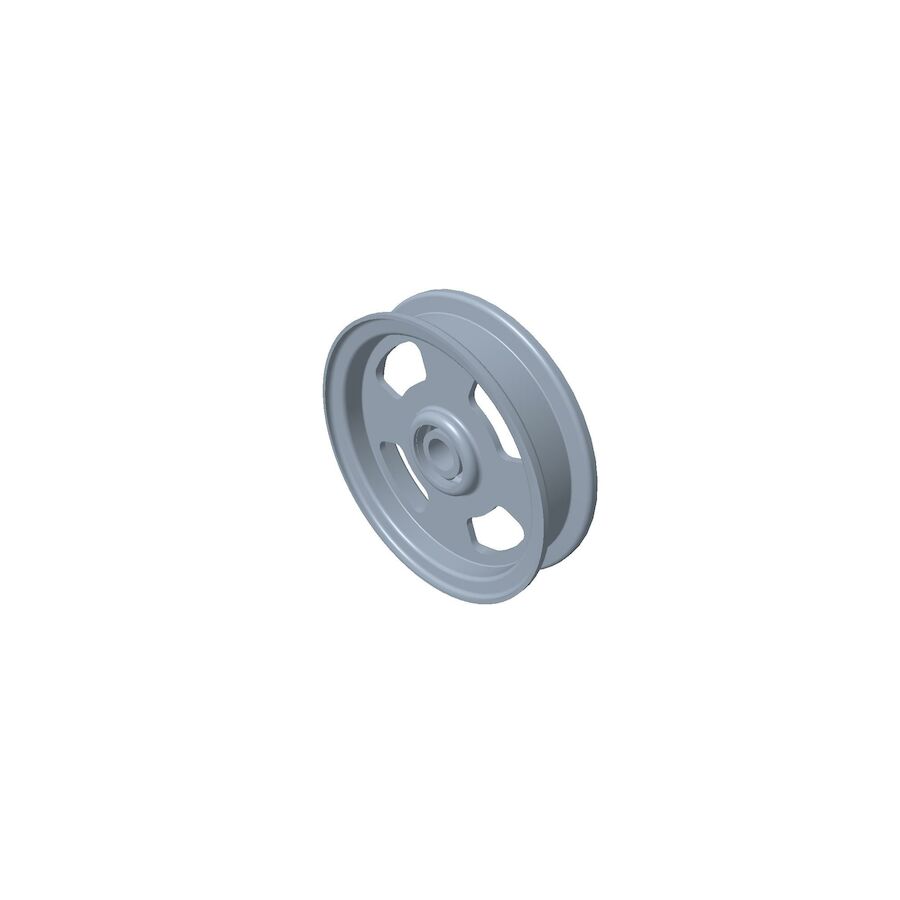

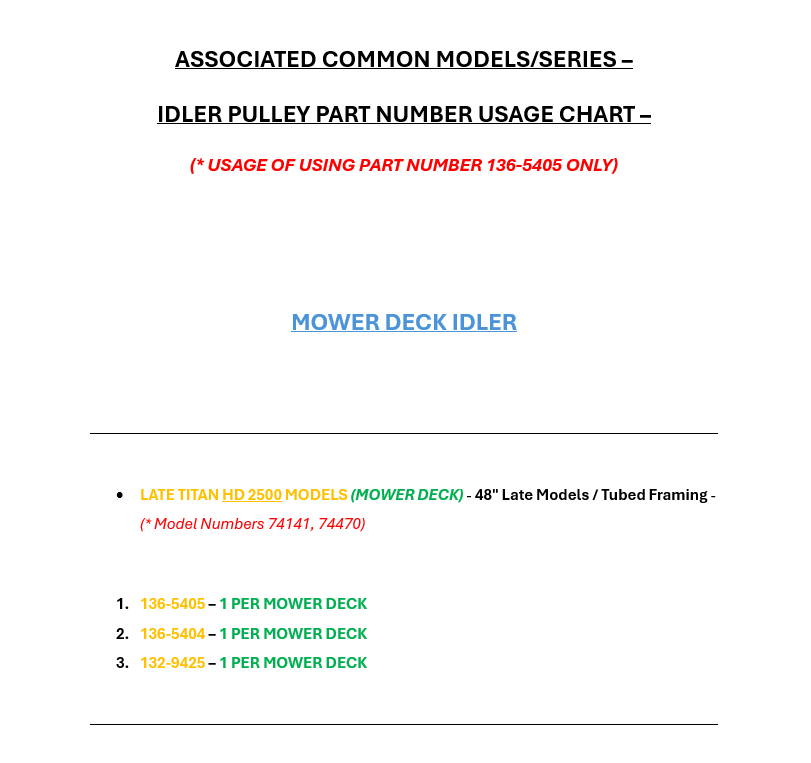

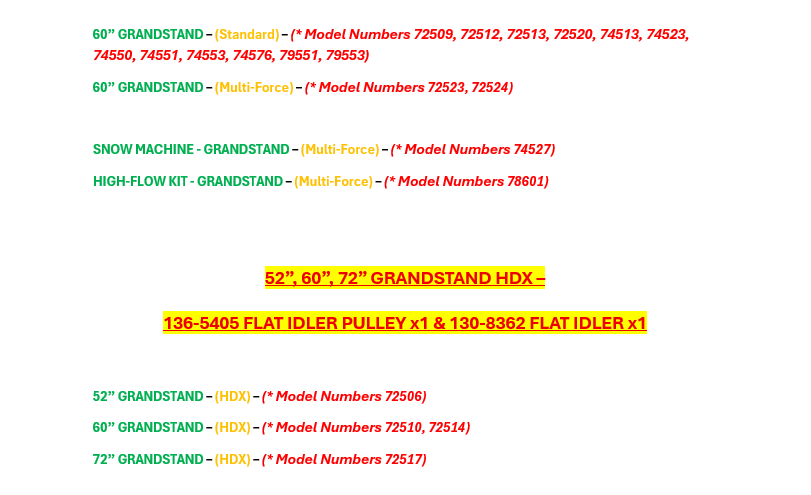

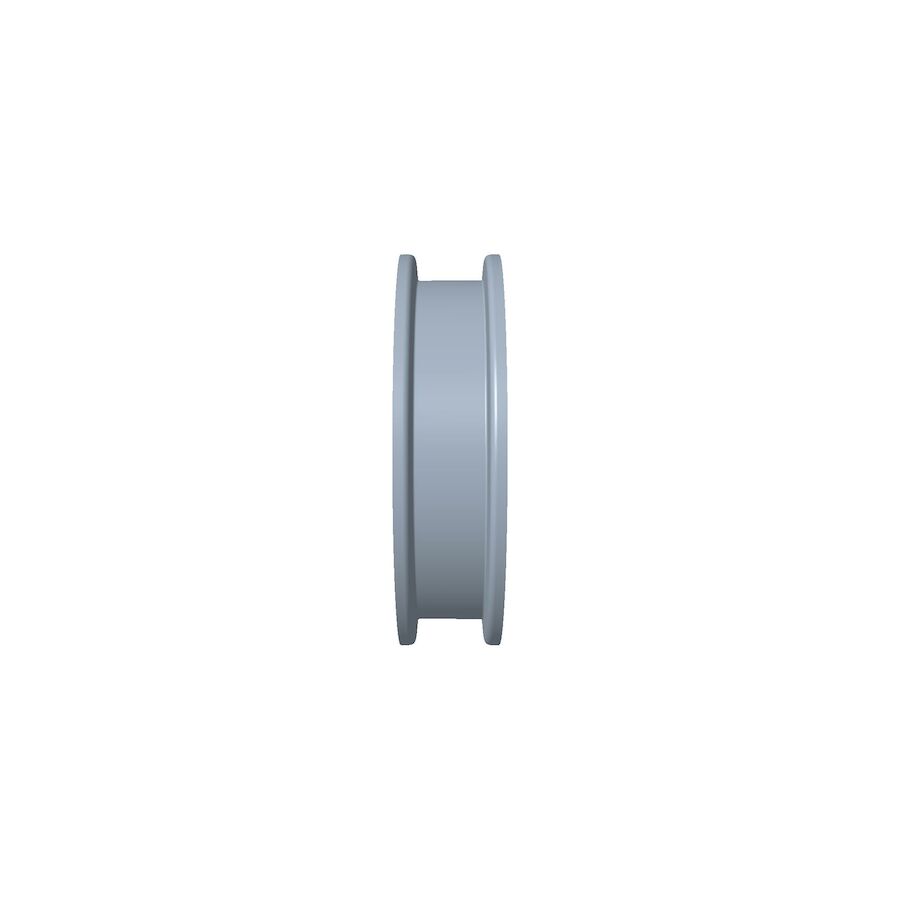

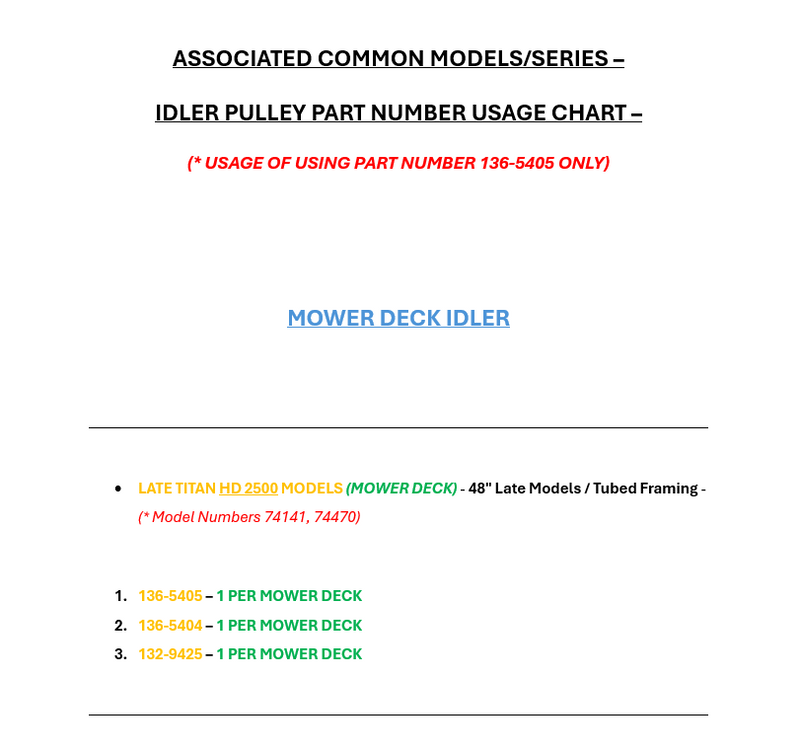

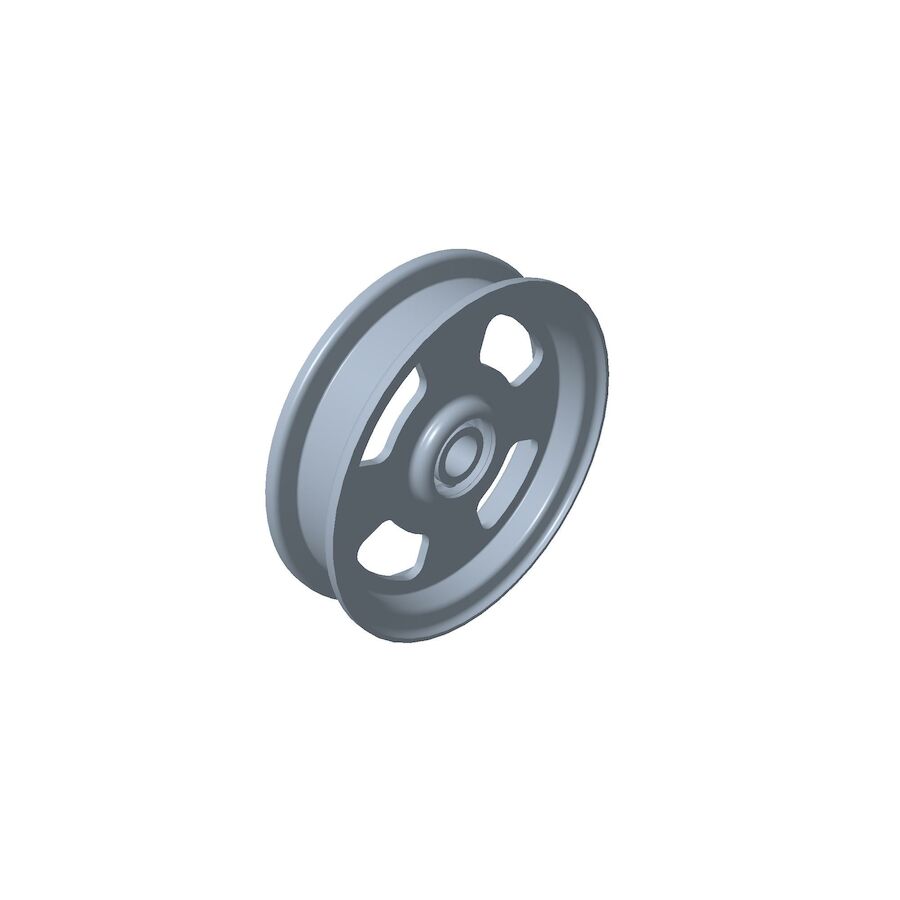

The Toro OEM 136 5405 Hydraulic Drive and Mower Deck Flat Idler is manufactured with strong steel alloy and high-quality ball bearings to ensure dependable operation in harsh, wet, hot, and dirty conditions. Built to original specifications, this Flat Idler is designed to maintain correct tension on Hydraulic and/or Traction Drive Belts. 136 5405 OEM Flat Idler is compatible with a variety of Toro models, including the Current/Late 52",60", 72" Grandstand HDX Models (Hydraulic Idler) - Current/Late 48" Z Master 3000, 5000, 6000 Models (Mower Deck) - Late 48" TITAN 2500 HD Model 74470 Only (Mower Deck) - Early Proline & Walk Behind Models (Mower Deck) - Late/Currrent 52" Grandstand Models (Mower Deck) and More .... * Idler Pulley 136-5405 is Used as a Hydrostatic Drive Idler and Mower Deck Idler to Better Understand Its Usage per Individual Models Refer to the 136-5405 Usage Chart. For Additional Fastner & Associated Part references for Idler Pulley 136-5405 review the Associated Parts Link Below the Model Fit Chart. Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below for an Accurate Break down of Specific Model Number Usage. If You are Having Trouble Finding the Correct Mower Deck or Hydraulic Idler Pulley Combination for Your Model, there is also a Chart with Detailed Break Down with Common Family and Model Numbers with the Correct Idler Pulley Part Number Combination Above in the Images as well as Below the Model Fit Guide and The Associated Part References. If this still doesn't prove helpful feel free to contact us with your questions. Part Number 1-403186, E403186, 116-4665 and 132-5156 Supersedes to Part Number 136-5405.
NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Part Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Page to Find the correct Model/Pulley Part Number Combo.
Specification
|
Product Number: |
1403186, E403186, 1164665, 1325156, 1365405 |
|
Brand: |
Toro |
|
Length: |
1.430 IN (3.632 CM) |
|
Width: |
5.750 IN (14.605 CM) |
|
Height: |
5.750 IN (14.605 CM) |
|
Weight: |
1.406 LB (0.638 KG) |
Model Fit:

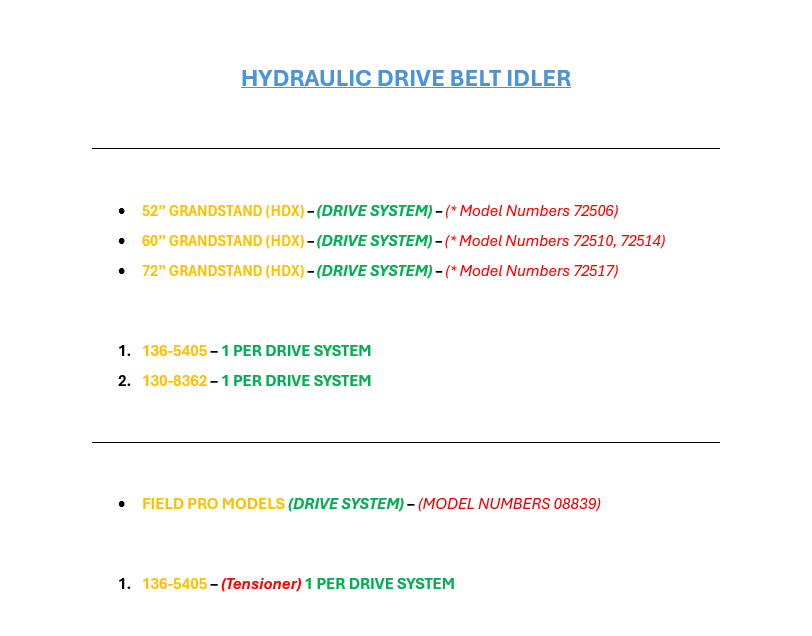

HYDRAULIC DRIVE BELT IDLER

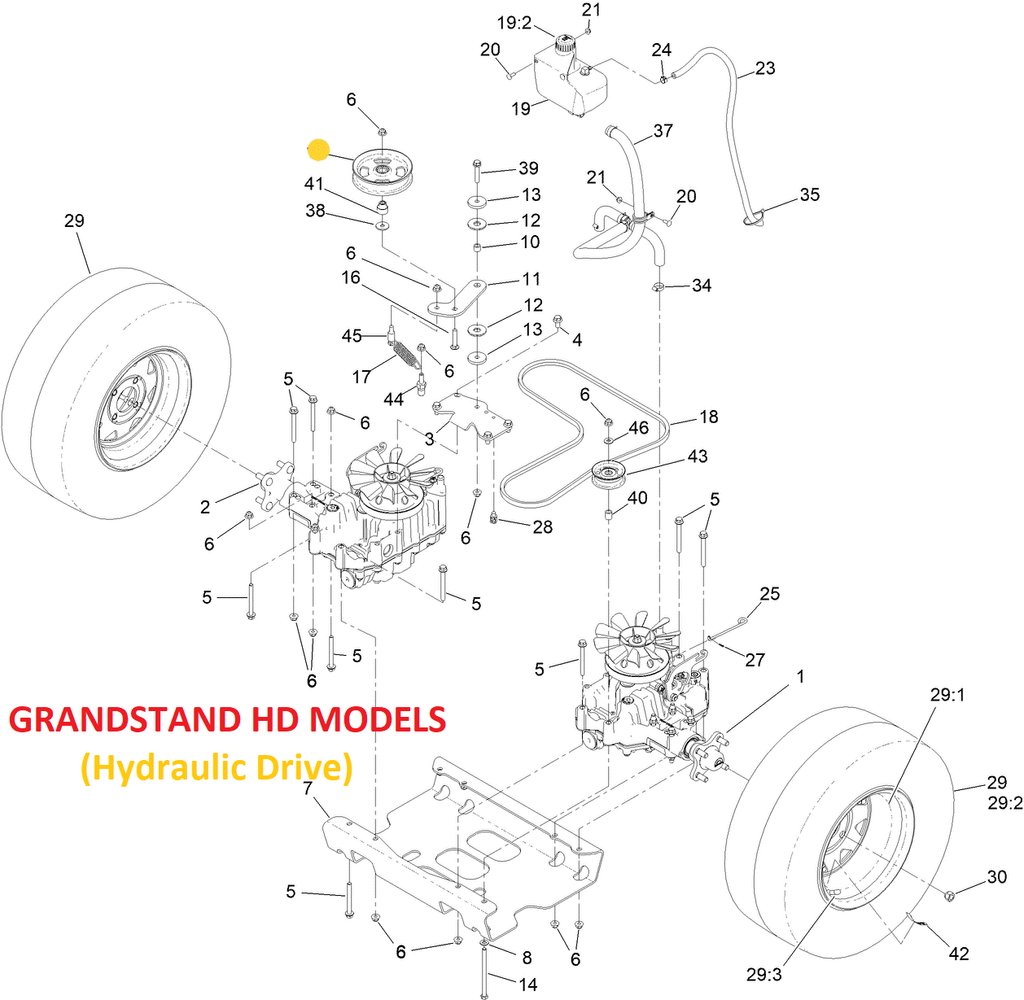

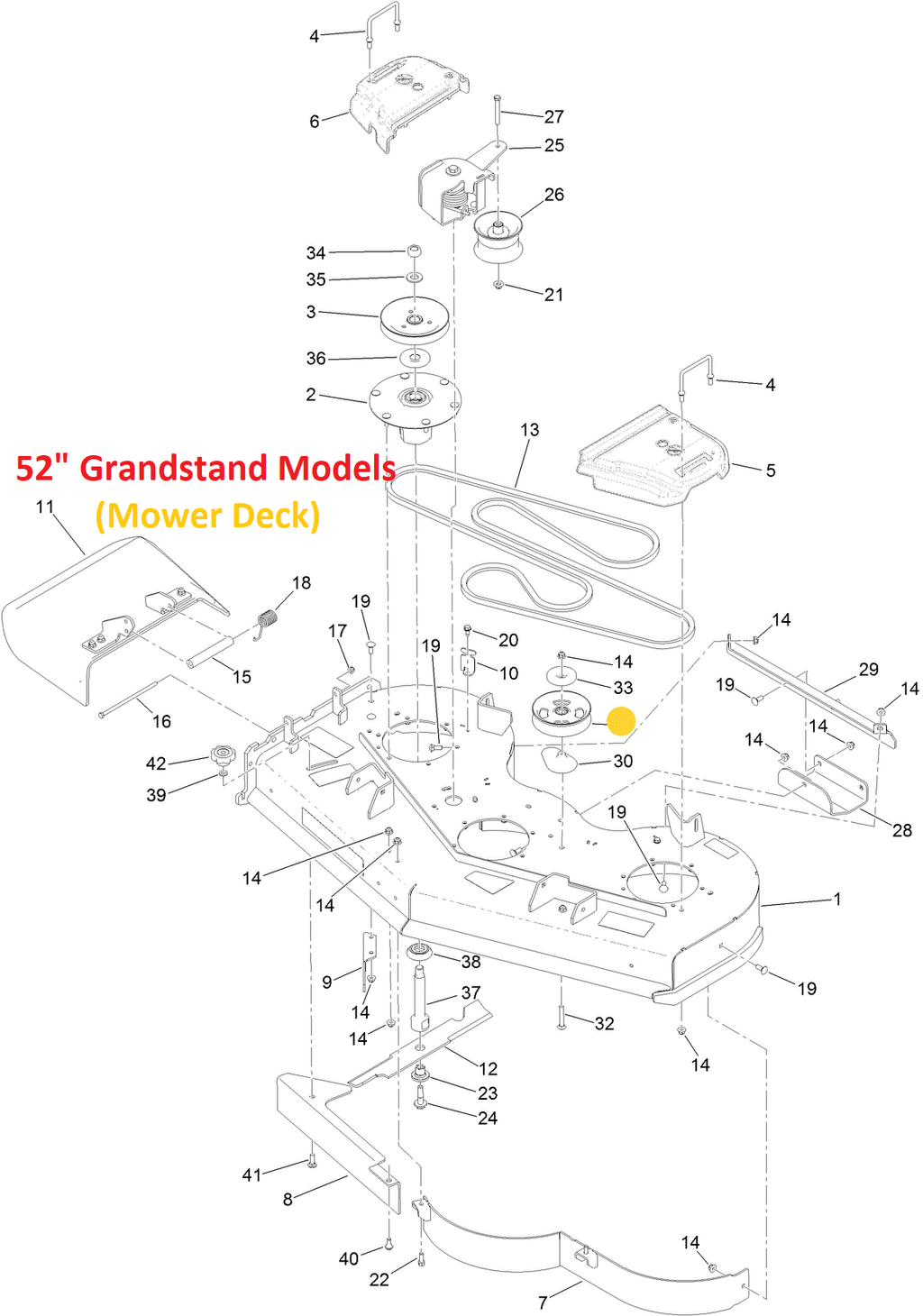

· 52” GRANDSTAND (HDX) – (DRIVE SYSTEM) – (* Model Numbers 72506)
· 60” GRANDSTAND (HDX) – (DRIVE SYSTEM) – (* Model Numbers 72510, 72514)
· 72” GRANDSTAND (HDX) – (DRIVE SYSTEM) – (* Model Numbers 72517)
· FIELD PRO MODELS (DRIVE SYSTEM) – (MODEL NUMBERS 08839)
MOWER DECK IDLER
· LATE TITAN HD 2500 MODELS (MOWER DECK) - 48" Late Models / Tubed Framing - (* Model Numbers 74141, 74470)

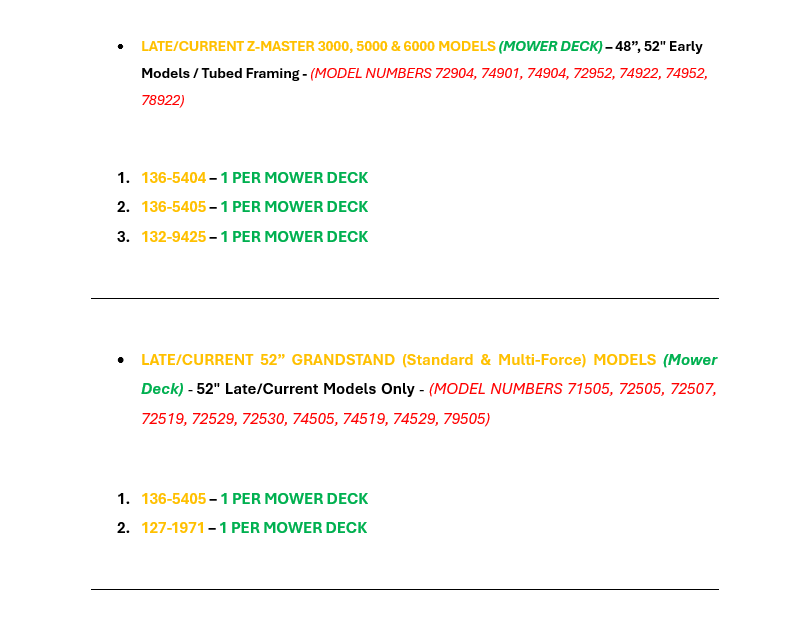

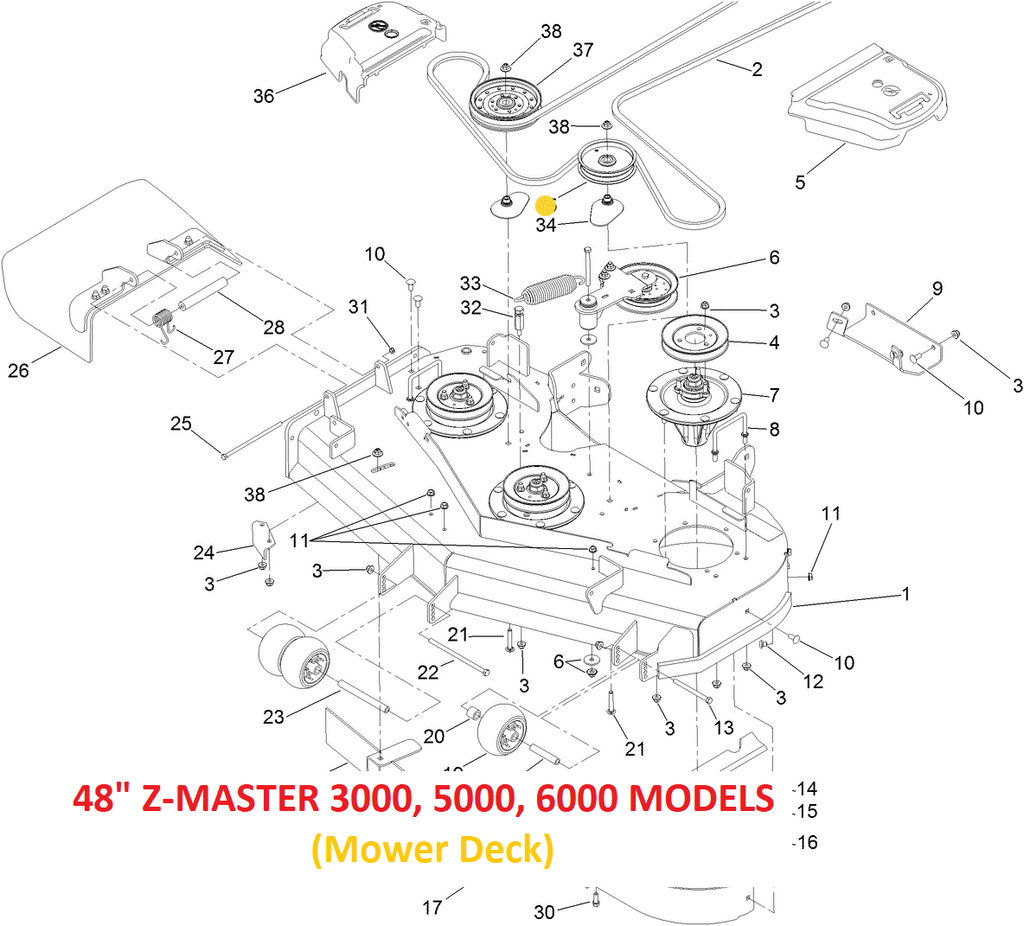

· LATE/CURRENT Z-MASTER 3000, 5000 & 6000 MODELS (MOWER DECK) – 48”, 52" Early Models / Tubed Framing - (MODEL NUMBERS 72904, 74901, 74904, 72952, 74922, 74952, 78922)
· LATE/CURRENT 52” GRANDSTAND (Standard & Multi-Force) MODELS (Mower Deck) - 52" Late/Current Models Only - (MODEL NUMBERS 71505, 72505, 72507, 72519, 72529, 72530, 74505, 74519, 74529, 79505)

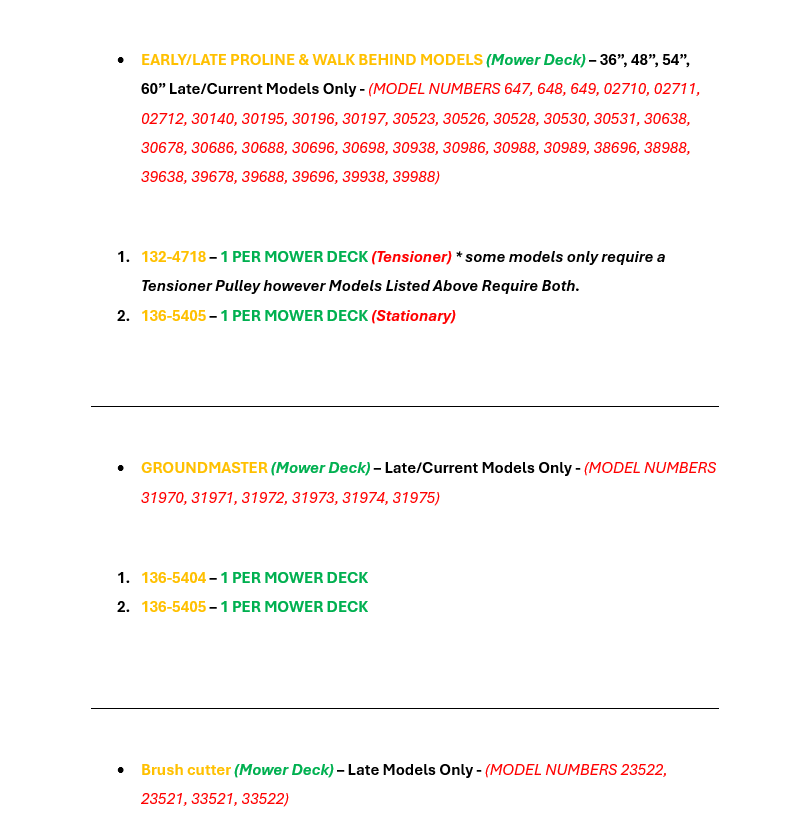

· EARLY/LATE PROLINE & WALK BEHIND MODELS (Mower Deck) – 36”, 48”, 54”, 60” Late/Current Models Only - (MODEL NUMBERS 647, 648, 649, 02710, 02711, 02712, 30140, 30195, 30196, 30197, 30523, 30526, 30528, 30530, 30531, 30638, 30678, 30686, 30688, 30696, 30698, 30938, 30986, 30988, 30989, 38696, 38988, 39638, 39678, 39688, 39696, 39938, 39988)
· GROUNDMASTER (Mower Deck) – Late/Current Models Only - (MODEL NUMBERS 31970, 31971, 31972, 31973, 31974, 31975)
· Brush cutter (Mower Deck) – Late Models Only - (MODEL NUMBERS 23522, 23521, 33521, 33522)
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 136-5405 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECT
GRANDSTAND HDX MODELS ONLY (* Hydraulic Idler References Only)
-
104-8301 - IDLER PULLEY FLANGE NUT - (Retains Idler) x1 Per Idler Pulley
- 138-7227 - IDLER PULLEY SPACER - (Insert into the Idler Pulley and Enables Hydraulic Flat Idler to be Tightened Within Correct Spacing from Idler Arm) x1 Per Flat Idler Pulley Fastened to the Idler Arm.
- 93-8806 - IDLER PULLEY WASHER - (Enables the Correct Tightening Diameter and Spacing Between the Flat Idler Bearing Surface and Idler Arm) x1 Per Flat Idler Pulley
- 147-4757 - IDLER ARM - (Retains One Flat Idler Pulley for Belt Tensioning Purposes) x1 Per Unit
- 3231-6 - IDLER PULLEY CARRIAGE BOLT - (Retains Flat Idler) x1 Per Flat Idler Pulley Fastened to the Idler Arm.
48" Z-MASTER 3000, 5000, 6000 MODELS ONLY (* Mower Deck Idler References Only)
- 109-6658 - IDLER PULLEY FLANGE NUT - (Retains Idler) x1 Per 136-5405 Flat Idler Pulley
- 109-2872 - IDLER PULLEY SPACER - (Insert into the Idler Pulley and Enables Mower Deck Flat Idler to be Tightened Within Correct Spacing from Mower Deck) x1 Per Flat Idler Pulley Fastened to the Mower Deck.
- 3231-40 - IDLER PULLEY CARRIAGE BOLT - (Retains Flat Idler) x1 Per 136-5405 Flat Idler Pulley.
