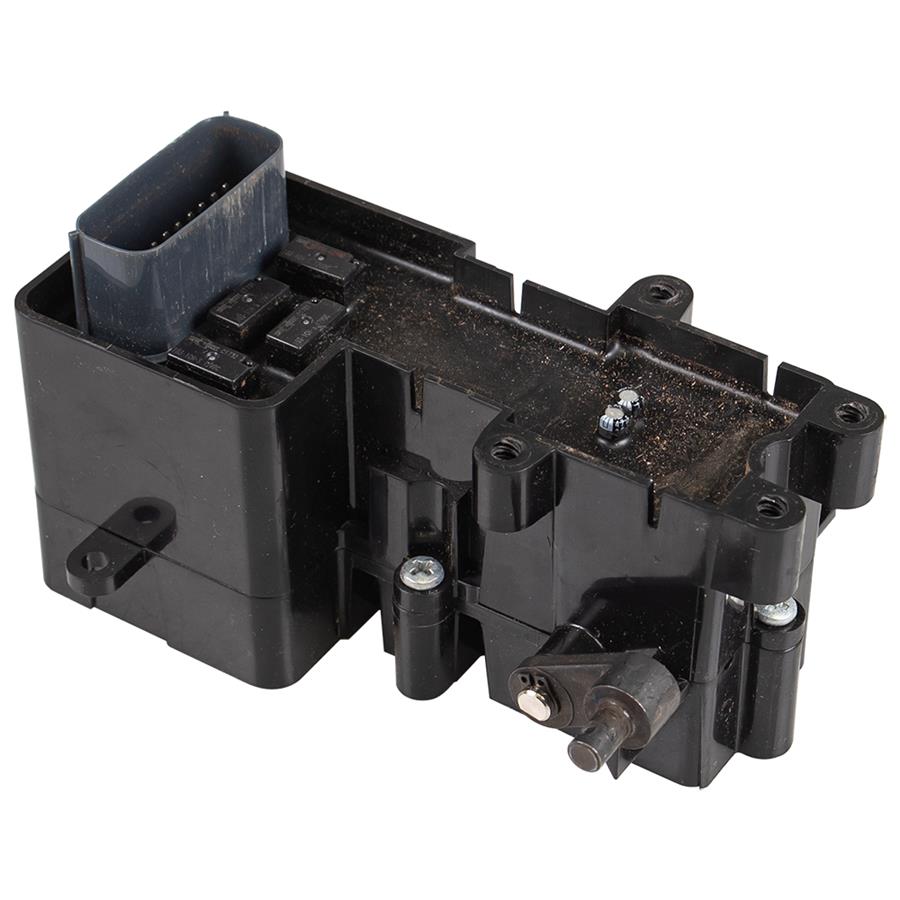

Toro OEM Brake/Electrical Box 136-4214 Fits Toro Timecutter 32" SW - 42" SW, SWX - 50" SW, SWX - 54" SW Steering Wheel Models Only.

Toro OEM 136 4214 Electrical Brake Box is Responsible for Turning the Brake on and off Electronically However it is not just a Brake Box but Serve a Greater Purpose as well. Toro OEM 136 4214 Serves as a Motherboard or an Electric Junction Box where all Electrical Circuits Meet from Numerous Ground Circuits, Safety Switch Circuits, PTO Switch, Built in Relays and Diodes, Ect. This Junction in Return allow the Ignition Switch to Operate the Engine and in return Communicate Back to the Toro OEM 136-4214 Electrical Box as to What it's intended purpose is Start, Run, Stop. Important to Note If Attempting to Test - In order to test Toro Brake Boxes, it is Important to Know the Purpose of each Electrical Circuit, The Oder in which each Electrical circuit Operates and as to Whether Circuits are supposed to Operate in an Open/Close - Current/Ground Circuit. Toro OEM 136-42134 is Specifically Designed for Toro Early/Late 32" (SW), 42" (SW, SWX), 50" (SW, SWX) and 54" (SW) Timecutter Models. Hilly Ridge does not offer any Type of Return on Electrical Items Unless it was an Error in Our Listings. So, Due to Variation Within Model Numbers/Series, Refer to the Model Fit Chart for an Accurate Break down of Specific Model Number Usage. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit. Part Numbers 136-7481 and 130-0795 Supersede to Part Number 136-4214.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 136-4214 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

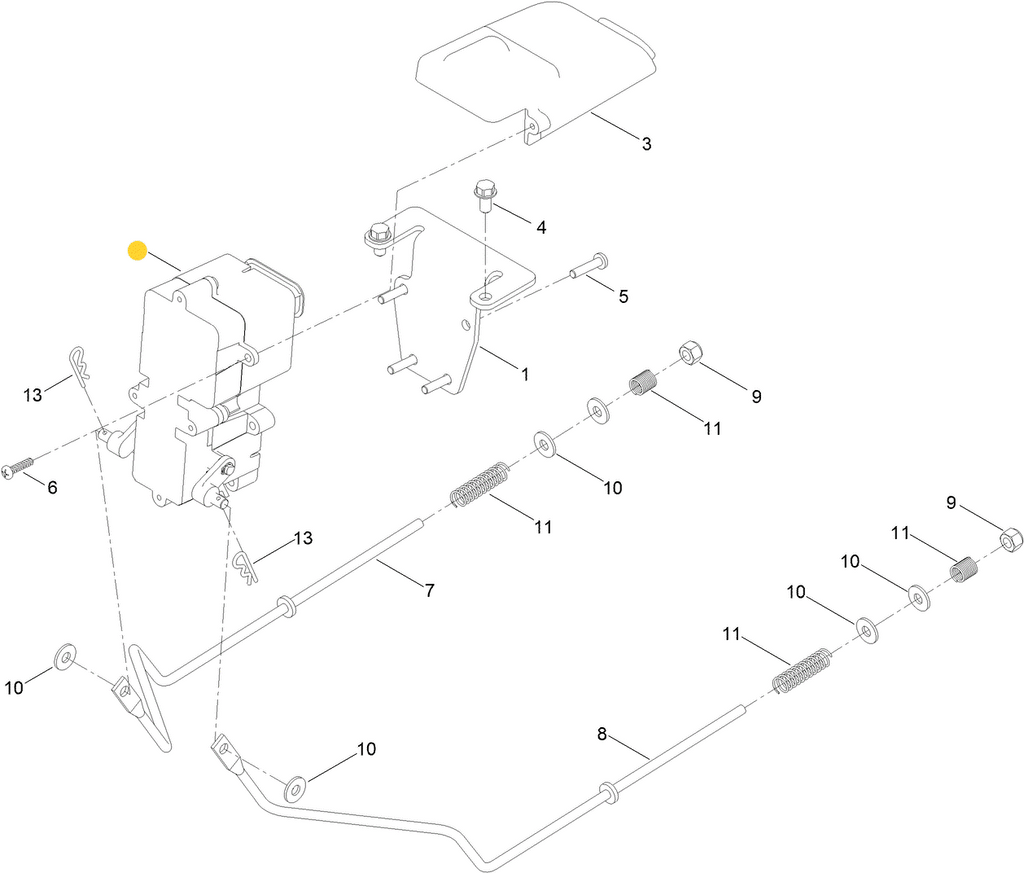

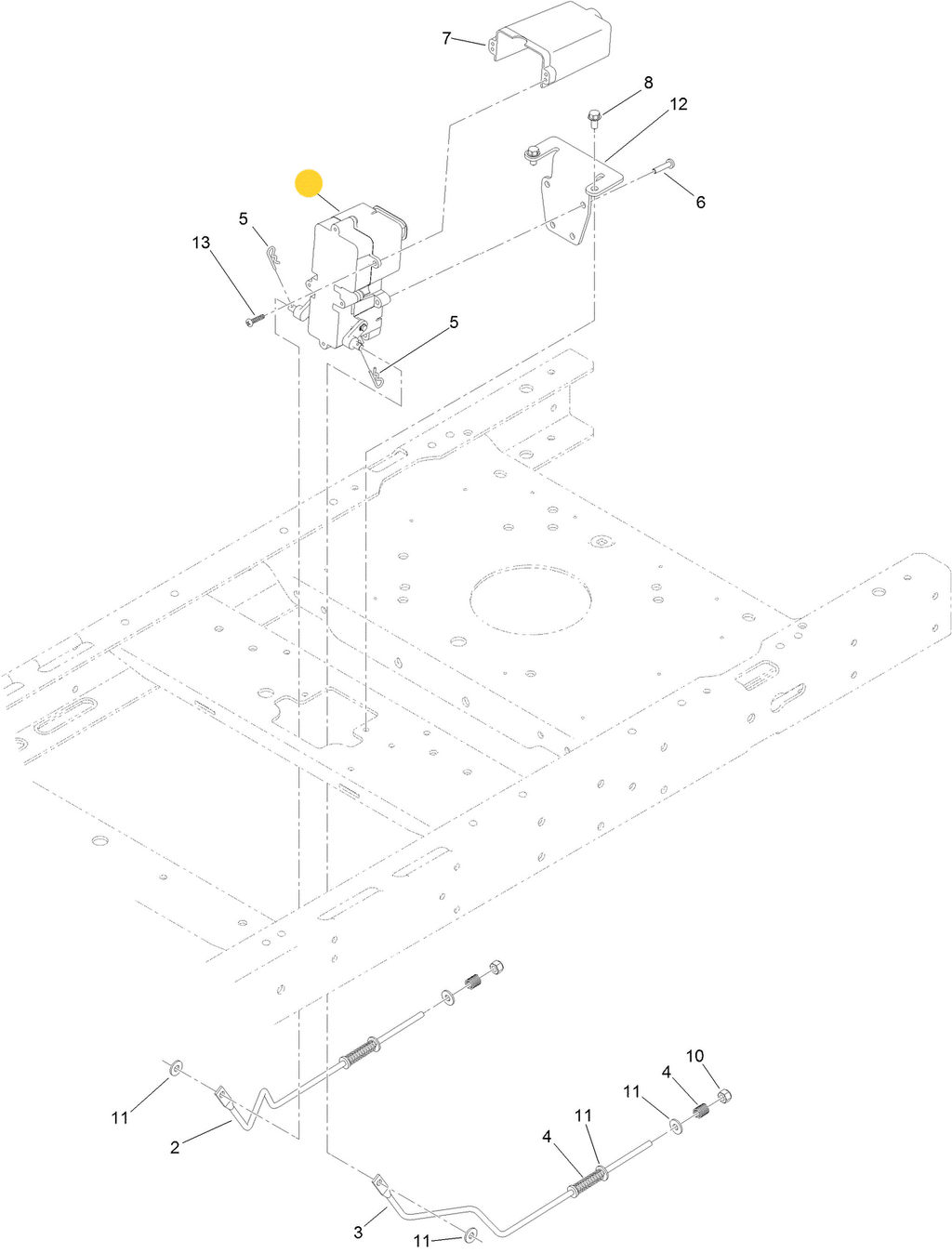

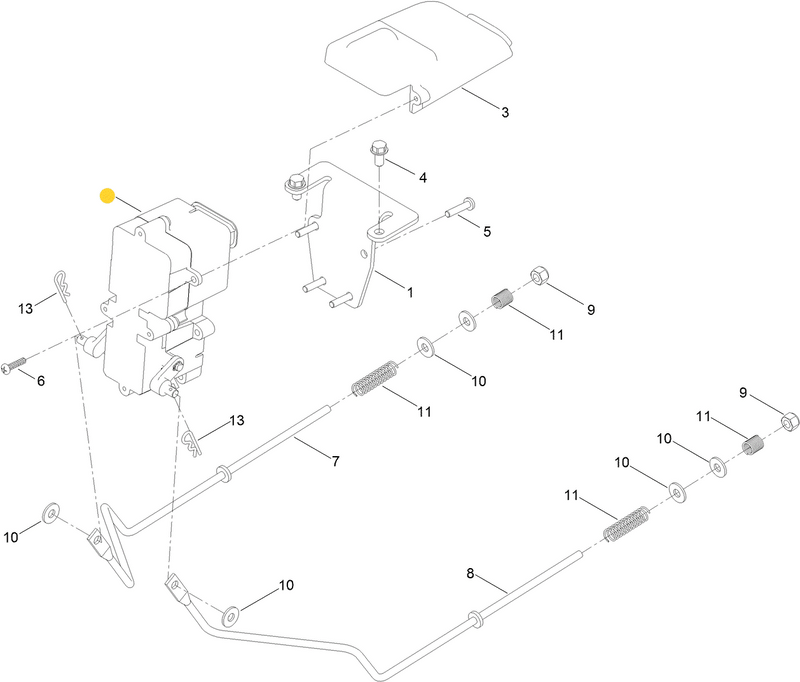

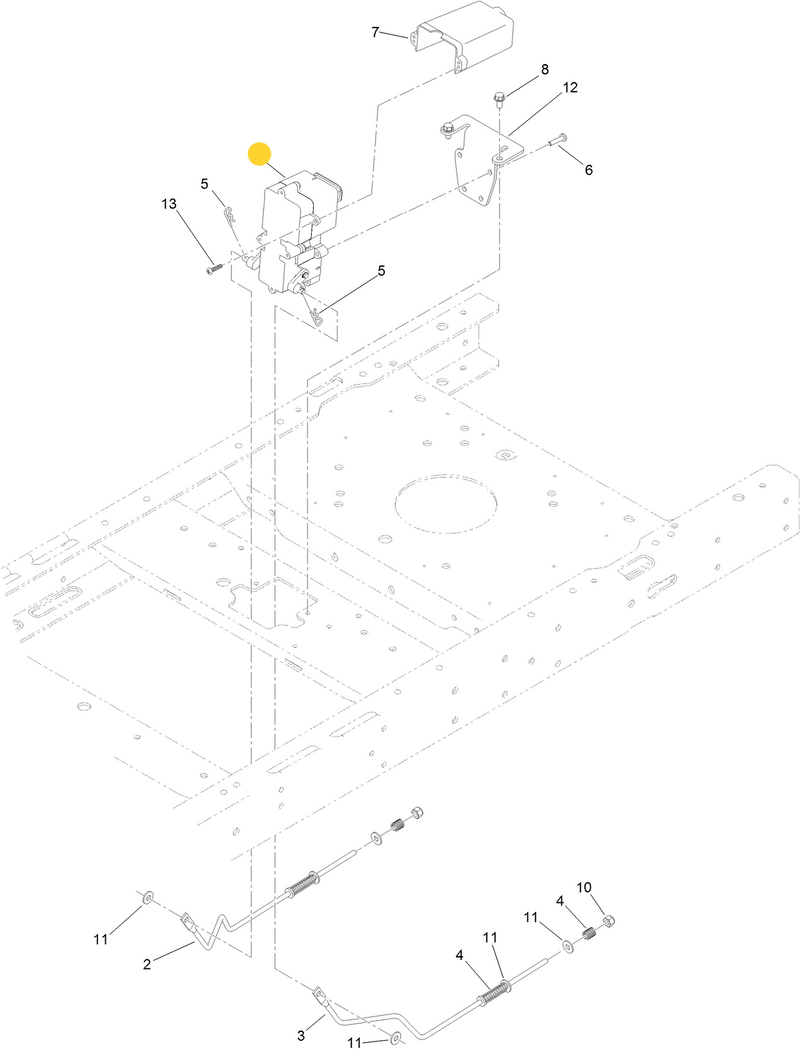

1. 32144-36 - PHILLIPS PAN HEAD SCREW - (Retains Electrical Brake Box to Brake Box Bracket) x4 Per Electrical Brake Box
2. 130-0790-03 - ELECTRIC BRAKE BOX MOUNTING BRACKET - (Retains Electrical Brake Box to the Mower Frame) x1 Per Electrical Brake Box
3. 94-4496 - PHILLIPS PAN HEAD SREW - (Retains Electrical Connector Cover to Electrical Brake Box) x2 Per Electrical Brake Box
4. 132-6949 - CONNECTOR COVER - (Protects Electrical Connection Plug Erea) x1 Per Electrical Brake Box
5. 1-806003 - COTTER/CLIP PIN - (Retains Brake Linkage to Electrical Brake Box) x1 Per Brake Linkage Rod
6. 119-8952 - FLAT WASHER - (Supports 3290-307 Cotter/Clip Pin) x1 Per Brake Linkage Rod







Specification

Product Number:	136781, 1300795, 1364214
Brand:	Toro
Length:	6.000 IN (15.240 CM)
Width:	2.000 IN (5.080 CM)
Height:	2.500 IN (6.350 CM)
Weight:	0.750 LB (0.340 KG)





Model Fit:





TIMECUTTER 32” SW Series – Model Numbers – 74670, 74780, 74781





TIMECUTTER 42” SW Series – Model Numbers – 74675, 74676, 74784, 74785, 74788



TIMECUTTER 42” SWX Series – Model Numbers – 74787





TIMECUTTER 50” SW Series – Model Numbers – 74680, 74790



TIMECUTTER 50” SWX Series – Model Numbers – 74797, 74798, 74795





TIMECUTTER 54” SW Series – Model Numbers – 74793
