Description

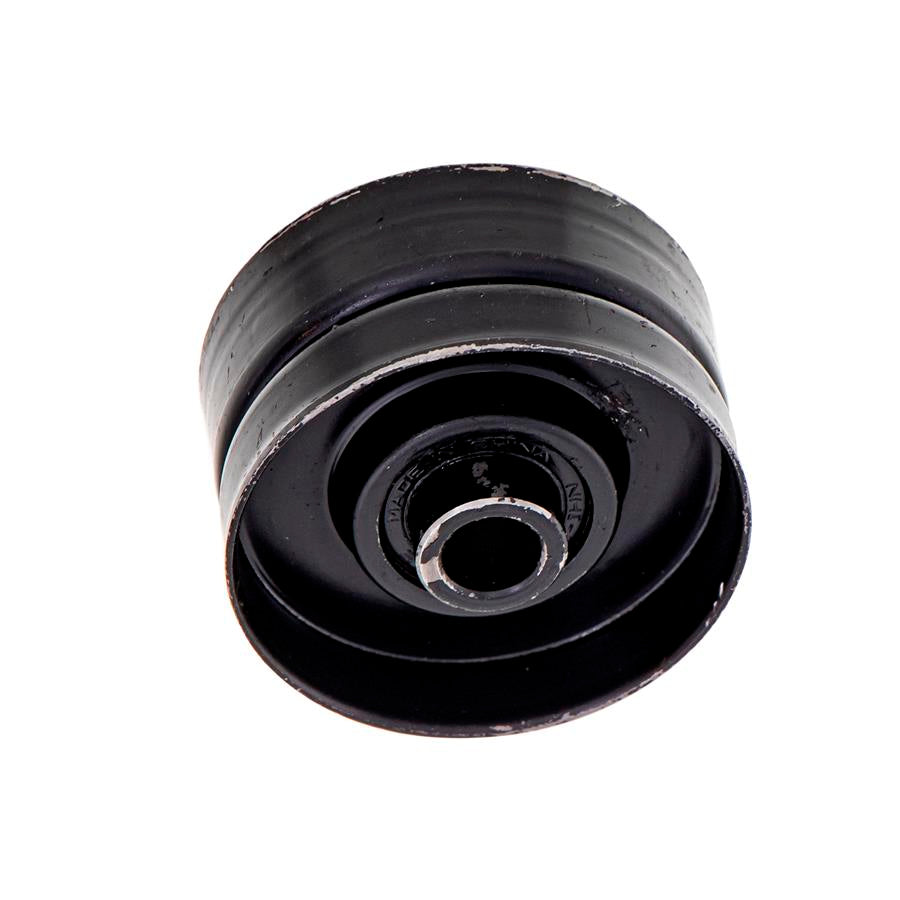

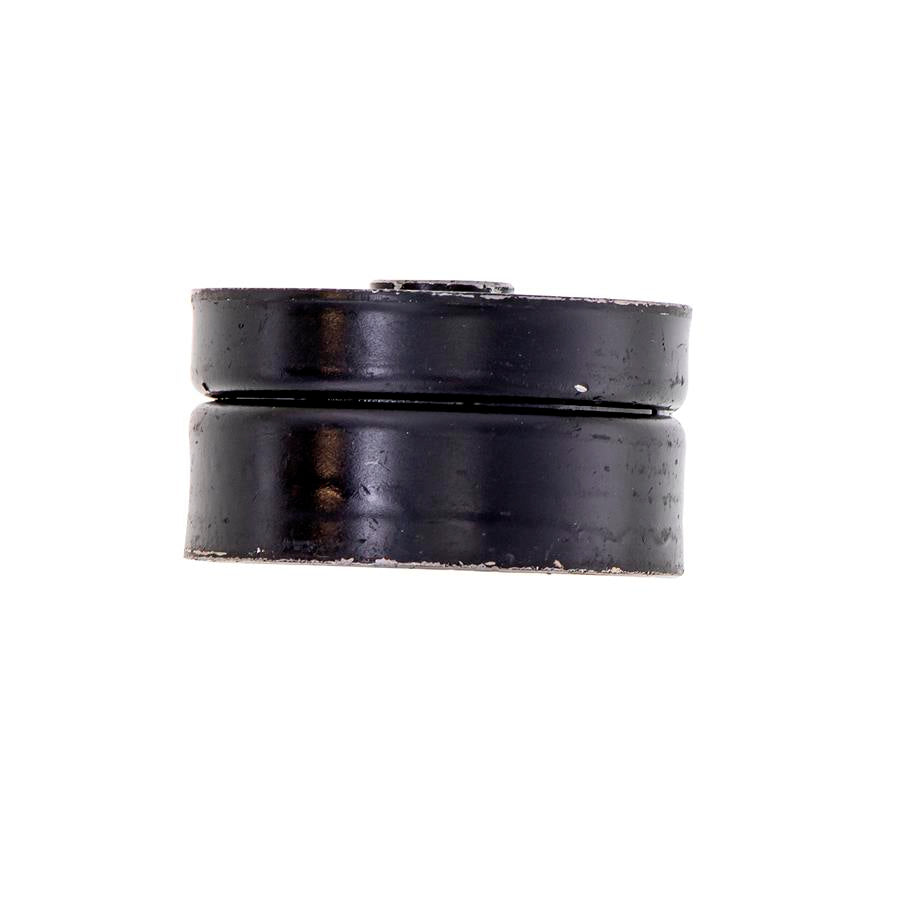

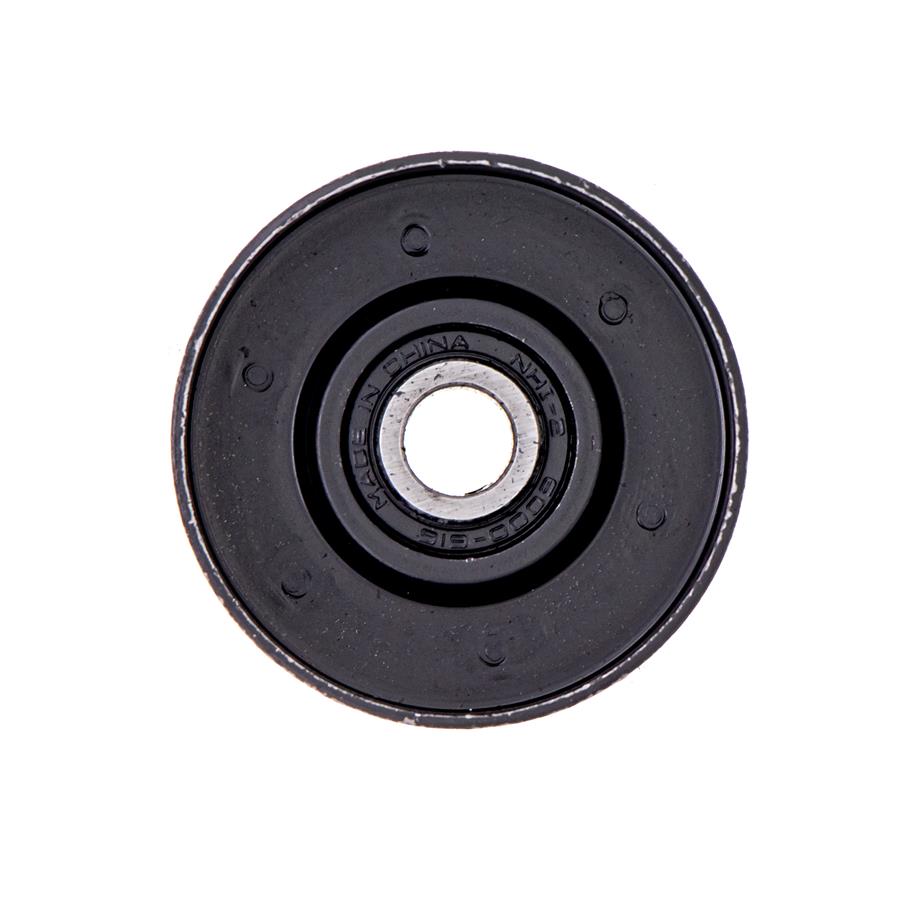

The Toro OEM 135 1199 Hydraulic Drive Flat Idler is manufactured with strong steel alloy and high-quality ball bearings to ensure dependable operation in harsh, wet, hot, and dirty conditions. Built to original specifications, this Flat Idler is designed to maintain correct tension on Hydraulic and/or Traction Drive Belts. 135 1199 OEM Flat Idler is compatible with a variety of Toro models, including the Current 32", 36" Grandstand HDM or Compact Models 74532, 74535 (Mounts to Tensioner Arm). Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below for an Accurate Break down of Specific Model Number Usage. For Additional Fastner & Associated Part references for Idler Pulley 135-1199 review the Associated Parts Link Below the Model Fit Chart. If You are Having Trouble Finding the Correct Hydraulic Idler Pulley Combination for Your Model, there is also a Chart with Detailed Break Down with Common Family and Model Numbers with the Correct Idler Pulley Part Number Combination Above in the Images as well as Below the Model Fit Guide and The Associated Part References. If this still doesn't prove helpful feel free to contact us with your questions.
NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Part Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Page to Find the correct Model/Pulley Part Number Combo.
Specification
|
Product Number: |
1351199 |
|
Brand: |
Toro |
|
Length: |
2.000 IN (5.080 CM) |
|
Width: |
2.000 IN (5.080 CM) |
|
Height: |
1.000 IN (2.540 CM) |
|
Weight: |
0.284 LB (0.129 KG) |
Model Fit:
32” GRANDSTAND – (HDM) – (* Model Numbers 74532)
36” GRANDSTAND – (HDM) – (* Model Numbers 74535)

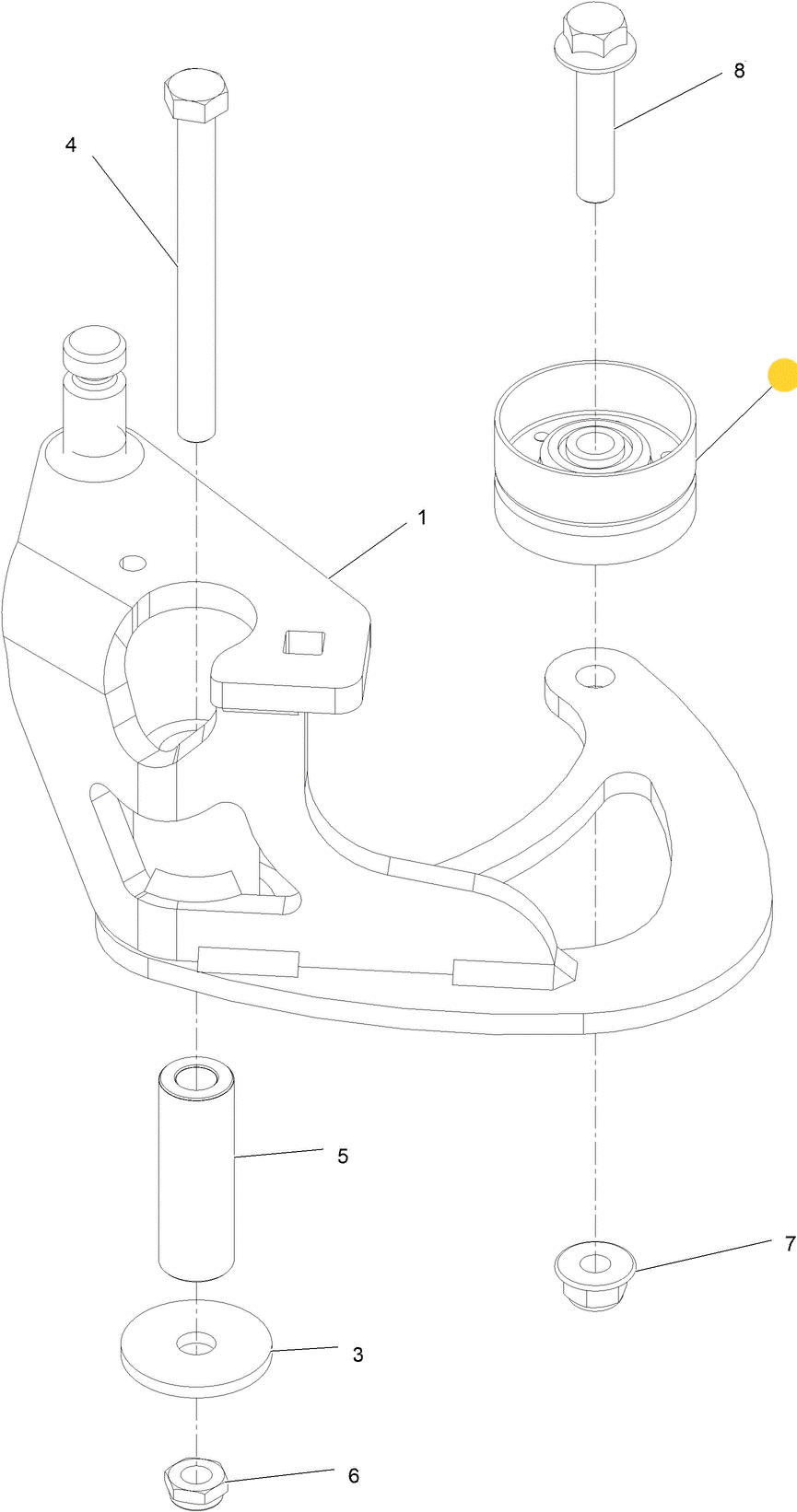

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 135-1199 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECT
GRANDSTAND HDM/COMPACT MODELS ONLY
- 104-8301 - IDLER PULLEY FLANGE NUT - (Retains Idler) x1 Per Idler Pulley
- 135-2238 - IDLER ARM - (Retains One Flat Idler Pulley for Belt Tensioning Purposes) x1 Per Unit
- 3234-19 - IDLER PULLEY HEX BOLT - (Retains Flat Idler to Idler Arm) x1 Per Flat Idler Pulley Fastened to Idler Arm.
