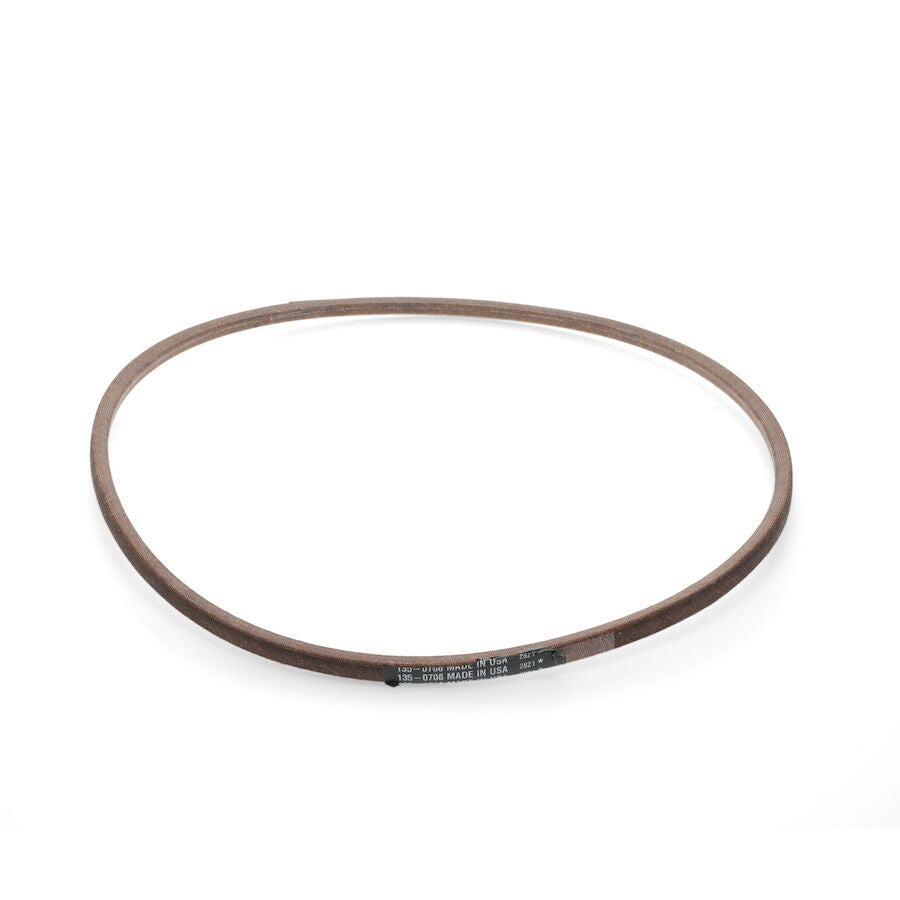

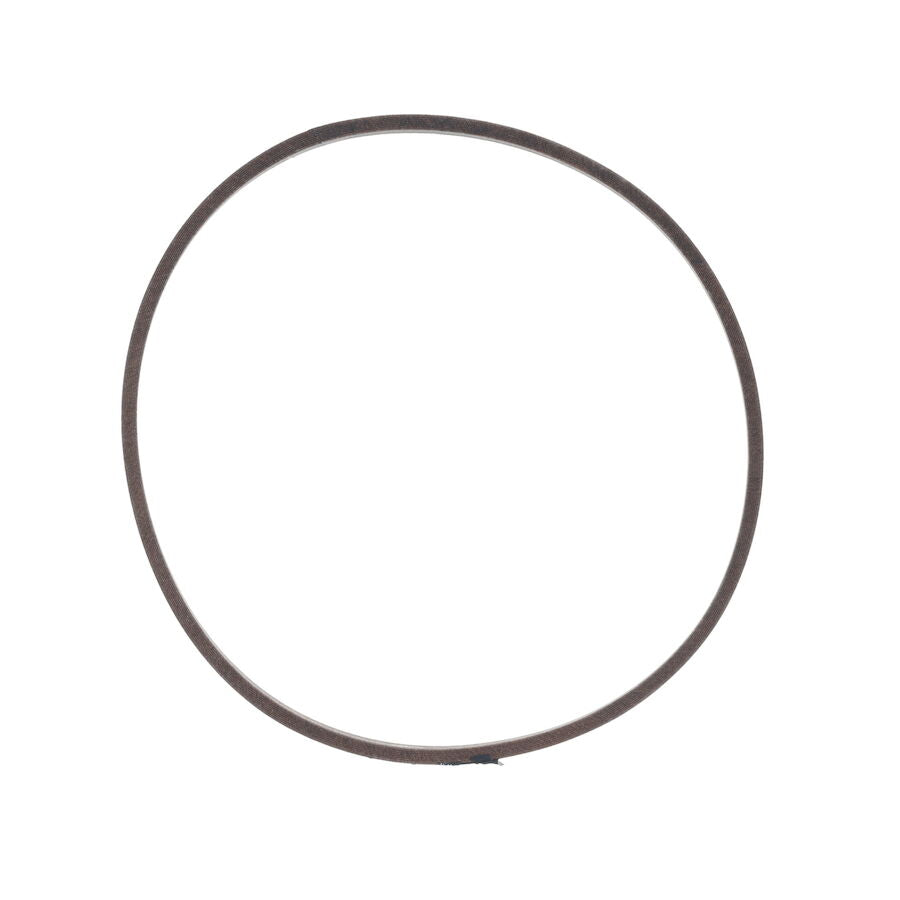

Toro OEM 135-0708 Snowblower Impeller Auger V-Belt Fits Select Power Max HD Snowblower Models - E-Z Bagger/Blower Kit 78466 - Select Completion Bagger Kit. (1/2 x 44.40) TORO DEALER

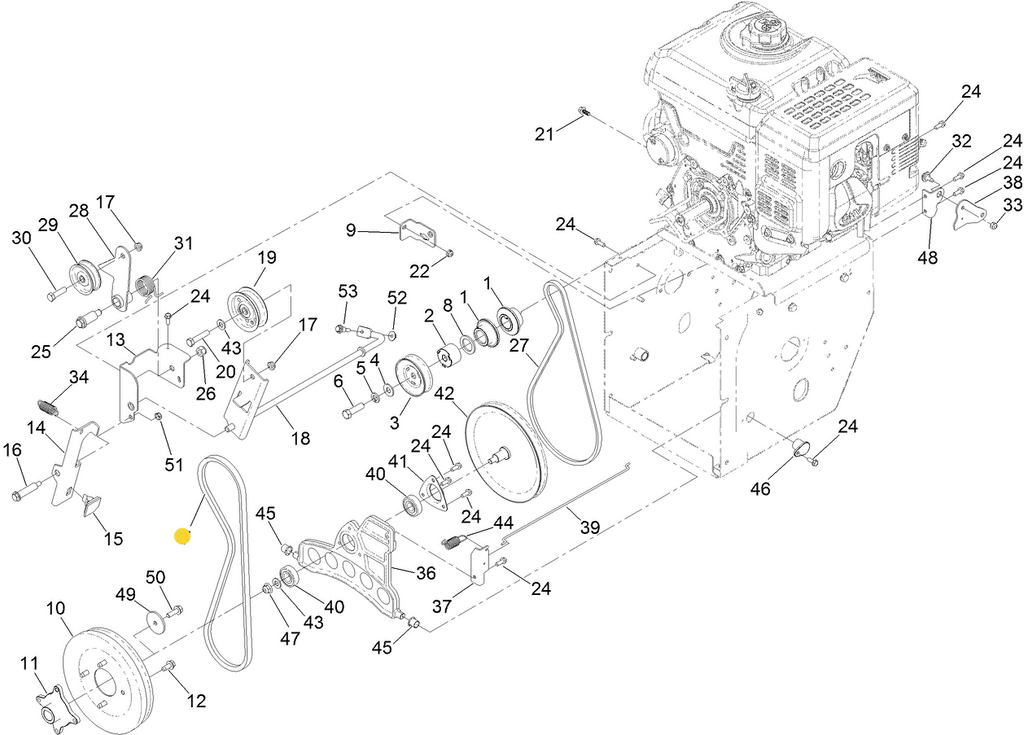

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.





• PRODUCT NUMBER AND VARIATIONS: 135-0708, 135 0708, 1350708
• PRODUCT TYPE: Auger/Rotor Drive V-Belt
• SIZE: Length 44.40 in. - Width 1/2 in. - Height N/A in. - Weight 0.294 lbs.
• NOTES & DETAILS: Toro OEM  135-0708 IS COMMINLY USED - 135-0708 Travels from the Engine Pulley to the Auger/Rotor Pulley - Rotates the Auger When Pressure is Applied by the Tensioner Idler Pulley.
• COMMON SERIES APPLICATIONS: Toro Select Power Max HD Snow Blower Models - Select Completion Bagger Kits - Select E-Z Vac Bagger/Blower Kit (Only Model 78466).





• MODEL FIT CHART:



SNOWBLOWER’S



POWER MAX Series – Model Numbers – (* Model Numbers 38830, 38840, 38841, 38850, 38855)



Completion Bagger Kits – Model Numbers – (* Model Numbers 78435, 78438)



E-Z Vac Bagger/Blower Kit Series – Model Numbers – (* Model Numbers 78466)





• ASSOCIATED PARTS CHART:





ASSOCIATED PARTS REFERENCES FOR PART NUMBER 135-0708 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED



REFERENCES FOR SNOWBLOWER MODELS ONLY



1. 137-6179 - ENGINE IMPELLER PULLEY (Is Assembled Directly to the Engine Crankshaft - Two Piece Traction Drive Pulley is Installed Behind it Between Engine Impeller Pulley and the Engine Crankcase - and Enables the Engine to Rotate the Auger/Rotor when the Operator Applies Tension on the Auger/Rotor Drive Belt by Engaging the Auger/Rotor Clutch Bail Handle) x1 Per Snowblower Unit
2. 138-0717 - AUGER/ROTOR PULLEY (Is Assembled Directly to the Auger/Rotor Assembly Shaft Using Pulley Hub 136-6558 and Enables the Auger/Rotor to Rotate when the Operator Applies Tension on the Auger/Rotor Drive Belt by Engaging the Auger/Rotor Clutch Bail Handle) x1 Per Snowblower Unit
3. 136-6558 - AUGER/ROTOR PULLEY HUB (Retains the Auger/Rotor Pulley to the Auger/Rotor Shaft) x1 Per Snowblower Unit
4. 92-7104 - IDLER PULLEY (Contains Roller Bearing that Allow the Pulley to Match the Speed of the Engine RPM's as the Operator Applies Direct Tension Between the Belt and Idler Pulley while Engaging the Auger or Rotor - Fastens Directly on the Outside side of the Idler Pulley/Impeller Clutch Arm 137-6234-03) x1 Per Snowblower Unit
5. 137-6234-03 - PULLEY/IMPELLER CLUTCH ARM (Is Retained to the Snowblower Frame by Using a Couple Retaining Brackets and Retains the Idler Pulley as well as Enables it to Rotate. Rotation of the Impeller Clutch Arm is Initiated by Operation of the Operator Clutch/Control Handle or Lever, Engagement of the Clutch Control Handle Operates the Impeller Clutch Arm Via a Clutch Cable, this Rotation of the Impeller Clutch Arm Applies or Neutralizes Pressure Between the Clutch Belt and Idler Pulley) x1 Per Snowblower Unit
