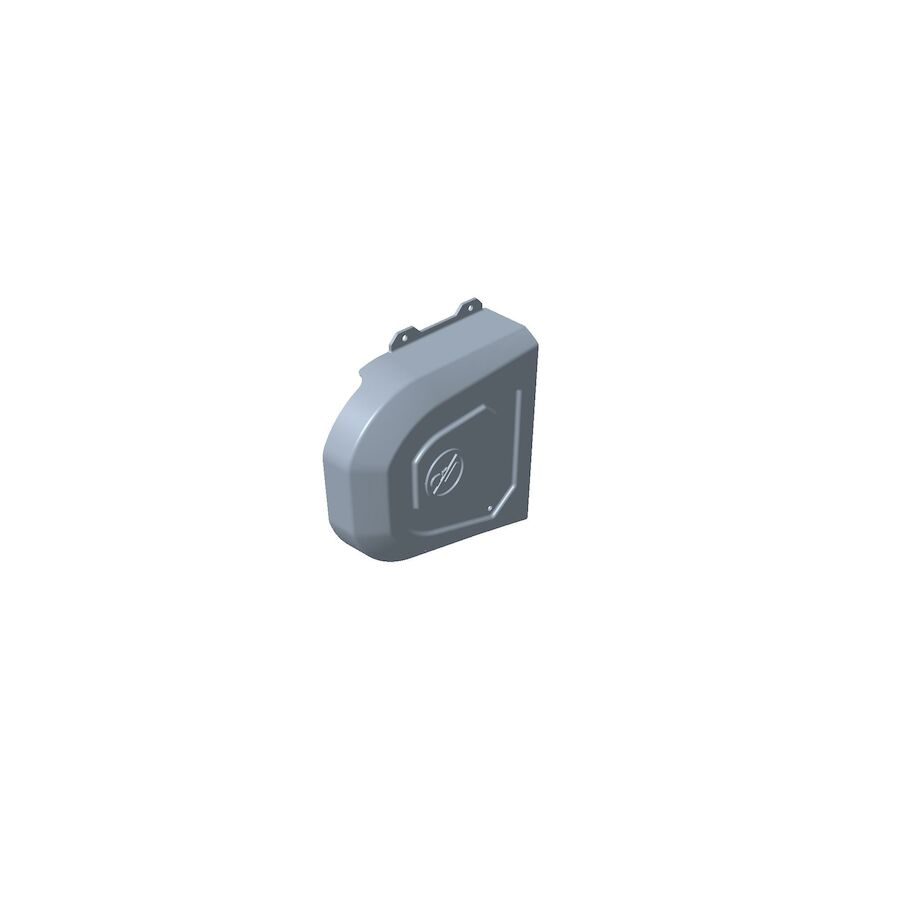

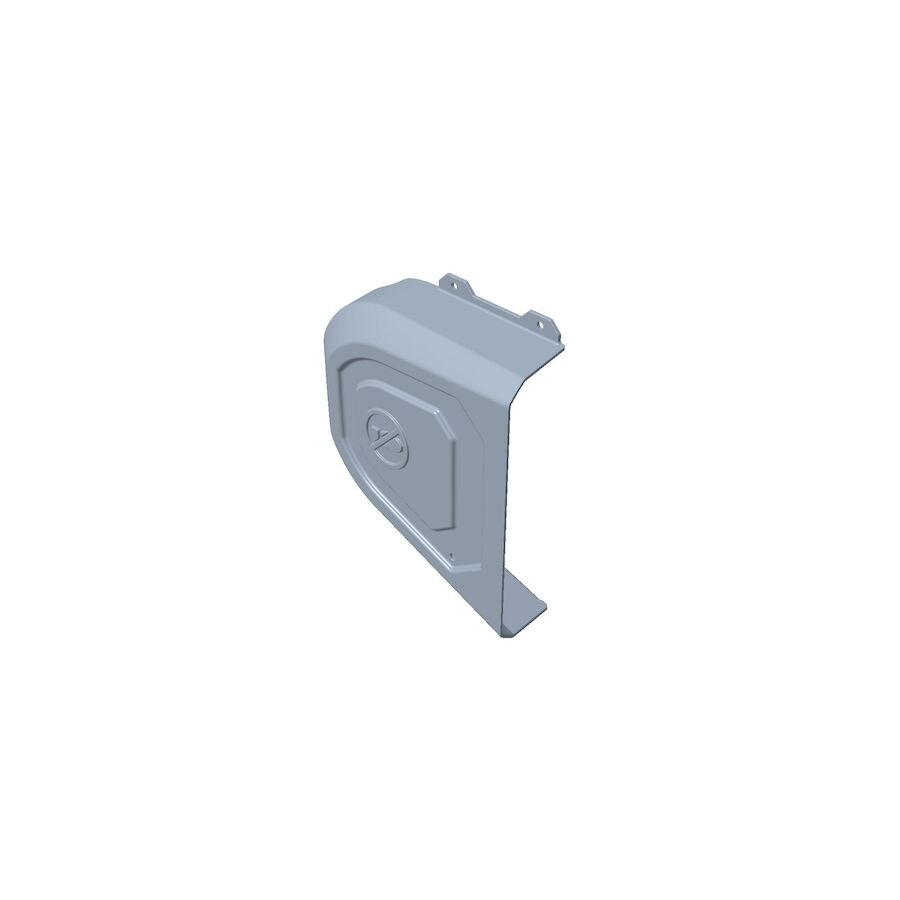

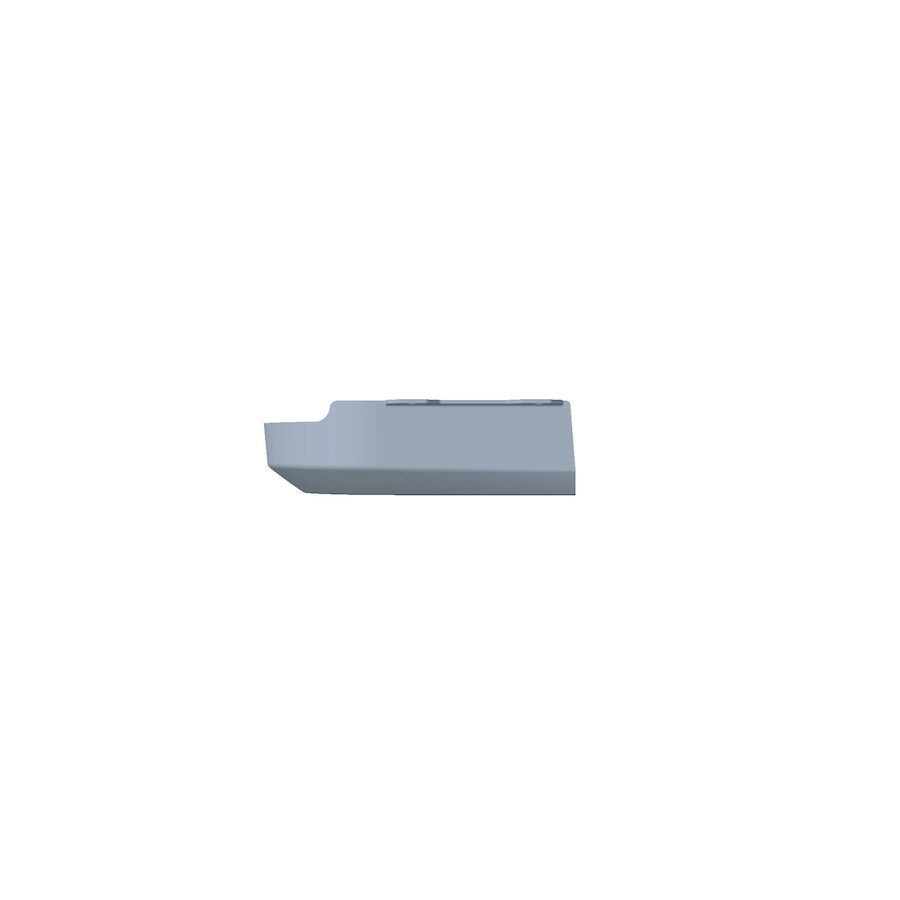

Toro OEM 133-9283 Right Hand Spindle Belt and Pulley Cover Fits Early/Late Toro 60" Timecutter - 48", 54" Timecutter HD - Current 48", 54", 60" PROLINE - Select 48", 54", 60" TITAN Standard, My-Ride, X, XS (Pre - I-Beam Framing).

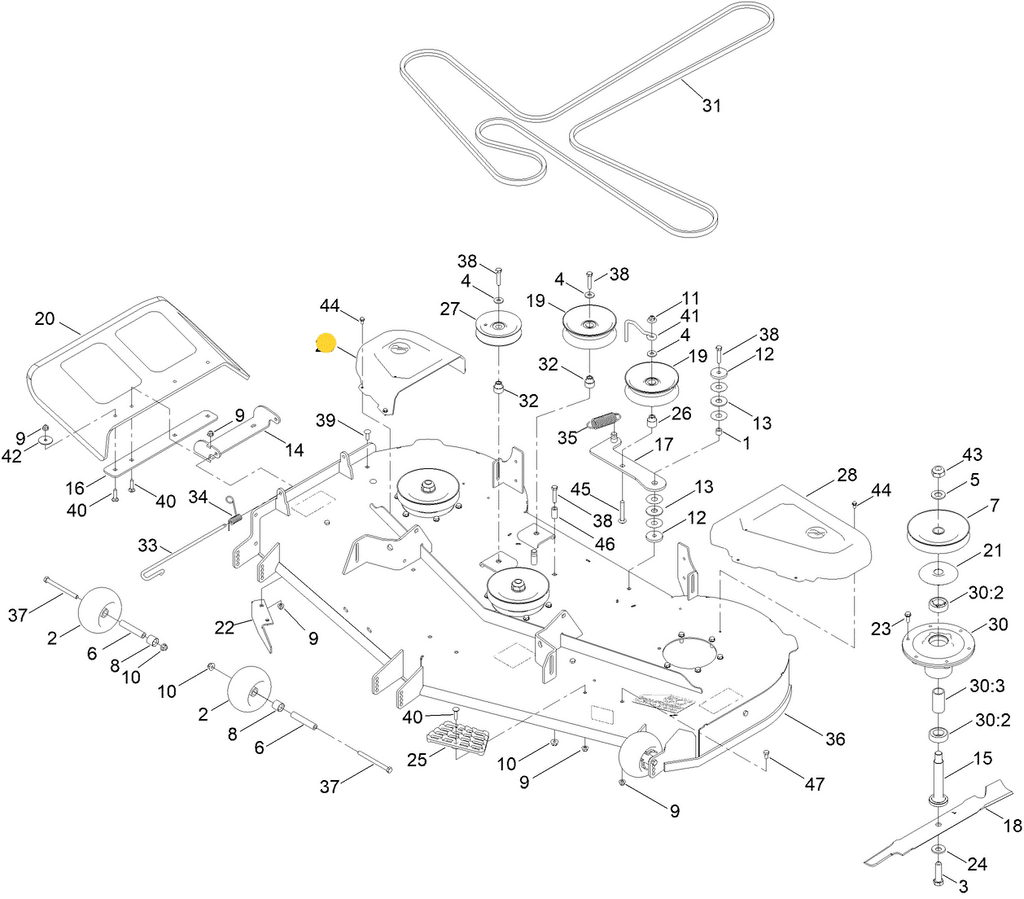

Trust Oem Replacement Right-Side 133 9283 Pulley and Belt Sheild to properly fit and covers those belts and pulleys, keeping the operator safe. the Bolt-On Style allows you to remove the Guards and allows easy access to cleaning your Mower Deck. OEM 133 9283 Fits Toro Early/Late 60" Timecutter Standard, My-Ride - Late 48", 54", 60" Timecutter HD Models - Late/Current 48", 54", 60" Proline Models, Early/Late Titan Standard, My-Ride, X, XS, ZX, 4800, 5400, 6000 Models (Titan Models are all Pre-I-Beam Models). Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below for an Accurate Break down of Specific Model Number Usage. TORO OEM Right-Hand Belt/Pulley Guard 133-9283 Fits on the Right Side of the Mower Deck as You Sit on the Operators Seat.







ASSOCIATED FASTNERS FOR PART NUMBER 133-9283 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 32144-4 - SELF-TAPPING TAP SCREW - (Retains Pulley Cover to Mower Deck) x2 per Belt/Pulley Cover







Specification

Product Number:	1339282
Brand:	Toro
Length:	11.500 IN (29.210 CM)
Width:	9.750 IN (24.765 CM)
Height:	3.000 IN (7.620 CM)
Weight:	0.622 LB (0.282 KG)





Model Fit:





TIMECUTTER 48” HD Series – Model Numbers – 75211, 75210, 75201, 74886, 74866, 74864

TITAN 48” Standard, My-Ride, X, XS, 4800, ZX (Late Model – Tube Framing) Series – Model Numbers – 74874, 74875, 74887, 74890, 75301, 75304, 75311, 75314



TIMECUTTER 54” HD Series – Model Numbers – 75212, 75202, 74876, 74888, 74867, 74865

TITAN 54” Standard, My-Ride, X, XS, 5400 (Late Model – Tube Framing) Series – Model Numbers – 74877, 74889, 74898, 75302, 75305, 75310, 75312, 75315



TIMECUTTER 60” MX Series – Model Numbers – 74777

TIMECUTTER 60” (STANDARD) Series – Model Numbers – 75760, 75762

TIMECUTTER 60” (My-Ride) Series – Model Numbers – 75763

TITAN 60” Standard, My-Ride, 6000 Series (Late Model – Tube Framing) Series – Model Numbers – 75303, 75306, 75313, 75316, 75760

TITAN 60” MAX (Late Model – Tube Framing) Series – Model Numbers – 76601, 76602



PROLINE  36”, 48”, 54”, 60”, Series – Model Numbers – 44423, 44424, 44427, 44430, 44448, 44454, 44460
