Toro OEM 133-7049 Height of Cut (HOC) Selection Plate or Lift Plate Spacing Bracket Fits Toro Late Timecutter HD Models.

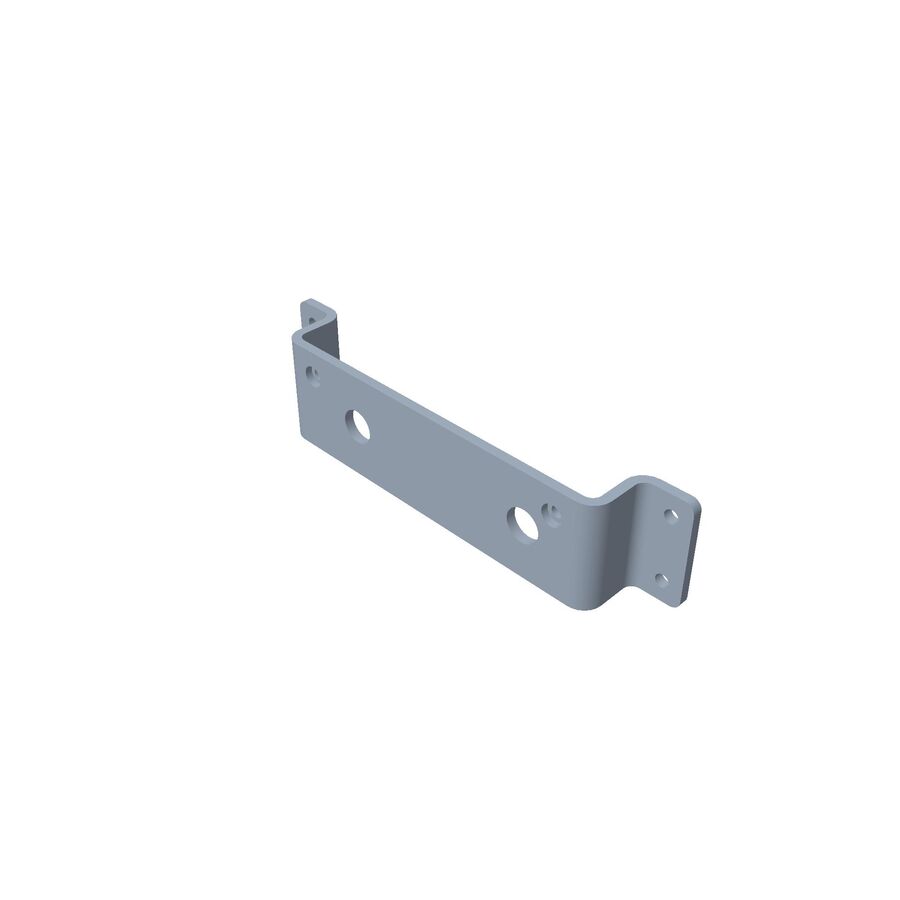

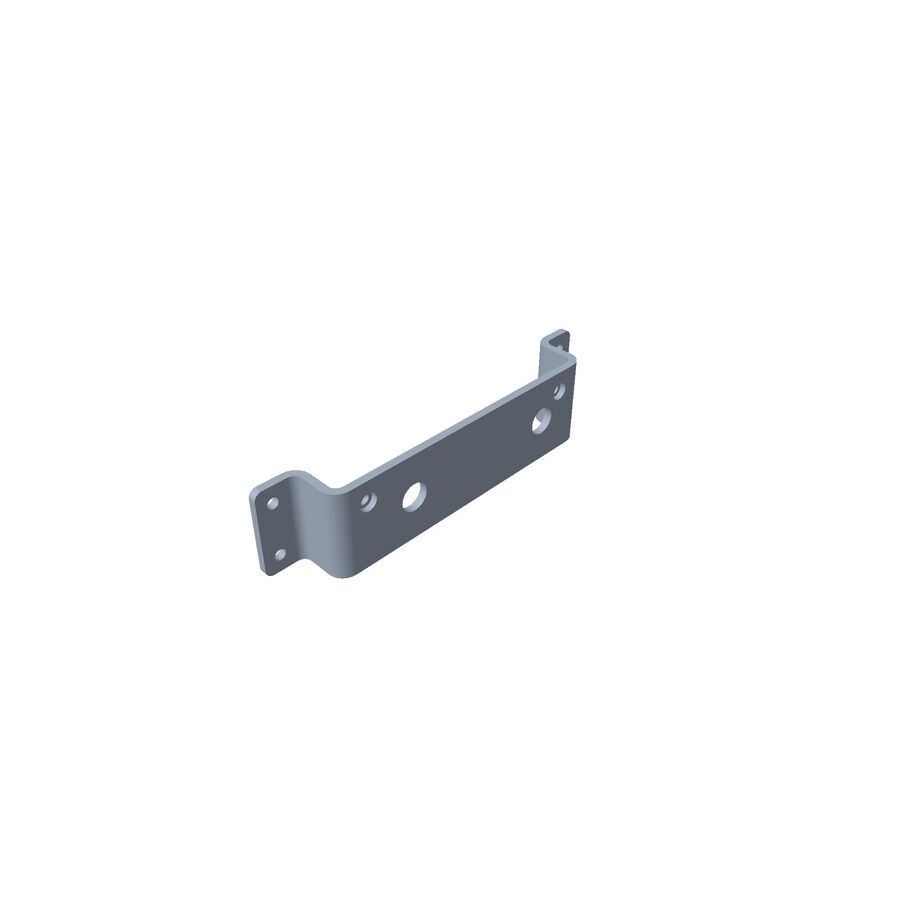

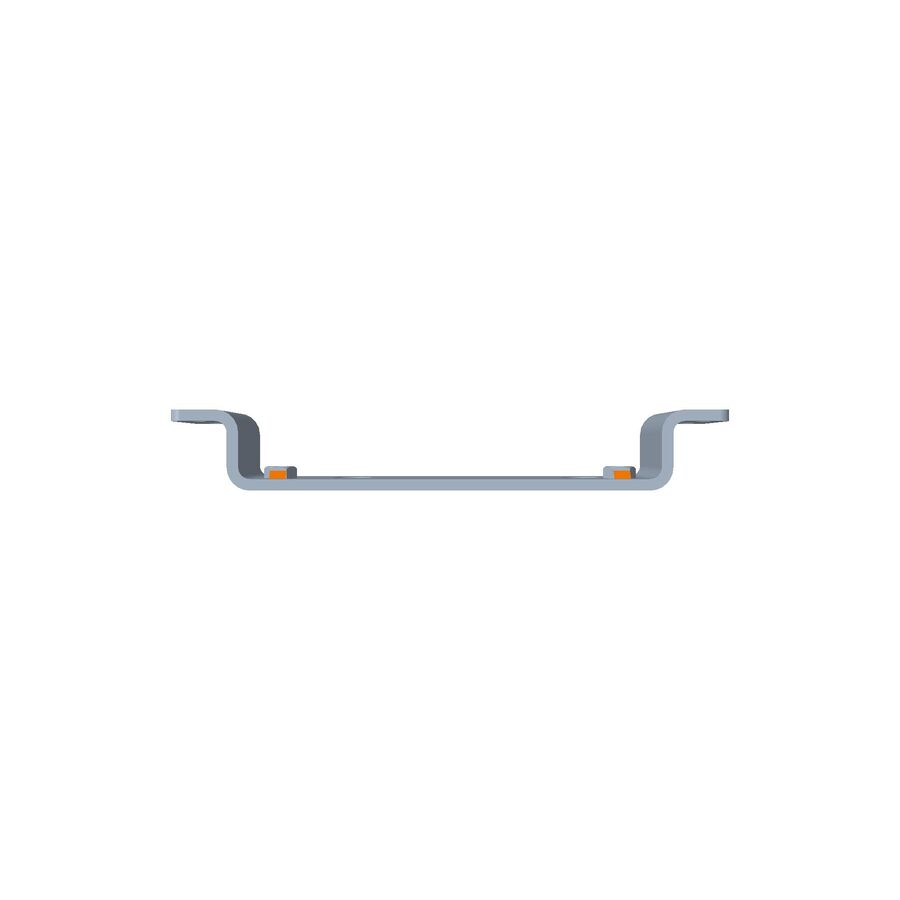

Toro OEM 133 7049 Height of Cut (HOC) Selection Plate or Lift Plate Spacing Bracket is Installed to the Frame of the Mower and Enables the (HOC) Selection Plate to be Fastened to it with Correct Spacing that Makes it Convenient for Operational Usage. Toro OEM 133 7049 Fits Toro Late Timecutter HD Models. Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 133-7049 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED



TIMECUTTER HD MODELS





1. 127-3389-03 - LIFT PLATE or HEIGHT OF CUT (HOC) SELECTION PLATE - (ONE OF TWO IDENTICAL PLATES that Bolt together using Spacers In-Between Both (HOC) Plates or Lift Plates and Allows the Height of Cut (HOC) Link to Travel Between Both Lift Plate or (HOC) Plates this Allows the Operator to Insert a Mower Deck Height Adjustment Pin at Their Preferred Mowing Height Ect.) x2 Per Unit
2. 130-0654 - (HOC) Decal - (Allows the Operator to easily Make Their Preferred Selection of Height of Cut Setting- Installed on the Operator-Side Surface of the (HOC) Selection Plate) x1 Per (HOC) Selection Plate
3. 114-4681 - FLANGE BOLTS - (Enables the Lift Plates or (HOC) Selection Plate to be Fastened together - Requires Spacer for every Bolt in order to Space the (HOC) Selection Plates Apart) x4 Per (HOC) Selection Plate or Lift Plate *Titan Models will use these bolts to fasten (HOC) Selection Plate directly to a weldment on the frame Whereas Timecutter HD Models will use the bolts fasten to a Spacing Bracket *EXCLUDES TIMECUTTER HD MODELS 75210, 74888, 74886, 74876.
4. 139-2594 & 139-2553 - FLANGE BOLTS - (139-2553 Enables the Lift Plates or (HOC) Selection Plate to be Fastened together) x2 Per (HOC) Selection Plate or Lift Plate (139-2594 Also Enables the Lift Plates or (HOC) Selection Plate to be Fastened together as well as Fastening it to the (HOC) Selection Plate Spacing Bracket) x2 Per (HOC) Selection Plate or Lift Plate *Requires Spacer for every Bolt in order to Space the (HOC) Selection Plates Apart *ONLY TIMECUTTER HD MODELS 75210, 74888, 74886, 74876.
5. 116-4313 - DOUBLE STEP SPACERS - (Spacers are stepped to Fit into the Lift Plate or (HOC) Selection Plate at the same time Allowing Correct spacing for (HOC) Link - One of the Spacers is Required to Insert Through and Retain the Transport Latch Handle) x4 Per (HOC) Selection Plate or Lift Plate *EXCLUDES TIMECUTTER HD MODELS 75210, 74888, 74886, 74876.
6. 138-7201 - DOUBLE STEP SPACERS - (Spacers are stepped to Fit into the Lift Plate or (HOC) Selection Plate at the same time Allowing Correct spacing for (HOC) Link - One of the Spacers is Required to Insert Through and Retain the Transport Latch Handle) x4 Per (HOC) Selection Plate or Lift Plate *ONLY TIMECUTTER HD MODELS 75210, 74888, 74886, 74876.
7. 130-0734 - RUBBER PAD - (Travels the Length of the Travel of the Transport Latch Handle - Spaces the Transport Latch Handle Away from the (HOC) Selection Plate and  Eliminates the Wear of Metal Against Metal as well as Reducing Slop from Excess Spacing) x2 Per Latch Handle and (HOC) Selection Plate * One Required to Be Installed on Both (HOC) Selection Plate - One on Each Side of the Transport Latch Handle
8. 127-3391 - (HOC) TRANSPORT LATCH/LOCK HANDLE - (Installed Between the Two (HOC) Selection Plate and Installed with a 116-4313 Spacer and 114-4681 Flange Bolt Running through the Installation Whole as well as 130-0734 on Each Side of the Transport Latch Handle) x1 Per Unit *EXCLUDES TIMECUTTER HD MODELS 75210, 74888, 74886, 74876.
9. 138-7202 - (HOC) TRANSPORT LATCH/LOCK HANDLE - (Installed Between the Two (HOC) Selection Plate and Installed with a 138-7201 Spacer and 139-2553 Flange Bolt Running through the Installation Whole as well as 130-0734 on Each Side of the Transport Latch Handle) x1 Per Unit *ONLY TIMECUTTER HD MODELS 75210, 74888, 74886, 74876.
10. 116-4312 - (HOC) TRANSPORT LATCH/LOCK HANDLE GRIP - (Slides Over the Operational Section of the (HOC) Transport Latch Handle and Eliminates the sharp Metal Edges) x1 Per (HOC) Transport Latch Handle
11. 116-5584 - (HOC) Pin - (Fits into the (HOC) Selection Plate, providing a stable resting point for the Height Adjustment Link Notch to Rest Against at the operator’s chosen setting) x1 Per Transport Latch Handle *EXCLUDES TIMECUTTER HD MODELS 75210, 74888, 74886, 74876.
12. 138-7203 - (HOC) Pin - (Fits into the (HOC) Selection Plate, providing a stable resting point for the Height Adjustment Link Notch to Rest Against at the operator’s chosen setting) x1 Per Transport Latch Handle *ONLY TIMECUTTER HD MODELS 75210, 74888, 74886, 74876.
13. 104-8301 - FLANGE NUT - (Enables the Lift Plates or (HOC) Selection Plates to be Fastened together - Requires Spacer for every Bolt & Nut in order to Space the (HOC) Selection Plates Apart) x4 Per (HOC) Selection Plate or Lift Plate
14. 133-7049 - (HOC) SELECTION PLATE OR LIFT PLATE SPACING BRACKET - (Installed to the Frame of the Mower and Enables the (HOC) Selection Plate to be Fastened to it with Correct Spacing that Makes it Convenient for Operational Usage) x1 Per Unit *ONLY USED ON TIMECUTTER HD MODELS
15. 3234-29 - FLANGE BOLTS - (Enables the (HOC) Selection Plate Spacing Bracket to Fastened to the Frame) x4 Per (HOC) Selection Plate Spacing Bracket *TIMECUTTER HD MODELS ONLY
16. 104-8300 - FLANGE NUT - (Enables the (HOC) Selection Plate Spacing Bracket to Fastened to the Frame) x4 Per (HOC) Selection Plate Spacing Bracket *TIMECUTTER HD MODELS ONLY







 Specification

Product Number:	1337049
Brand:	Toro
Length:	12.125 IN (30.798 CM)
Width:	2.750 IN (6.985 CM)
Height:	1.750 IN (4.445 CM)
Weight:	2.711 LB (1.230 KG)





Model Fit:



TIMECUTTER



48” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74864, 74866, 74886, 75201, 75210, 75211)



54” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74865, 74867, 74876, 74888, 75202, 75212)



60” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 75213)
