133-7010-03 Mower Deck Lift/Leverage Arm Fits Toro Late 60" Timecutter MX Model Number 74777.

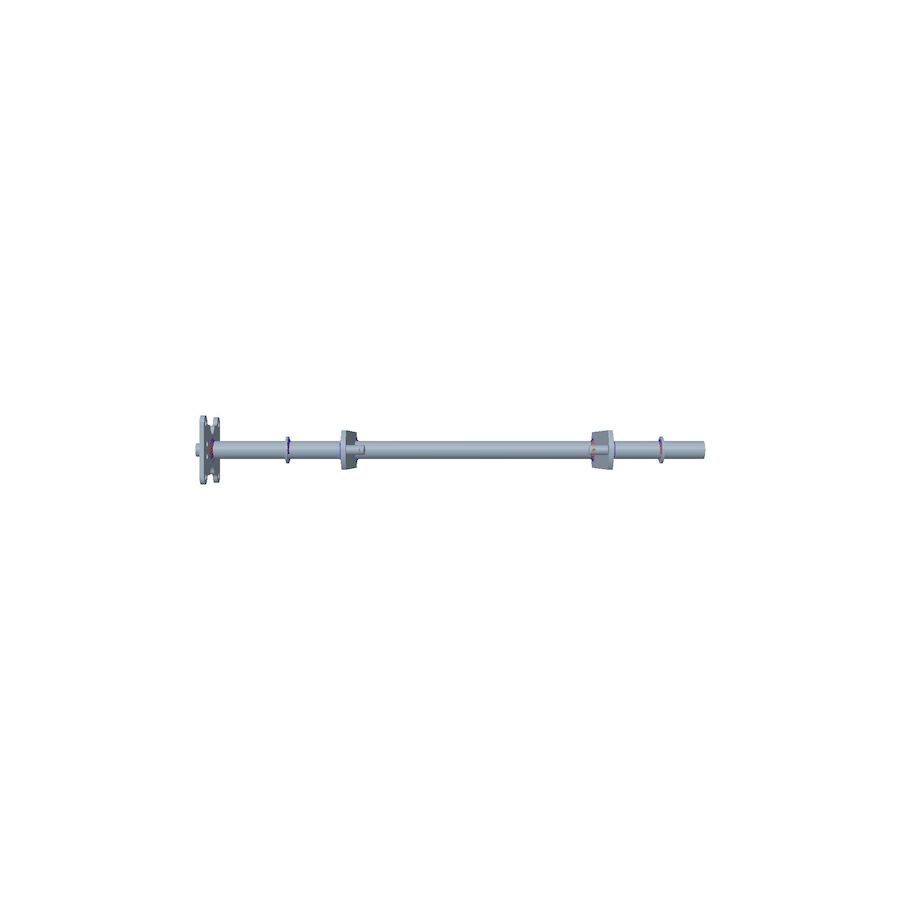

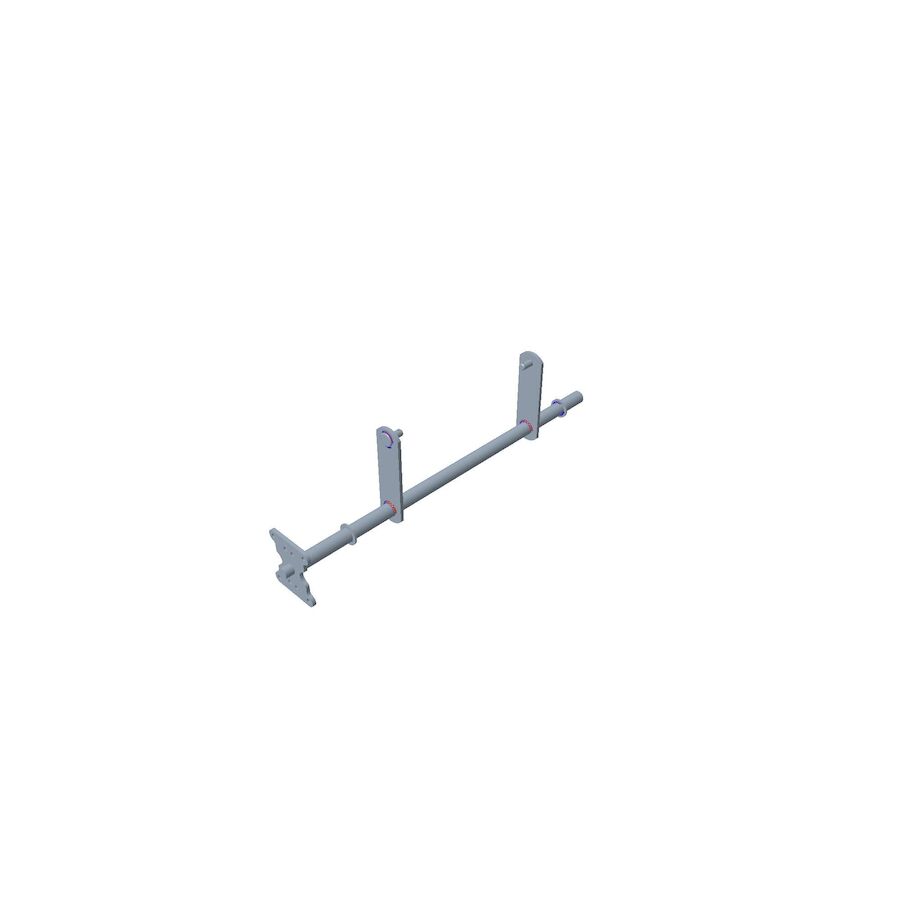

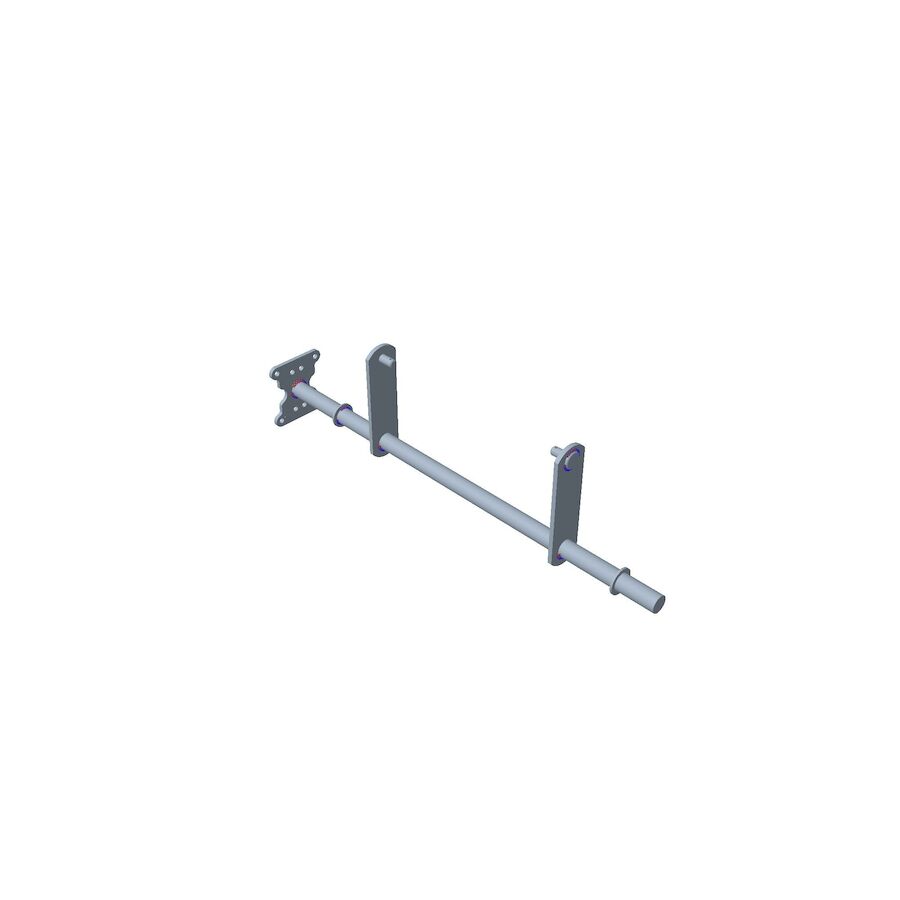

Toro OEM 133 7010 03 Mower Deck Lift/Leverage Arm Is a Rod That Travels across the Frame of the Mower and Attaches to the Mower Deck Lift Handle and Mower Deck Lift Linkage. Toro OEM 133 7010 03 Arm Rotate across the Frame of the Mower as the Operator Lower's and Raise's Their Mower Deck. This type Design help Leverage some of the Mower Deck Weight as well and makes for an easier Raising and Lowering of the Mower Deck. 133-7010-03 Mower Deck Lift/Leverage Rod is Designed for Toro Late 60" (MX) Timecutter Model 74777 Only. Please refer to the Images above; Product Specifications, Special Notes, and the Model Fit guide below to ensure proper fit.

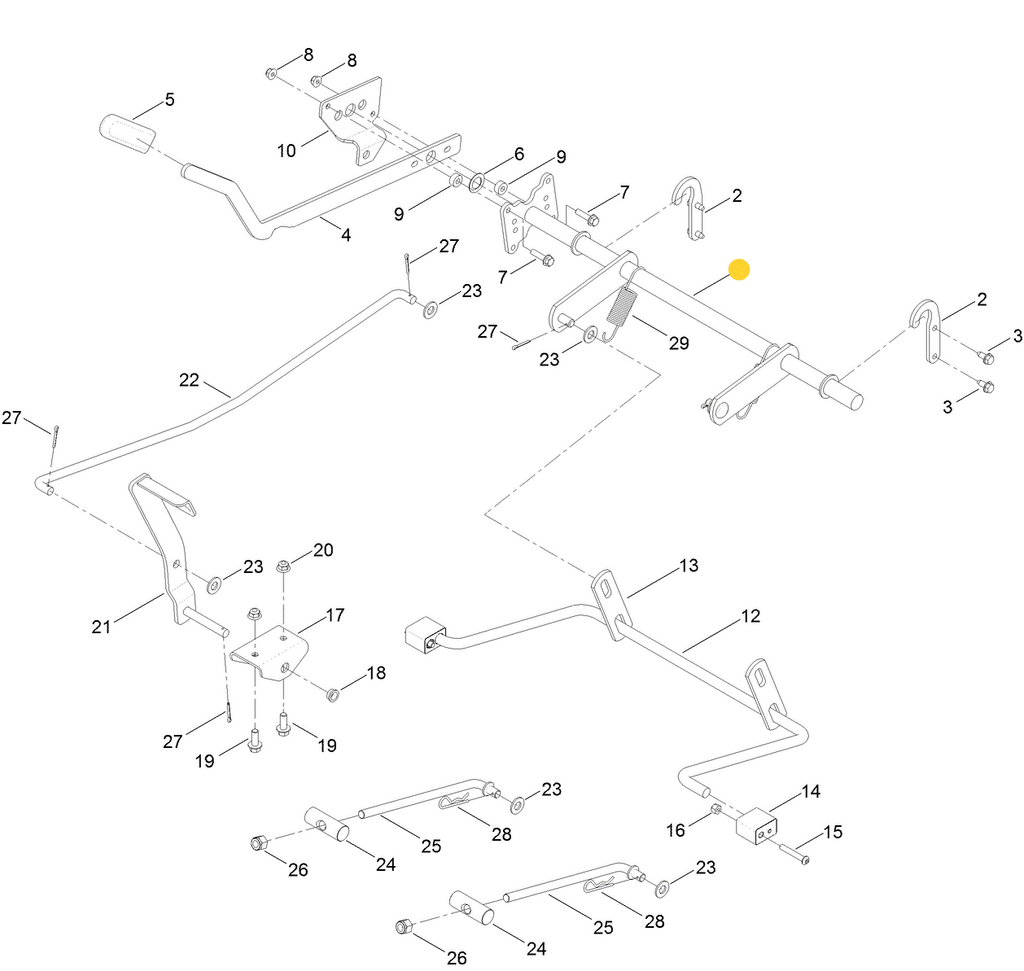

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 133-7010-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

* Models With Foot Pedal Assist Associated Part Only





1. 133-1187 - LIFT BRACKETS - (Retains Mower Deck Lift/Leverage Arm) x2 Per Mower Deck Lift/Leverage Arm
2. 32144-70 - WASHER HEAD BOLT - (Retains Mower Deck Lift/Leverage Arm Retaining Lift Brackets) x2 Per Lift Bracket
3. 133-4440 - EXTENSION SPRING - (Fastens to and Retains Tension on the Mower Deck Lift Leverage Arm and Mower Deck Lift Brackets) x2 Per Mower Deck Lift/Leverage Arm
4. 119-3427-03 - MOWER DECK LIFT HANDLE - (Fastens to Mower Deck Leverage Arm) x1 Per Unit
5.  3-6498 - THRUST WASHER - (Spacers Mower Deck Lift Handle Away from Mower Deck Lift/Leverage Arm - Installed Over Mower Deck Lift Leverage Rod) x1 Per Mower Deck Lift Handle
6. 121-1759 - SPACER - (Spaces Mower Deck Lift Handle Away from Mower Deck Lift/Leverage Arm Used on Flanged Bolt Fasteners) x2 Per Mower Deck Lift Handle
7. 131-3933 - FOOTLIFT PLATE - (Fastens Overtop Mower Deck Lift Handle and Enable you to Connect Mower Deck Foot Assist Lift Rod) x1 Per Mower Deck Lift Handle
8. 3234-36 - HEX HEAD FLANGE BOLTS - (Used in Place of 3234-29 Above to Fasten Washers, Spacers, Footlift Plate and Mower Deck Lift Handle to Mower Deck Lift/Leverage Arm) x2 Per Mower Deck Lift Handle
9. 104-8300 - FLANGE LOCK NUT - (Retains Thrust Washer, Spacers, Footlift Plate and Mower Deck Lift Handle to Mower Deck Lift/Leverage Arm) x2 Per Mower Deck Handle
10. 120-2242 - FOOTLIFT ROD - (Connects Foot Assist Pedal to Mower Deck Lift Handle) x1 Per Assist Foot Pedal
11. 139-2614 - COTTER PIN - (Retains Footlift Rod to Mower Deck Lift Handle and Assist Foot Pedal as well as the Footlift Assist Pedal) x2 Per Footlift Rod - x1 Footlift Pedal
12. 139-2611 - FLAT WASHER - (Supports Cotter Pin Fastener 139-2614 - Footlift Rod Fastener and FootLift Pedal Assist) x2 Per Footlift Rod - x1 Per Footlift Pedal






NOTE: Refer to Chart Below for a Complete List of Associated Part for the Mower Deck Lift Handle and Footpedal Assist Part Combination Only.













Specification

Product Number:	133701003
Brand:	Toro
Length:	28.500 IN (72.390 CM)
Width:	8.000 IN (20.320 CM)
Height:	4.000 IN (10.160 CM)
Weight:	9.106 LB (4.130 KG)





Model Fit:



TIMECUTTER 60” MX Series – Model Numbers – 74777
