Toro OEM 133-4319 Mower Deck Front Adjustable Mount Rod Fits Toro Timecutter 32" SS, SW, ZS - 34" MX - 42" MX, SS, SW, ZS - 50" MX, SS, SW, SWX, ZS - 54" SS - 60" MX Models.

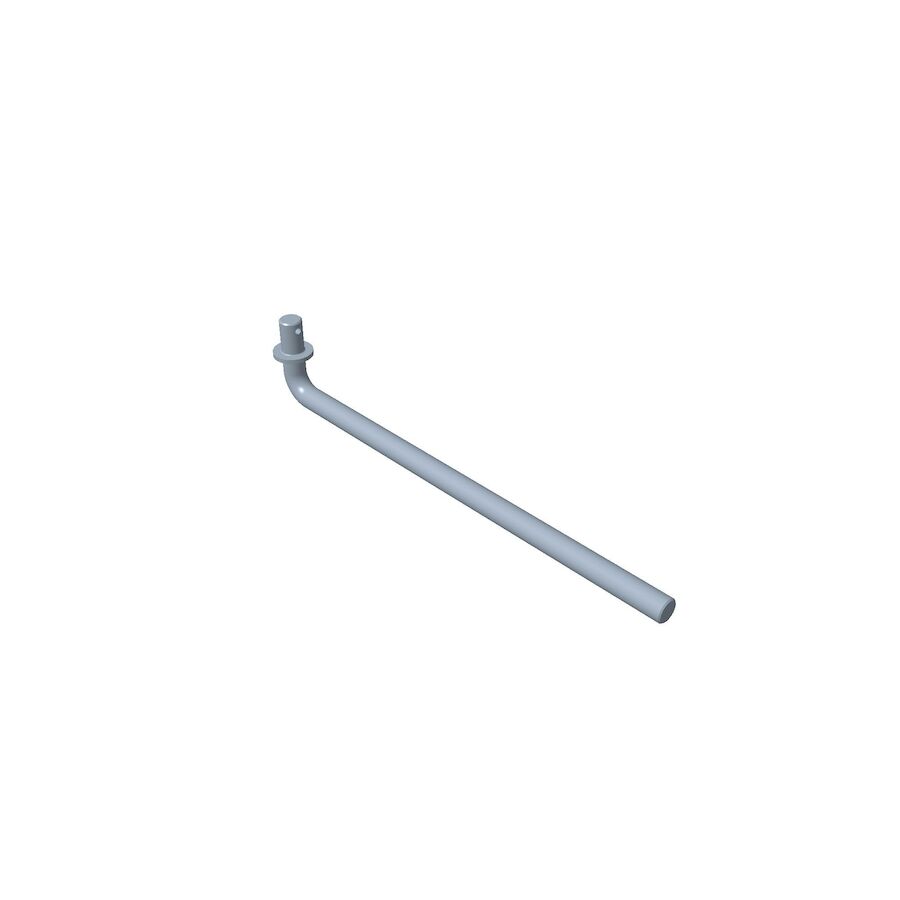

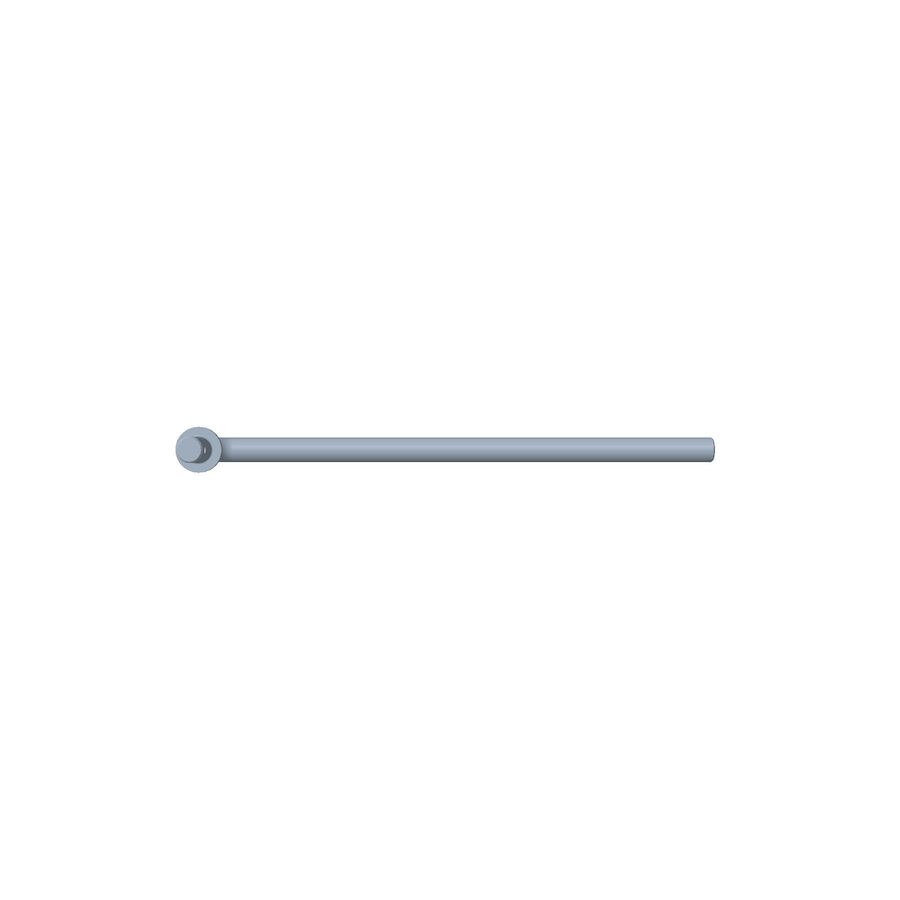

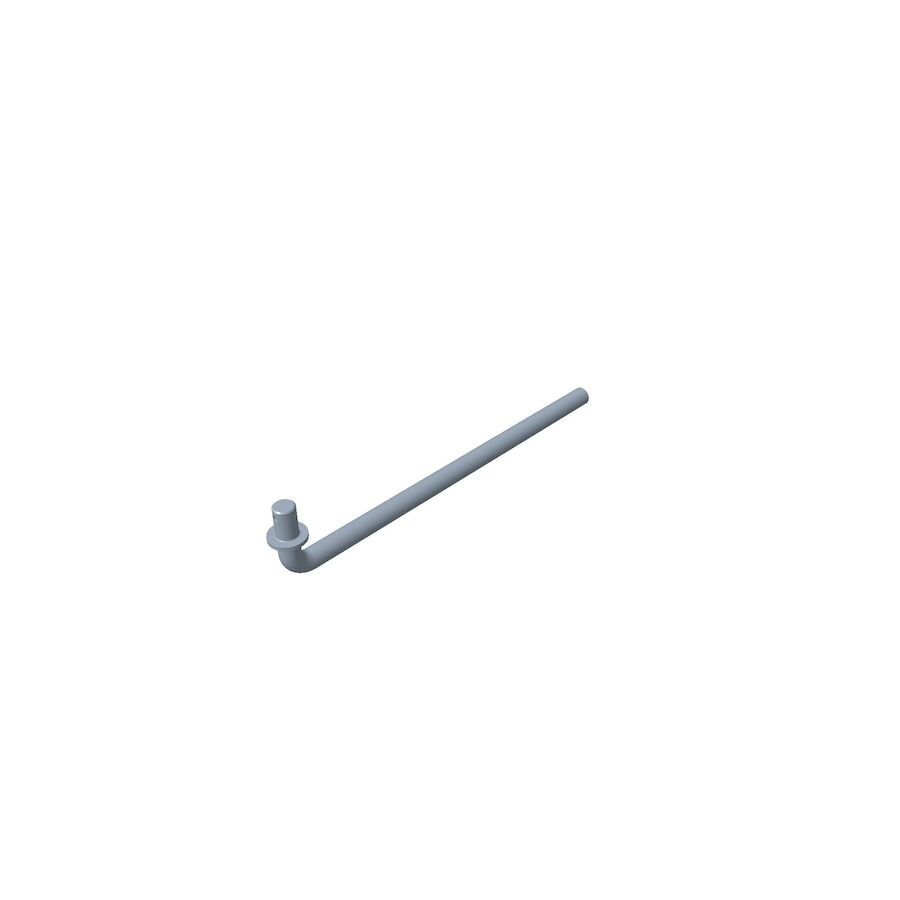

This genuine Toro OEM 133 4319 Mower Deck Front Mounting Rod performs dual functions—stabilizing the deck while working in conjunction with a pivot pin to permit controlled floating movement without sacrificing structural integrity. Its precision-threaded design enables straightforward front-end height adjustments through a simple nut mechanism, allowing operators to achieve optimal deck pitch for superior cutting results. Manufactured to exacting factory specifications, this Adjustable Mount Rod ensures perfect compatibility with a Select range of Toro Timecutter Models including Early/Late 32" (SS, SW, ZS), 34" (MX), 42" (MX, SS, SW, ZS), 50" (MX, SS, SW, SWX, ZS), 54" (SS) and 60" (MX) Timecutter Models. Due to Variation Within Model Numbers/Series, for an Accurate Break down of Usage Refer to the Model Fit Chart and The Special Note Section Below. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.







NOTE: DUE TO A CHANGE WITHIN MODELS/SERIAL NUMBER YOU MAY FIND THAT YOU MODEL NUMBER WILL OVERLAP WITH TWO DIFFERENT MOWER DECK FRONT MOUNTING ROD PART NUMBERS. IF THIS IS THE CASE WITH YOUR MOWER ANY MODEL NUMBER WITH OVELAPING PART NUMBER WILL TAKE PART NUMBER 133-4319 FOR SERIAL NUMBER 400000000 AND ABOVE. SERIAL NUMBER 399999999 AND BELOW WILL TAKE 131-3945.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 133-4319 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

60" Model 74777 Will Require Two Mower Deck Front Mounting Rods.

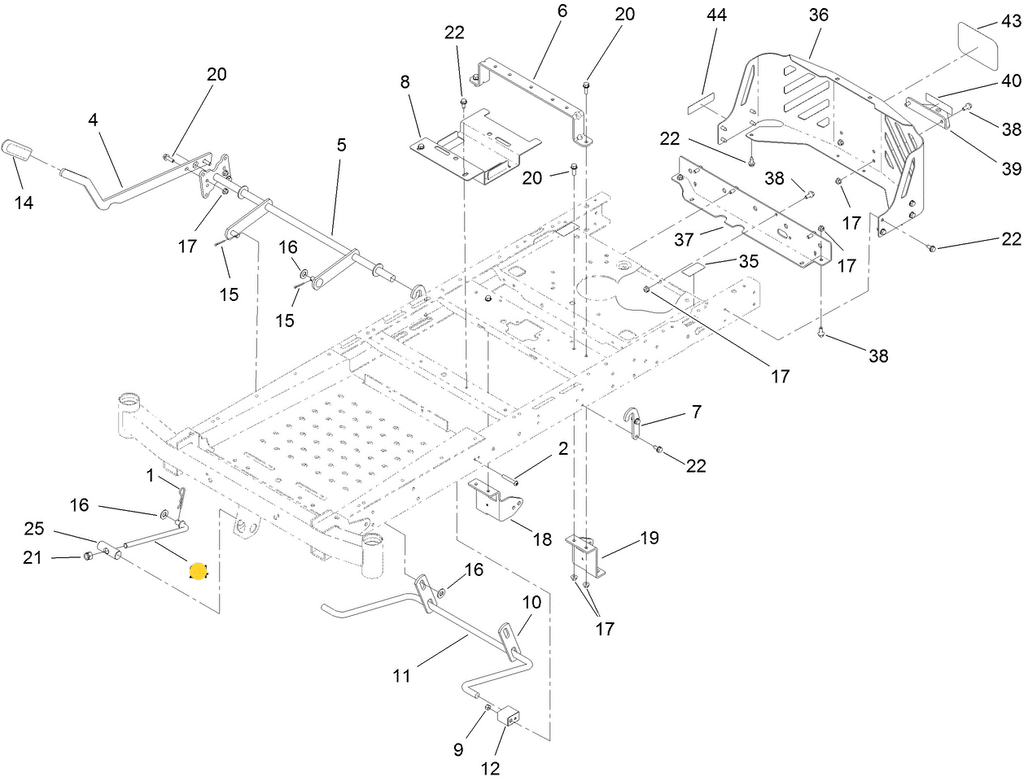

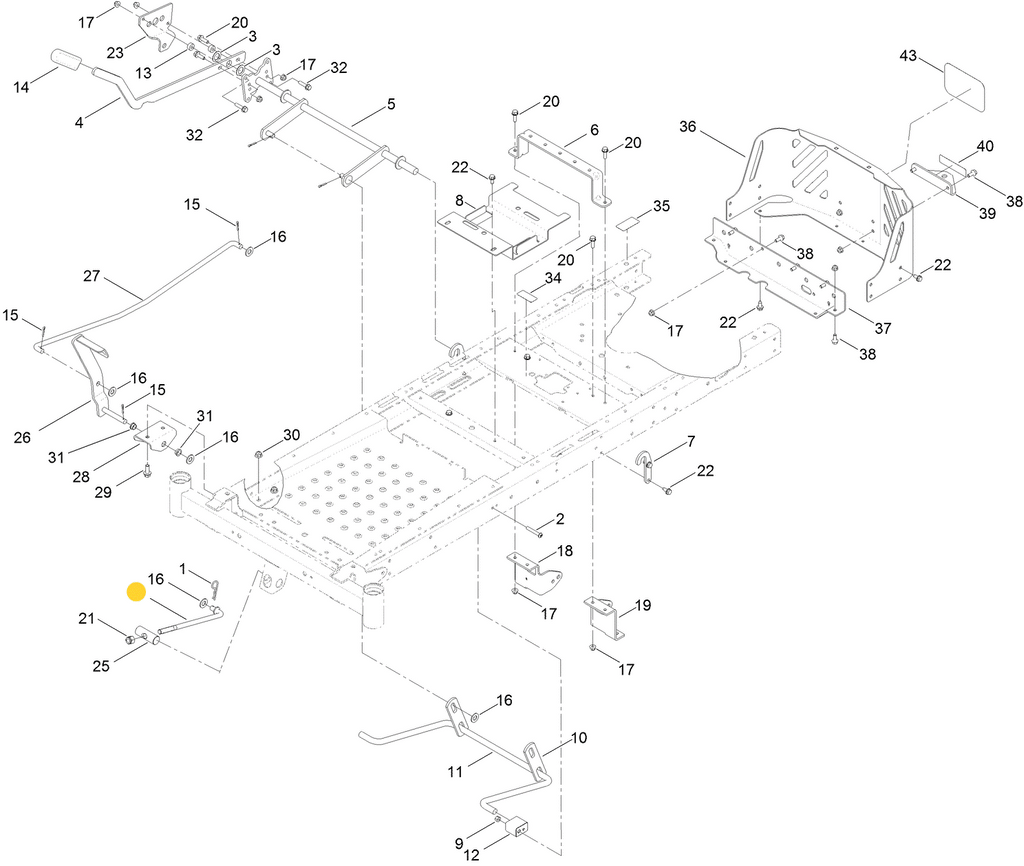

1. 119-8810 - PIVOT PIN - (Retains Mower Deck Front Mounting Rod to the Frame and Enables it to Pivot) x1 Per Mower Deck Mounting Rod
2. 3296-19 - Lock Nut - (Retains Mower Deck Front Mounting Rod to the Pivot Pin) x1 Per Mower Deck Mounting Rod
3. 1-806005 - COTTER/CLIP PIN - (Retains Mower Deck Front Mounting Rod to the Mower Deck) x1 Per Mower Deck Mounting Rod
4. 139-2611 - FLAT WASHER (Stabilizes Cotter/Clip Pin) x1 Per Mower Deck Mounting Rod







Specification

Product Number:	1334319
Brand:	Toro
Length:	10.300 IN (26.162 CM)
Width:	1.750 IN (4.445 CM)
Height:	0.800 IN (2.032 CM)
Weight:	0.500 LB (0.227 KG)





Model Fit:



Models With Overlapping Part Numbers Refer To 131-3945 for Serial Number 399999999 and above. Refer to Special Notes Above for More Details.





TIMECUTTER 32” ZS Series – Model Numbers – 74682, 74650



TIMECUTTER 32” SS Series – Model Numbers – 74710



TIMECUTTER 32” SW Series – Model Numbers – 74780





TIMECUTTER 34” MX Series – Model Numbers – 74750





TIMECUTTER 42” MX Series – Model Numbers – 74760, 74766



TIMECUTTER 42” ZS Series – Model Numbers – 74655, 74657, 74665, 74667, 74684, 74686



TIMECUTTER 42” SS Series – Model Numbers – 74705, 74706, 74711, 74720, 74721, 74722, 74725, 74726



TIMECUTTER 42” SW Series – Model Numbers – 74675, 74676, 74784, 74785, 74788





TIMECUTTER 50” MX Series – Model Numbers – 74770, 74771, 74775, 74776, 74778, 74727, 74768, 74772, 74773, 74774, 74776



TIMECUTTER 50” ZS Series – Model Numbers – 74688, 74661



TIMECUTTER 50” SS Series – Model Numbers – 74731



TIMECUTTER 50” SW Series – Model Numbers – 74680, 74790



TIMECUTTER 50” SWX Series – Model Numbers – 74795





TIMECUTTER 54” SS Series – Model Numbers – 74741





TIMECUTTER 60” MX Series – Model Numbers – 74777
