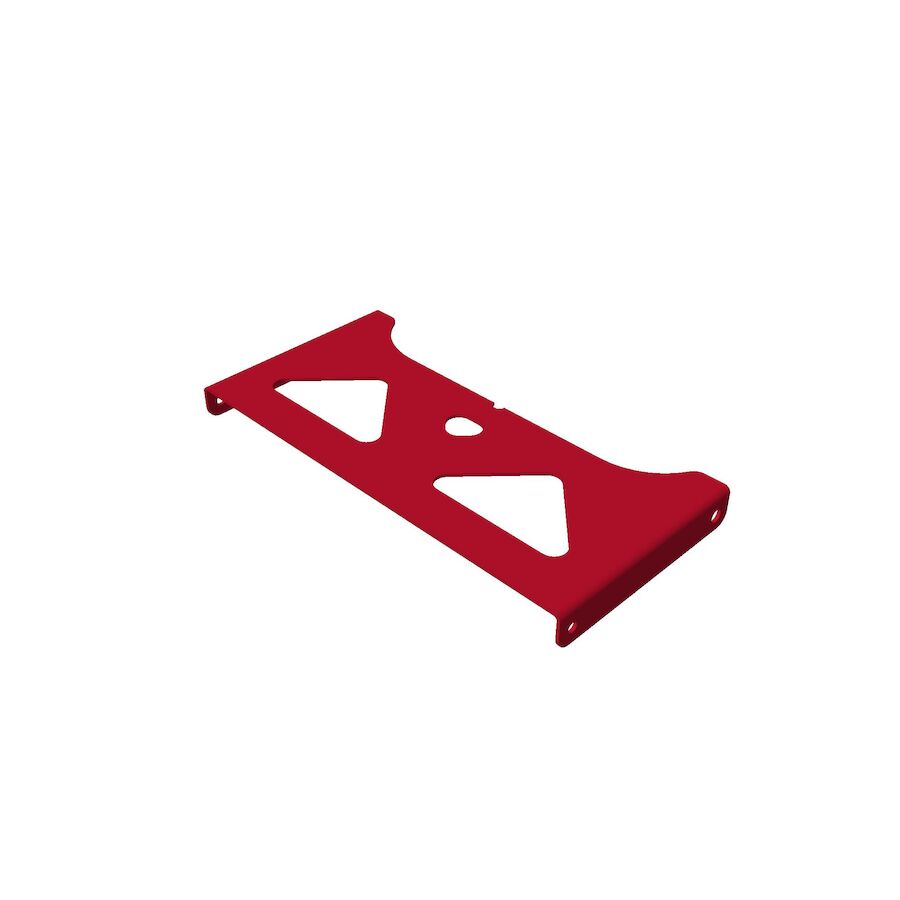

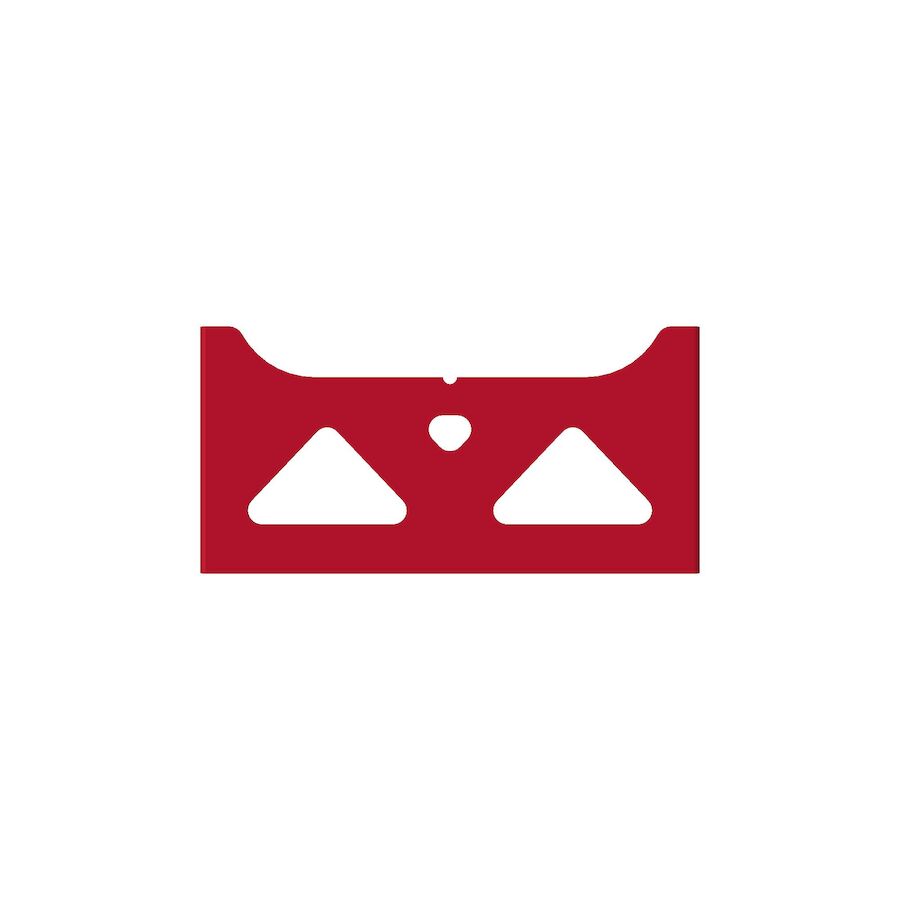

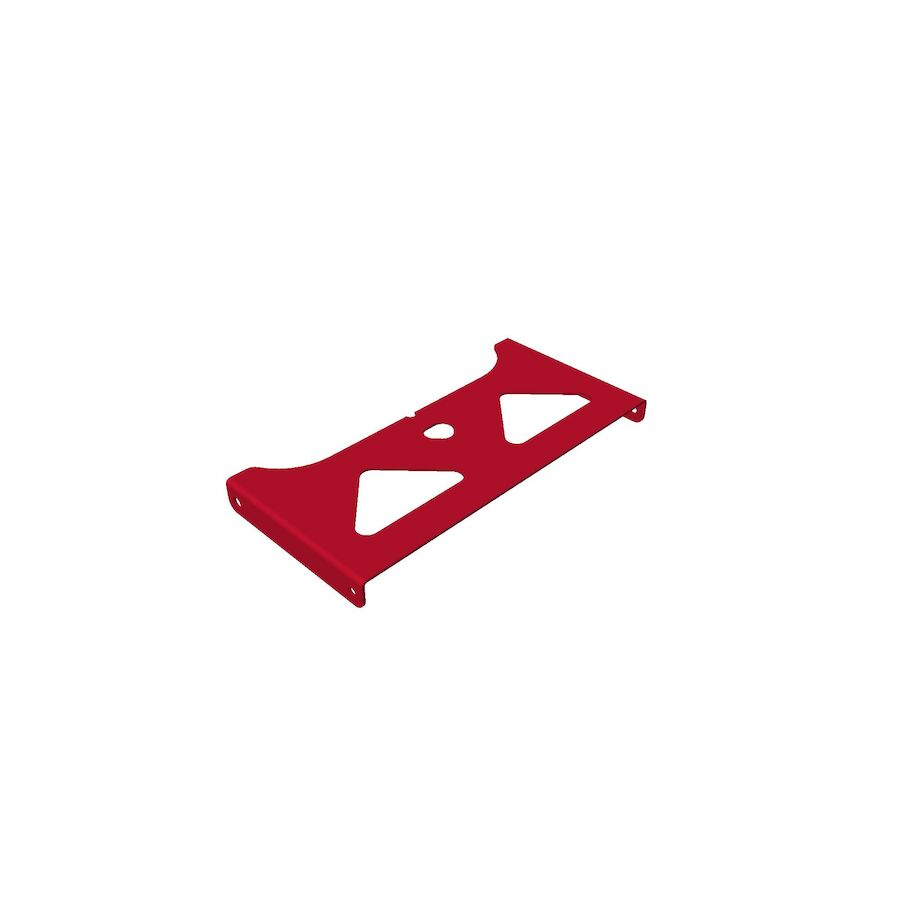

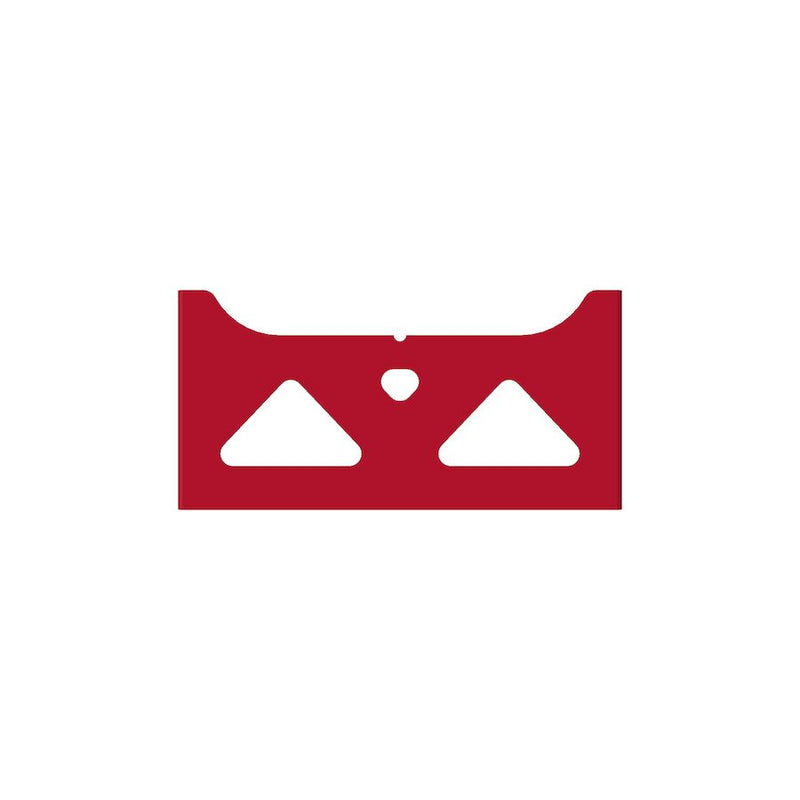

Toro OEM 133-4311-01 Mower Deck Pivot Pan Fits Toro Late Timecutter HD Models - Late Titan X, XS, 4800, 5400, 6000, Standard, MyRide Models (With Tube Style Framing).

• The Toro OEM 133 4311 01 Mower Deck Pivot Pan allows the Front of the Mower Deck to stay Fixed while permitting smooth, consistent horizontal movement as the operator raises and lowers the Mower Deck. Toro OEM 133 4311 01 Pivot Pan is Designed to Fit on Toro Late Timecutter HD Models - Late Titan X, XS, 4800, 5400, 6000, Standard, My-Ride Models (With Tube Style Framing). Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.





  • Genuine spare parts are tested to fit and work properly, avoiding further breakdowns, and are more likely to last longer, reducing downtime, further lost business opportunity and additional repair costs.



  • OEM parts are made by the same manufacturer as original vehicle components in accordance with exact design specifications, ensuring greater reliability and performance.







  ASSOCIATED PARTS REFERENCES FOR PART NUMBER 133-4311-01 ONLY

  CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





  1. 133-7071 - PIVOT PAN ROD - (Retains the Mower Deck Pivot Pan to the Mower Deck Pivot Pan's Weldment Brackets on the Mower Deck) x1 Per Mower Deck Pivot Pan
  2. 1-806005 - CLIP or COTTER PIN - (Retains the Mower Deck Pivot Pan by Retaining the Mower Deck Pivot Pan Rod in the Mower Deck Pivot Pan Weldment Brackets Holes and Mower Deck Pivot Pan Holes) x2 Per Mower Deck Pivot Pan
  3. 3256-26 - FLAT WASHER - (Support the Clip/Cotter Pin Against the Mower Deck Pivot Pan or Mower Deck Pivot Pan Weldment Bracket Holes) x2 Per Mower Deck Pivot Pan
  4. 130-0742 - FLANGE SHOULDER BOLT - (Retains the Mower Deck Pivot Pan to the Mower Deck Pivot Pan's Weldment Brackets on the Mower Frame) x2 Per Mower Deck Pivot Pan
  5. 104-8301 - FLANGE NUT - (Retains the Mower Deck Pivot Pan to the Mower Deck and the Mower Deck Pivot Pan's Weldment Brackets on the Mower Frame) x2 Per Mower Deck Pivot Pan
  6. 138-7206 - TENSION SPRING - (Connect to the Front Mower Deck Pivot Arm Foot Pedal/Combo and Front Mower Deck Pivot Pan and Retains Tension on the Pivot Pan) x1 Per Mower Deck Pivot Pan







Specification

Product Number:	133431101
Brand:	Toro
Length:	17.875 IN (45.403 CM)
Width:	8.750 IN (22.225 CM)
Height:	1.500 IN (3.810 CM)
Weight:	4.888 LB (2.217 KG)





Model Fit:



TIMECUTTER HD

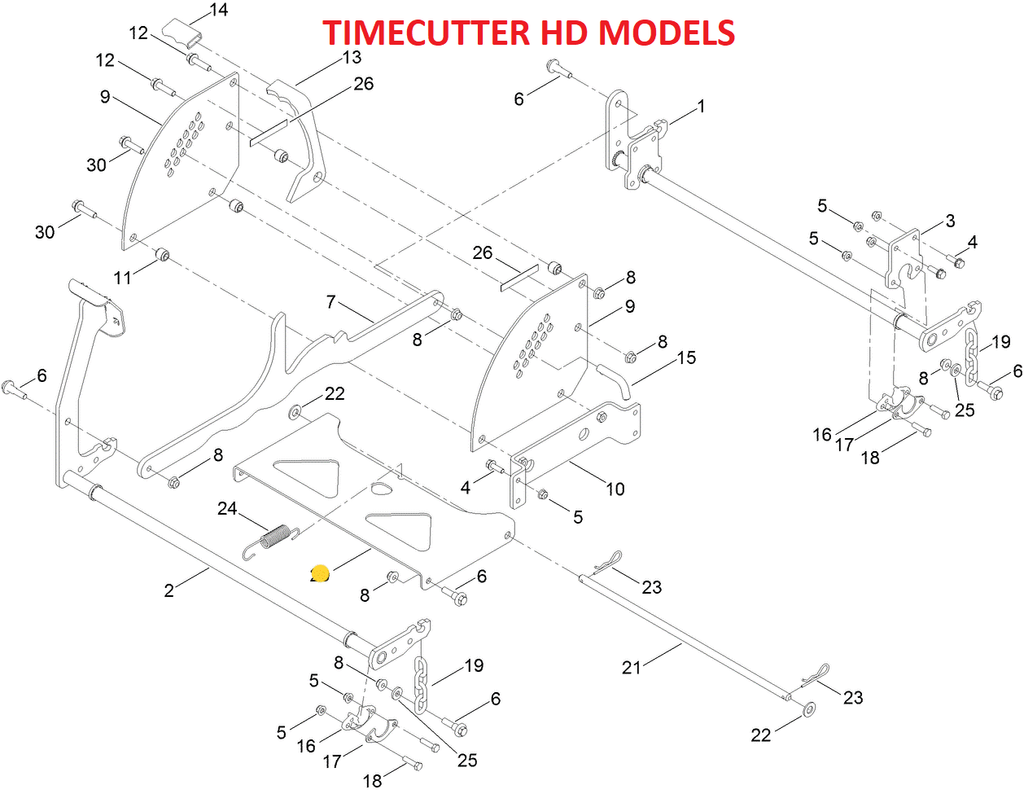

48” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74864, 74866, 74886, 75201, 75210, 75211)



54” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74865, 74867, 74876, 74888, 75202, 75212)



60” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 75213)



TITAN

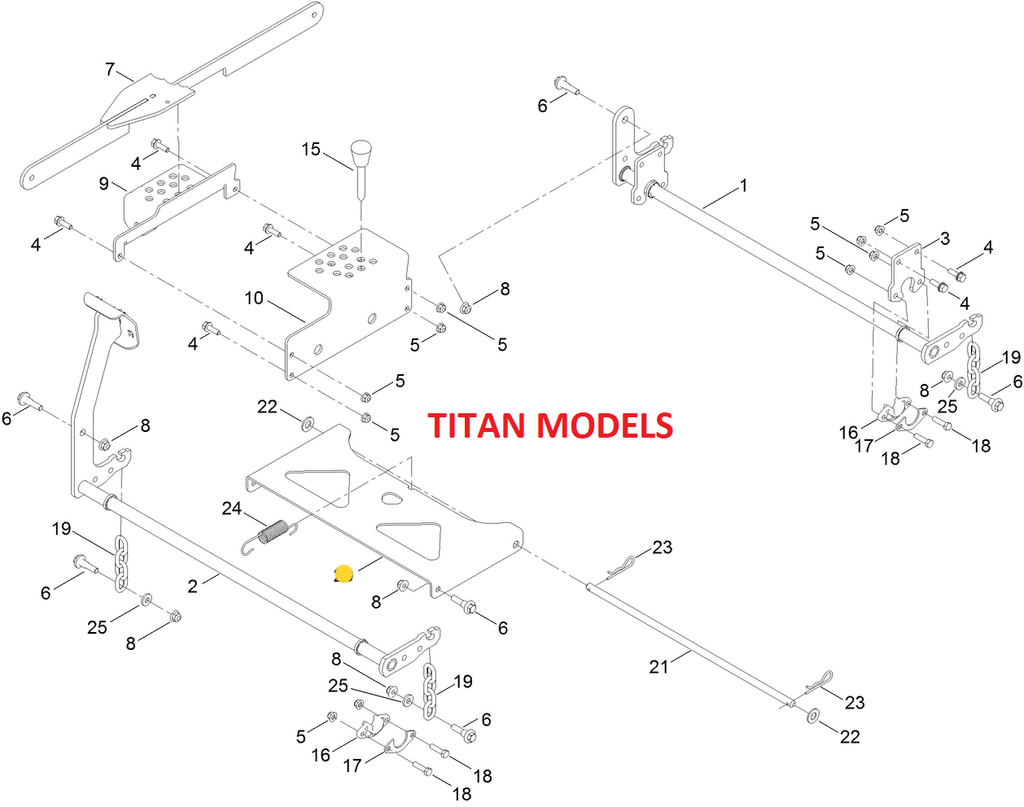

48” TITAN 4800, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early / Late Models Only - (* Model Numbers 75301, 75311, 75314, 75304)

48” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74874, 74875, 74887, 74890)



54” TITAN 5400, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early / Late Models Only - (* Model Numbers 75302, 75305, 75310, 75312, 75315)

54” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74877, 74889, 74898)



60” TITAN 6000, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Late Models - (* Model Numbers 75303, 75313, 75306, 75316)
