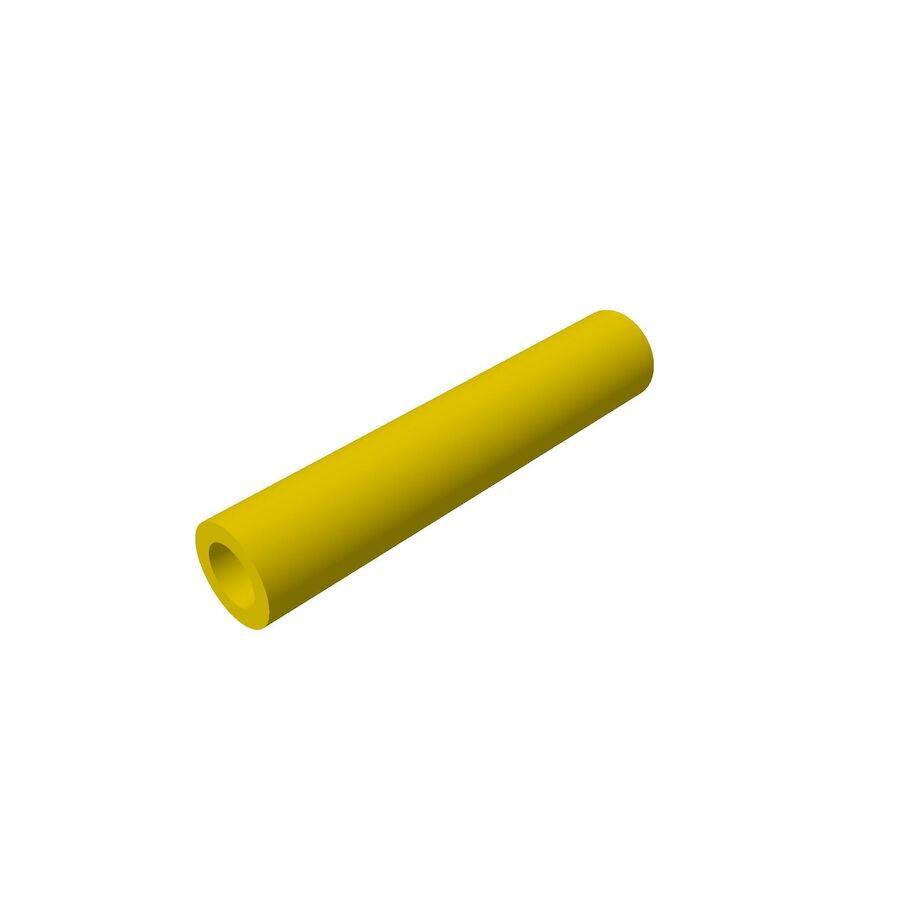

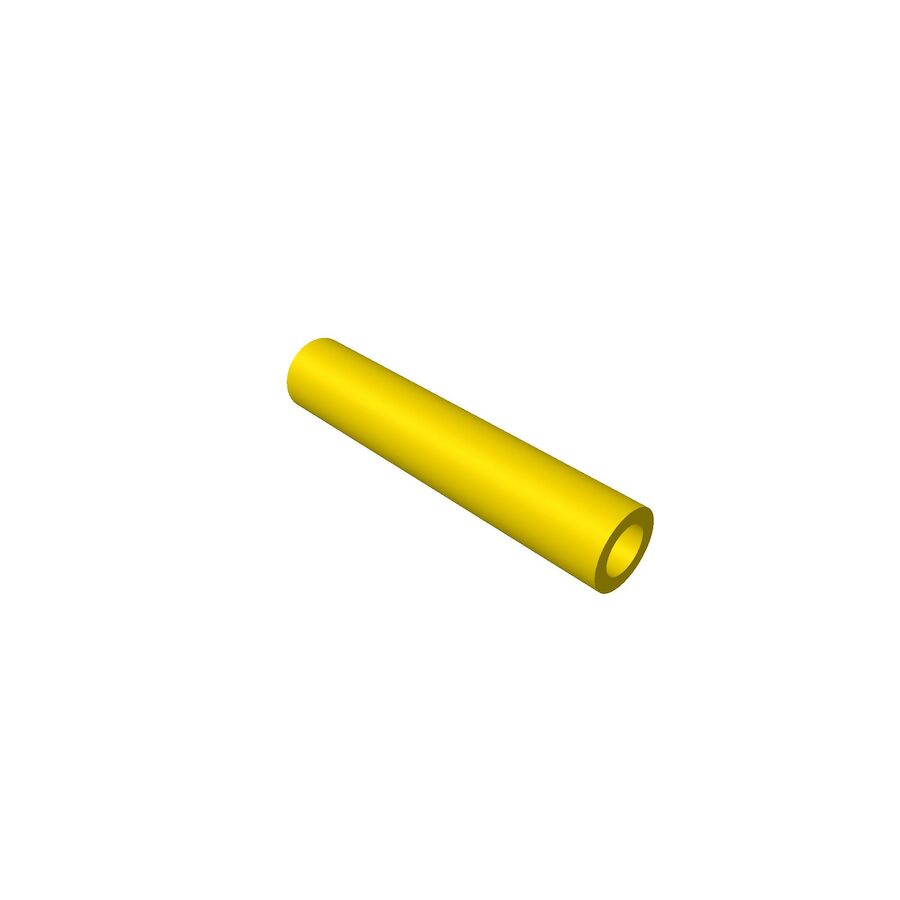

Toro OEM 133-2129 Anti-Scalp Spanner Tube Fits Late Select Titan HD (1500, 2000, 2500) Models - Select Z Master 2000 Models - Select Z Master 4000 Models - Current 52", 60" Grandstand HDX Models.

• TYPE: TORO OEM Anti-Scalp Wheel Spanner Tube
• SIZE: NA
• APPLICATIONS: Primarily Used in Anti-Scalp Wheel Application - Installed Through the Mower Deck Anti-Scalp Wheel and Anti-Scalp Wheel Spacer as well as Between the Dual Mower Deck Fastening Ears/Bracket - Enables the Fasteners Bolt/Nut to Be Firmly Tightened Without Bending the Mower Deck Anti-Scalp Wheel Fastening Ears/Bracket Against the Anti-Scalp Wheel and Anti-Scalp Wheel Spacer Hindering the Anti-Scalp Wheel Rotation. Note: 133 2129 Is only used in Applications with One Anti-Scalp Wheel per Spanner Bracket.
• COMMON SERIES APPLICATIONS: Select Late TITAN HD Models (1500, 2000, 2500 - Standard & My-Ride - Models with Tube Style Framing) - Current Grandstand 52" & 60" HDX Models - Current/Late ZMaster 2000 Models (Tube Style Framing & I-Beam Framing) - Current/Late ZMaster 4000, Revolution Models.







*Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.

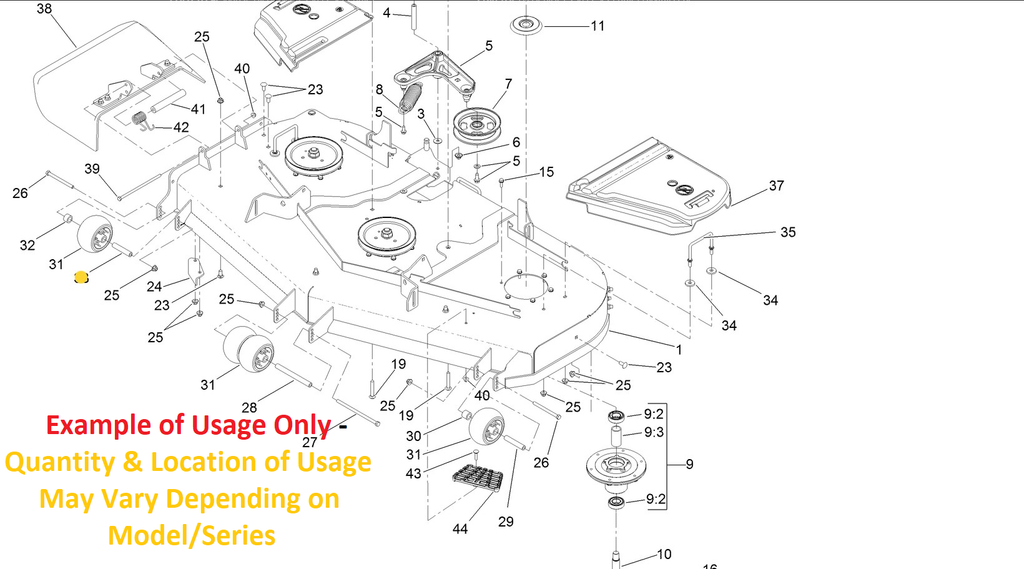

NOTE: * 133-2129 Anti-Scalp Wheel Spanner May be Used in Different Locations and in Different Quantities Per Mower, Depending on the Mower and Series Deck Size Ect. To Ensure a Correct Fit, Review the Model Fit Chart and Measurements in the Images and the Specification Chart in Comparision with the Needed replacement if this still Prove to be un-helpful feel free to Reach out to us here at Hilly Ridge for any additional Questions.







COMMON ASSOCIATED ANTI-SCALP WHEEL PARTS FOR PART NUMBER 133-2129 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 323-23 - HEX HEAD BOLT (Retains the Anti-Scalp Wheel, Anti-Scalp Wheel Spacer and Spanner to Mower Deck) x1 Per Anti-Scalp Wheel
2. 1-603299 - ANTI-SCALP WHEEL (Small Wheels Fastened to the Mower Deck and Aids in Helping the Mower Deck to Float Across Uneven Terrain, Helping to Eliminate Scalping) x? Quantity Varies Depending on Model/Series
3. 133-2128 - ANTI-SCALP WHEEL SPACER TUBE (Metal) - (Installed Over the Anti-Scalp Wheel Spanner Tube and Against the Non-Molded Flange Side of the Anti-Scalp Wheel to Eliminate the Anti-Scalp Wheel from Moving Side to Side and Rubbing Against the Metal Anti-Scalp Wheel Fastening Ears/Brackets) x1 Per Anti-Scalp Wheel *Primarily Used With Part Number 133-2129 Anti-Scalp Wheel Spanner Only.
4. 133-2129 - ANTI-SCALP WHEEL SPANNER TUBE (Installed Through the Mower Deck Anti-Scalp Wheel and Anti-Scalp Wheel Spacer as well as Between the Dual Mower Deck Fastening Ears/Bracket - Enables the Fasteners Bolt/Nut to Be Firmly Tightened Without Bending the Mower Deck Anti-Scalp Wheel Fastening Ears/Bracket Against the Anti-Scalp Wheel) x1 Per Anti-Scalp Wheel
5. 104-8301 - FLANGE LOCK NUT (Retains the Anti-Scalp Wheel, Anti-Scalp Wheel Spacer and Spanner to Mower Deck) x1 Per Anti-Scalp Wheel







Specification

Product Number:	1332129, 133 2129
Brand:	Toro
Length:	3.250 IN (8.255 CM)
Width:	0.750 IN (1.905 CM)
Height:	0.750 IN (1.905 CM)
Weight:	0.170 LB (0.077 KG)





Model Fit:



TITAN HD



TITAN HD 1500 & HD 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 60" Late Models / Tubed Framing - (* Model Numbers 74452, 74462, 74467, 74480)



TITAN HD 2500 Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Early Models Only - (* Model Numbers 74471, 74472, 78472)



Z-MASTER



EARLY/LATE MODELS



Z Master 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - (* Model Numbers 74492, 74494, 74496, 74497, 77260, 77284, 77287, 77293, 77299)



CURRENT/LATE MODELS



Z MASTER 2000 MODELS – (Current/Late IBEAM – Framing Models) – (MODEL NUMBERS 77281, 77283, 77285, 77288, 77291, 77294)



Z MASTER 4000 MODELS – CURRENT/LATE MODELS- Current IBEAM – (MODEL NUMBERS 74000, 74002, 74004, 74010, 74015, 74020, 74035, 74050, 74052, 74054, 74055, 74057)



Z MASTER REVOLUTION MODELS – CURRENT/LATE MODELS- Current IBEAM – (MODEL NUMBERS 18752, 18760, 18762, 18765)



GRANDSTAND



52” GRANDSTAND – (HDX) – (* Model Numbers 72506)

60” GRANDSTAND – (HDX) – (* Model Numbers 72510, 72514)
