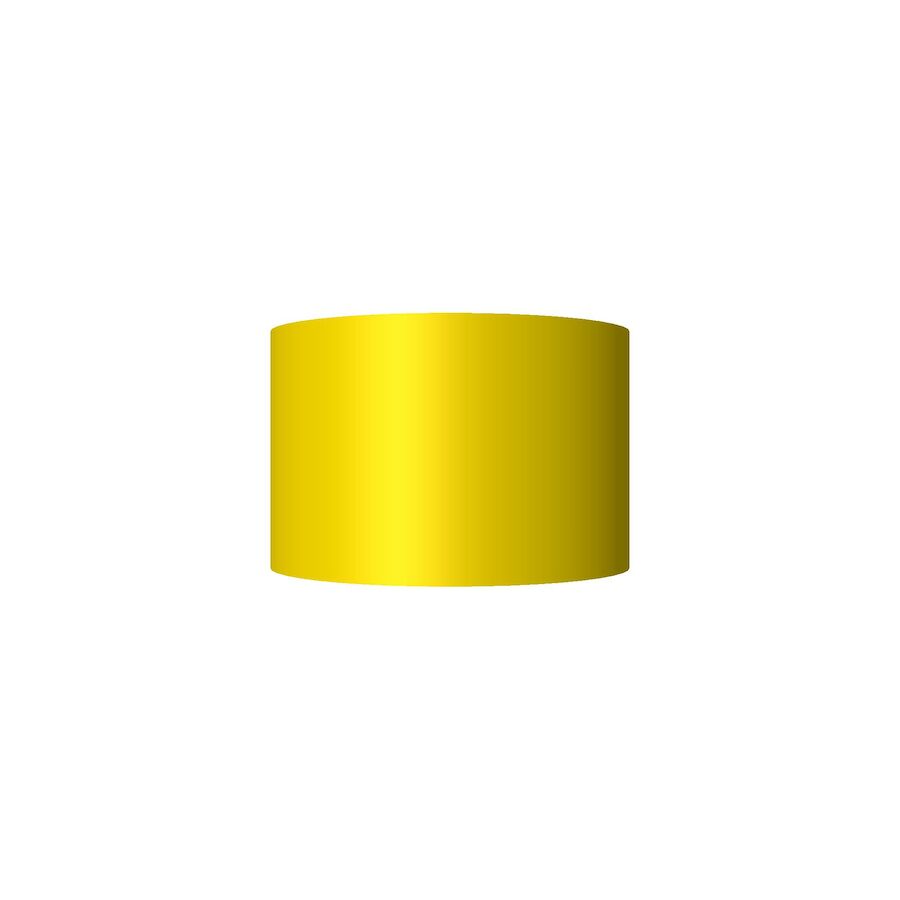

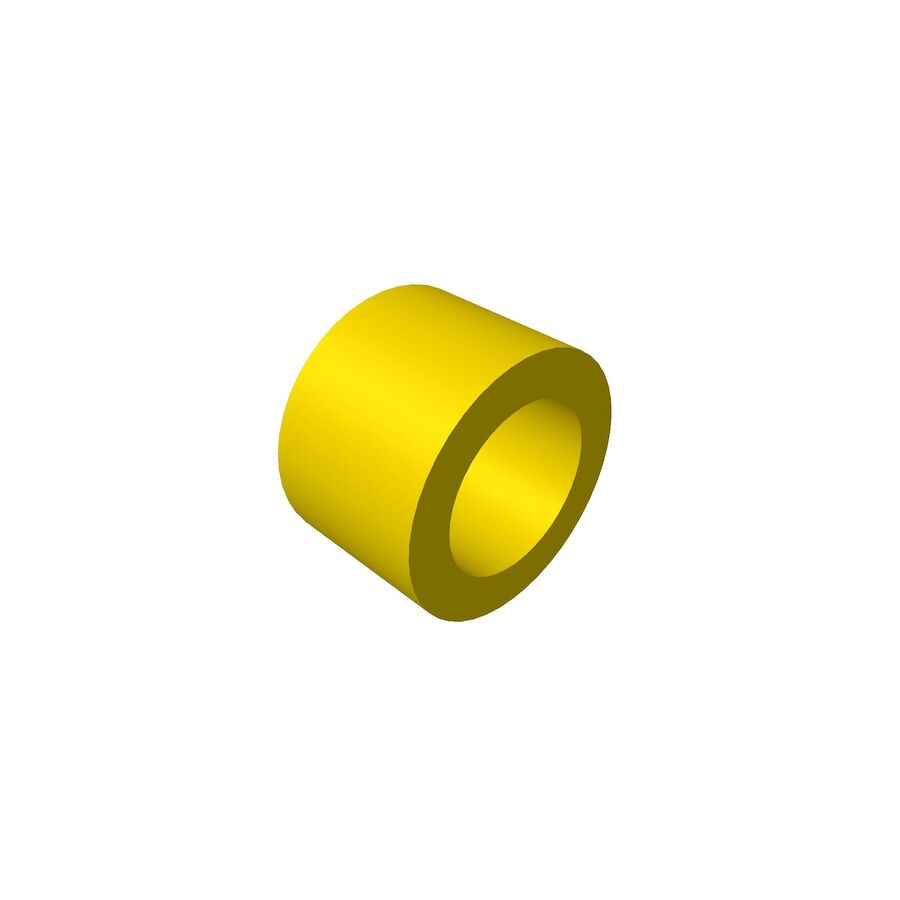

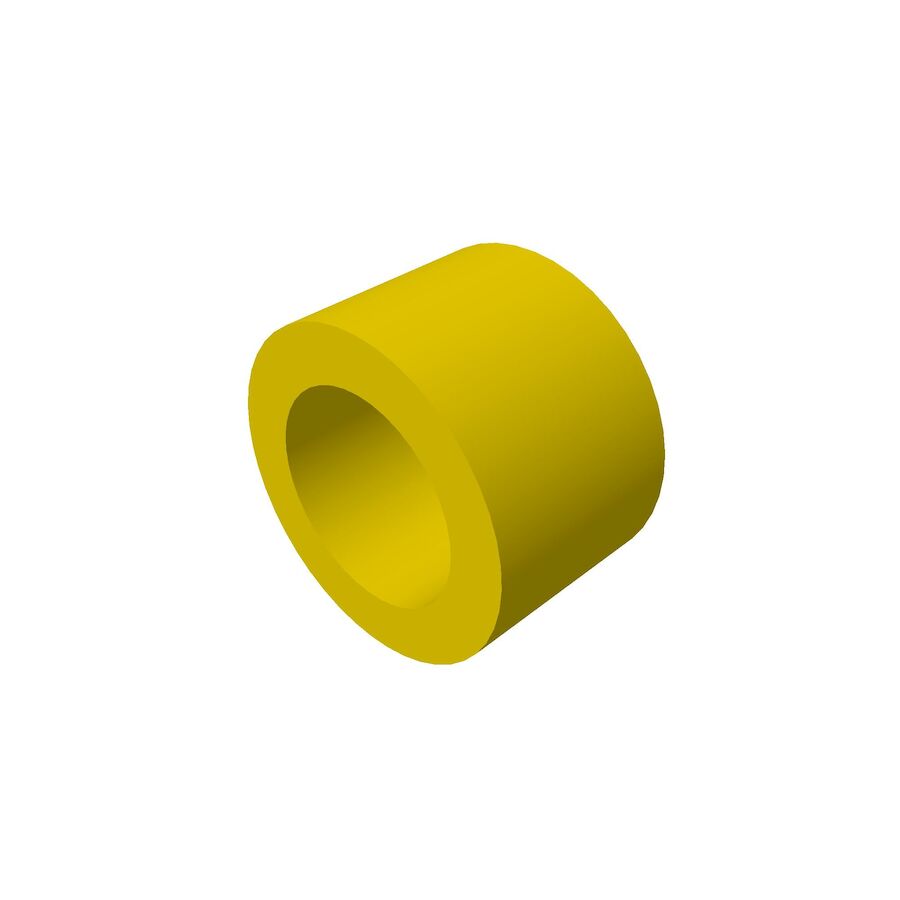

Toro OEM 133-2128 Anti-Scalp Wheel Spacer Fits Toro Titan HD (1500, 2000, 2500) Models - Select Z Master 2000 Models - Select Z Master 4000 Models - Current 52", 60" Grandstand HDX Models.

Toro OEM 133 2128 (Metal) Anti-Scalp Wheel Spacer or Rear Axle Spacer Fits on the Non-Molded Flange Side of the Anti-Scalp Wheel and is Often Used with a Two Spacer/One Bolt System. This Spacer System is Often Used on Models that Require the Anti-Scalp Wheel to Be Installed inside a Dual Bracket System with Retaining Ears on Both Sides of the Anti-Scalp. Toro 133 2128 Spacer Spaces the Non-Molded Flange Side of the Anti-Scalp Wheel Away from the Retaining Ear, eliminating it From Rubbing on the Retaining Ear and Enabling it to Spin Freely. 133-2128 Anti Scalp Wheel Spacer Fits Late TITAN HD Models (1500, 2000, 2500 - Standard & My-Ride - Models with Tube Style Framing) - Current Grandstand 52" & 60" HDX Models - Current/Late ZMaster 2000 Models (Tube Style Framing & I-Beam Framing) - Current/Late ZMaster 4000, Revolution Models.







*Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.

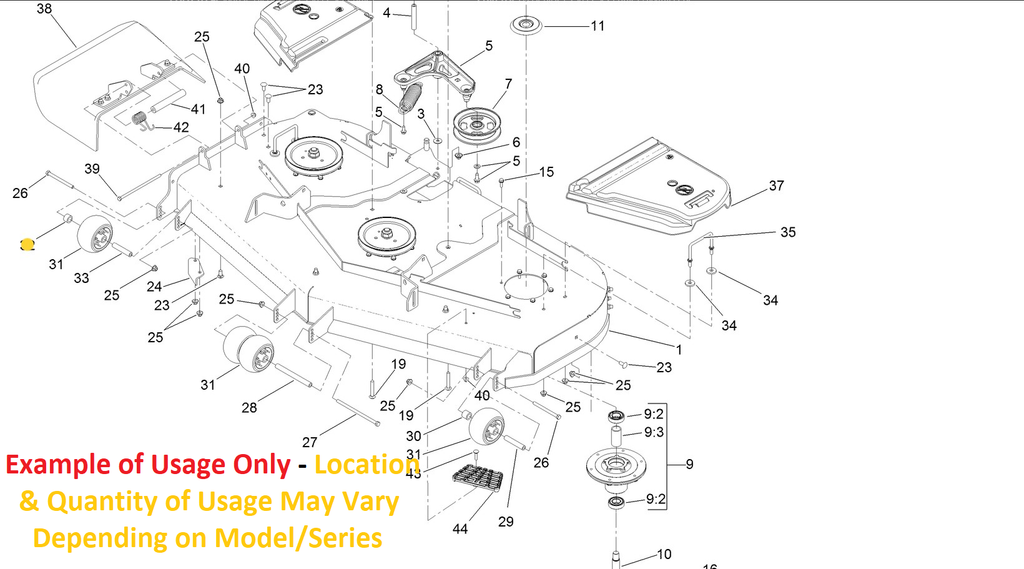

NOTE: * 133-2128 Anti-Scalp Wheel Spacer May be Used in Different Locations and in Different Quantities Per Mower, Depending on the Mower and Series Deck Size Ect. To Ensure a Correct Fit, Review the Model Fit Chart and Measurements in the Images and the Specification Chart in Comparision with the Needed replacement if this still Prove to be un-helpful feel free to Reach out to us here at Hilly Ridge for any additional Questions.







COMMON ASSOCIATED ANTI-SCALP WHEEL PARTS FOR PART NUMBER 133-2128 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 323-23 - HEX HEAD BOLT (Retains the Anti-Scalp Wheel, Anti-Scalp Wheel Spacer and Spanner to Mower Deck) x1 Per Anti-Scalp Wheel
2. 1-603299 - ANTI-SCALP WHEEL (Small Wheels Fastened to the Mower Deck and Aids in Helping the Mower Deck to Float Across Uneven Terrain, Helping to Eliminate Scalping) x? Quantity Varies Depending on Model/Series
3. 133-2128 - ANTI-SCALP WHEEL SPACER TUBE (Metal) - (Installed Over the Anti-Scalp Wheel Spanner Tube and Against the Non-Molded Flange Side of the Anti-Scalp Wheel to Eliminate the Anti-Scalp Wheel from Moving Side to Side and Rubbing Against the Metal Anti-Scalp Wheel Fastening Ears/Brackets) x1 Per Anti-Scalp Wheel *Primarily Used  With Part Number 133-2129 Anti-Scalp Wheel Spanner Only.
4. 133-2129 - ANTI-SCALP WHEEL SPANNER TUBE (Installed Through the Mower Deck Anti-Scalp Wheel and Anti-Scalp Wheel Spacer as well as Between the Dual Mower Deck Fastening Ears/Bracket - Enables the Fasteners Bolt/Nut to Be Firmly Tightened Without Bending the Mower Deck Anti-Scalp Wheel Fastening Ears/Bracket Against the Anti-Scalp Wheel) x1 Per Anti-Scalp Wheel
5. 104-8301 - FLANGE LOCK NUT (Retains the Anti-Scalp Wheel, Anti-Scalp Wheel Spacer and Spanner to Mower Deck) x1 Per Anti-Scalp Wheel







Specification

Product Number:	1332128, 133 2128
Brand:	Toro
Length:	0.750 IN (1.905 CM)
Width:	1.000 IN (2.540 CM)
Height:	1.000 IN (2.540 CM)
Weight:	0.082 LB (0.037 KG)





Model Fit:



TITAN HD



TITAN HD 1500 & HD 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 60" Late Models / Tubed Framing - (* Model Numbers 74452, 74462, 74467, 74480)



TITAN HD 2500 Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Early Models Only - (* Model Numbers 74471, 74472, 78472)



Z-MASTER



EARLY/LATE MODELS



Z Master 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - (* Model Numbers 74492, 74494, 74496, 74497, 77260, 77284, 77287, 77293, 77299)



CURRENT/LATE MODELS



Z MASTER 2000 MODELS – (Current/Late IBEAM – Framing Models) – (MODEL NUMBERS 77281, 77283, 77285, 77288, 77291, 77294)



Z MASTER 4000 MODELS – CURRENT/LATE MODELS- Current IBEAM – (MODEL NUMBERS 74000, 74002, 74004, 74010, 74015, 74020, 74035, 74050, 74052, 74054, 74055, 74057)



Z MASTER REVOLUTION MODELS – CURRENT/LATE MODELS- Current IBEAM – (MODEL NUMBERS 18752, 18760, 18762, 18765)



GRANDSTAND



52” GRANDSTAND – (HDX) – (* Model Numbers 72506)

60” GRANDSTAND – (HDX) – (* Model Numbers 72510, 72514)
