Description

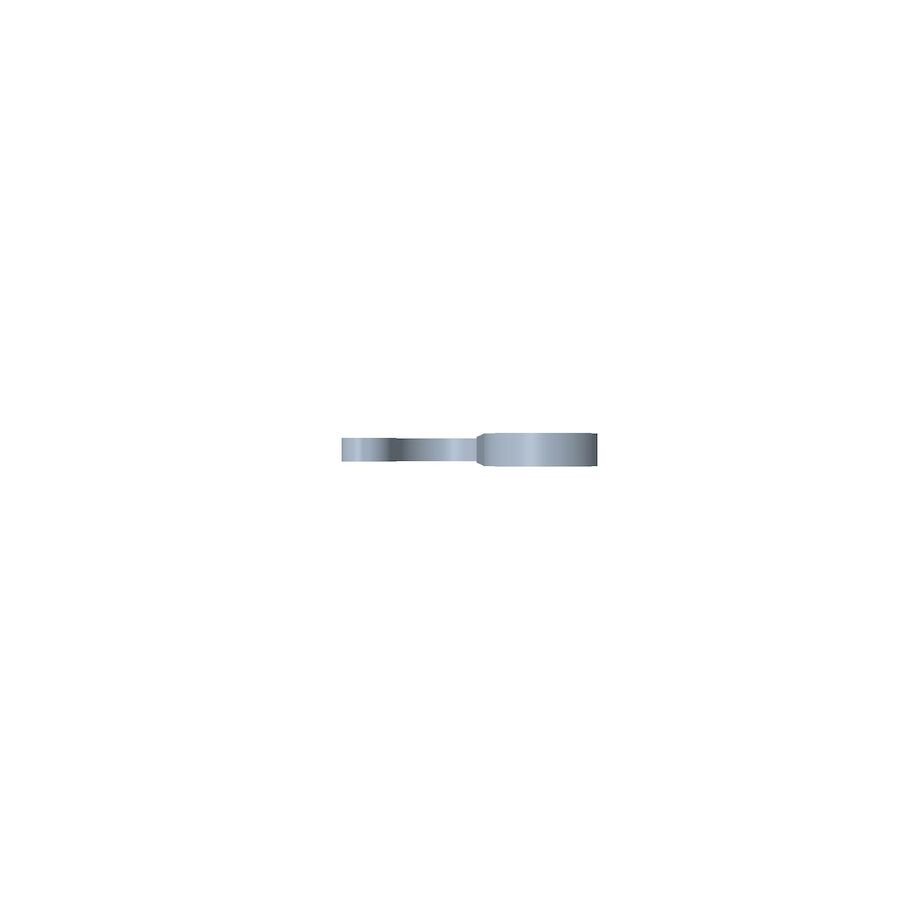

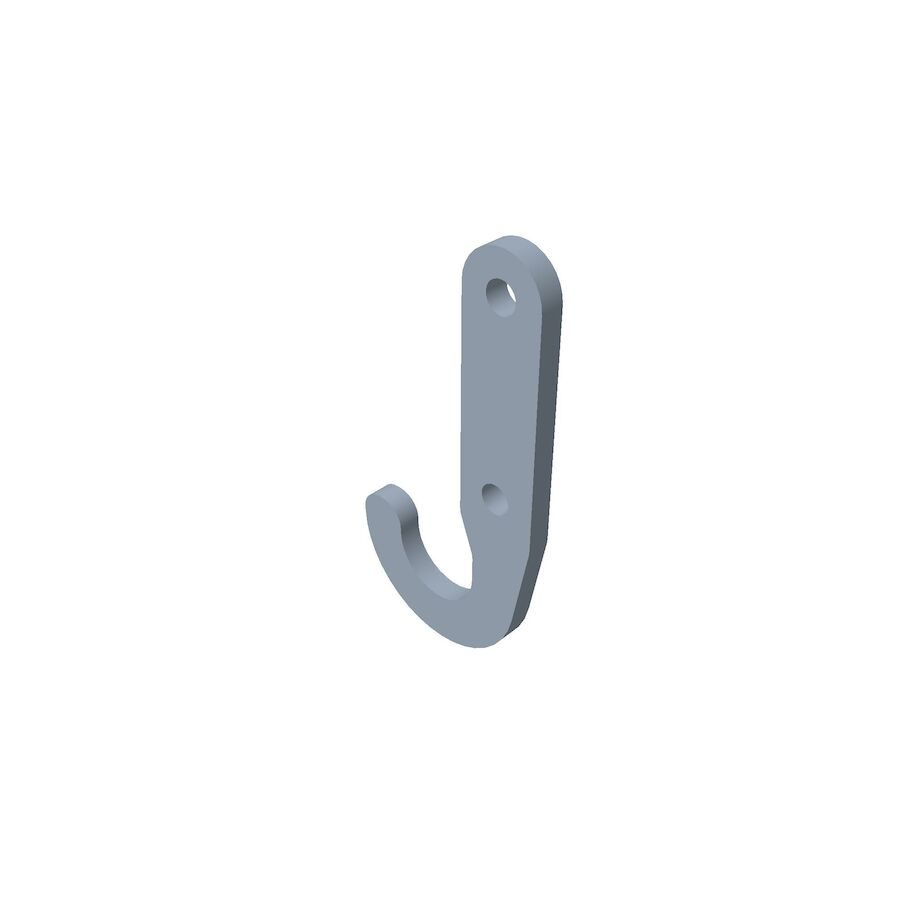

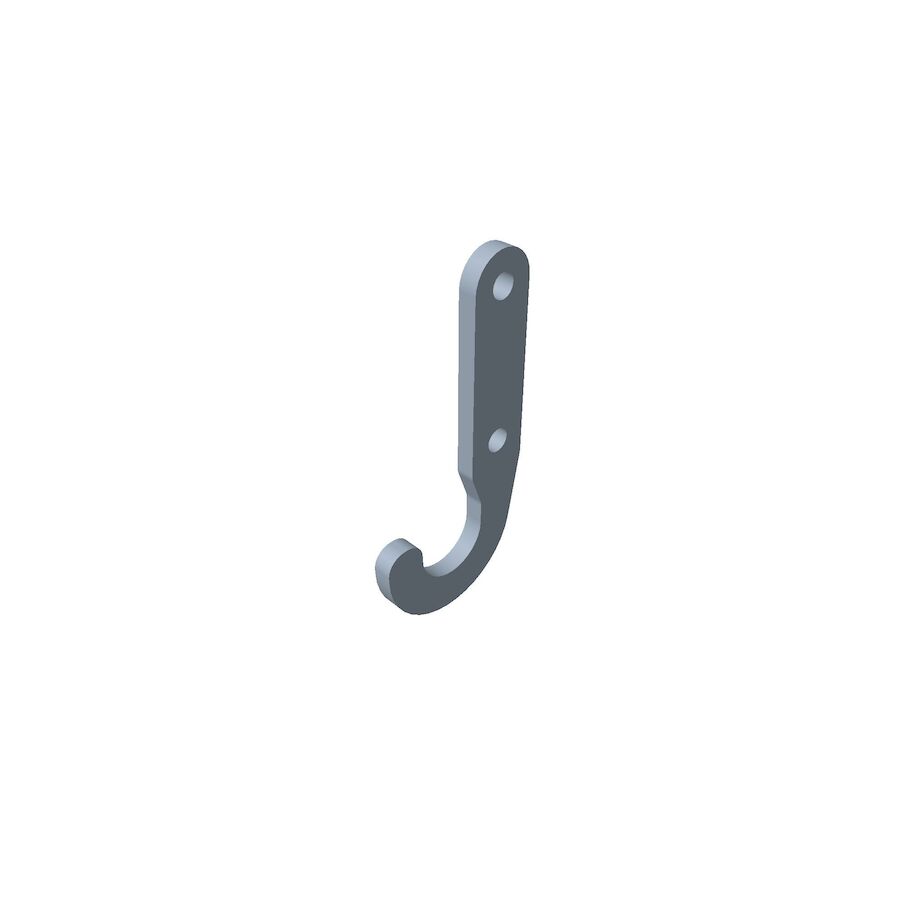

Toro OEM 133 1187 Retaining Lift Bracket Is Designed to Serve the Purpose of Retaining the Mower Deck Lift/Leverage Arm to the Frame as well as Allowing it to Pivot. Toro 133 1187 Is Designed for Toro Late 60" (MX) Timecutter Model 74777 Only. Please refer to the Images above; Product Specifications, Special Notes, and the Model Fit guide below to ensure proper fit.

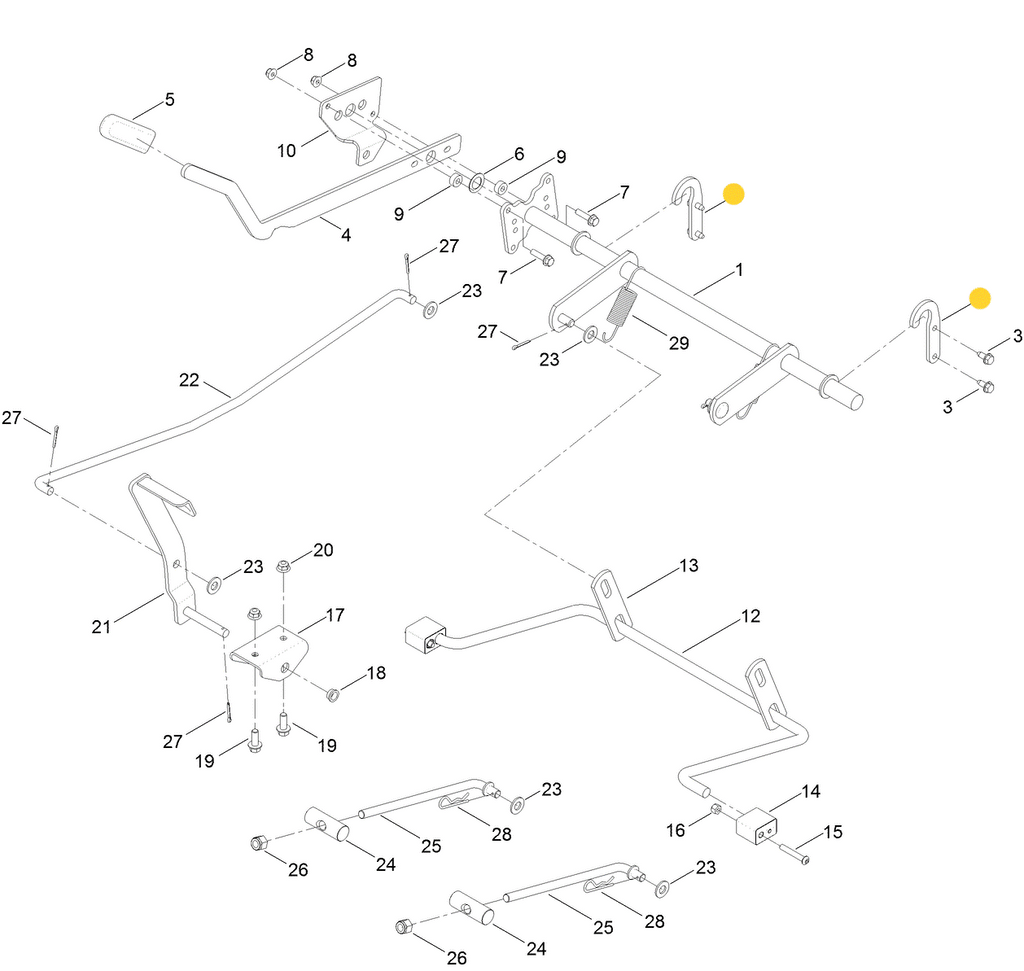

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 133-1187 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 32144-70 - WASHER HEAD BOLT - (Retains Mower Deck Lift/Leverage Arm Retaining Lift Brackets) x2 Per Bracket
-
133-7010-03 - MOWER DECK LIFT LEVARAGE ARM - (Fits Only 60" Timecutter Model 74777 - Travels across the Frame of the Mower and Attaches to the Lift Handle and Lift Linkage - Review Part Number Model Fit Chart to Ensure Correct Fit) x1 Per Unit
|
Product Number: |
1331187 |
|
Brand: |
Toro |
|
Length: |
4.750 IN (12.065 CM) |
|
Width: |
2.250 IN (5.715 CM) |
|
Height: |
0.250 IN (0.635 CM) |
|
Weight: |
0.304 LB (0.138 KG) |
Model Fit:
TIMECUTTER 60” MX Series – Model Numbers – 74777
