Description

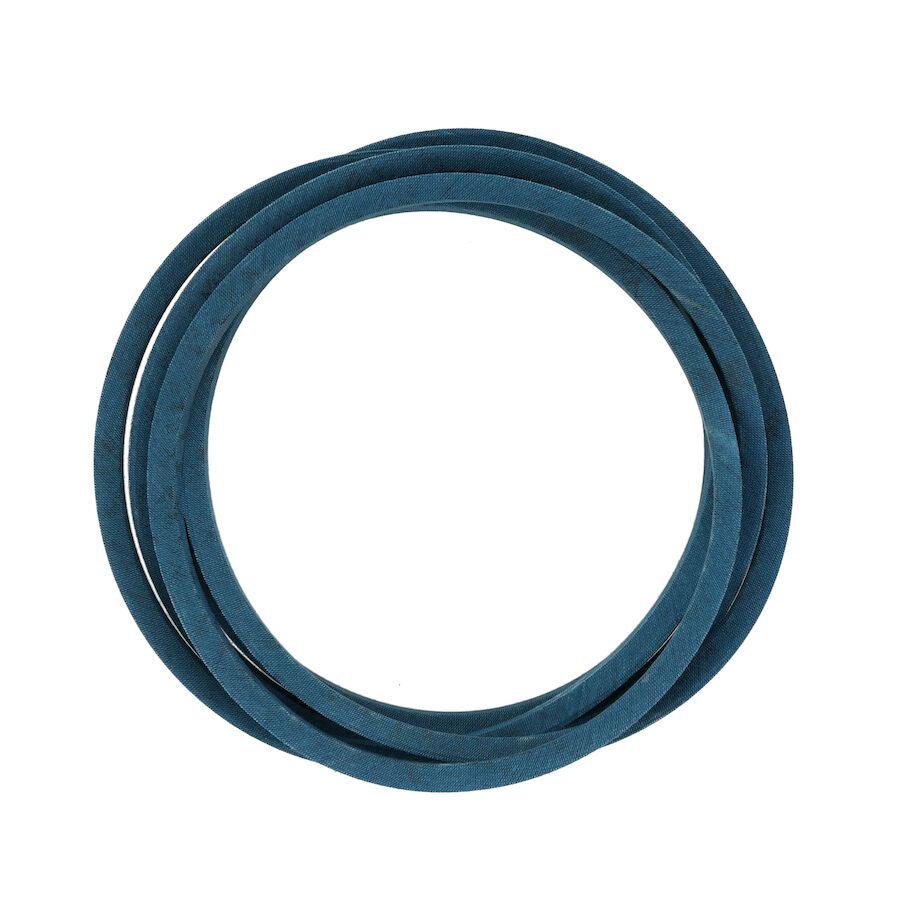

Toro OEM 133 1166 Mower Deck Belt is Crafted only from the Finest of Materials and Rigorously and Extensively Tested to verify it withstands the toughest of Operating Conditions. Expertly crafted from premium Aramids and/or Kevlar materials, the Toro OEM 133-1166 Is made to Fit Early and Current 48" Titan Models (* I-BEAM Frame Only - Exception to Model 74855), Models (* Refer to Model Fit Chart, Associated Parts Chart and Special Notes). Don't settle for imitations or substitutes when you can have - worry-free, designed to fit options, knowing that your Toro Mower Deck Belts are built, tested, and designed specifically to OEM Standards and Expectations. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit. Part Number 117-7325 Supersedes to Part Number 133-1166
NOTE 1: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Belt Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Page to Find the correct Model/Belt Part Number Combo.
NOTE 2: Some Early/Late Models with Tube Framing will take Mower Deck Belt Part Number 133-7075 However Not all Early Model will. So, to Eliminate Confusion Check Your Model Number with the Model Numbers That are Listed in the Mower Deck Belt Associated Part Number Chart Below in Comparison to the Part Number it is Associated with. If this does not prove helpful and you still need assistance with finding the correct part number feel free to text us, email or give us a call and we can try to help you. Remember if further assistance is needed you will need to provide Models and Serial Number of the Unit you are wishing to receive Help with. If you wish to be Redirected to a different Hydraulic Drive Belt Part Number Refer to the Hydraulic Drive Belt Part Number Reference Chart Below and Click on Associated Part Numbers to Redirected.

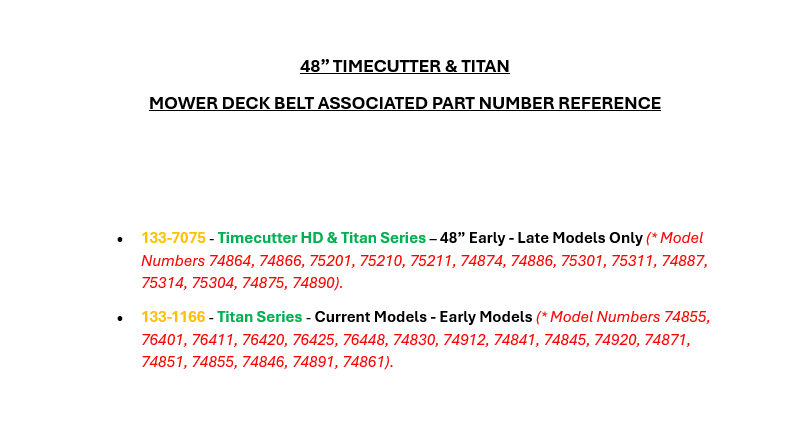

MOWER DECK BELT ASSOCIATED PART NUMBER REFERENCE
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
TITAN SERIES

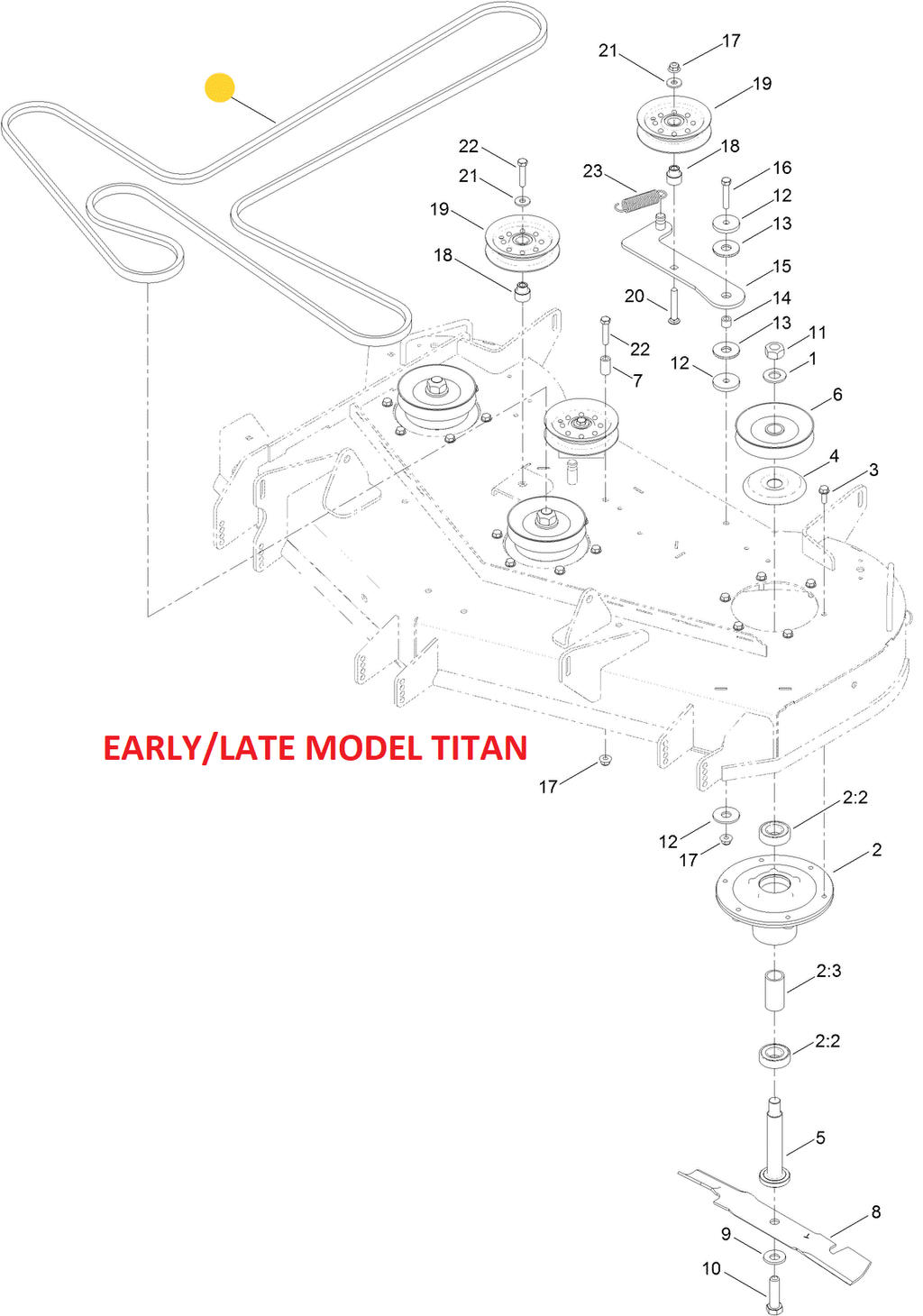

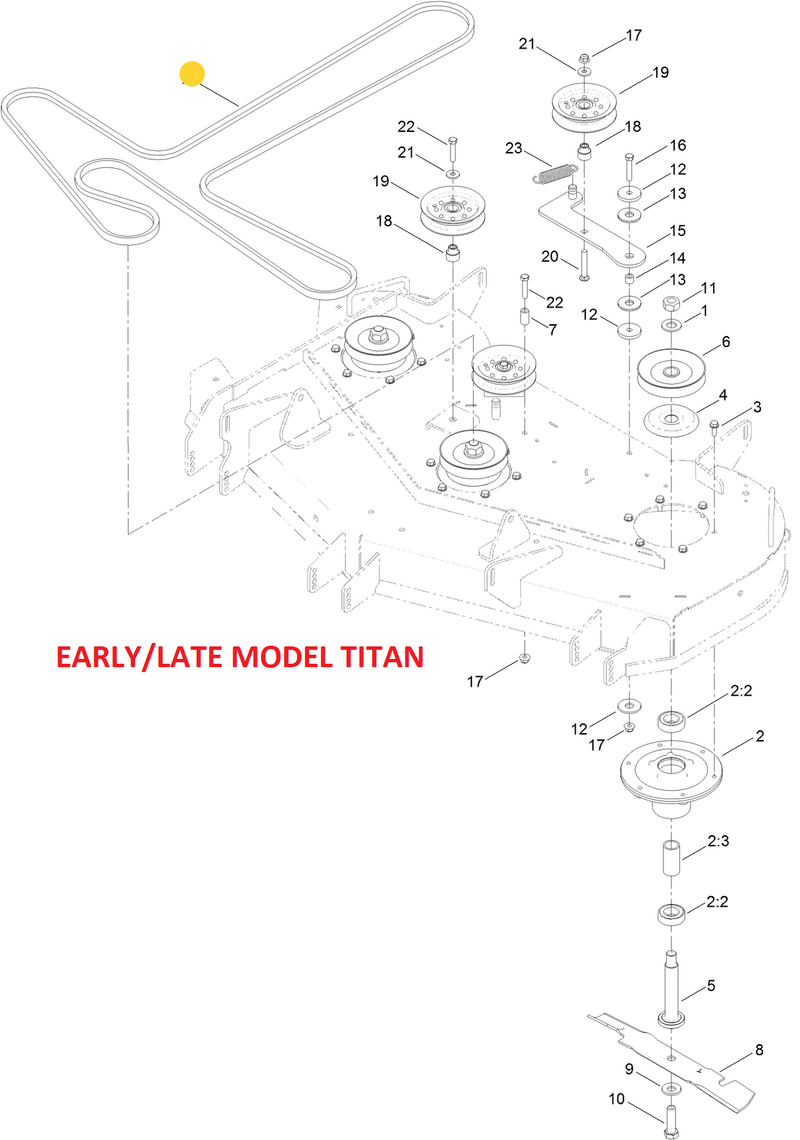

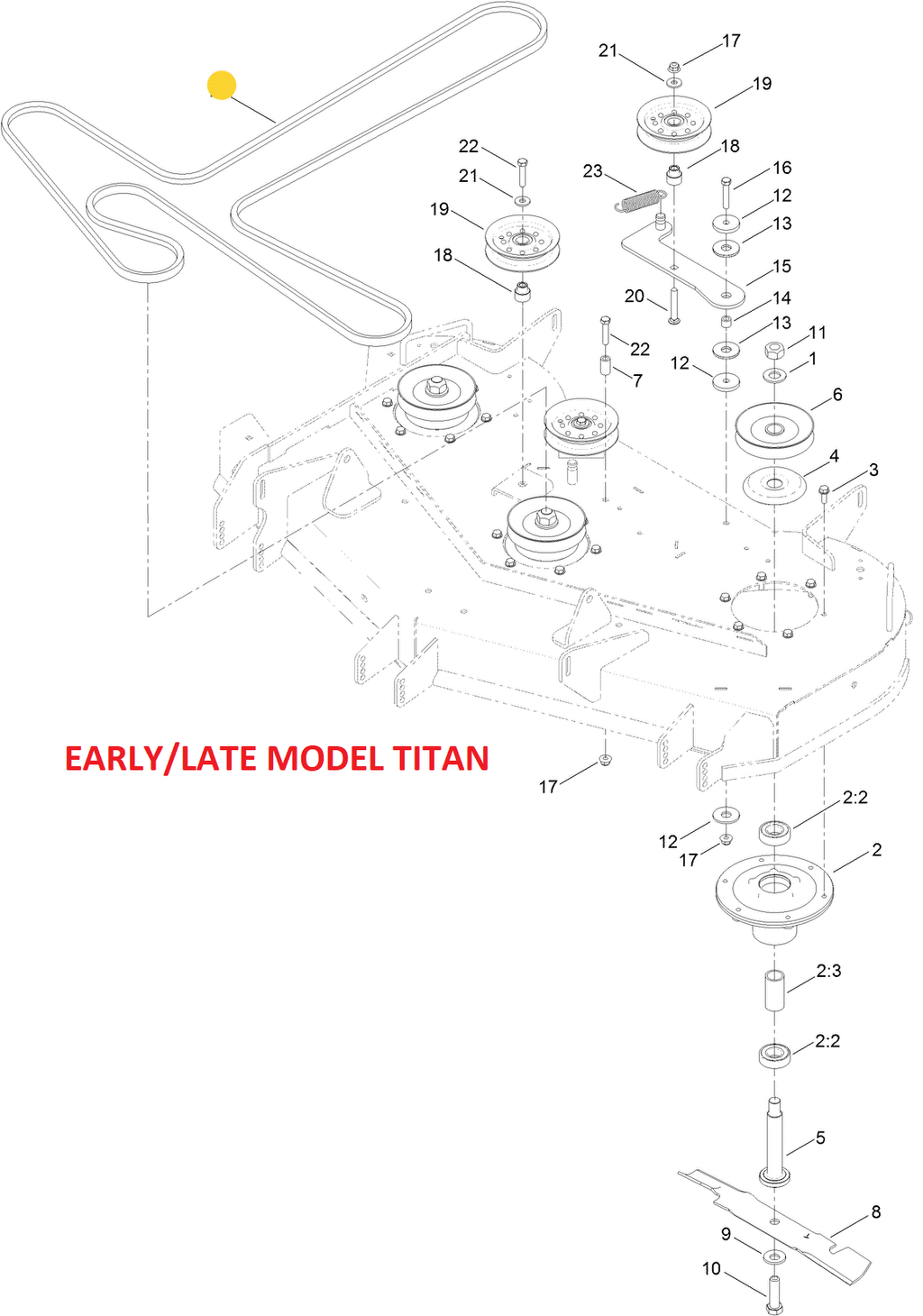

- 133-7075 - Titan Series - Early - Late Models Only (* Model Numbers 74864, 74866, 75201, 75210, 75211, 74874, 74886, 75301, 75311, 74887, 75314, 75304, 74875, 74890).

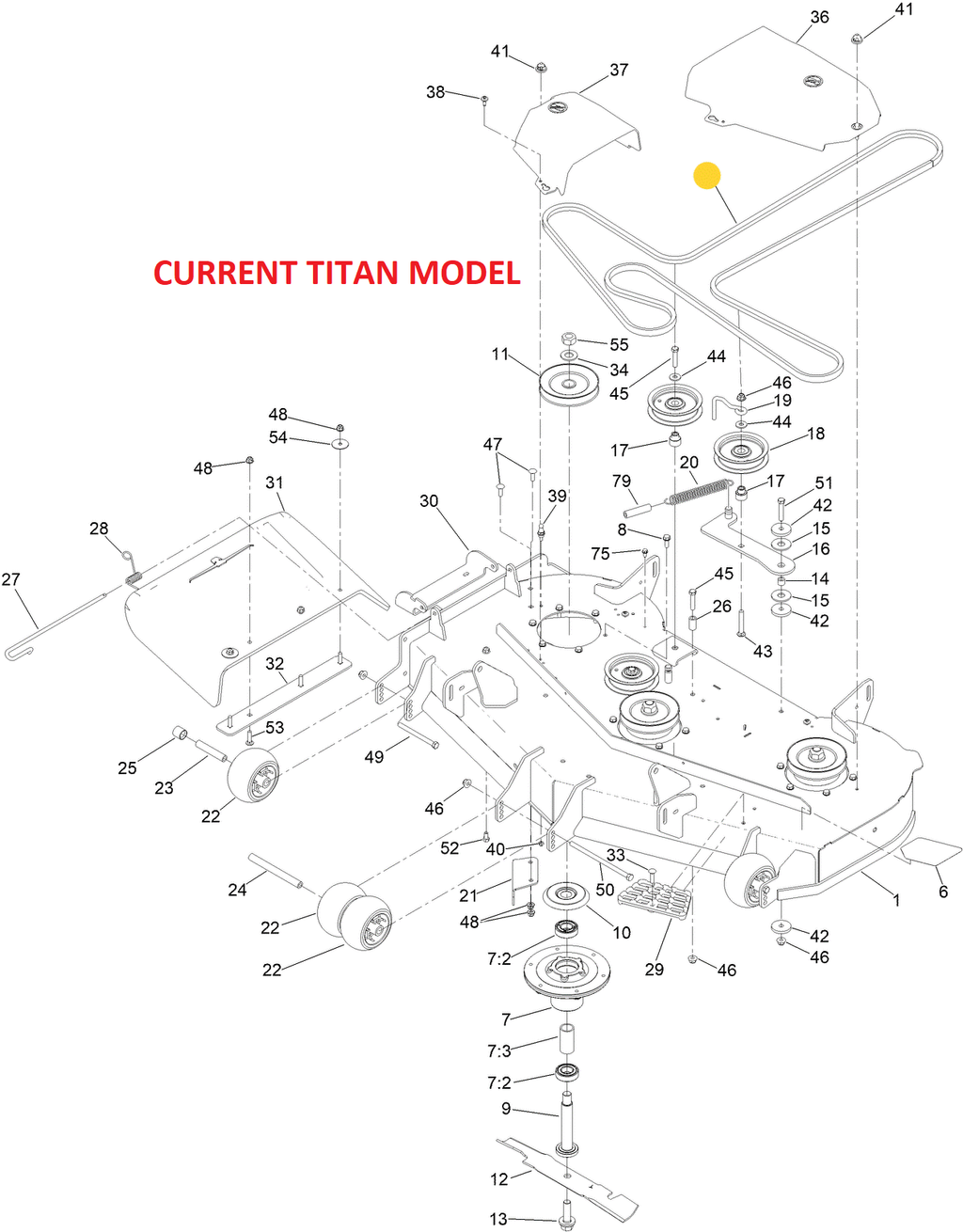

- 133-1166 - Titan Series - Current Models - Early Models (* Model Numbers 74855, 76401, 76411, 76420, 76425, 76448, 74830, 74912, 74841, 74845, 74920, 74871, 74851, 74855, 74846, 74891, 74861).
Specification
|
Product Number: |
1177325, 1331166 |
|
Brand: |
Toro |
|
Length: |
161 7/8 IN |
|
Width: |
5/8 IN |
|
Height: |
NA |
|
Weight: |
1.902 LB. |
Model Fit:
74855, 76401, 76411, 76420, 76425, 76448, 74830, 74912, 74841, 74845, 74920, 74871, 74851, 74855, 74846, 74891, 74861
