Description

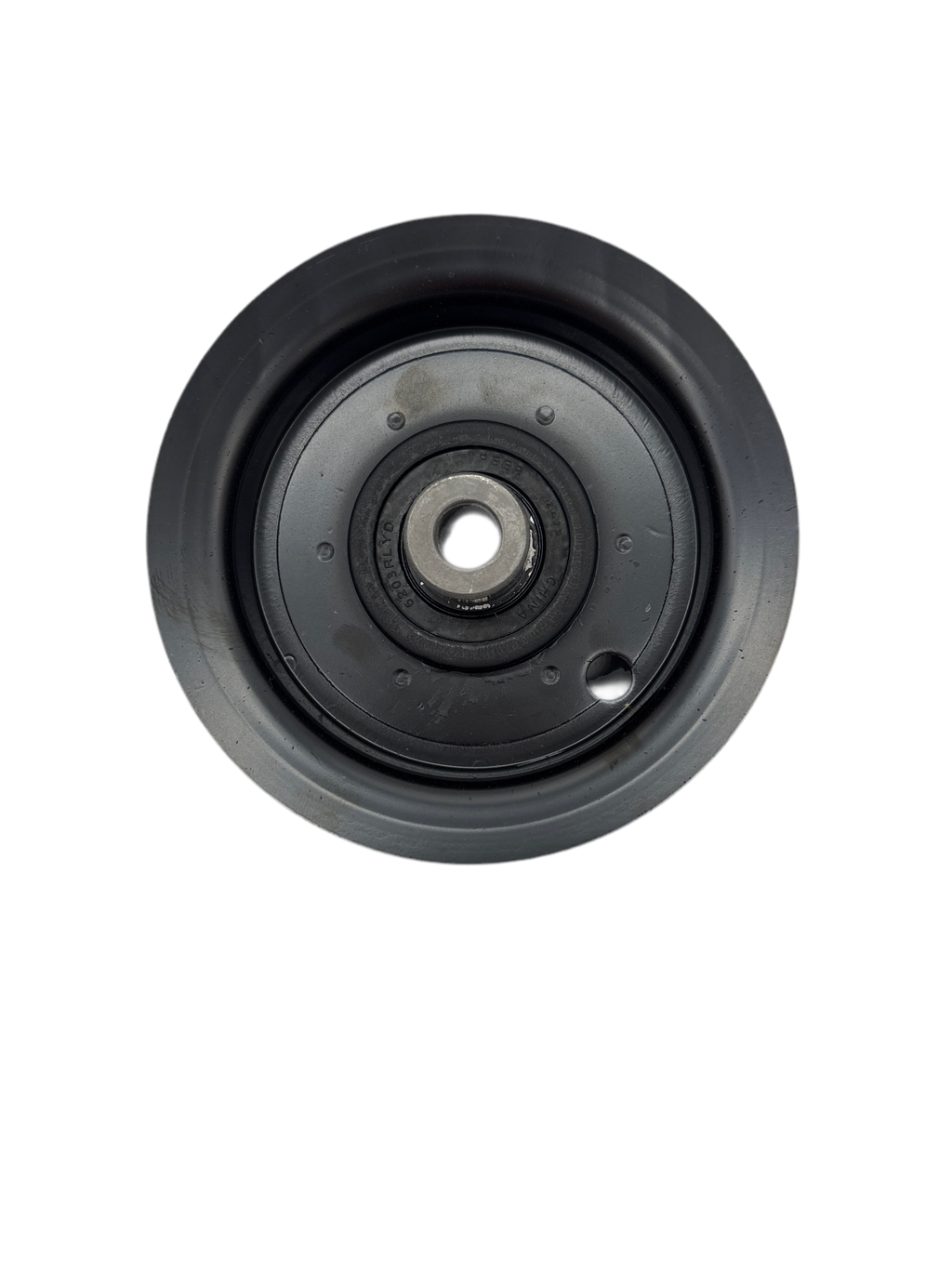

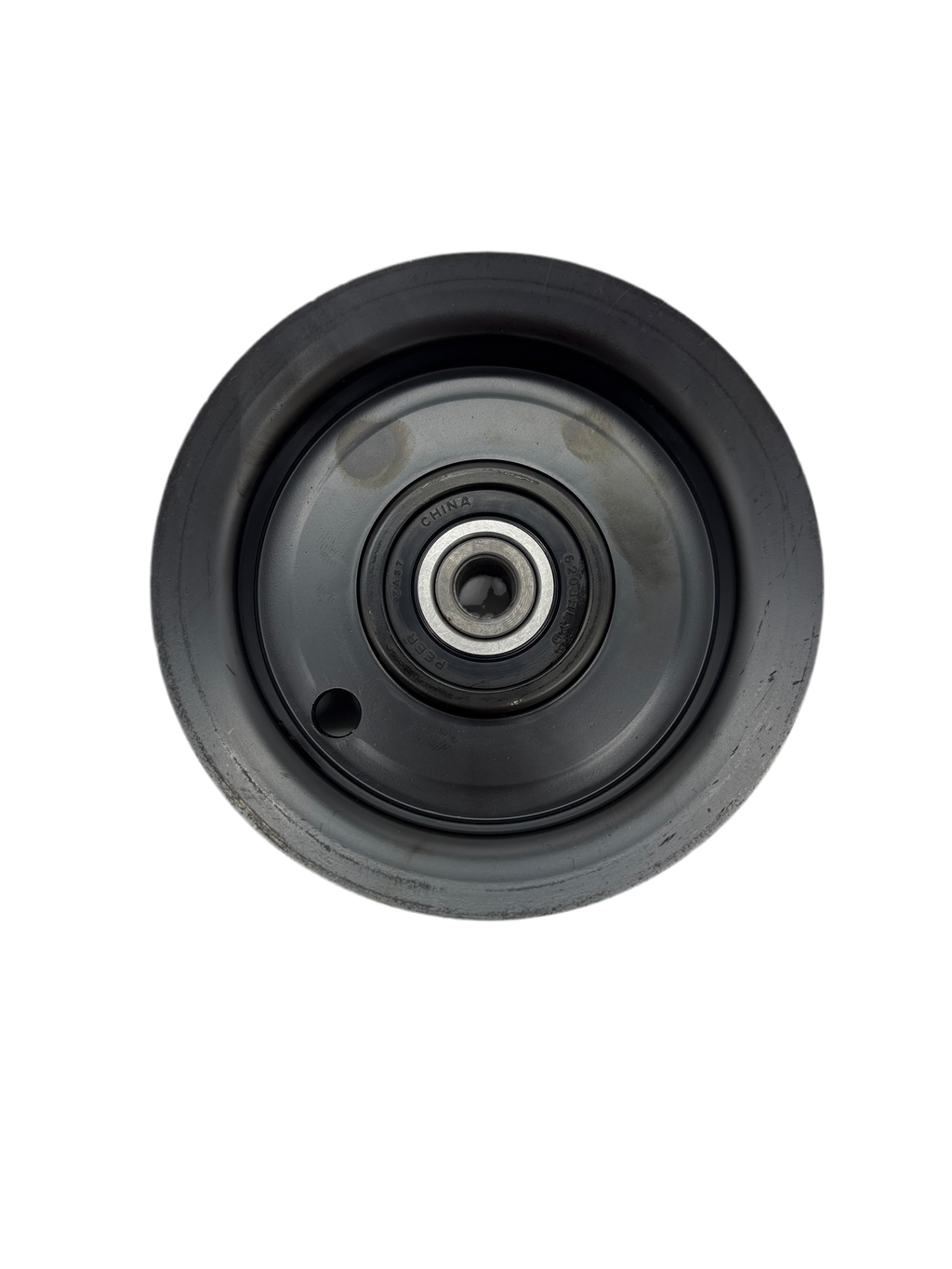

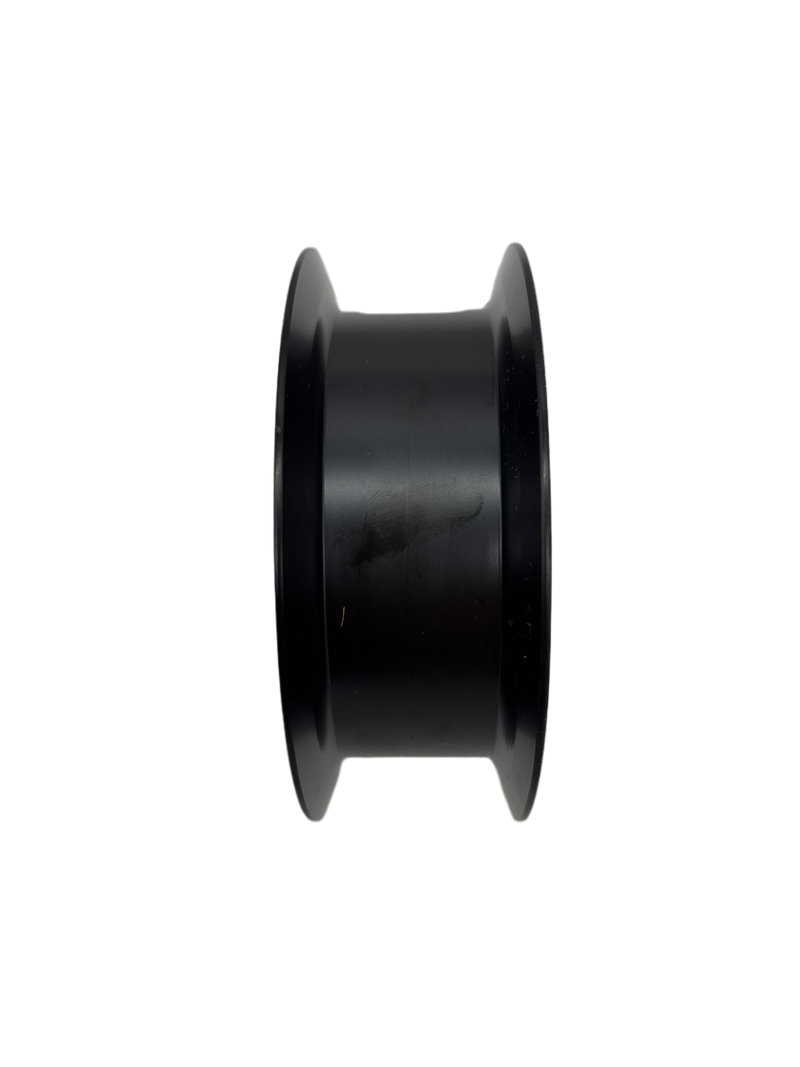

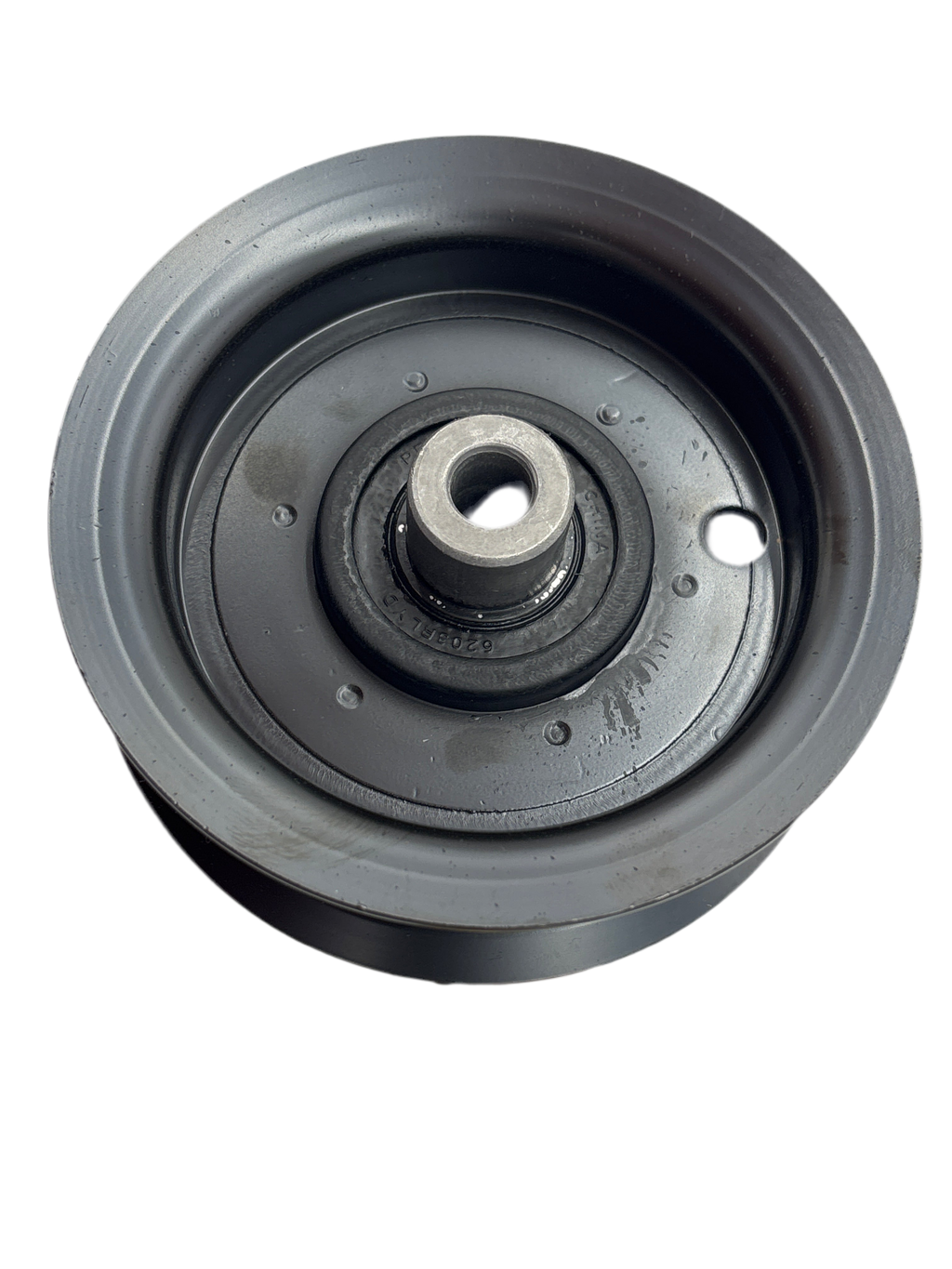

The Toro 132 9420 (Engineered to fit Heavy-Duty Metal Flat Idler) is constructed using durable steel alloy and high-quality ball bearings. This exceptional design enables the idler to endure long hours of operation in hot and dirty conditions without compromising its high-performance capabilities. The Toro 132-9420 OEM Mower Deck Flat Idler is specifically designed to fit the Toro Timecutter models (* With Exception of the Timecutter HD Models) with 32", 34", 38", 42", 50", 54" and 60" Mower Deck and Some Riding Tractor and Snowblower Attachment Models. Refer to the 132-9420 Usage Chart Bellow to determine how Many Idler Pulleys your Deck Contains according to Mower Deck Size. Part Number 106-2175 Supersedes to Part Number 132-9420.

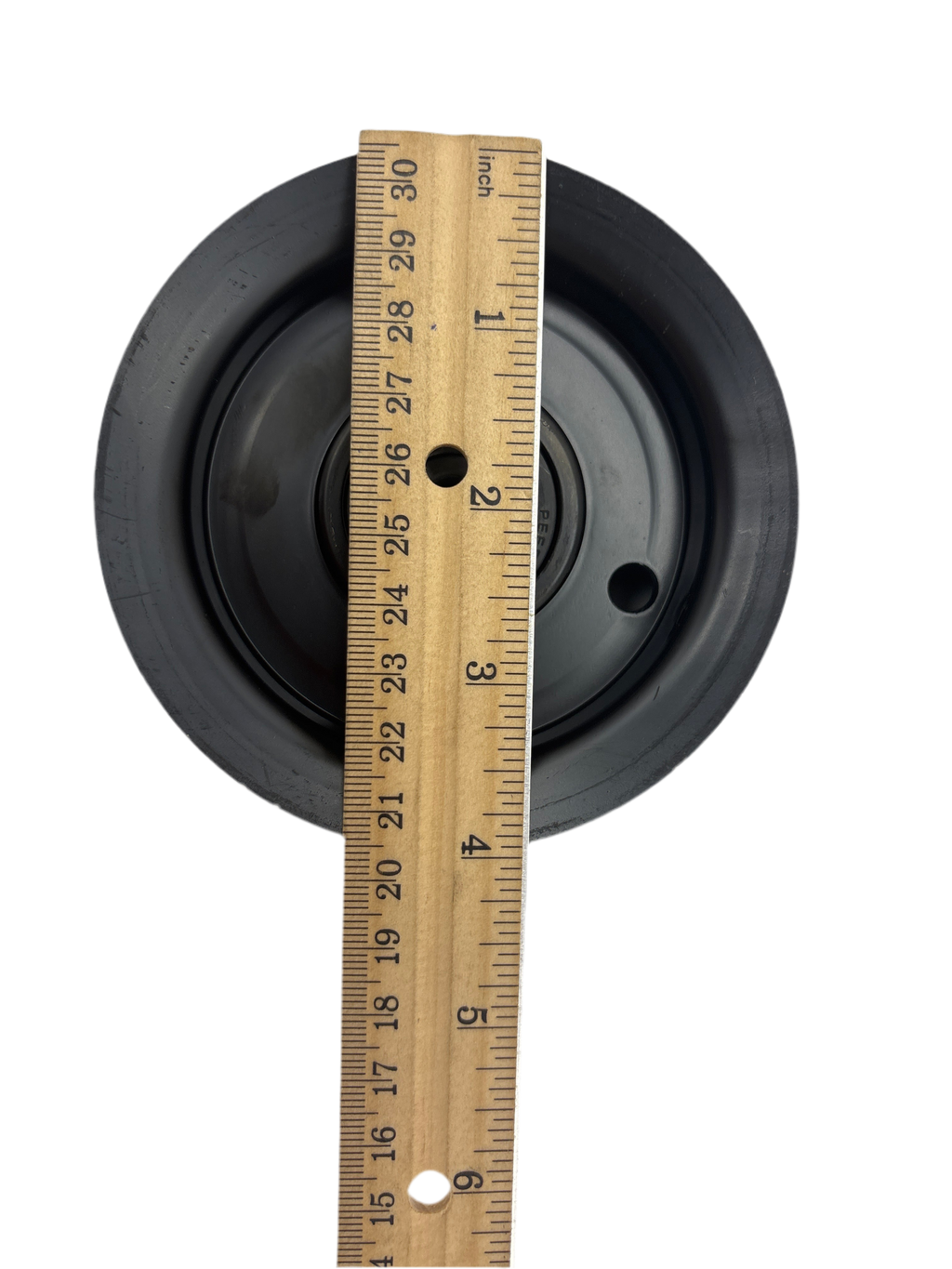

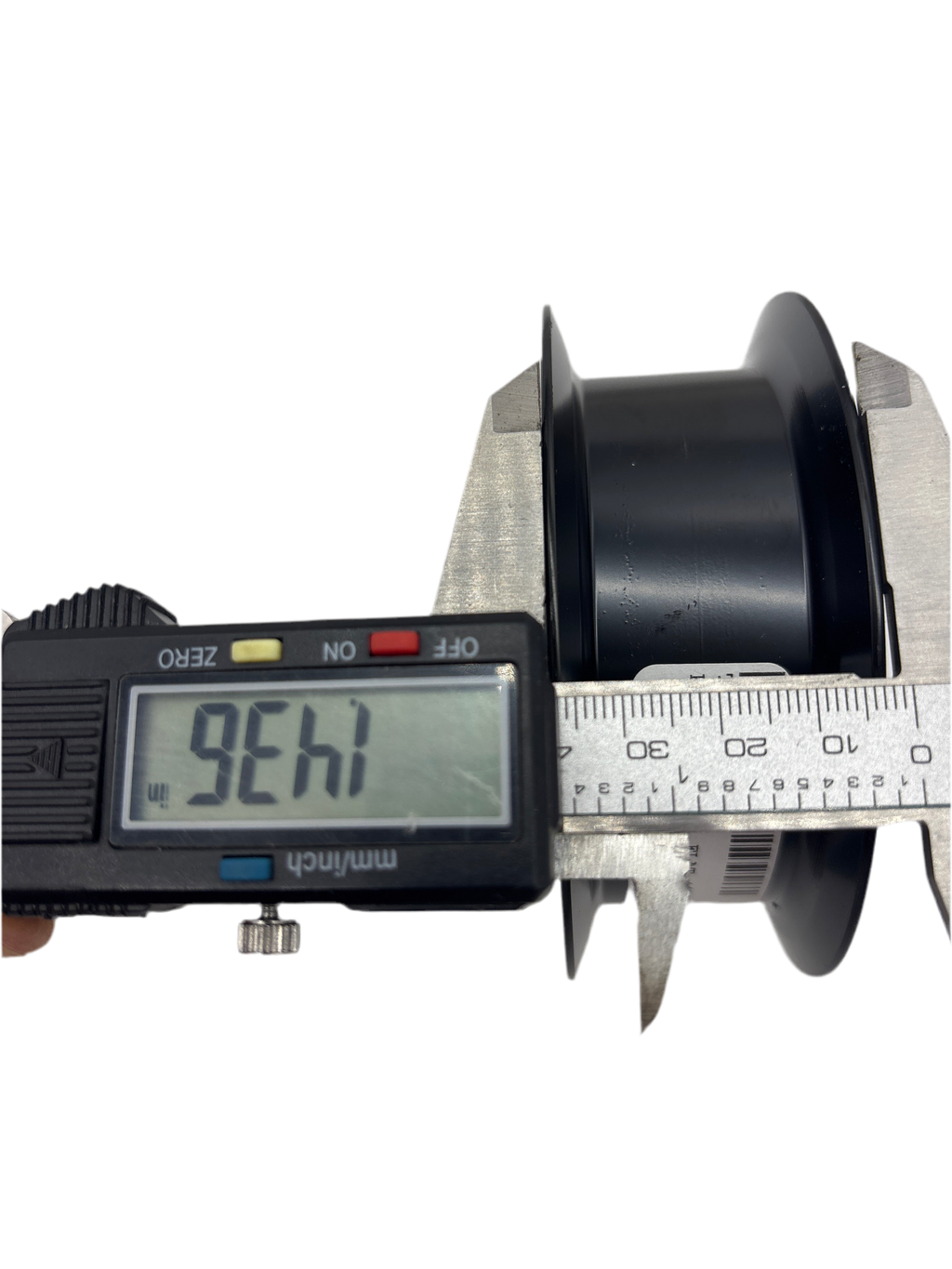

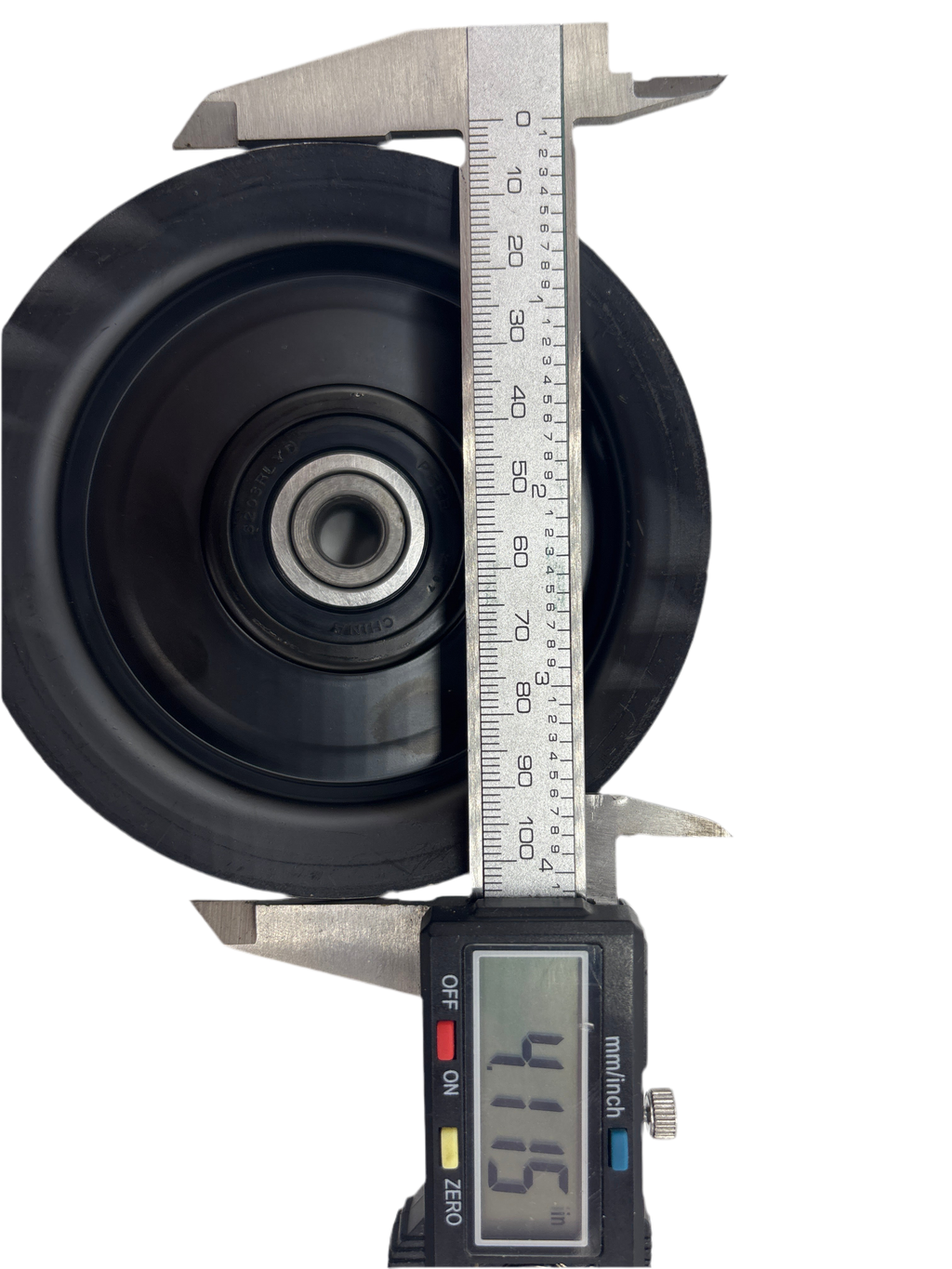

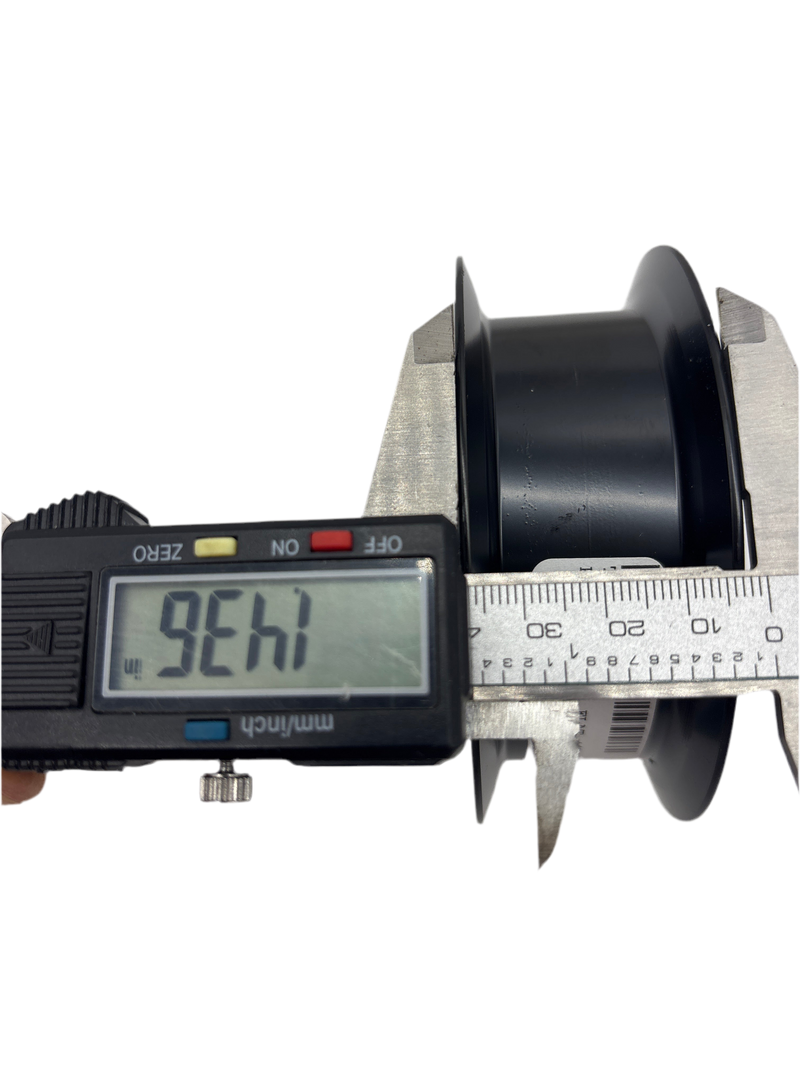

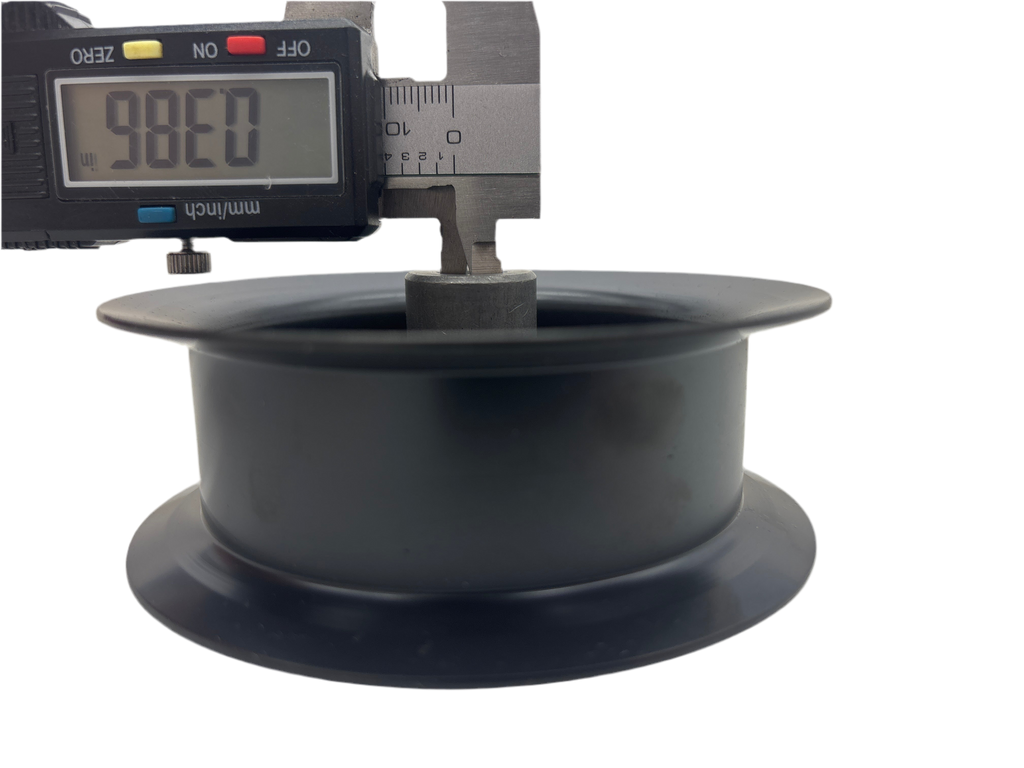

NOTE 1: Idler Pulley 132 9420 is not limited to the Timecutter Models only and could be used in other applications as well. To Eliminate Confusion, Search your Idler Pulley Type/Location as well as the Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Page to Find the correct Model/Idler Pulley Part Number Combo. Be sure to Verify Measurements in the Images Above as well. In Some Application's you May Also refer to The Mower Deck Belt That is Associated to the Model of your Unit for a Detailed Break-Down of Idler Pulleys Associated to the Model/Belt Part Number Combination.
NOTE 2: Timecutter HD Models will use a Different Idler Pulley to be Redirect to the correct Idler Pulley for the Timecutter HD Models Click on Part Number 132-4718. If you have Question as to if your mower is a Timecutter HD Refer to the 132-9420 Exemption chart below to determine if your Model Number Matches those in the Chart Bellow

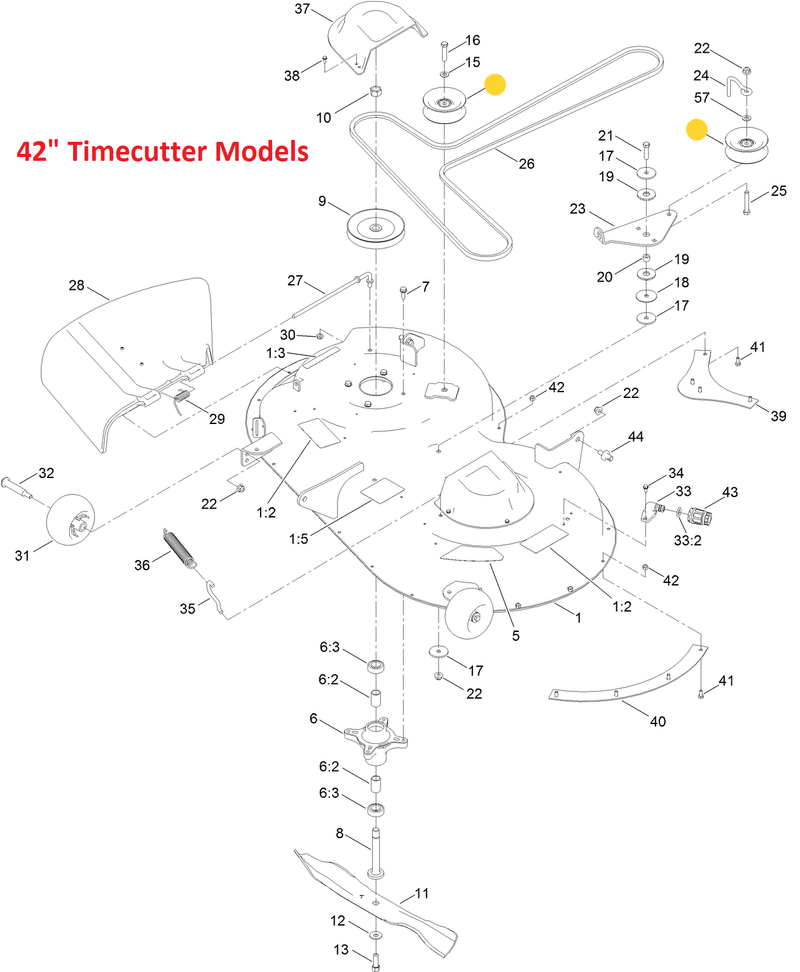

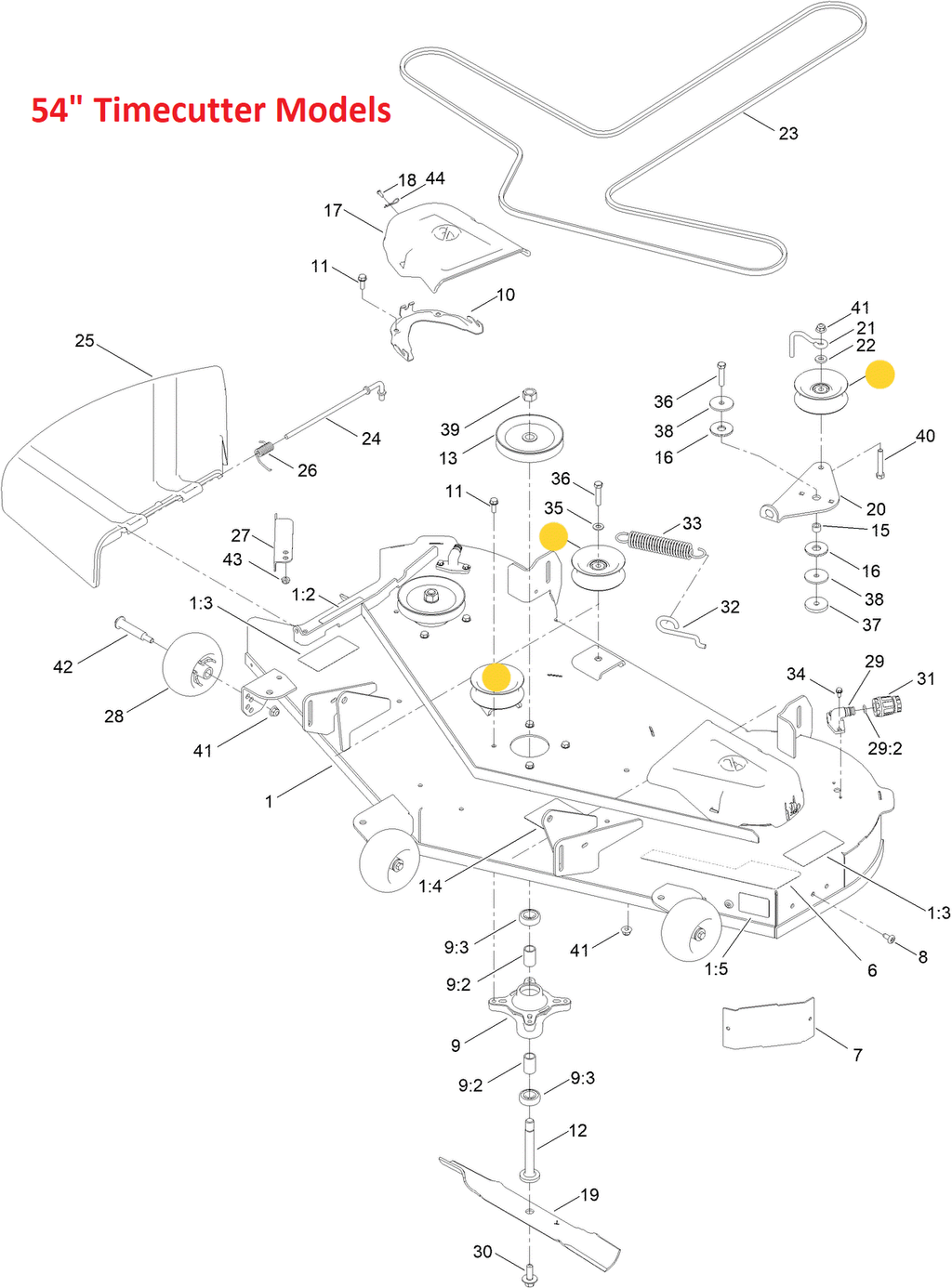

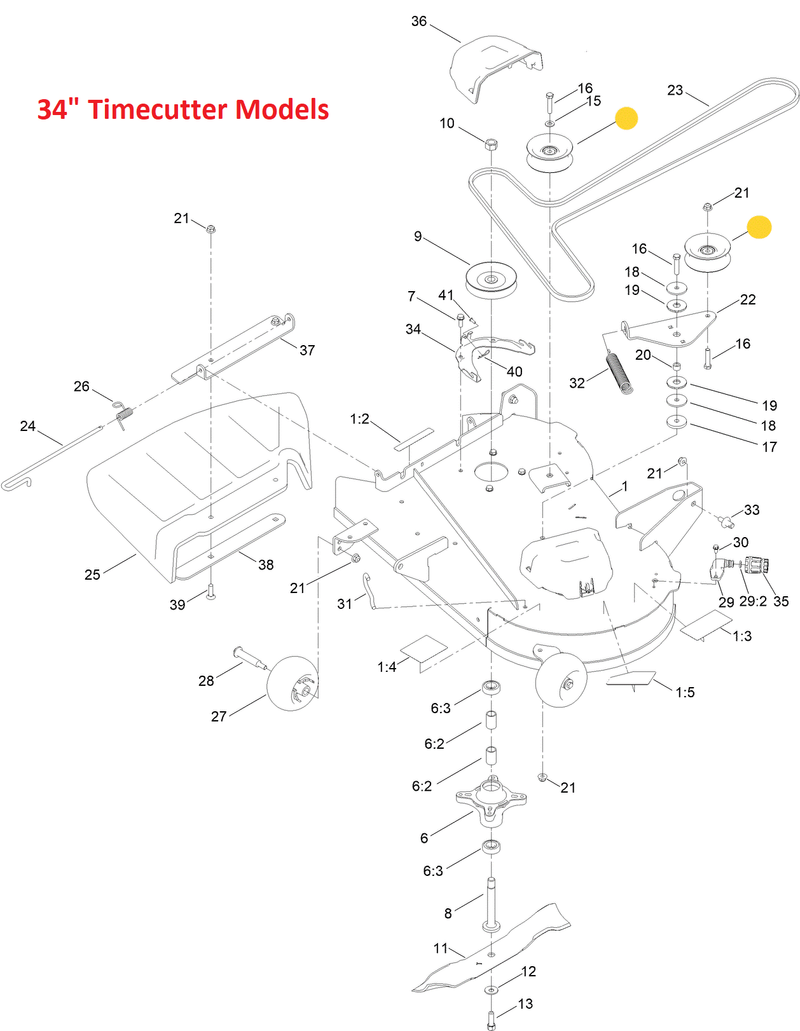

132-9420 QUANTITY/DECK SIZE USAGE CHART
* TIMECUTTER MODELS ONLY

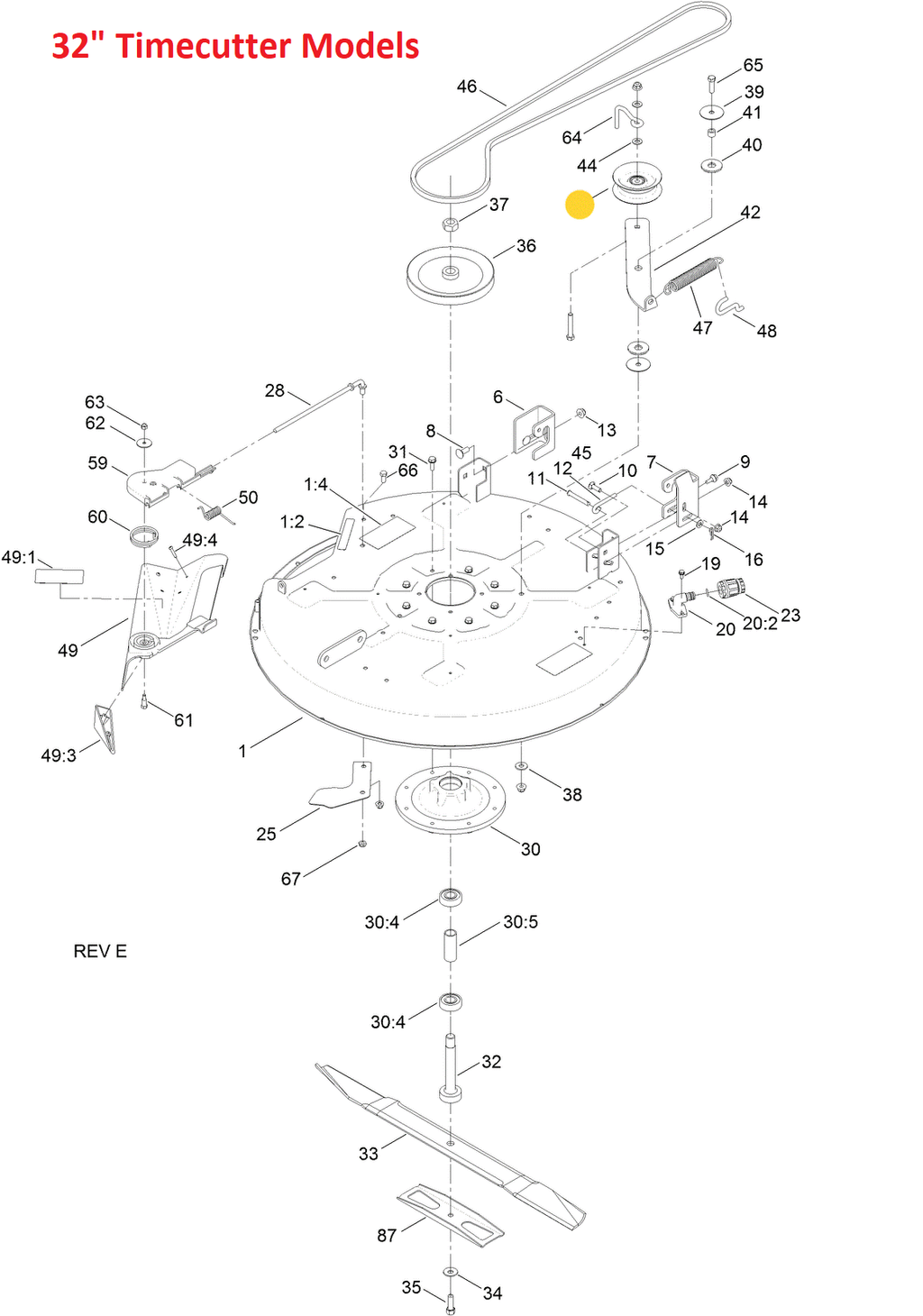

- 32" MOWER DECK - 1 PER MOWER DECK

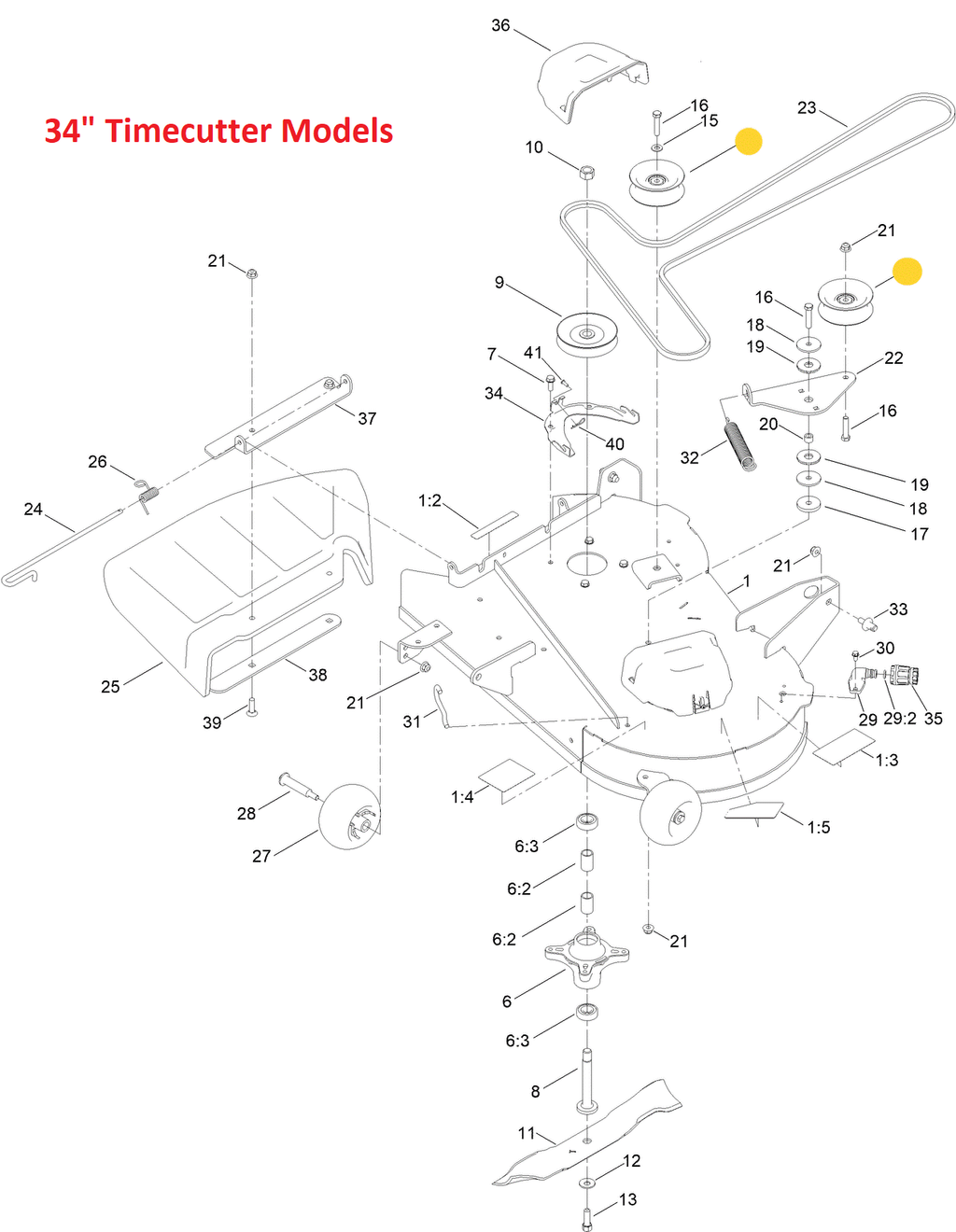

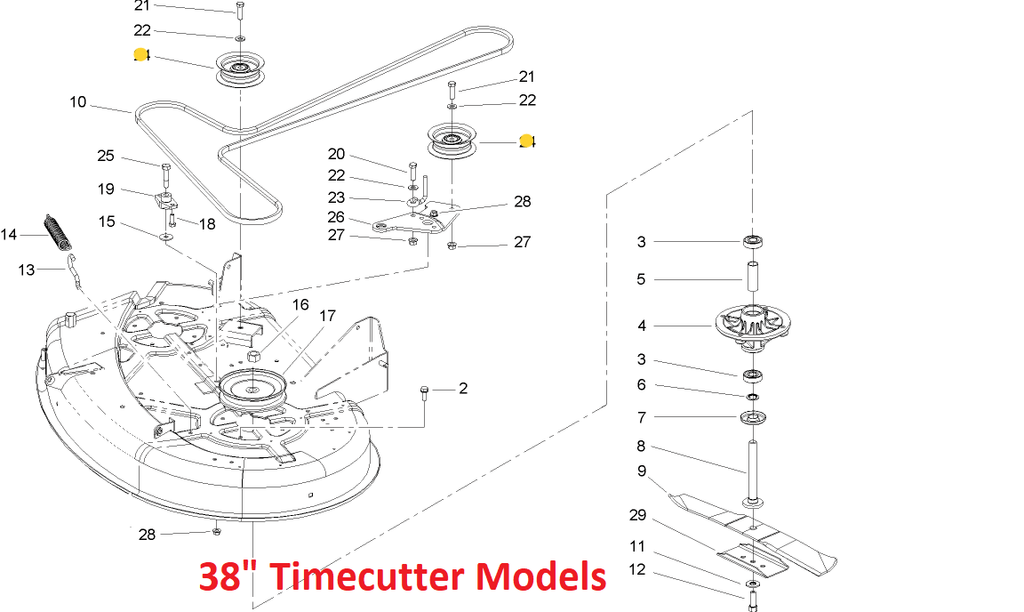

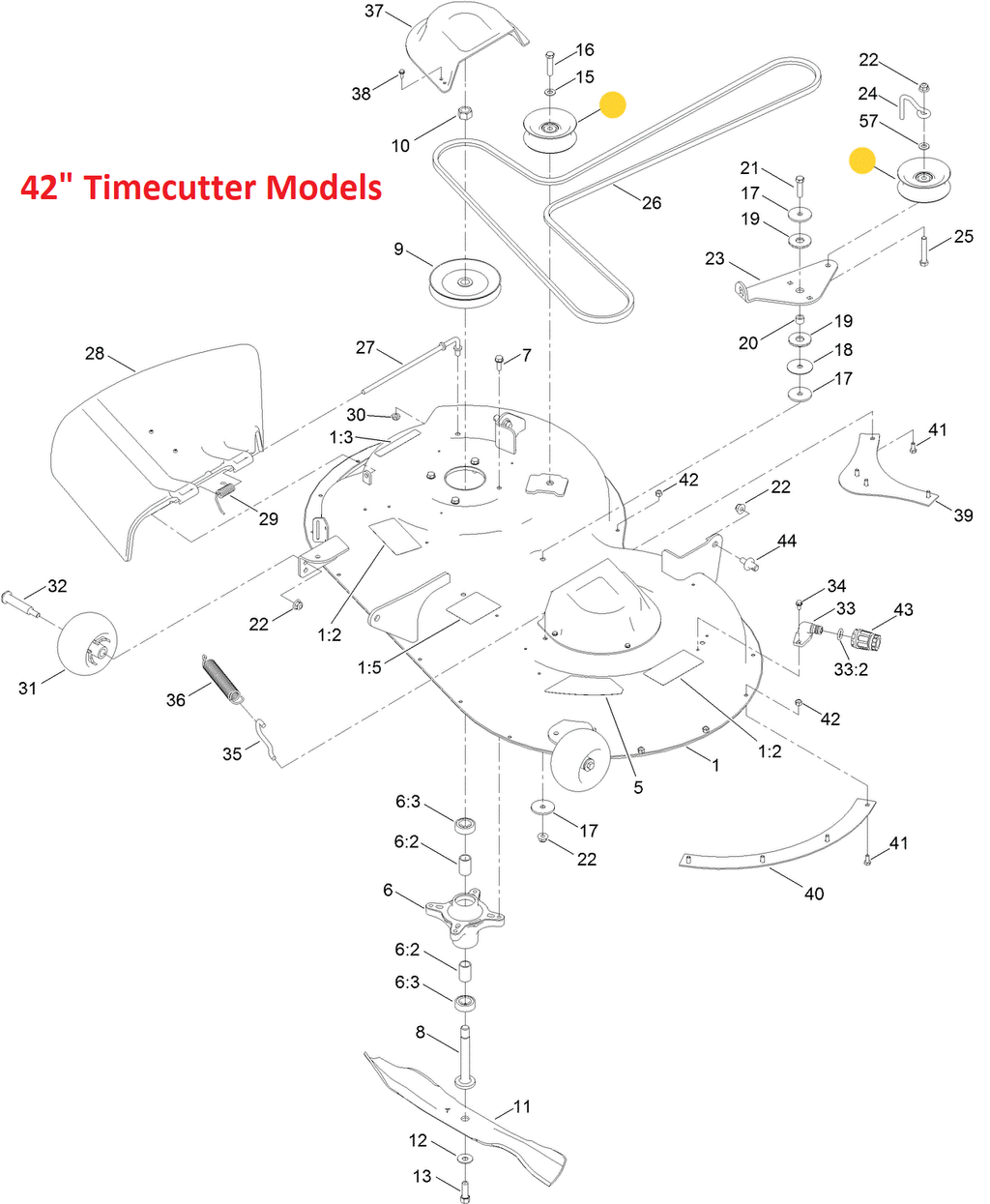

- 34", 38", 42" MOWER DECKS - 2 PER MOWER DECK

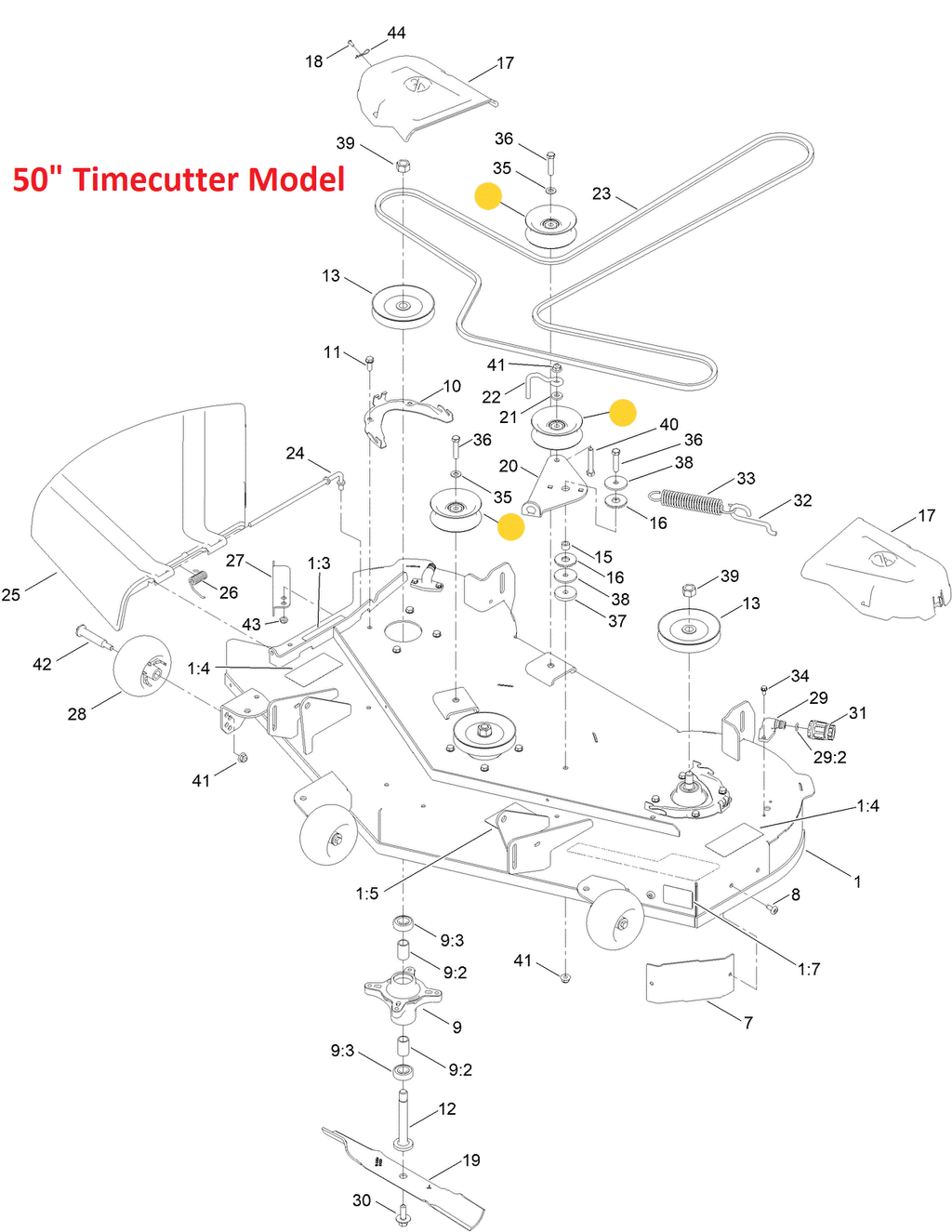

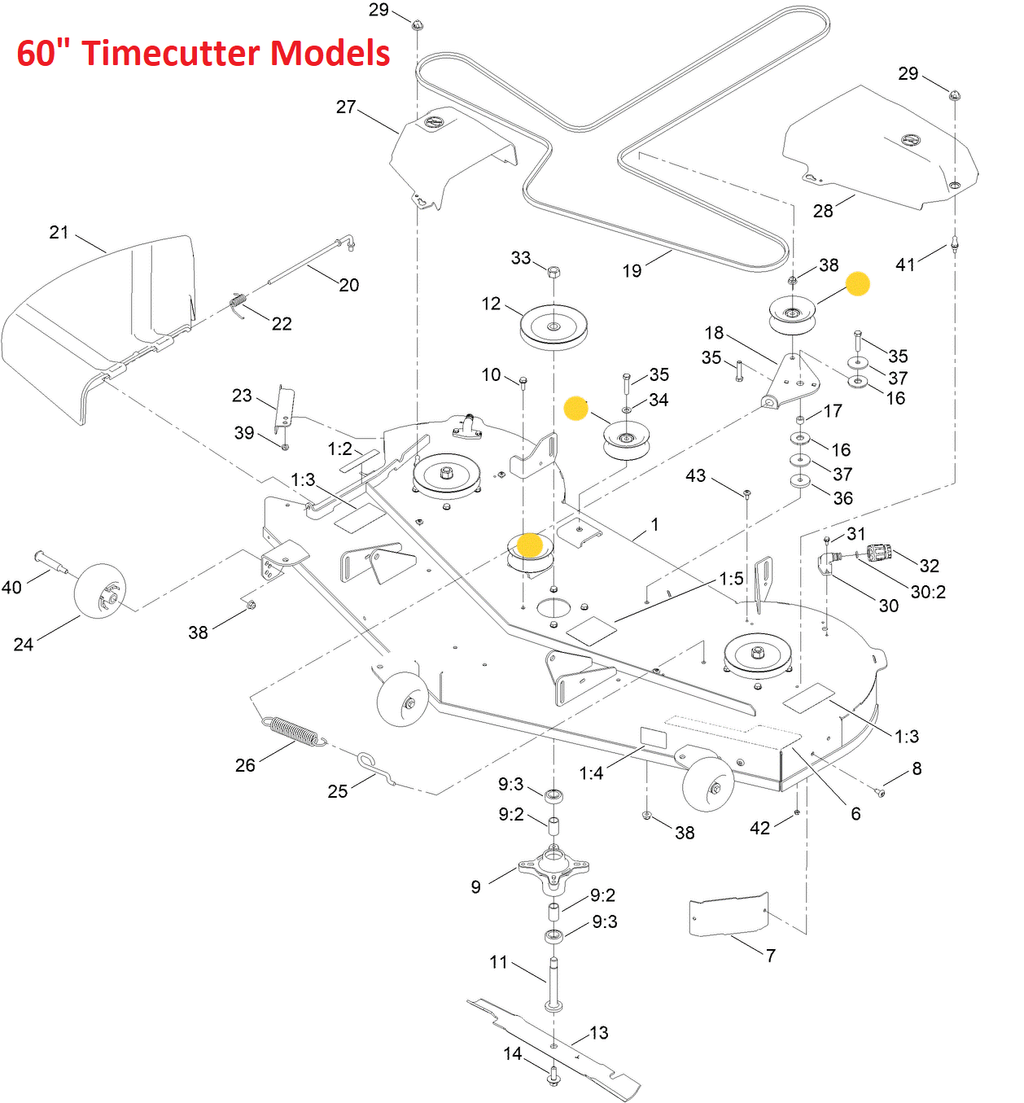

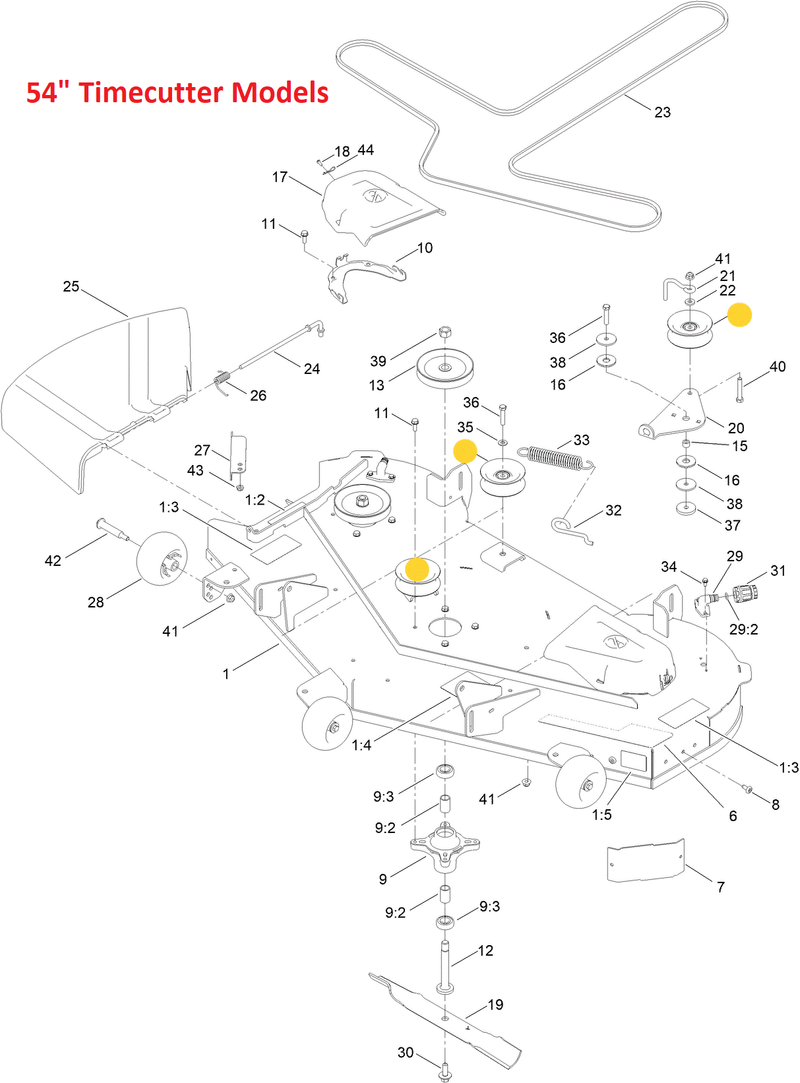

- 50", 54" 60" MOWER DECKS - 3 PER MOWER DECK
Specification
|
Product Number: |
1062175, 1329420 |
|
Brand: |
Toro |
|
Length: |
4.250 IN (10.795 CM) |
|
Width: |
4.250 IN (10.795 CM) |
|
Height: |
1.500 IN (3.810 CM) |
|
Weight: |
0.905 LB (0.411 KG) |
Model Fit:
74777, 74780, 74665, 74650, 74667, 74661, 74710, 74711, 74705, 74731, 74775, 74766, 74726, 74778, 74760, 74706, 74727, 74676, 74680, 74790, 74795, 74788, 74750, 74768, 74772, 74773, 74774, 74682, 74684, 74686, 74688, 74776, 74687, 74685, 74690, 74694, 75740, 75742, 75741, 75743, 75745, 75750, 75753, 75755, 75754, 75757, 75759, 75760, 75751, 75744, 75734, 75747, 75746, 75749, 75748, 75756, 74683, 74691, 74695, 77401, 75762, 75763, 74677, 74679, 77301, 77501, 77502, 77504, 77503, 77601, 77602, 77603, 77505, 77404, 77506, 77507, 74696, 74692, 77604, 79483, 74325, 74301, 74330, 74350, 74351, 74402, 74403, 94301, 94330, 94351, 99483, 81230, 81235, 81240, 81245, 81250, 74352, 74704, 81228, 81229, 81242, 94352, 94327, 74327, 74353, 81243, 81246, 74425, 74408, 74409, 74360, 74370, 74372, 94360, 94370
